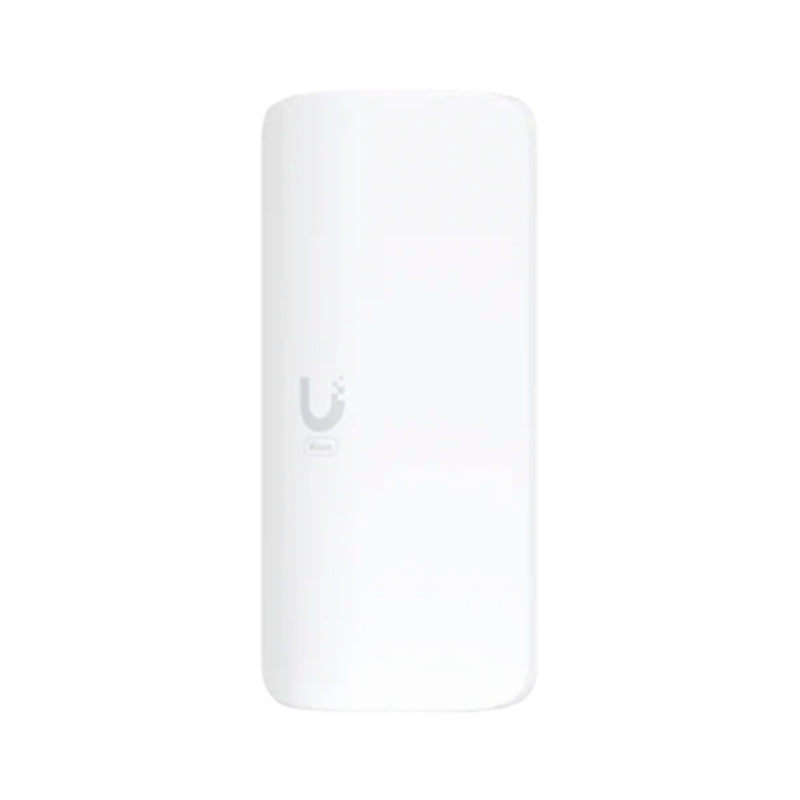

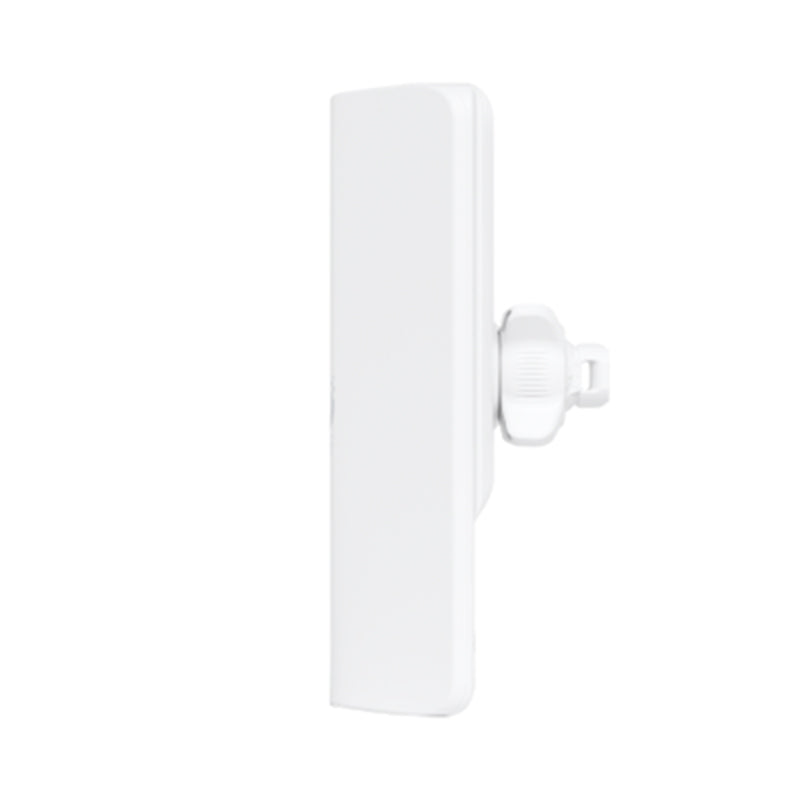

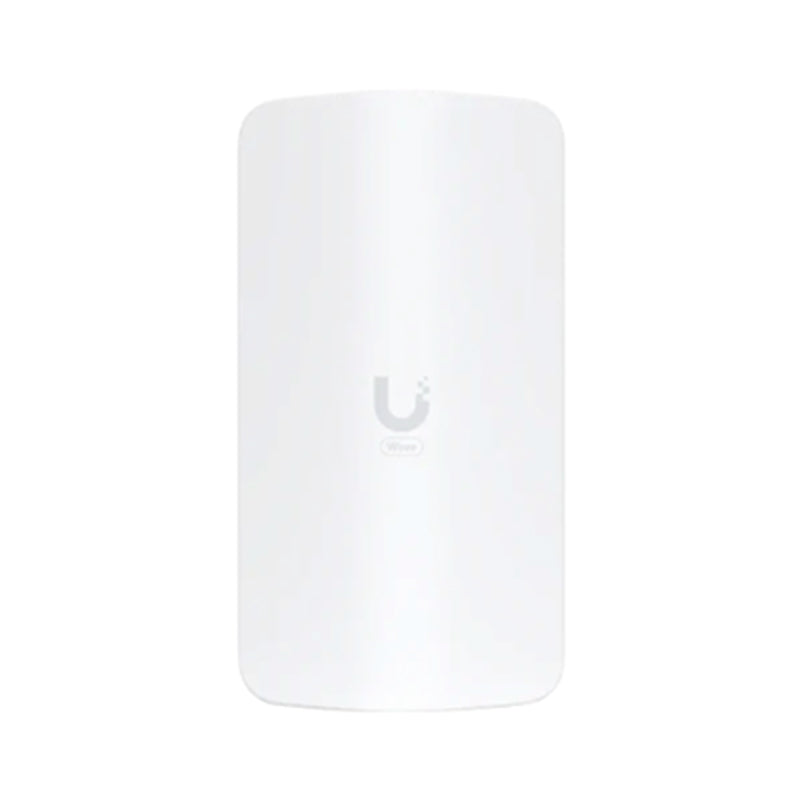

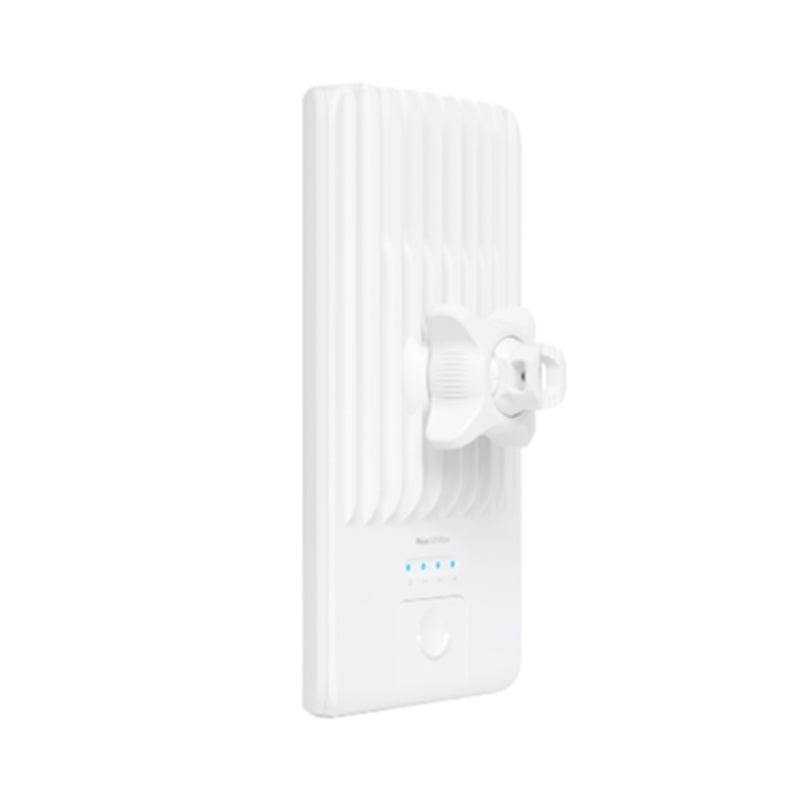

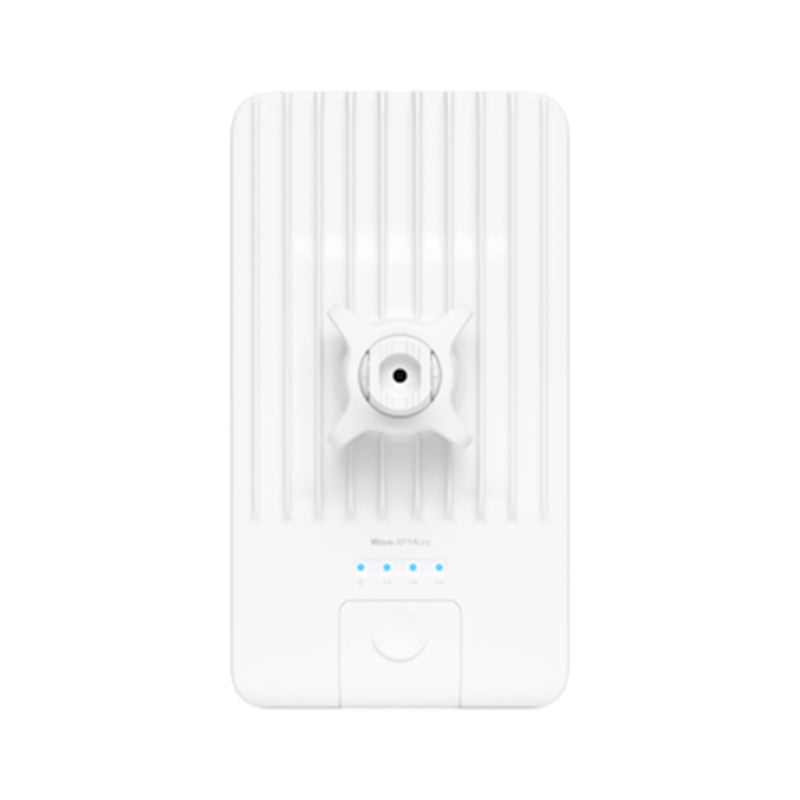

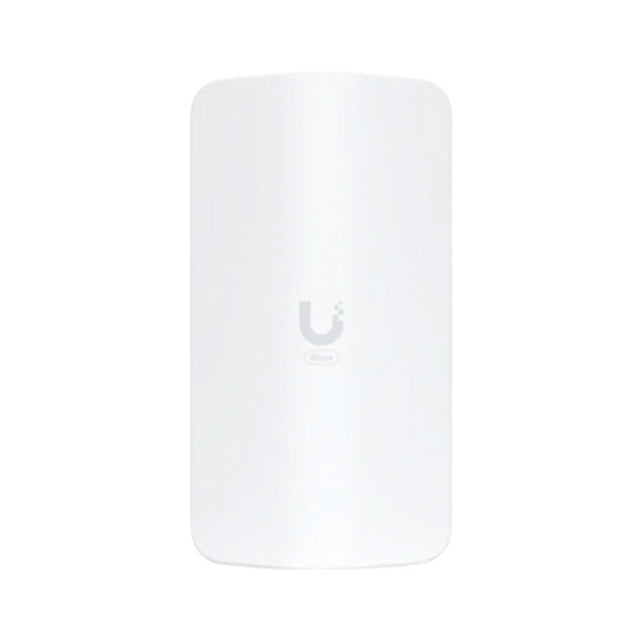

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
WAVE-AP-Micro Ubiquiti UISP Wave AP Micro
Description
Description
Wide-coverage 60 GHz PtMP access point powered by Wave Technology.
The Ubiquiti Wave AP Micro Outdoor 60GHz 20dBi WiFi 6 PtMP Access Point delivers 5 Gbps total throughput (2.5 Gbps duplex) and can connect up to 15 stations. It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connectivity and a Bluetooth radio to simplify setup via the UISP Mobile app.

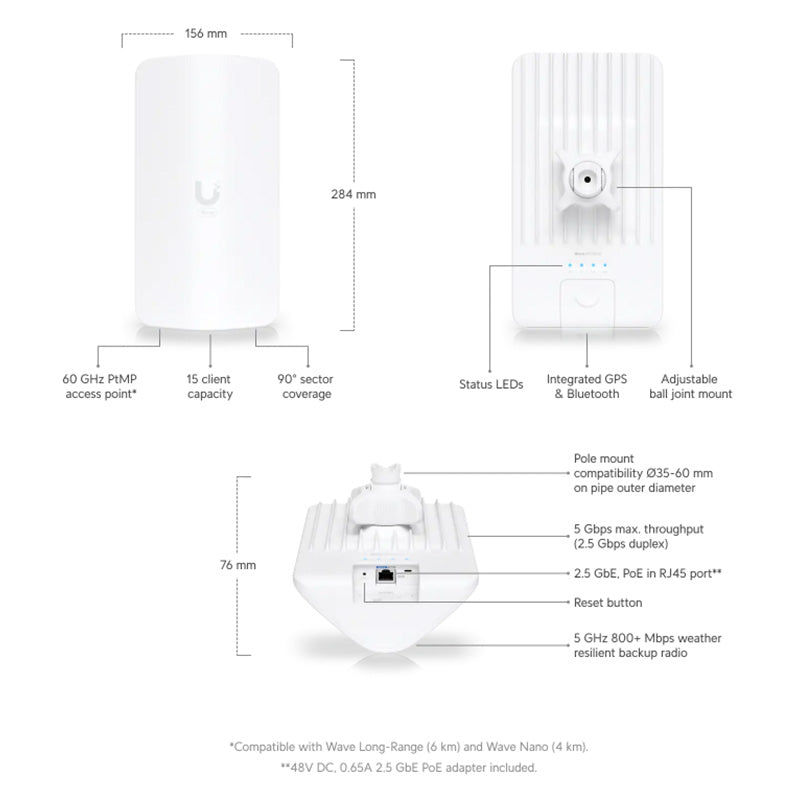

Features:
60 GHz 5 Gbps max. throughput (2.5 Gbps duplex) main radio
90° sector coverage
5 GHz 800+ Mbps weather-resilient backup radio
(1) 2.5 GbE WAN port
15 client capacity:
— Wave Long-Range (6 km link range)
— Wave Nano (4 km link range)
Integrated GPS & Bluetooth
Specifications49 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 284 x 156 x 76 mm / (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Mount Material | Stainless steel, UV stabilized polycarbonate |
| Pole Mount Diameter | 35 to 60 mm (1.4 to 2.4") |
| Wind Loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | Flashing blue: Ethernet traffic detected |
| LEDs · GPS | Blue: receiving at least(4) GPS satellite signal |
| LEDs · Link | Blue: 60 GHz link / White: 5 GHz link |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtMP access point |
| Network | Bridge Mode |
| Application Requirements · UISP web | Version 2.2.11 and later |
| Application Requirements · UISP mobile iOS™ | Version 2.25.1 and later |
| Application Requirements · UISP mobile Android™ | Version 2.27.5 and later |
| System | |
| Total Throughput | 5 Gbps |
| Supported Clients | 31 |
| Max. Range | Connecting to a Wave Pro: up to 6 km (3.7 mi) / Connecting to a Wave Long-Range: up to 6 km (3.7 mi) / Connecting to a Wave Nano: up to 4 km (2.5 mi) / Connecting to a Wave Pico: up to 0.9 km (0.6 mi) |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 20 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 90° / Elevation: 3 dB 7° |
| Electrical Downtilt | 0° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 13.5 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 6 dB 90° / Elevation: 6 dB 25° |
| Cross-Pol Isolation | 10 dB |
| Electrical Downtilt | 0° |
