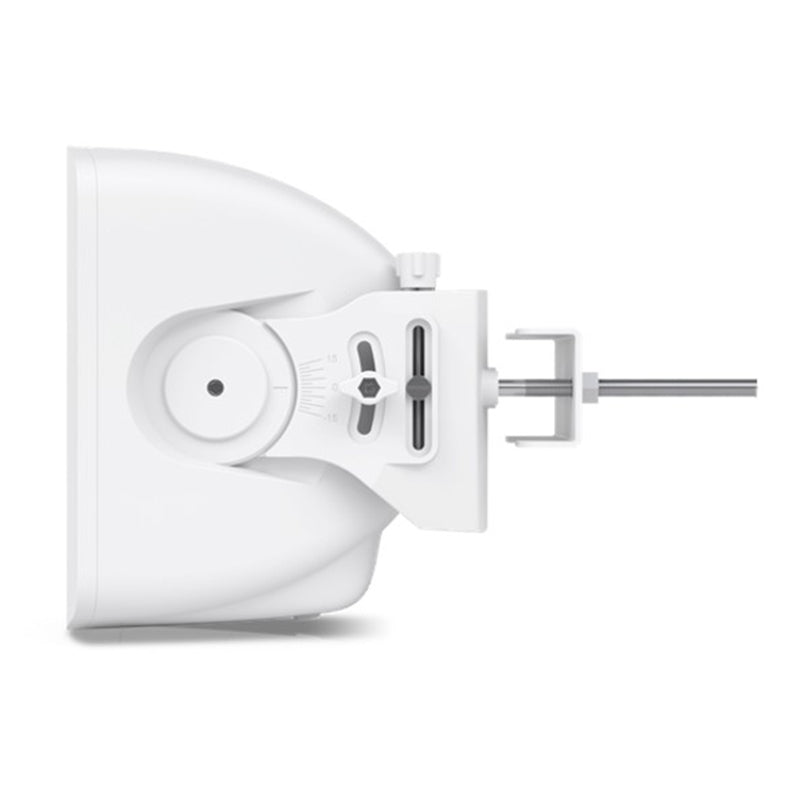

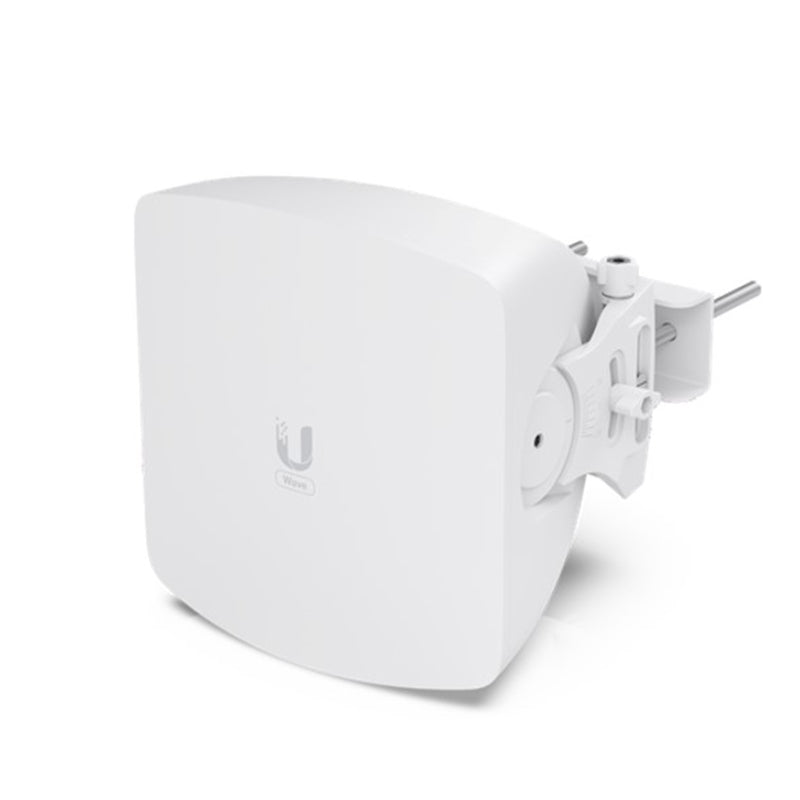

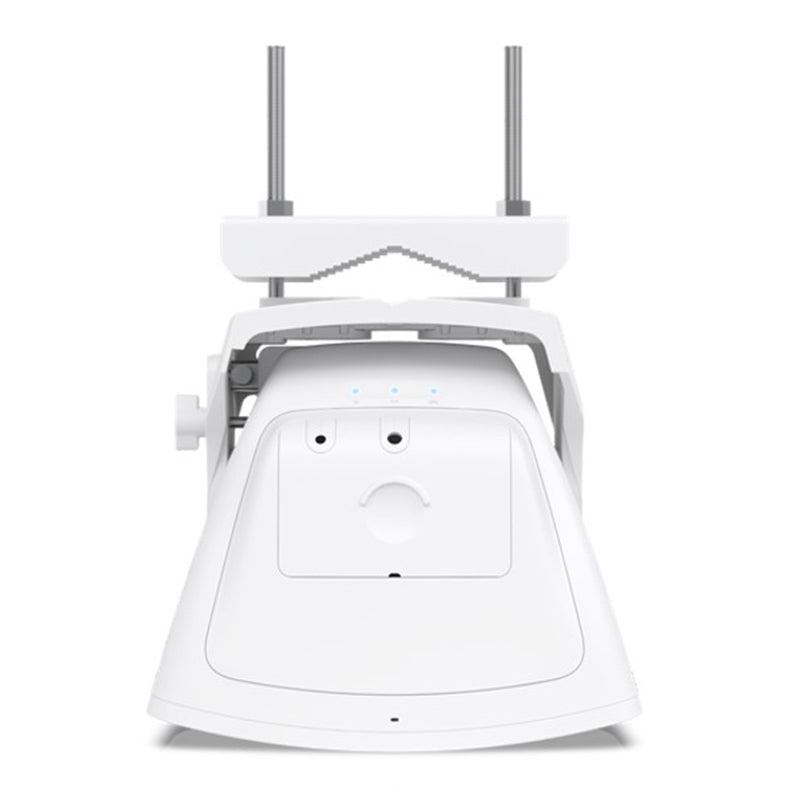

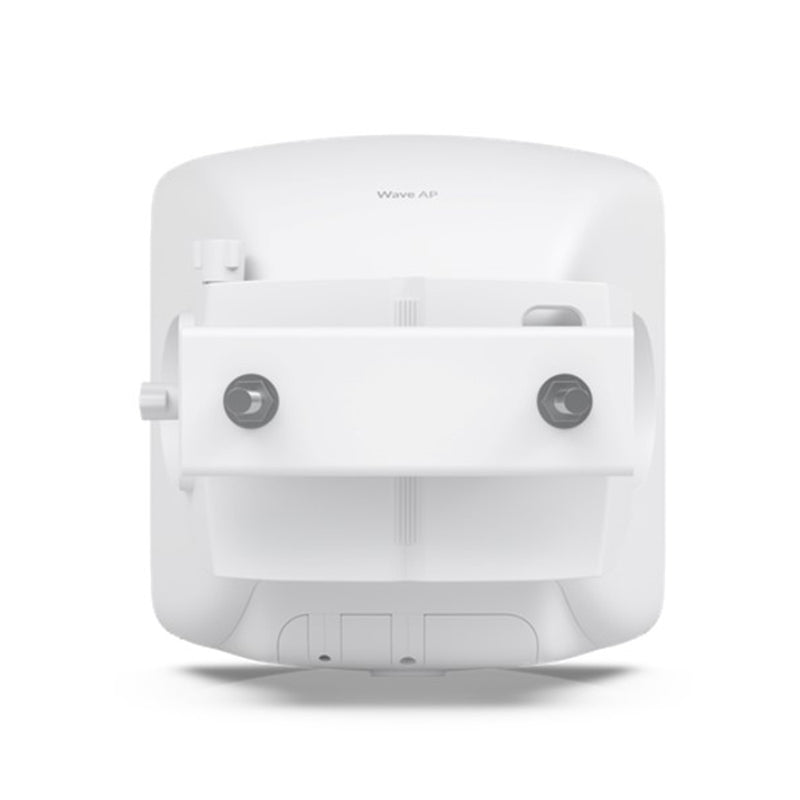

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
WAVE-AP Ubiquiti UISP Wave Access Point
Description
Description
60 GHz PtMP access point powered by Wave Technology.
The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
Features:
60 GHz 5.4 Gbps max. throughput (2.7 Gbps duplex) main radio
30° sector coverage
5 GHz 800+ Mbps weather-resilient backup radio
(1) 2.5 GbE and (1) 10G SFP+ WAN ports
15 client capacity:
— Wave Long-Range (8 km link range)
— Wave Nano (5 km link range)
Integrated GPS & Bluetooth

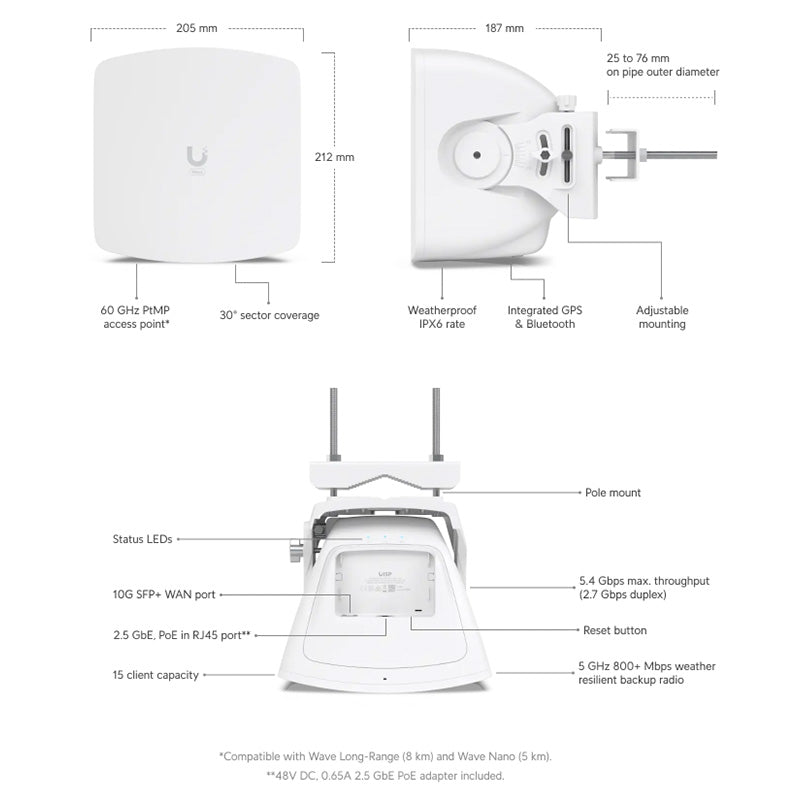

Specifications45 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 212 x 205 x 187 mm / (8.3 x 8.1 x 7.4") |
| Weight | 2.3 kg (5.1 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Pole Mount Diameter | ⌀ 25 to 76 mm (1 to 3") |
| Wind Loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 2.5GbE RJ45 port (100/1000/2500) / (1) 10G SFP+ port (1/10) |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A 2.5GbE PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | Flashing white: Ethernet traffic detected / Flashing blue: SFP+ traffic detected |
| LEDs · GPS | Blue: receiving at least (4) GPS satellite signal |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtMP access point |
| Network | Bridge mode |
| Application Requirements · UISP | Version 1.5.7 and later |
| System | |
| Total Throughput | 5.4 Gbps |
| Supported Clients | 31 |
| Max. Range | Connecting to a Wave Pro: up to 8 km (5 mi) / Connecting to a Wave Long-Range: up to 8 km (5 mi) / Connecting to a Wave Nano: up to 5 km (3.1 mi) / Connecting to a Wave Pico: up to 1.3 km (0.8 mi) |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 24 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 30° / Elevation: 3 dB 3° |
| Electrical Downtilt | 0° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 12 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 3 dB 35° / Elevation: 3 dB 60° |
| Cross-Pol Isolation | 10 dB |
| Electrical Downtilt | 0° |
