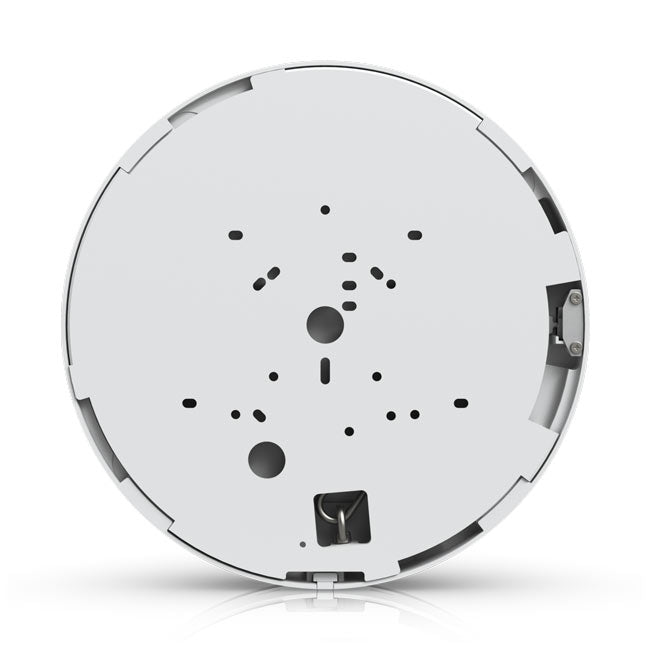

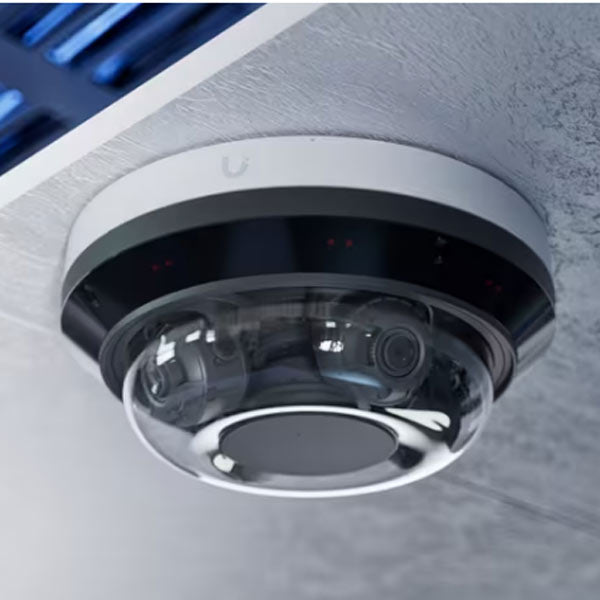

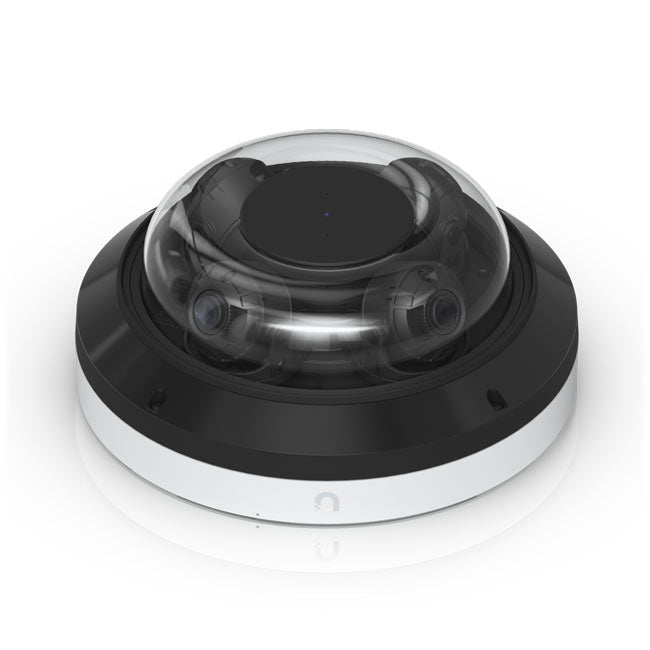

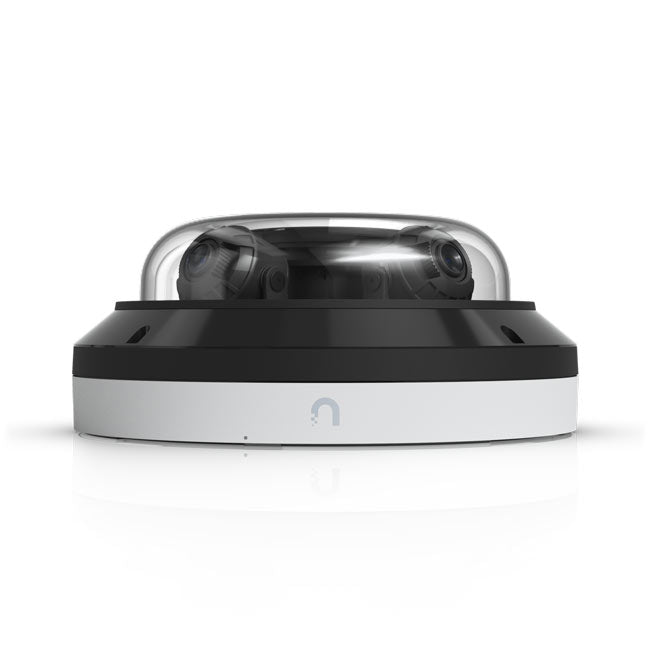

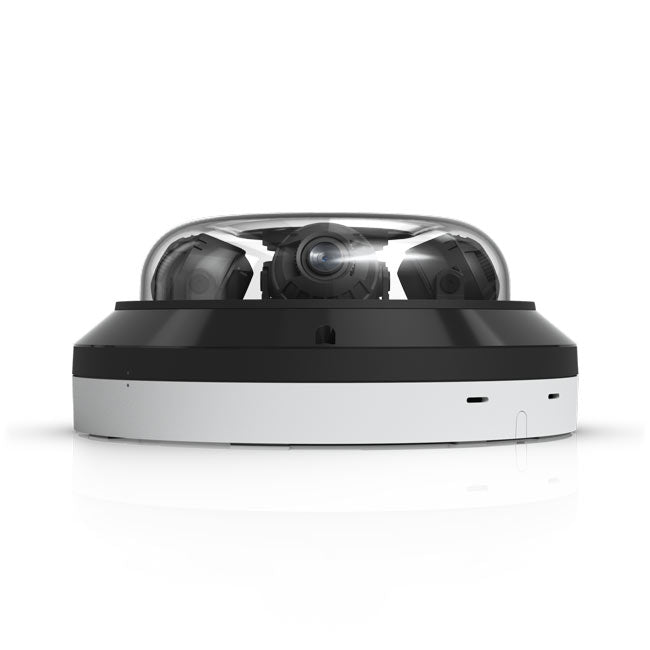

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.

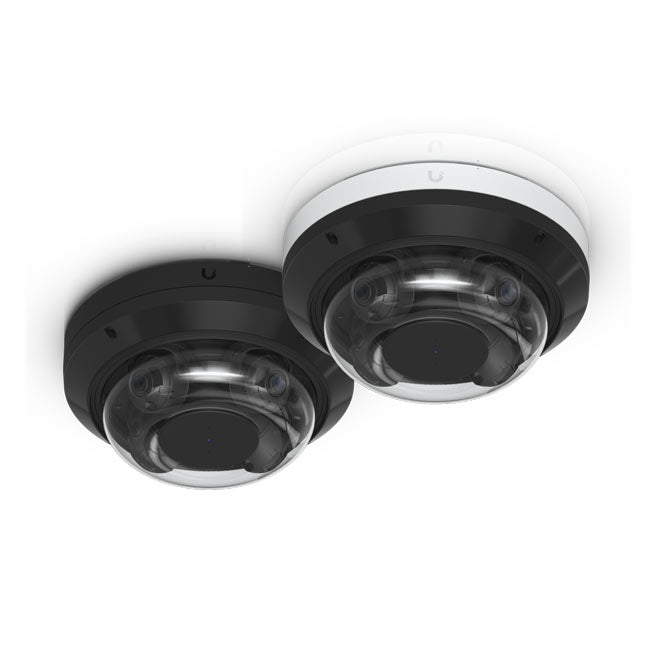

UVC-AI-MS-4-W Ubiquiti UniFi Protect AI Multi Sensor 4 Camera (White)
Description
Description
All-weather PoE++ 32MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33× optical zoom, 360° IR coverage, and four independently adjustable lenses for seamless wide-area and close-up monitoring.

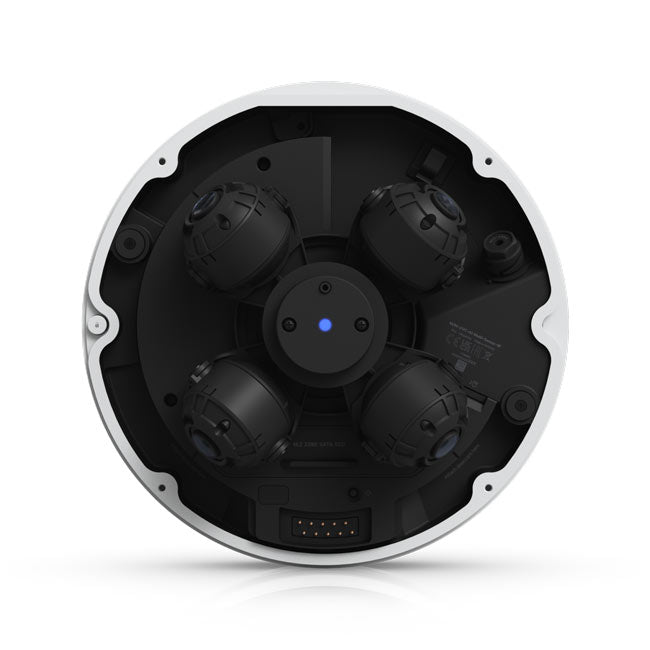

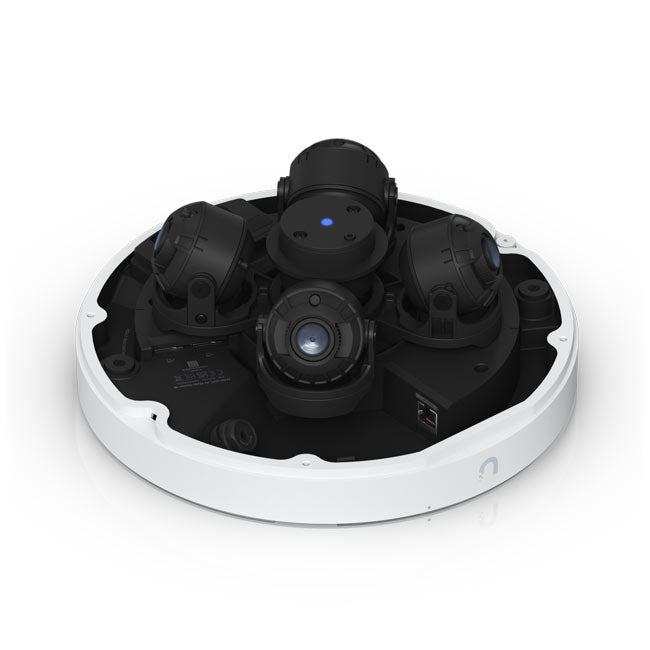

The AI Multi Sensor 4 features a unified AI processor that powers four independent 4K lenses, each capable of performing AI detection and recognition in real time — delivering complete situational coverage.
The AI Multi Sensor 4 simplifies deployment with a single PoE++ connection and mounting point, reducing cabling complexity and installation time while delivering seamless 360° multi-angle coverage with no blind spots or overlap.
Equipped with 16 evenly distributed IR LEDs, the AI Multi Sensor 4 delivers balanced illumination and clear imaging in every direction — even in complete darkness. It has a durable metal housing and offers IP66-rated weather protection and IK10-rated impact resistance, ensuring reliable operation in harsh outdoor environments.
Specifications27 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | ⌀255 x 105 mm / (⌀10.04 x 4.13") |
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2.33x Optical |
| Resolution | 32MP |
| Field of View | Wide: H: 108.8°, V: 57.6° , D: 130.8° / Tele: H: 42.8°, V: 24.1° , D: 49.1° |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |

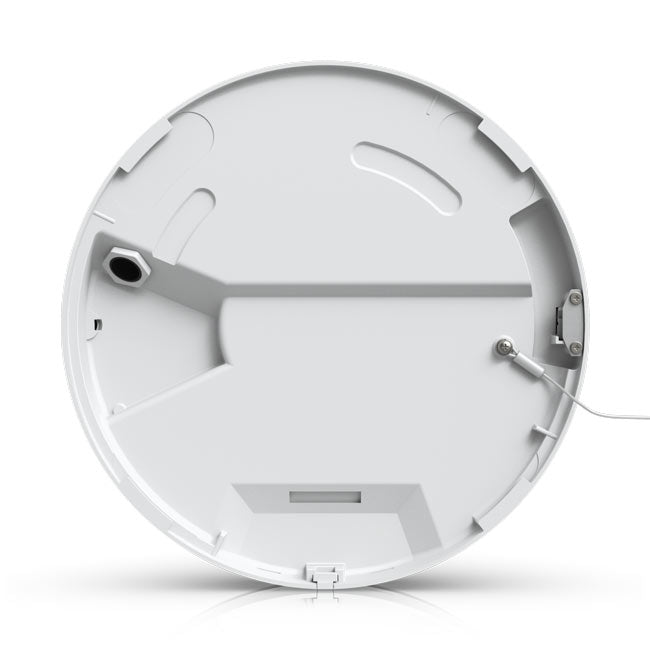

| Mounting | Ceiling mount (Included) / Pole, Corner, Arm, Pendant mount (Optional) |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Video · Max. Frame Rate | 24 FPS |
| Video · Resolution | (4) 8MP 3840 x 2160 (16:9) |
| Optics · Sensor | 1/2.8" 8MP |
| Optics · Lens | (4) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8 |
| Optics · Night Mode | Built-in (16) IR LEDs with adaptive control |
| Hardware | |
| Max. Power Consumption | 34.6W |
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE++ |
| Processor | Dual core Arm® Cortex®-A76 based chip |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Expansion Slot | (2) MicroSD card / (1) M.2. 2280 SATA SSD |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
