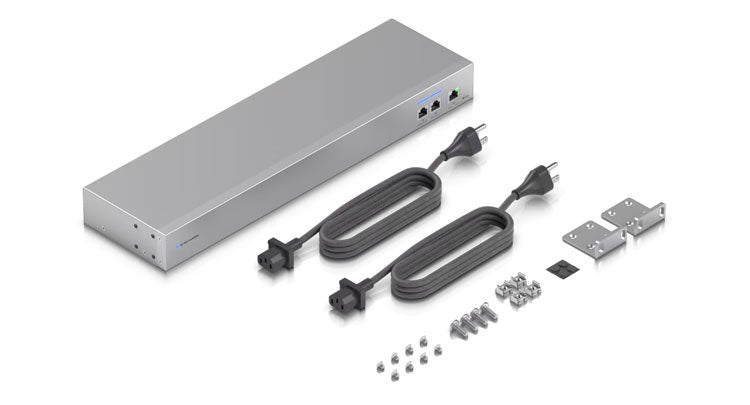

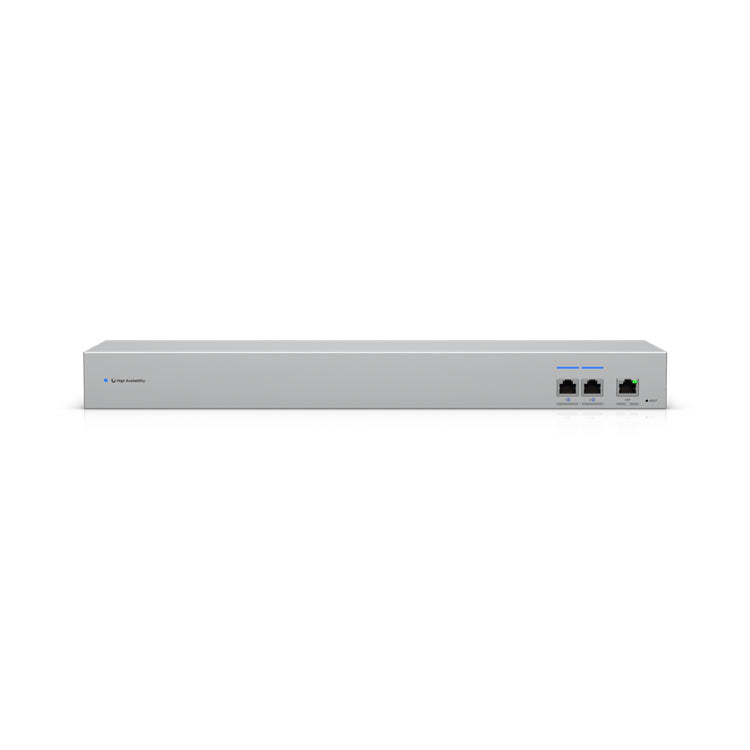

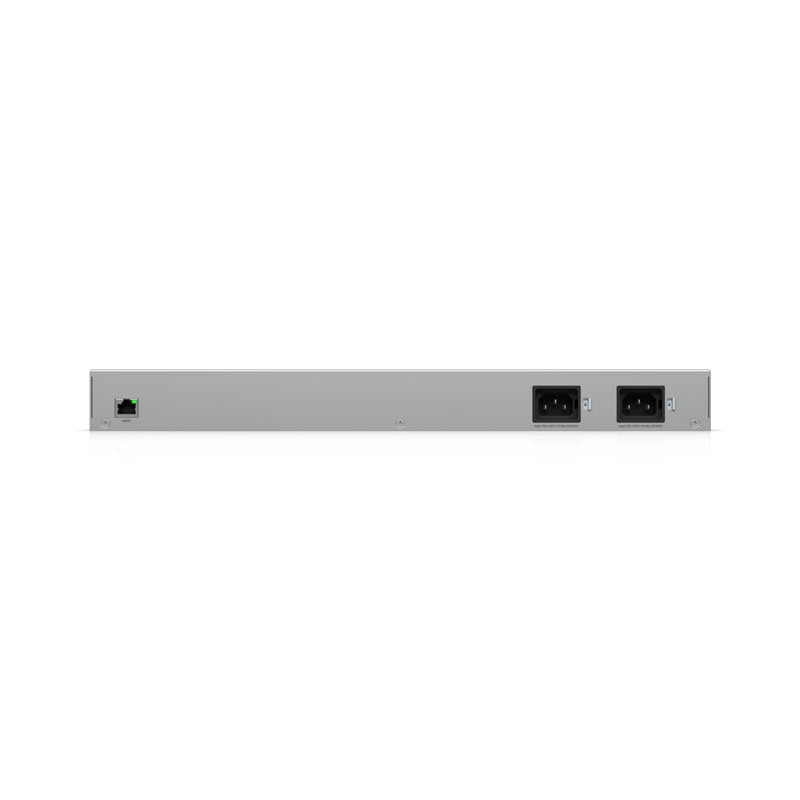

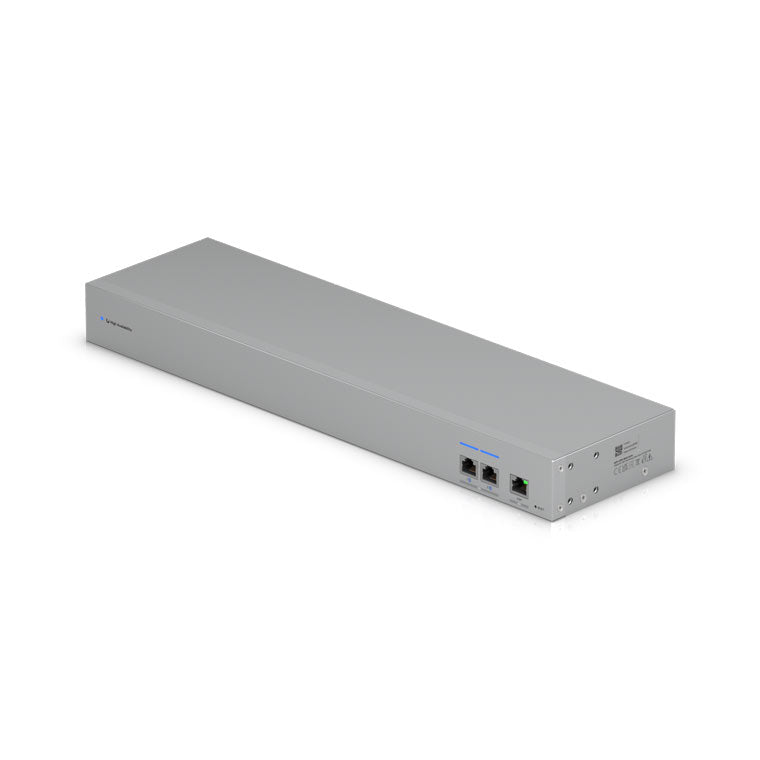

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
USW-WAN-RJ45 Ubiquiti UniFi WAN Switch RJ45
Description
Description
The Ubiquiti USW-WAN-RJ45 is an enterprise-grade 10GbE WAN switch designed to eliminate single points of failure in modern UniFi networks. Built to work seamlessly with UniFi Shadow Mode High Availability, this compact 1U rack-mount switch allows two UniFi gateways to share a single ISP connection, ensuring uninterrupted internet access during gateway failover.
Featuring three 10GbE RJ45 ports and a dedicated Gigabit management port, the USW-WAN-RJ45 delivers high-speed, copper-based connectivity without the need for SFP+ modules. Dual internal power supplies with redundant AC inputs provide added resilience, making it ideal for mission-critical environments.
Key Features
- 3 × 10GbE RJ45 ports supporting 10G/5G/2.5G/1G/100M
- 1 × 1GbE RJ45 management port
- Designed for UniFi Shadow Mode High Availability
- Links two UniFi gateways to a single ISP
- Dual redundant internal power supplies
- 20 Gbps switching capacity with non-blocking throughput

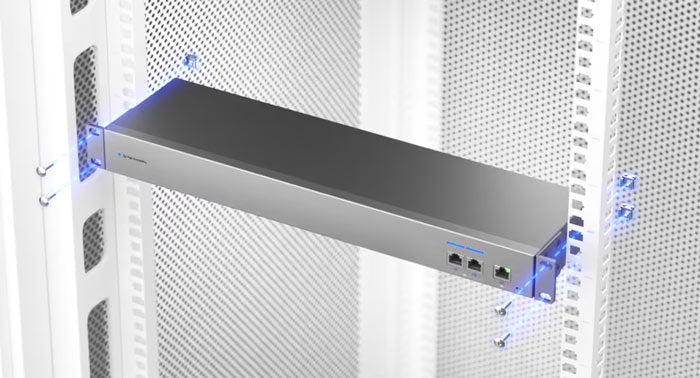

- 1U rack-mount steel enclosure with passive cooling
- Managed via UniFi Network
Ideal For
The USW-WAN-RJ45 is ideal for enterprises, data centres, managed service providers, and organisations that require high availability WAN connectivity using standard copper cabling within the UniFi ecosystem.
Compatible Products
UniFi Gateways
UniFi Dream Machine Pro, UniFi Dream Machine Special Edition, UniFi Next-Generation Gateways supporting Shadow Mode
UniFi Management
UniFi Network Application (version 9.1.120 or later)
Frequently asked questions3 questions
Does the USW-WAN-RJ45 support multiple ISPs?
Is fibre supported?
Is this a LAN switch?
Specifications22 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 120 x 43.7 mm / (17.4 x 4.72 x 1.7") |
| Port Layout · 1 GbE RJ45 | 1 / (1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 3 / (10G/5G/2.5G/1G/100M) |
| Redundancy | (2) AC inputs |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Hardware | |
| Max. Power Consumption | 18W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Weight | Without mounting brackets: 2.3 kg (5.1 lb) / With mounting brackets: 2.4 kg (5.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ± 16kV, contact: ± 10kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04273-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.1.120 and later |
