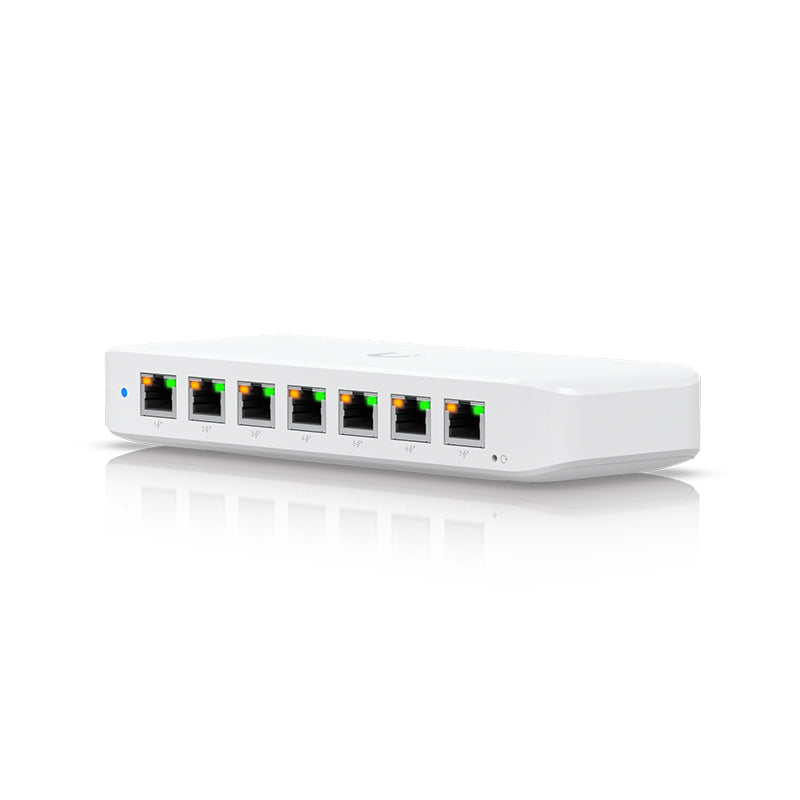

USW-Ultra-60W Ubiquiti Unifi Ultra 8 Port 60W PoE Switch
Regular price
£139.17 GBP
Unit price
Description
Description
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Features:
USW-Ultra-60W(52W)
(7) GbE PoE+ output ports
(1) GbE port with optional PoE++ input*
— 52W PoE availability with the included AC power adapter— 42W PoE availability with PoE++ input
— 16W PoE availability with PoE+ input
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
SKU:
USW-Ultra-60W
Regular price
£139.17 GBP
Unit price
Specifications26 specifications · 4 sections
| Overview | |
|---|---|

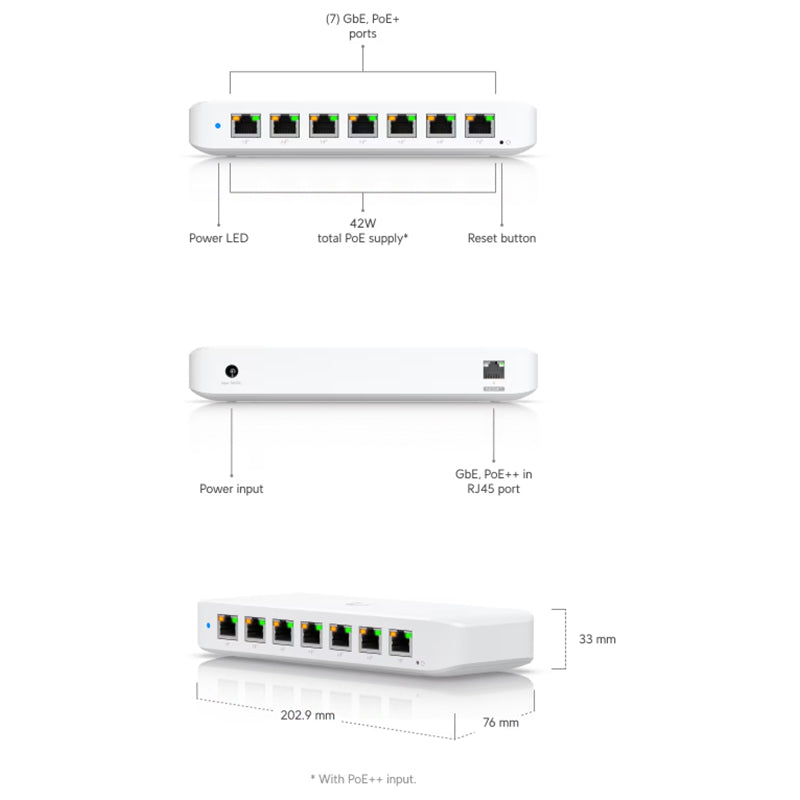

| Dimensions | 203 x 76 x 33 mm / (8 x 3 x 1.3") |
| Port Layout · 1 GbE RJ45 | 8 (7 PoE+; 1 PoE++ input) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W |
| Form Factor | Compact desktop, wall, magnetic |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Hardware | |
| PoE Ports · PoE+ | 7 |
| PoE Ports · PoE++ | 1 |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. Power Consumption | 9W (Excluding PoE Output) with PoE input / 8W (Excluding PoE Output) with adapter input / 210W (Including PoE Output) with 210W AC adapter input |
| Power Method | (1) AC/DC adapter (Included) / (1) PoE++ |
| Power Input Method | DC Input / PoE |
| Power Supply | AC/DC, external, 60W |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Heat Dissipation | 31 BTU/hr (Excluding PoE Output) |
| Weight | Device: 320 g (11.3 oz) / Wall mount: 45 g (1.6 oz) / Adapter: 330 g (11.6 oz) |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F) / 60W AC adapter input: -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06367-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.7 and later |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model USW-Ultra-60W · Ubiquiti's spec sheet
