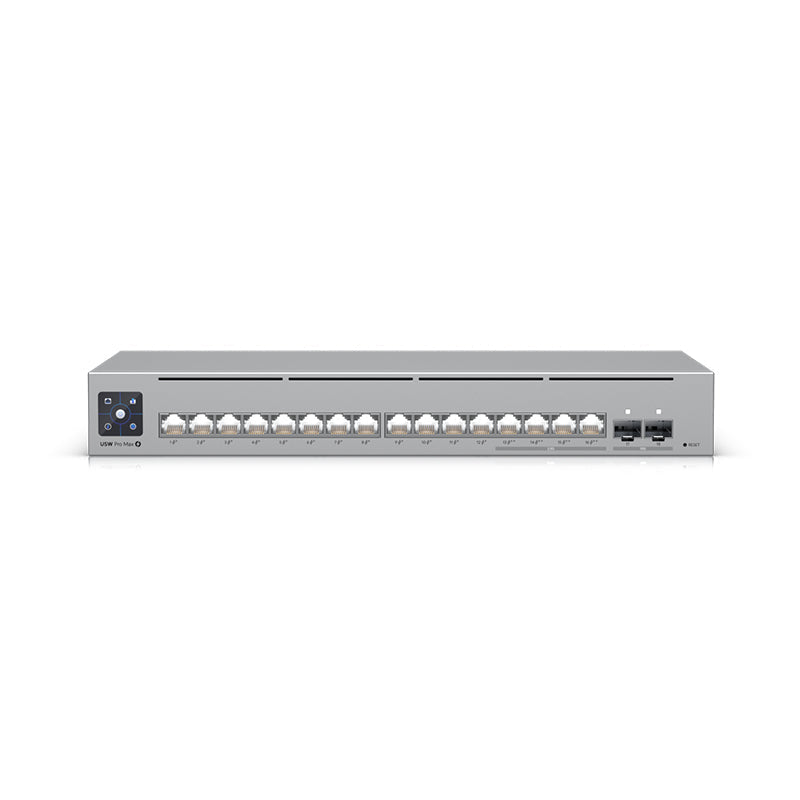

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
USW-Pro-Max-16-PoE

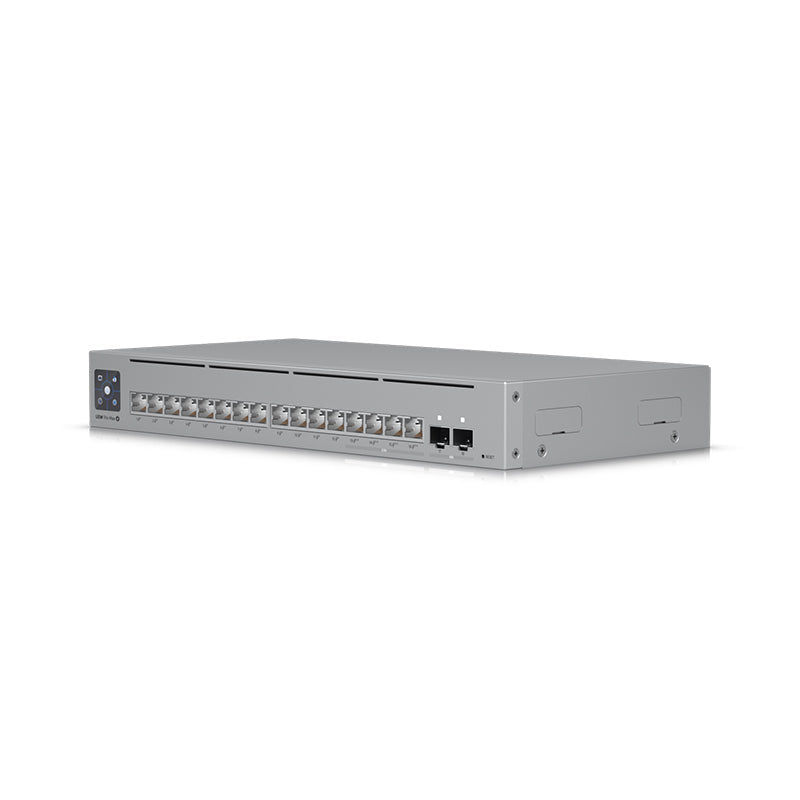

USW-Pro-Max-16-PoE (180W) Ubiquiti UniFi Switch Pro Max 16 Port PoE
Regular price
£400.25 GBP
Unit price
Description
Description
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Features:

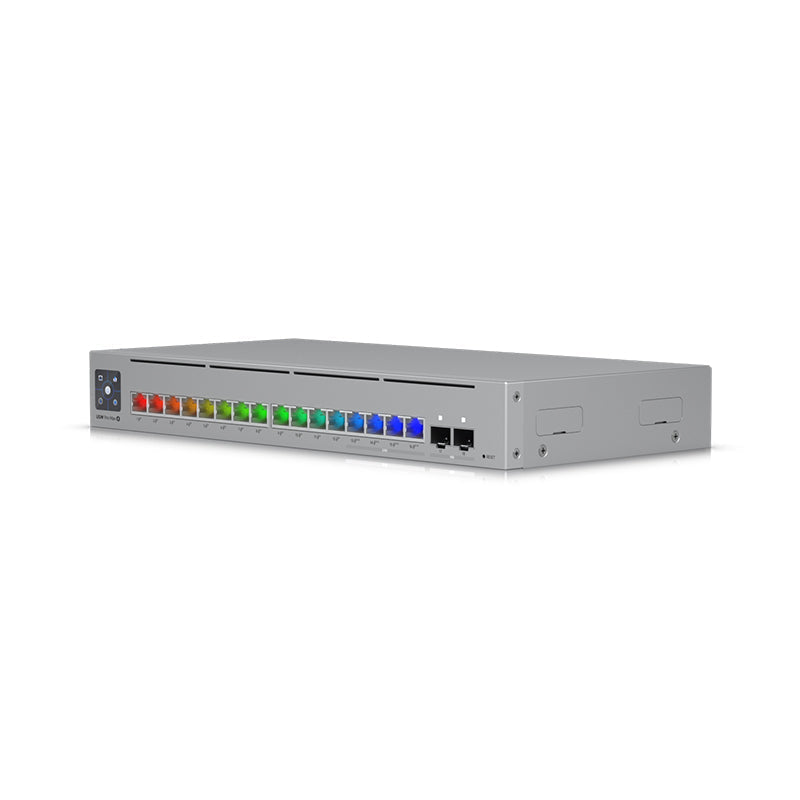

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE PoE++ ports
(12) GbE PoE+ ports
(2) 10G SFP+ ports
180W total PoE availability

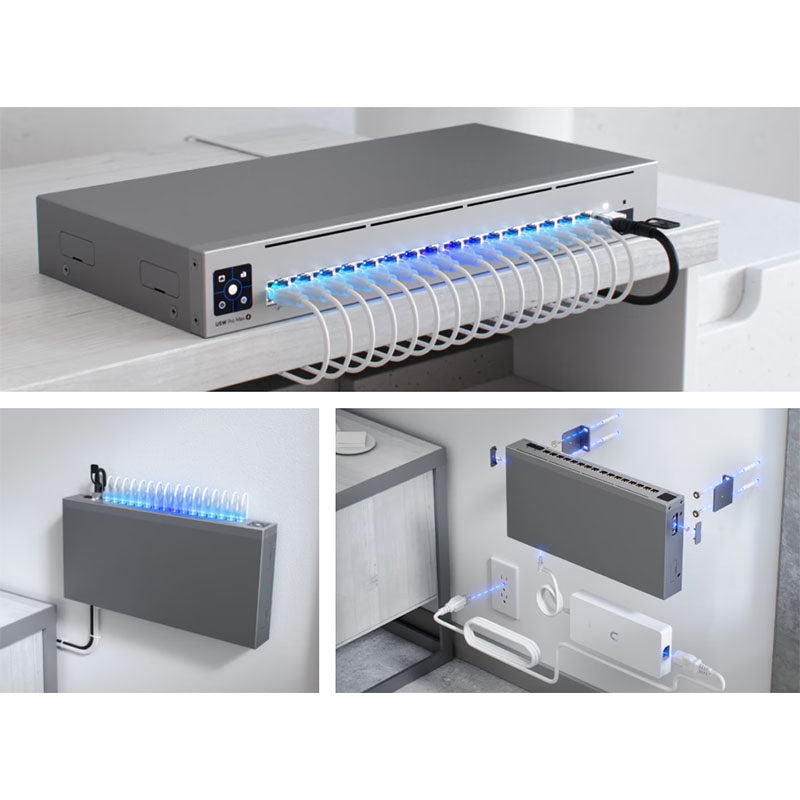

Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
SKU:
USW-Pro-Max-16-PoE
Regular price
£400.25 GBP
Unit price

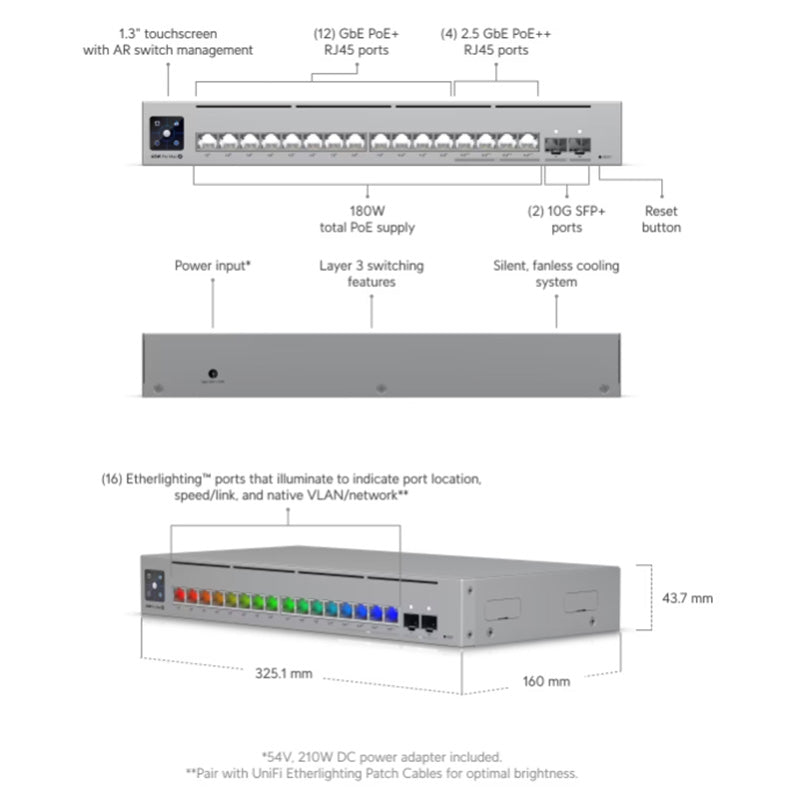

Specifications37 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 325.1 x 160 x 43.7 mm / (12.8 x 6.3 x 1.7") |
| Port Layout · 1 GbE RJ45 | 12 (All PoE+) / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 4 (All PoE++) / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180W |
| Form Factor | Rack mount (1U), desktop, wall |
| Performance | |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 12 |
| PoE Ports · PoE++ | 4 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. Power Consumption | 25W (Excluding PoE Output) / 210W (Including PoE Output) |
| Power Method | AC Adapter |
| Power Input Method | AC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–54V DC |
| Management | Ethernet / AR |
| Heat Dissipation | 68 BTU/hr (Excluding PoE Output) |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08953-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.1.127 and later |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model USW-Pro-Max-16-PoE · Ubiquiti's spec sheet
