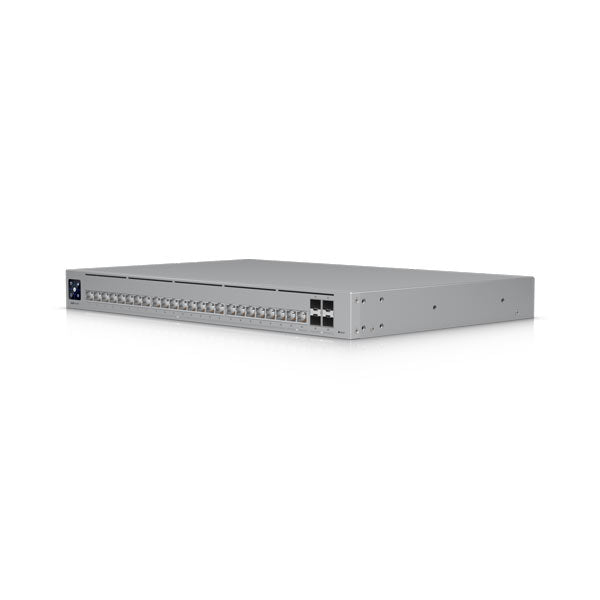

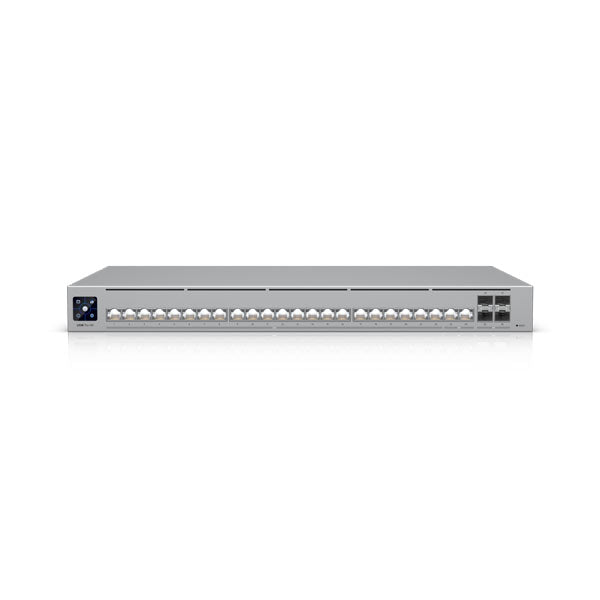

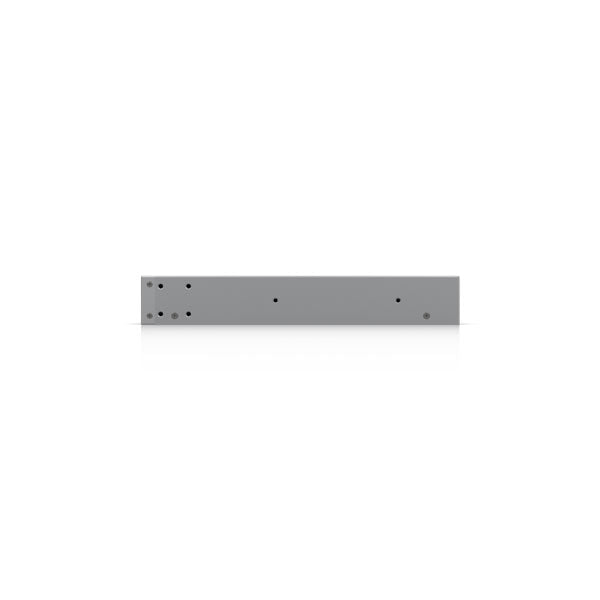

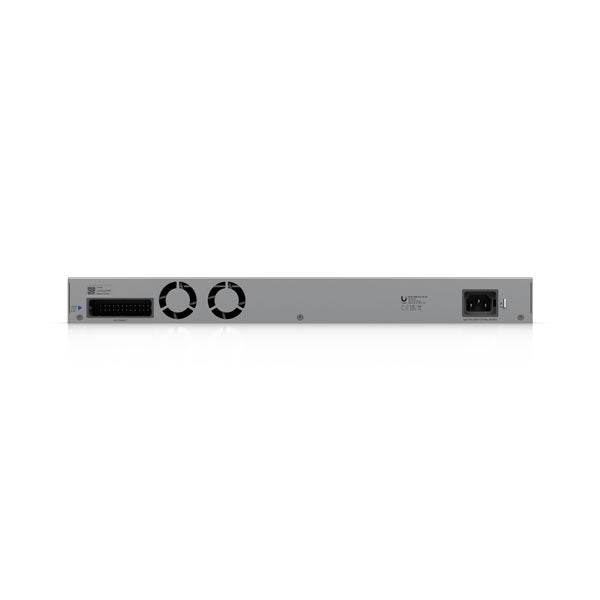

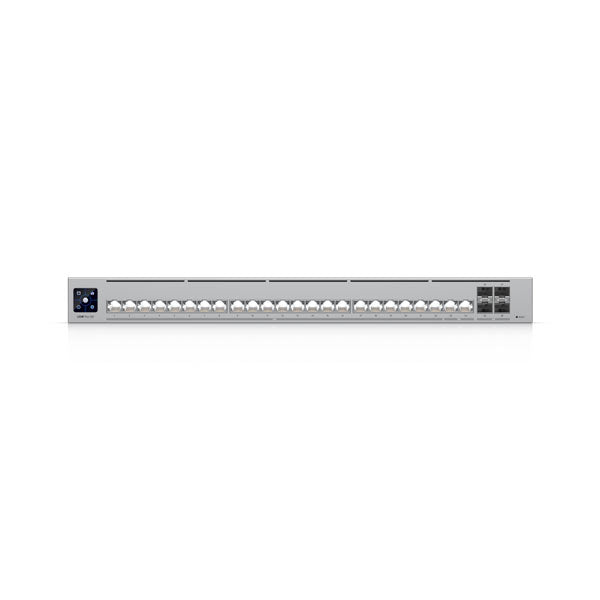

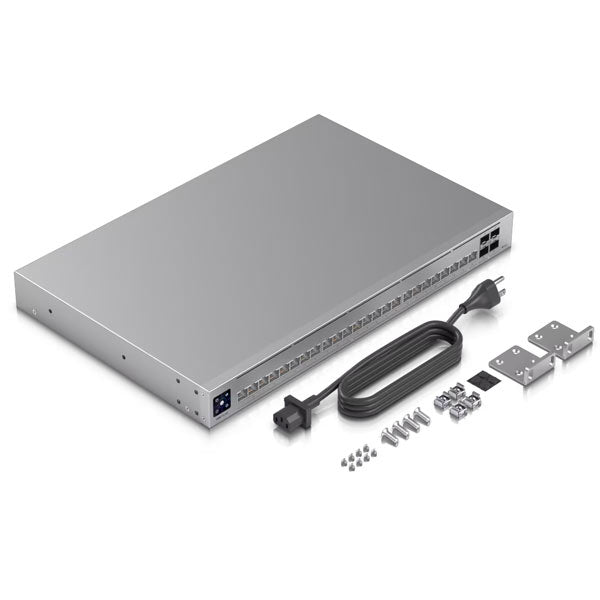

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
USW-Pro-HD-24
USW-Pro-HD-24 Ubiquiti UniFi Switch Pro HD 24
Regular price
£612.61 GBP
Unit price
Description
Description
Ubiquiti Release Date 3rd February
The Ubiquiti Pro HD 24 is a professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
Features:
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(22) 2.5 GbE, (2) 10 GbE ports
(4) 10G SFP+ ports
DC power backup ready**
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires UniFi SmartPower Redundant Power System
SKU:
USW-Pro-HD-24
Regular price
£612.61 GBP
Unit price
Specifications31 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 285 x 44 mm / (17.4 x 11.2 x 1.7") |
| Port Layout · 2.5 GbE RJ45 | 22 / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 2 / (10G/5G/2.5G/1G/100M) |
| Port Layout · 10G SFP+ | 4 / (10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| Max. Power Consumption | 60W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 205 BTU/hr |
| Weight | Without mounting brackets: 4.2 kg (9.2 lb) / With mounting brackets: 4.3 kg (9.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 03853-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model USW-Pro-HD-24 · Ubiquiti's spec sheet
