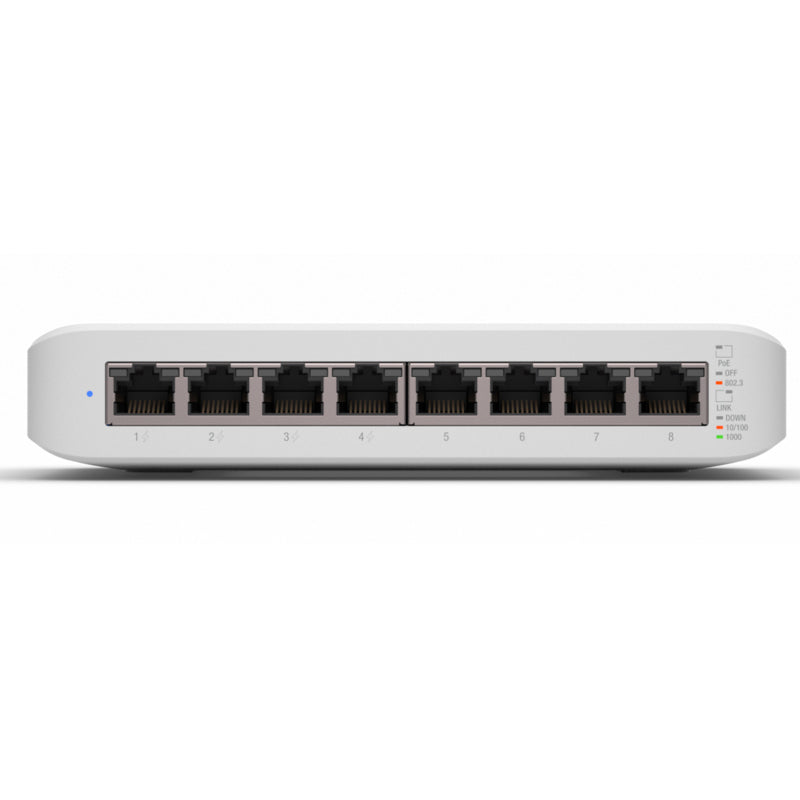

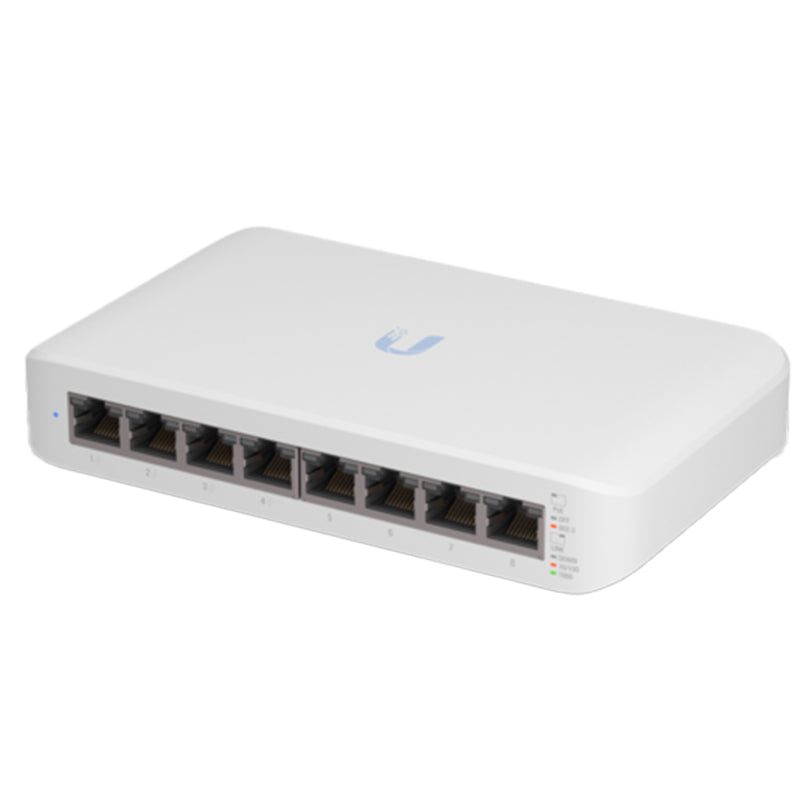

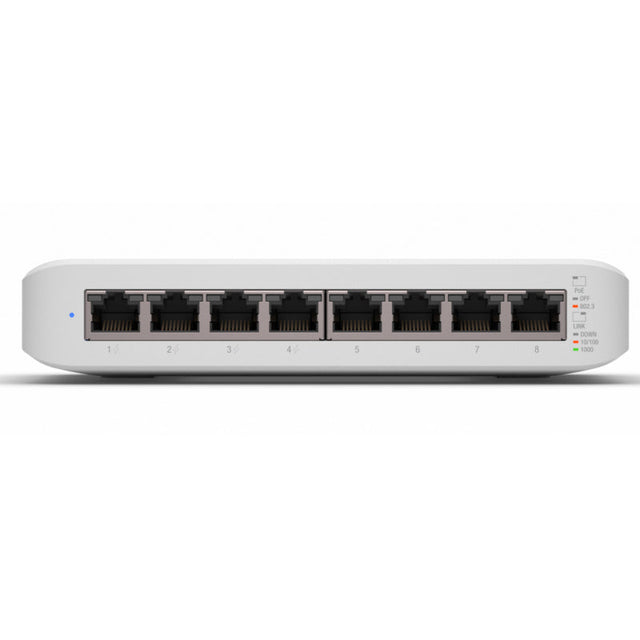

USW-Lite-8-PoE Ubiquiti UniFi Switch Lite 8 PoE
Description
Description
Layer 2, PoE switch with (8) GbE RJ45 ports, including (4) PoE+ ports.
The Ubiquiti USW-Lite-8-PoE 8-Port Cloud Managed Desktop Gigabit PoE+ Switch is a fully managed Layer 2 switch with eight (8) Gigabit Ethernet ports for your RJ45 Ethernet devices.
Four (4) ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices (sold separately).
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:
Eight (8) Gigabit RJ45 ports, including four (4) 802.3at PoE+ ports
52W total PoE supply with an External 60W power adapter

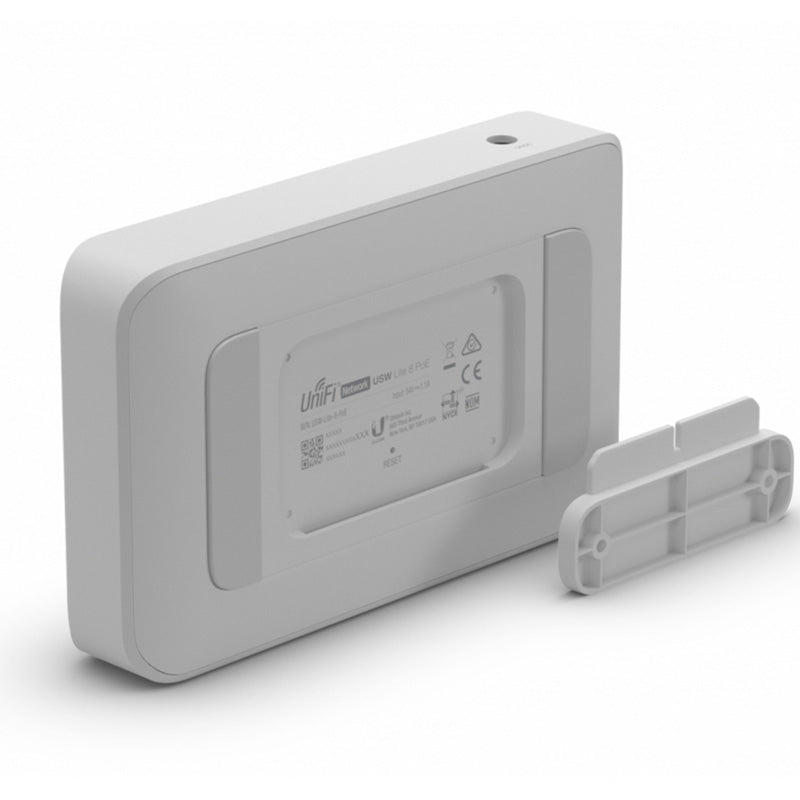

Wall-mountable (kit included)
Managed with the UniFi Network application: Version 5.13.5 and later
Specifications29 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 99.6 x 163.7 x 31.7 mm / (4 x 6.4 x 1.3") |
| Port Layout · 1 GbE RJ45 | 8 (4 PoE+) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 52W |
| Form Factor | Compact desktop, wall |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 4 |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. Power Consumption | 8W (Excluding PoE Output) / 60W (Including PoE Output) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | AC/DC, external, 60W |
| Supported Voltage Range | 50–57V DC |
| Management | Ethernet |
| Heat Dissipation | 27.3 BTU/hr (Excluding PoE Output) |
| Weight | 295 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.2.94 and later |
