Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
USL-MOTION
USL-Motion-EU Ubiquiti SuperLink Motion Sensor (EU Version)
Regular price
£43.40 GBP
Unit price
Description
Description

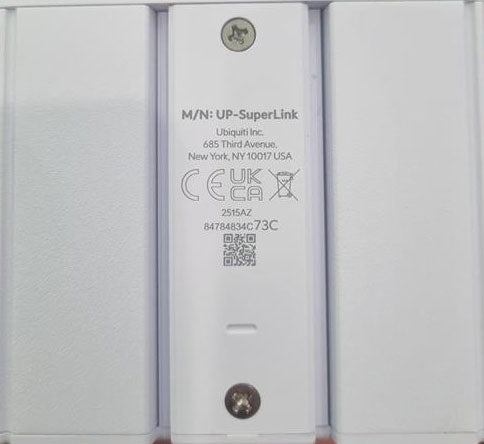

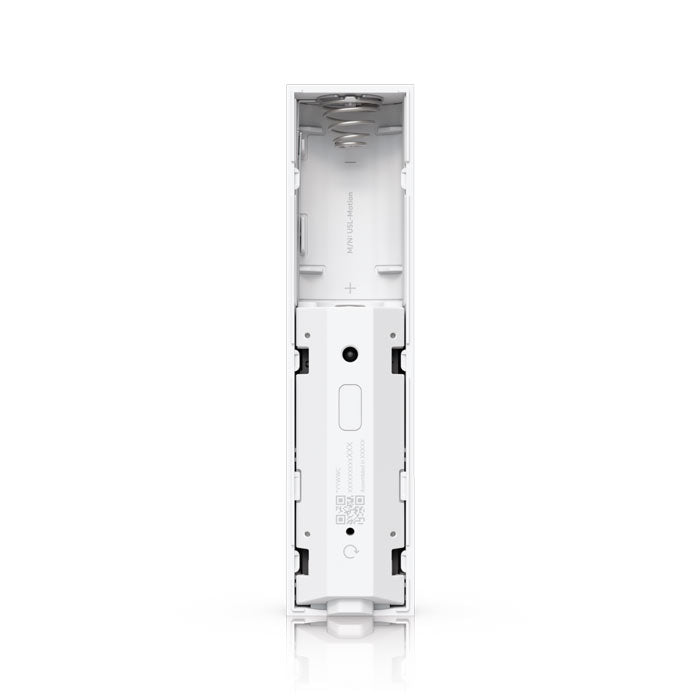

Please note that there are two versions of the Superlink these will work with models that show CA or UK markings on the back of the device (second photo in images)

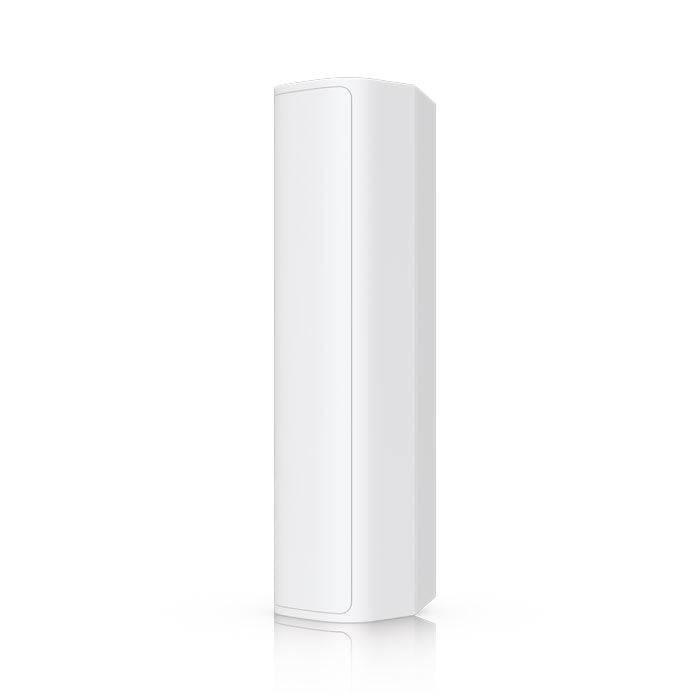

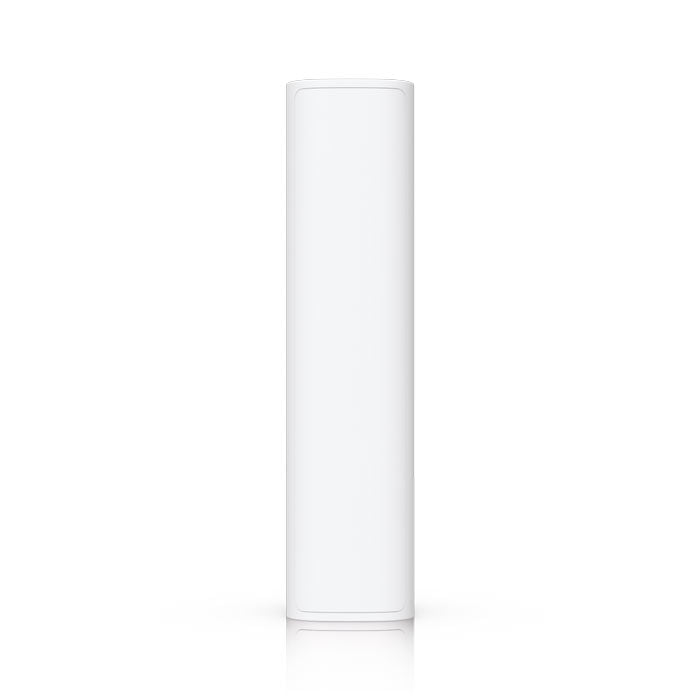

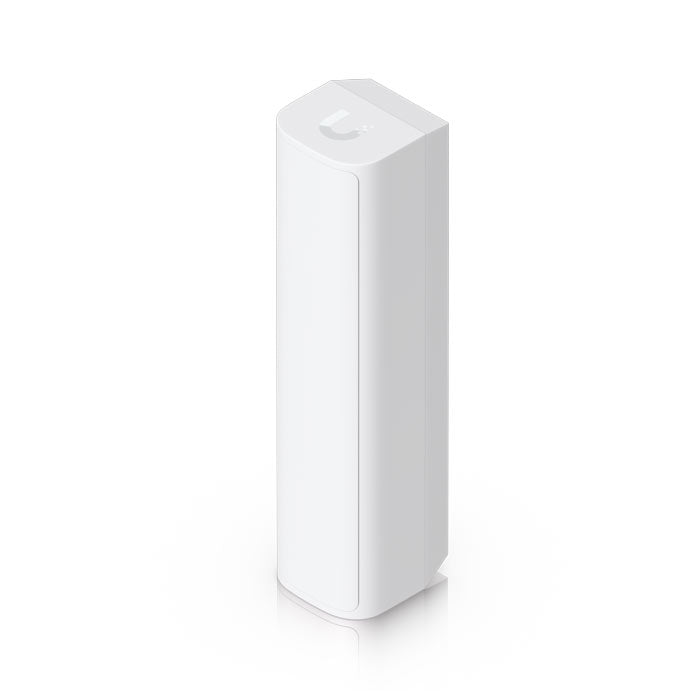

Ubiquiti SuperLink Motion Sensor (USL-Motion) is a compact, battery-powered SuperLink motion sensor featuring versatile installation.
Leveraging Ubiquiti’s proprietary SuperLink wireless technology, it delivers reliable long-range connectivity up to 2 km and stable performance even in large properties. SuperLink is a new standard of long-range, low-latency, and scalable IoT connectivity to UniFi. It is designed to meet the needs of both residential and commercial applications, with seamless integration into the UniFi OS ecosystem.
Features:
Battery-powered: Runs on a CR123A lithium battery for flexible, wire-free installation.
SuperLink connectivity: Proprietary wireless protocol with up to 2 km range
Dual PIR sensors: Equipped with horizontal and vertical passive infrared sensors for accurate motion detection.

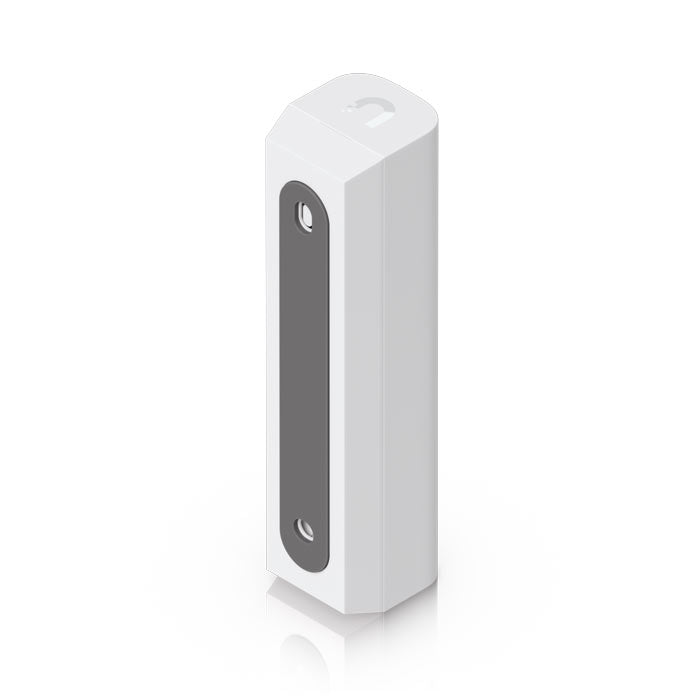

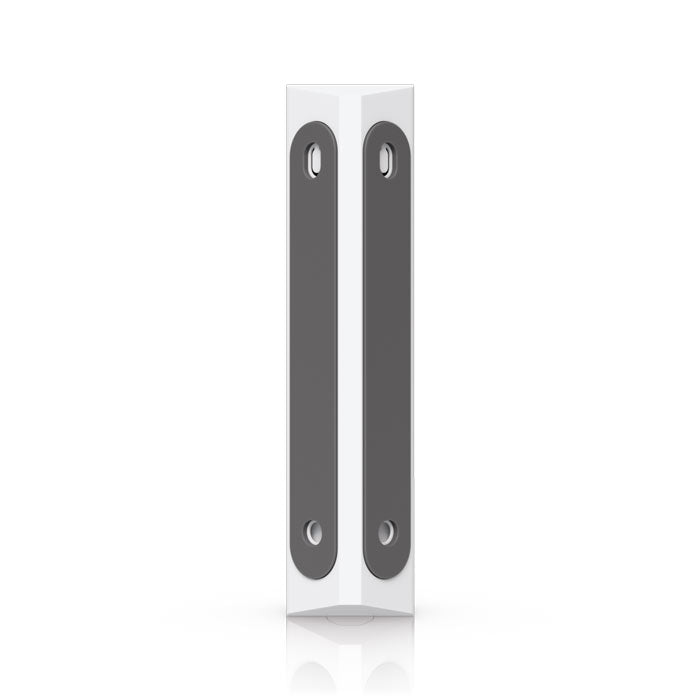

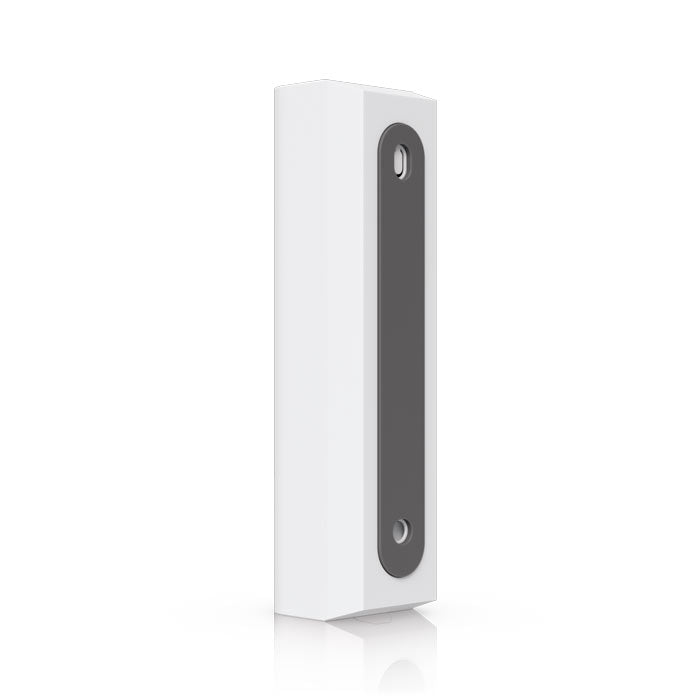

Versatile mounting: Can be installed using adhesive or screw mounts, with options for wall or corner placement.
Durable design: Lightweight (45 g), built with polycarbonate and HDPE materials, operating in temperatures from 0–40 °C.
Integration: Works directly with UniFi Protect for smart home and enterprise security management.
Seamless Set-up: a practical solution for expanding motion detection coverage without complex wiring.
SKU:
USL-MOTION
Regular price
£43.40 GBP
Unit price
Click HERE to access the Datasheet
Specifications23 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | Device with wall mount: / 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97") / Device with corner mount: / 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1") |
| Mounting | Adhesive and screw mount |
| UniFi Application Suite | Protect |
| Performance | |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency · SuperLink | US: 915.6–927.6 MHz / EU: 865.1–869.5 MHz / JP: 920.5–922.3 MHz |
| Max. TX Power · SuperLink | 14 dBm |
| Max. Range · SuperLink | 2 km (1.2 mi) |
| Sensor Features · Horizontal PIR Sensor | Detection range up to 1.5 m (4.9 ft) |
| Sensor Features · Vertical PIR Sensor | Detection range up to 6 m (19.7 ft) / with pet immunity |
| Hardware | |
| Max. Power Consumption | 22.6mW |
| Supported Voltage Range | 3V |
| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | 45 g (1.6 oz) |
| Enclosure Material | Polycarbonate, high-density polyethylene (HDPE) |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset / (1) Function button / (1) Tamper switch |

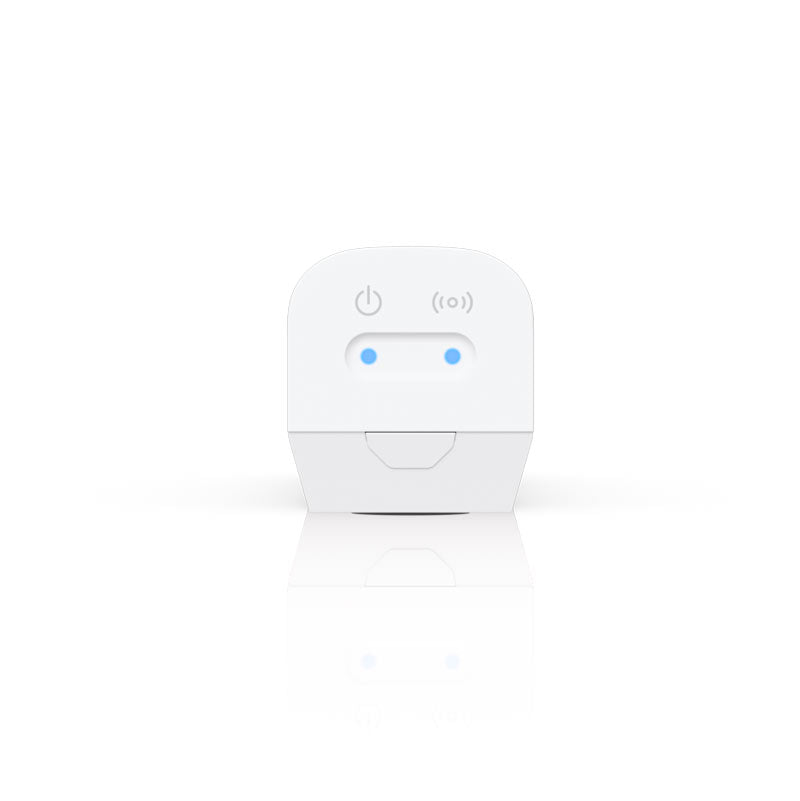

| LEDs | (1) Status: R/B/W / (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements · Web Application | UniFi Protect |
| Application Requirements · Mobile App | UniFi Protect iOS™ and Android™ |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model USL-MOTION · Ubiquiti's spec sheet
