Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
UP-Chime Ubiquiti Protect Chime (Includes EU to AU Travel Adapter)
Description
Description

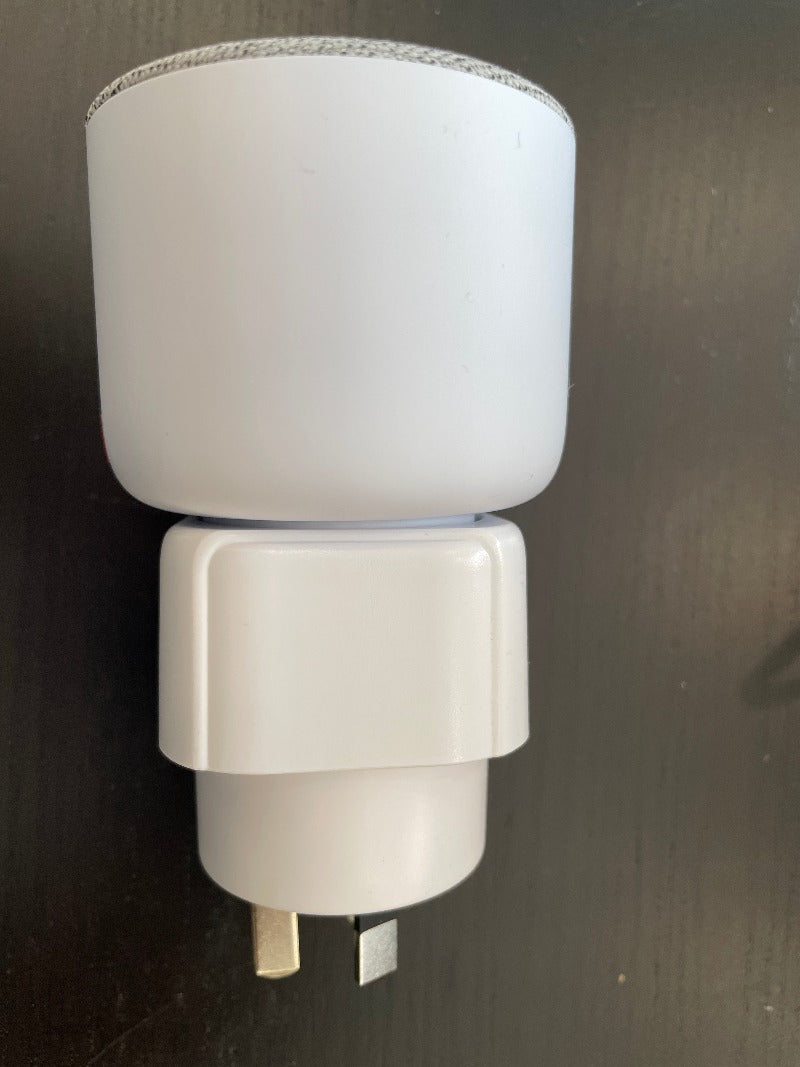

Please note these are rated 110v to 240v so no further power adjustments are needed and we include an EU to AU Travel Adapter. From the plug socket to the front of the chime with the travel adapter attached is 10cm
Wireless chime that can be plugged into a standard wall outlet and used with UniFi Protect doorbells.
The Protect Chime (UP Chime) is a wireless, mesh-covered chime that pairs with a UniFi Protect Doorbell and rings whenever it is pressed. This peripheral device is ideal for households that do not have a wired chime system or have one that is incompatible with their Protect doorbell.
The Protect Chime is also seamlessly integrated with UniFi Protect to ensure that it's simple to set up and manage via either the web application or mobile app.
Features:
Wireless doorbell chime that can be plugged into a standard wall outlet
Pairs with UniFi Protect doorbells
Managed with the UniFi Protect application: Version 2.0 and later (web) / 1.6.2 and later (iOS) / 1.6.0 and later (Android)
Specifications14 specifications · 3 sections
| Mechanical | |
|---|---|
| Dimensions | ⌀62 x 50.6 mm (⌀2.4 x 2") / (Without prong) |
| Weight | 127 g (4.5 oz) |
| Enclosure Material | Polycarbonate, fabric |
| Hardware | |
| Networking Interface | WiFi 802.11 b/g/n |
| Power Method | AC |
| Supported Voltage Range | 100-240V, 50/60 Hz |
| Max. Power Consumption | 3.7W |
| ESD/EMP Protection | Air: ± 16kV, contact: ± 8kV |
| LEDs | (5) White |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · Web Application | UniFi Protect: Version 2.0 and later |
| Application Requirements · Mobile App | UniFi Protect iOS™: Version 1.6.2 and later / UniFi Protect Android™: Version 1.6.0 and later |
