UNVR-Instant-Kit - Ubiquiti UniFi Protect Network Video Recorder Instant Kit
Description
Description

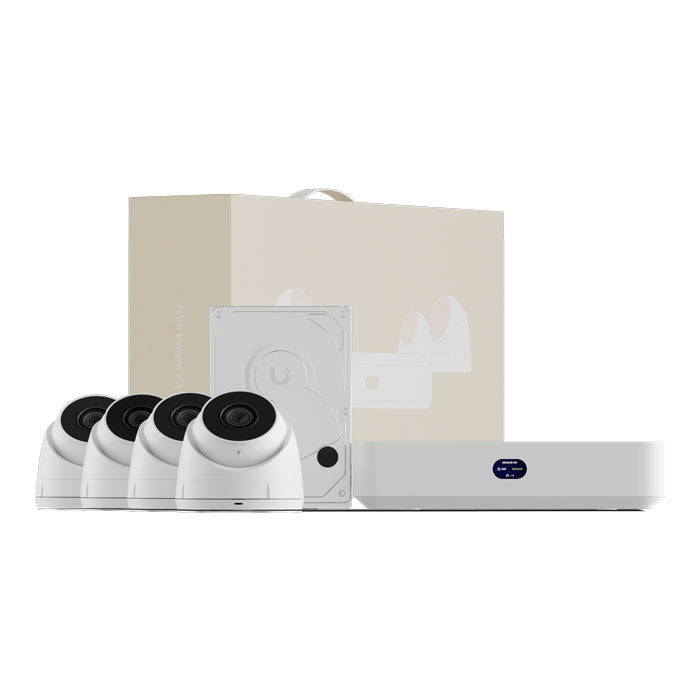

The Ubiquiti UniFi Protect Network Video Recorder Instant Kit (SKU: UNVR-Instant-Kit) is a compact, all-in-one IP camera security system built for fast and effortless setup. The kit combines a UniFi Protect NVR Instant with four G5 Turret Ultra cameras and a 1TB hard drive, so you have everything needed to start recording out of the box.

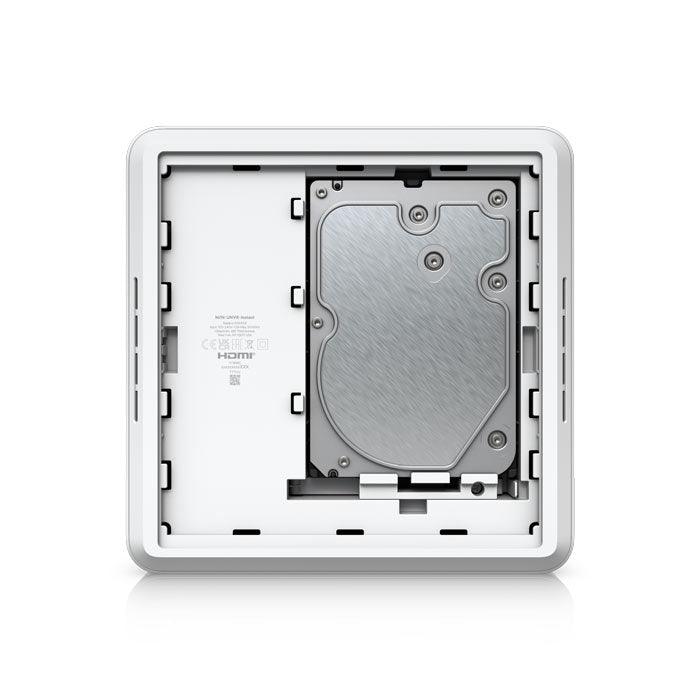

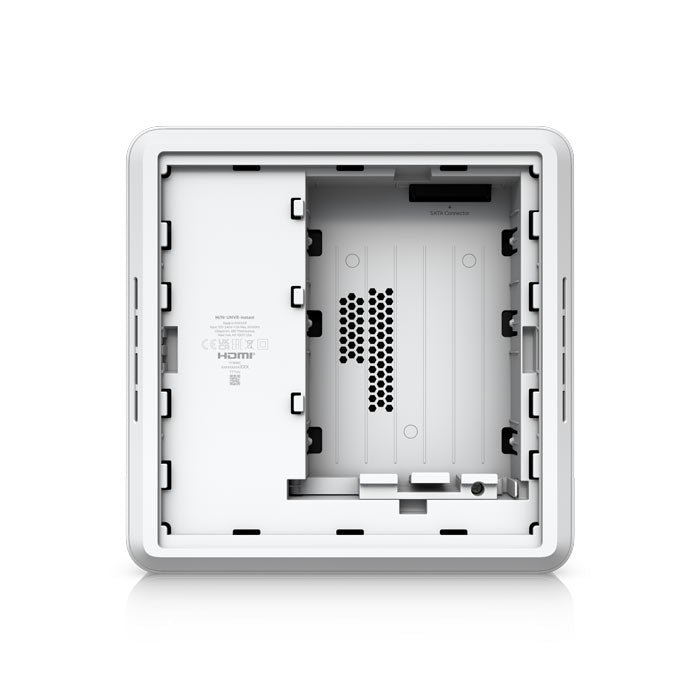

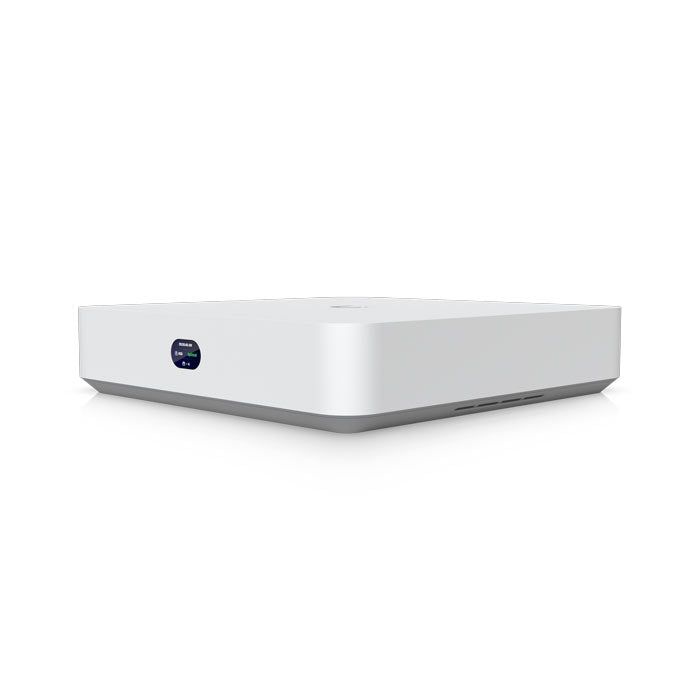

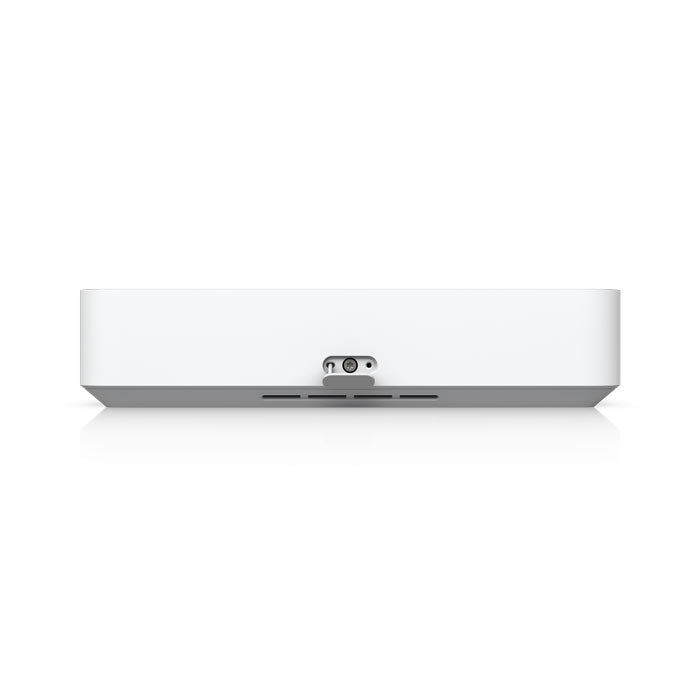

The NVR Instant has an integrated 6-port PoE switch that powers and connects supported cameras directly, with no extra switching hardware needed for a direct-to-NVR deployment. An integrated HDMI Viewport allows live viewing on a connected display, while the 3.5" drive bay provides local video storage. The compact desktop unit can be mounted on a wall or DIN rail, with mounting included.
Key Features

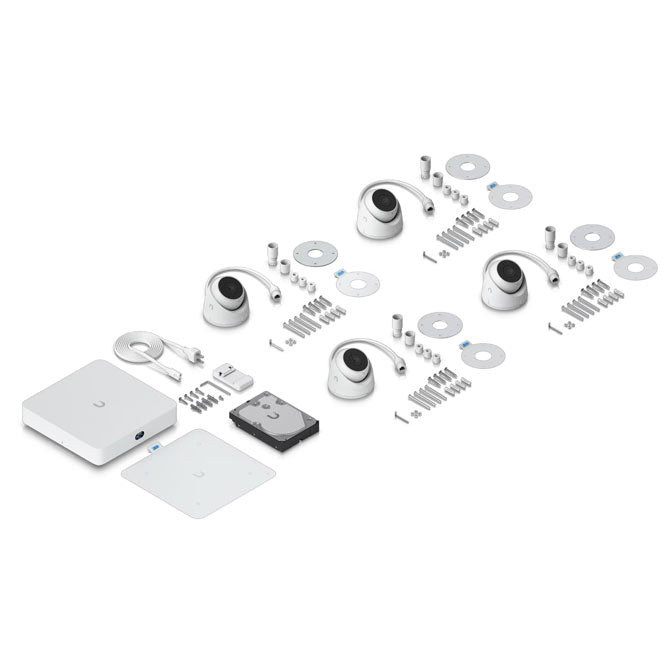

- Complete kit: 1 x UniFi Protect NVR Instant, 4 x G5 Turret Ultra cameras and 1 x 1TB HDD
- Integrated 6-port PoE switch: six GbE PoE RJ45 downlink ports with a 40W PoE budget, plus one GbE RJ45 uplink port
- Camera capacity: manages up to 15 Full HD, 8 2K or 6 4K cameras
- HDMI Viewport output: supports live monitoring on a connected display

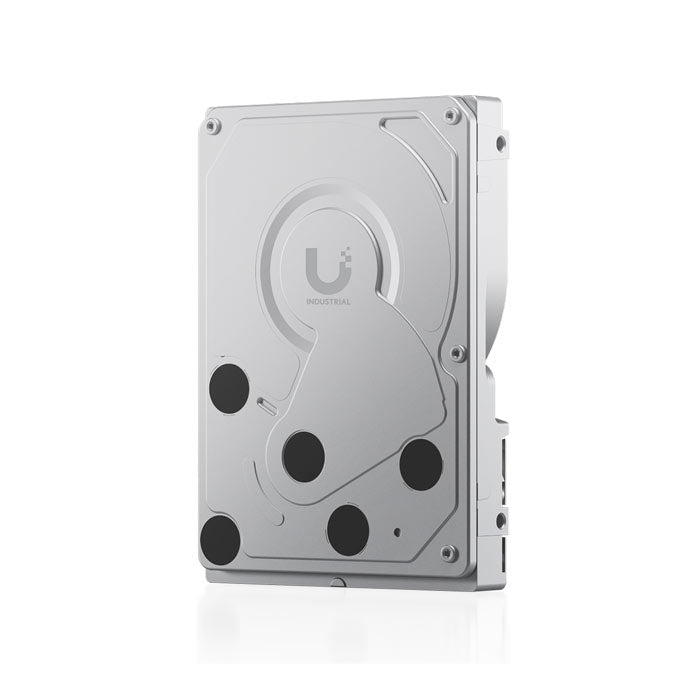

- 3.5" HDD bay: the supplied 1TB, 5400 RPM SATA drive is rated at 180 TB/year workload
- Powerful hardware: quad-core ARM Cortex-A55 processor at 1.7 GHz with 4 GB memory
- Multi-application support: works with UniFi Protect, UniFi Access and UniFi Connect, and manages up to 50 access hubs
- Compact and easy to manage: 1.14" display, Ethernet and Bluetooth management, and wall or DIN rail mounting included
- NDAA compliant

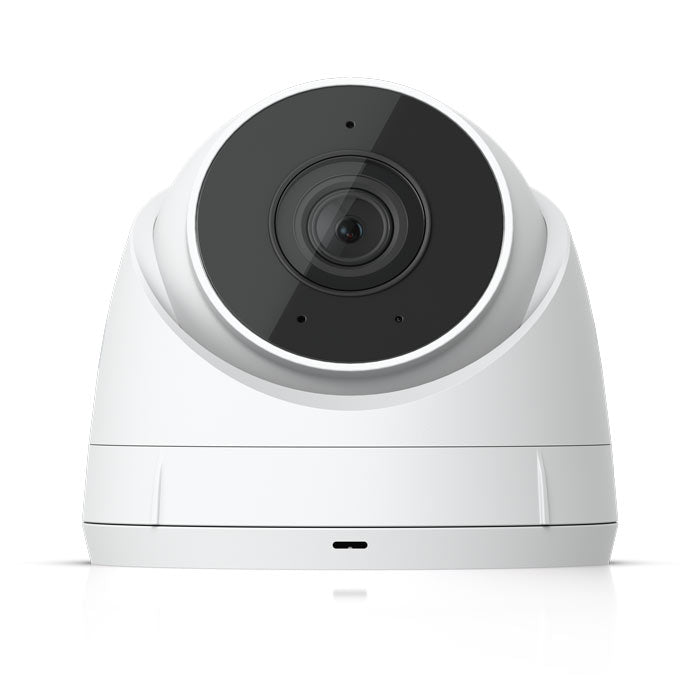

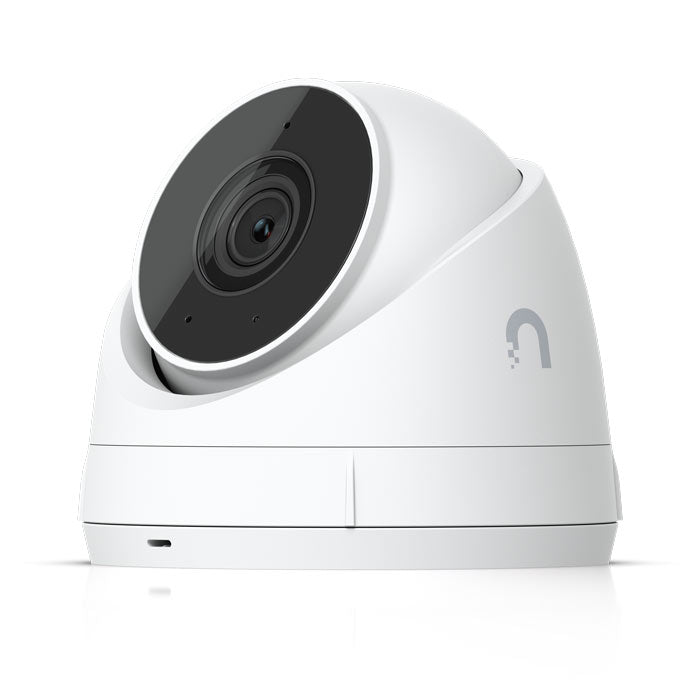

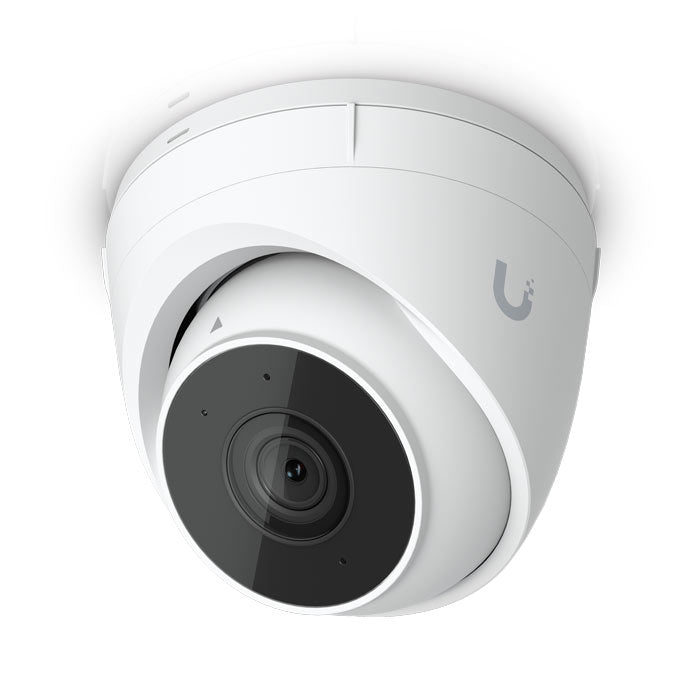

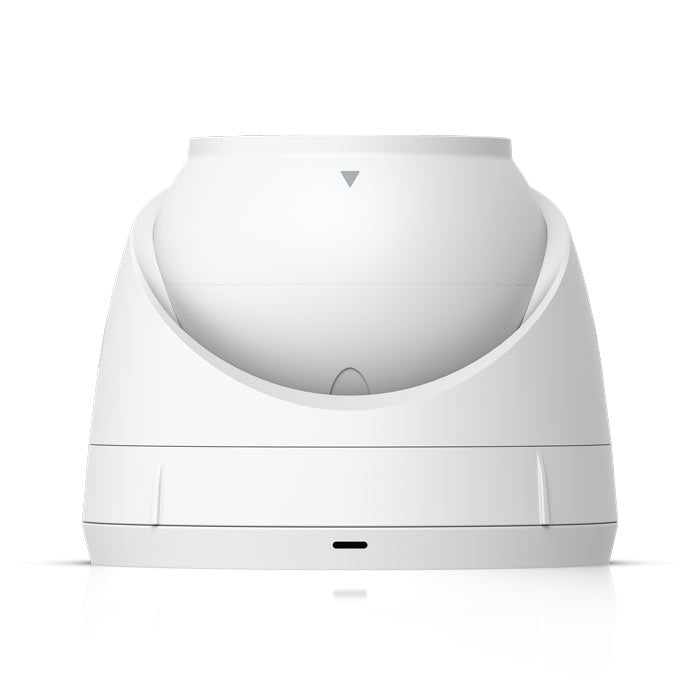

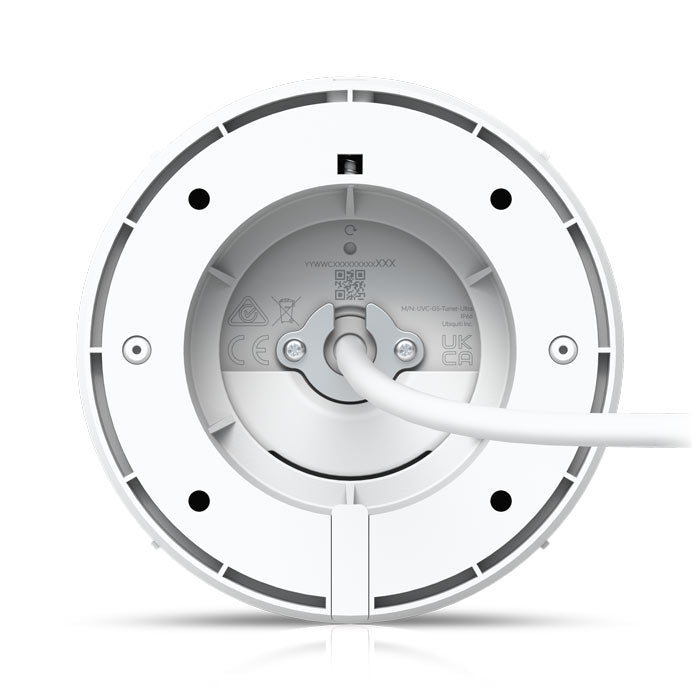

G5 Turret Ultra Cameras (x4)
- 2K (4MP) video at up to 30 FPS with a 102.4° horizontal field of view
- 30 m (98 ft) IR night vision with built-in IR LED and IR cut filter
- Smart detections for people, vehicles and animals
- Integrated microphone for audio recording
- IP66 weatherproofing and IK04 tamper resistance for outdoor use
- PoE powered through a single Ethernet cable, with wall and ceiling mounts included
Ideal for: homes, small businesses, shops, offices and anyone who wants a professional, locally stored CCTV surveillance system that is quick to deploy and easy to manage.
Compatible Products
UniFi Gateways and Layer 3 Switches
The NVR Instant must be connected to a UniFi Gateway or Layer 3 switch.
UniFi Protect Ecosystem
Managed through UniFi Protect, with UniFi Access and UniFi Connect also supported.
Additional UniFi Cameras
Supports up to 15 Full HD, 8 2K or 6 4K cameras in total, so you can expand beyond the four included cameras.
Frequently asked questions5 questions
Does this kit require a gateway?
What is included in the kit?
How many cameras can the NVR manage?
Can I view live footage directly from the NVR?
How are the cameras powered?
Specifications71 specifications · 3 sections
| Network Video Recorder Instant | |
|---|---|
| Dimensions | 220 x 220 x 47 mm / (8.7 x 8.7 x 1.9") |
| Managed Cameras | (15) HD / (8) 2K / (6) 4K |
| Max. Simultaneous Viewport Streams | 6 4K cameras |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |

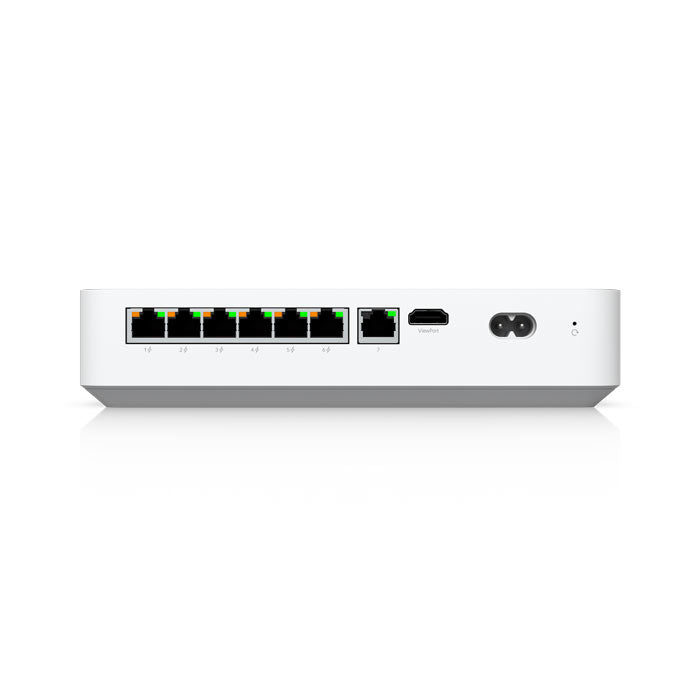

| Networking Interface | (1) GbE RJ45 uplink port / (6) GbE PoE RJ45 downlink ports / (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Management Application | UniFi Protect / UniFi Access / UniFi Connect |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet / Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, Electrical Safety |
| G5 Turret Ultra | |
| Dimensions | ⌀90 x 71.2 mm / (⌀3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling mount (Included) / Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | 4MP 2688 x 1512 (16:9) |
| Optics · Sensor | 1/2.4" CMOS |
| Optics · Lens | Fixed focal length |
| Optics · Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory reset |
| Cable · Cable Connector Type | RJ45 |
| Cable · Cable Diameter | 5 mm (0.2") |
| Cable · Cable Length | 30 cm (1 ft) |
| Cable · Jacket Material | Polycarbonate |
| Cable · Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Cable · Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| HDD | |
| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 h |
| Ambient Operating Temperature | 0 to 65° C (32 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
