Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
UK-Ultra

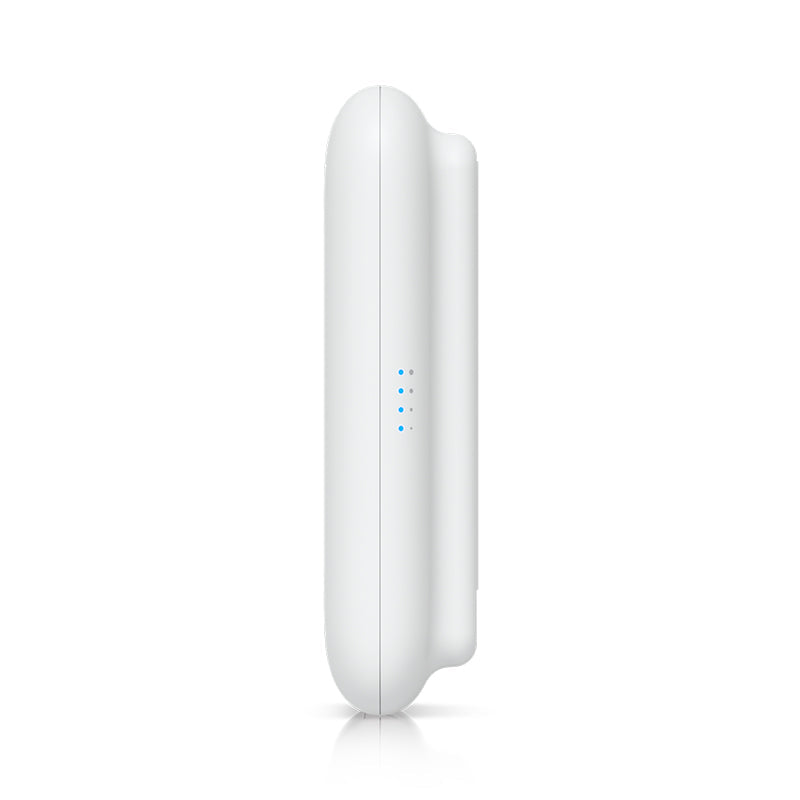

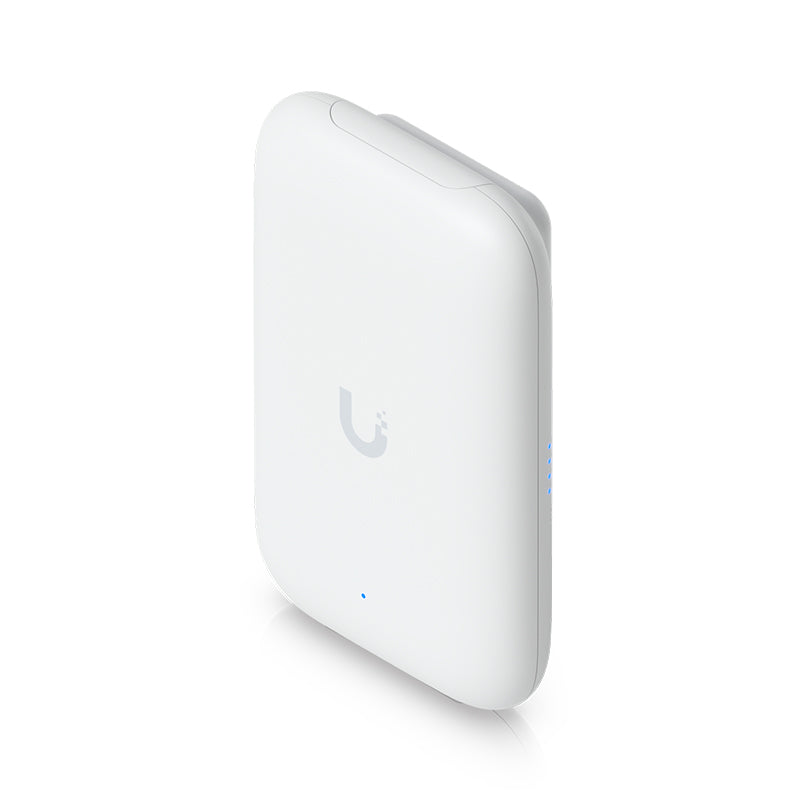

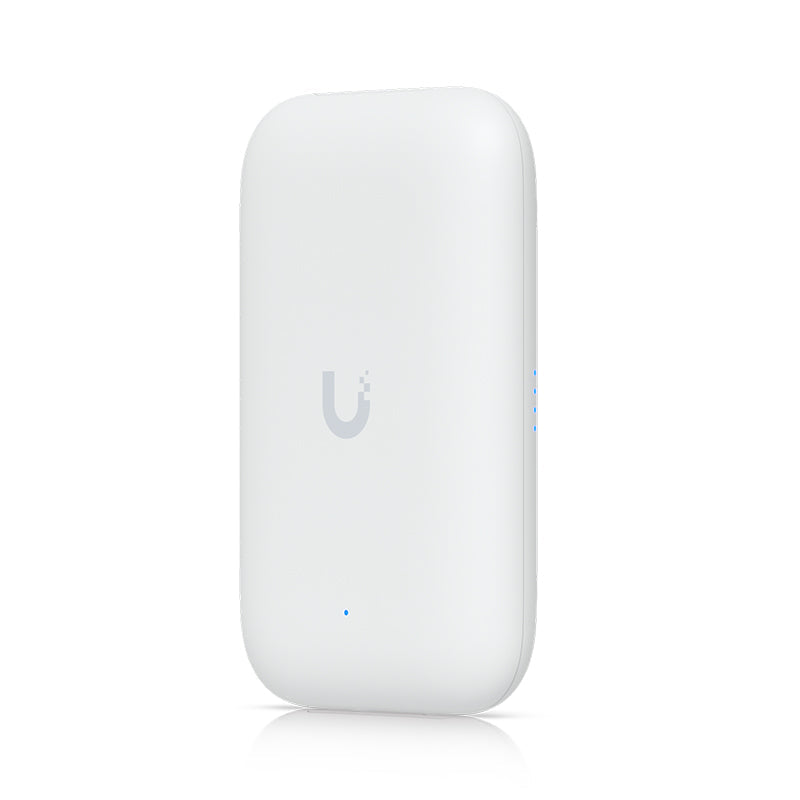

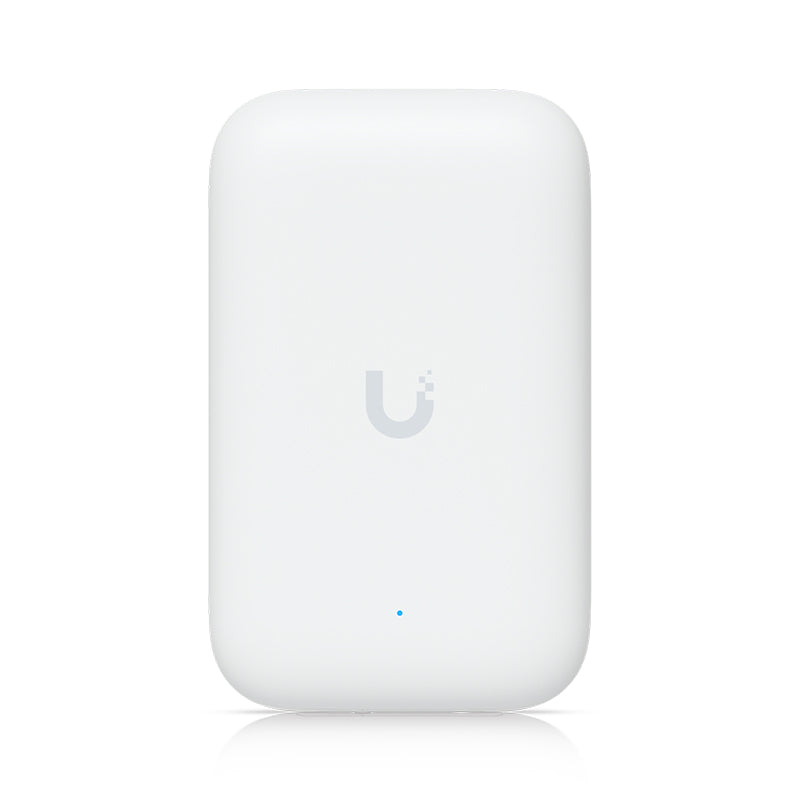

UK-Ultra Ubiquiti Swiss Army Knife Ultra
Regular price
£70.11 GBP
Unit price
Description
Description
Incredibly compact indoor/outdoor PoE access point with long-range external antenna support and versatile mounting options.
Features:
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices
WiFi 5 (2x2 MIMO)

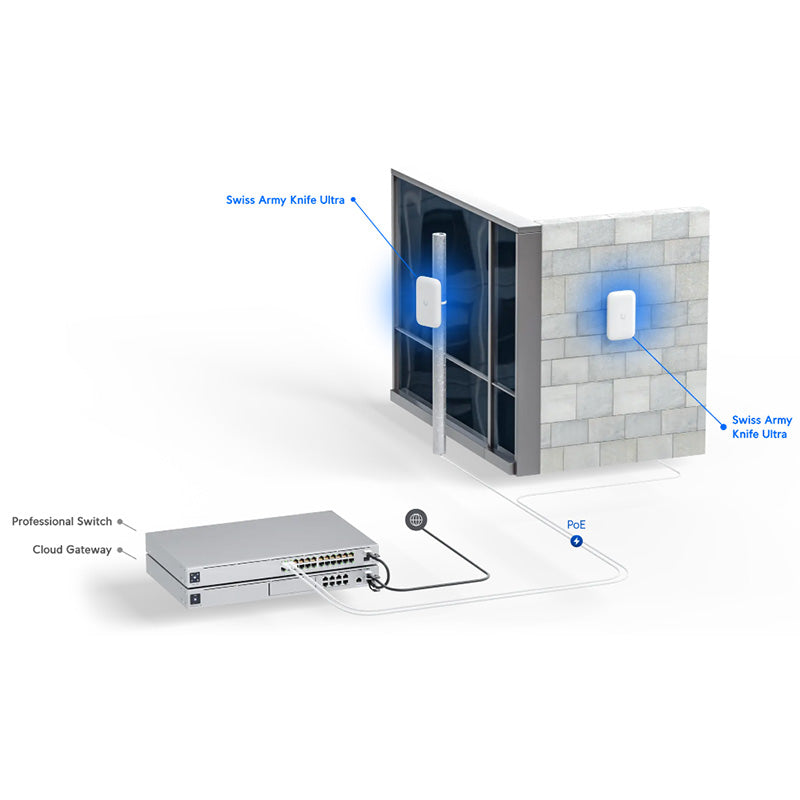

Powered using PoE
Compact form factor

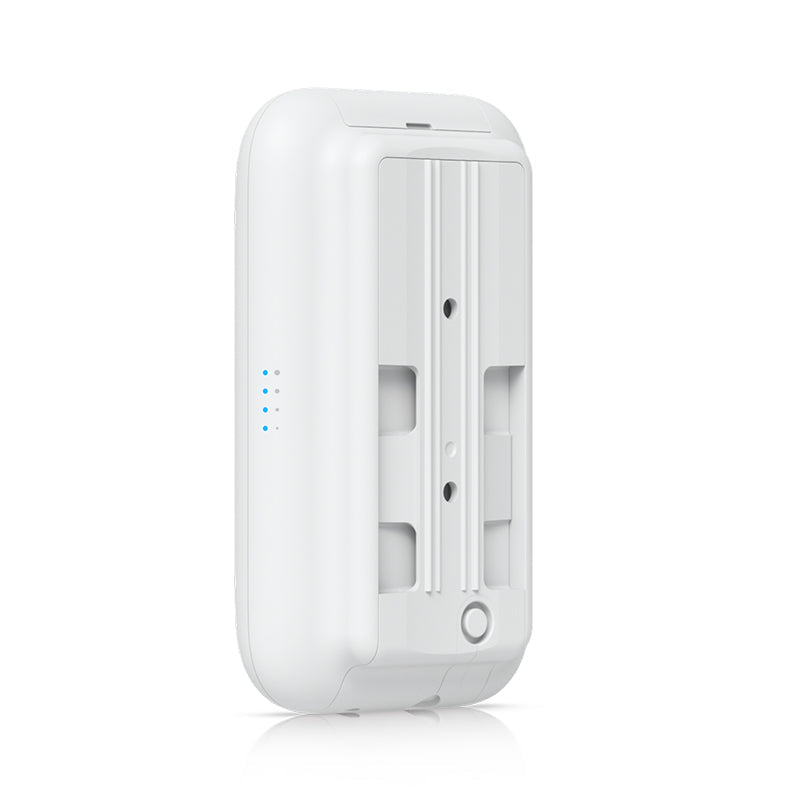

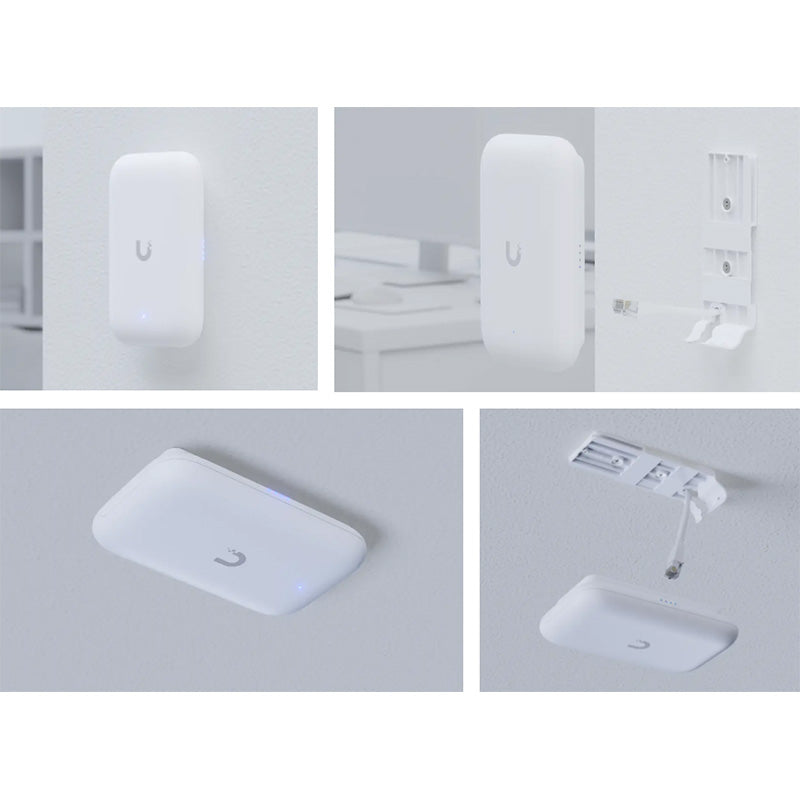

Versatile wall and pole mounting

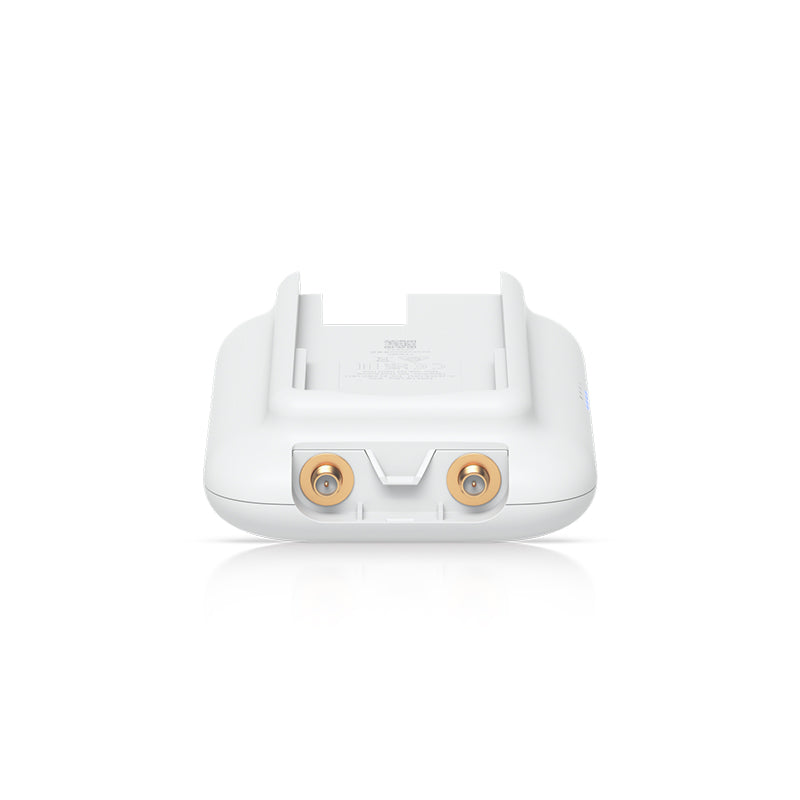

(2) RP-SMA connectors for optional external antennas*
*Omnidirectional and directional antenna accessories coming soon.
SKU:
UK-Ultra
Regular price
£70.11 GBP
Unit price
Specifications37 specifications · 4 sections
| Overview | |
|---|---|

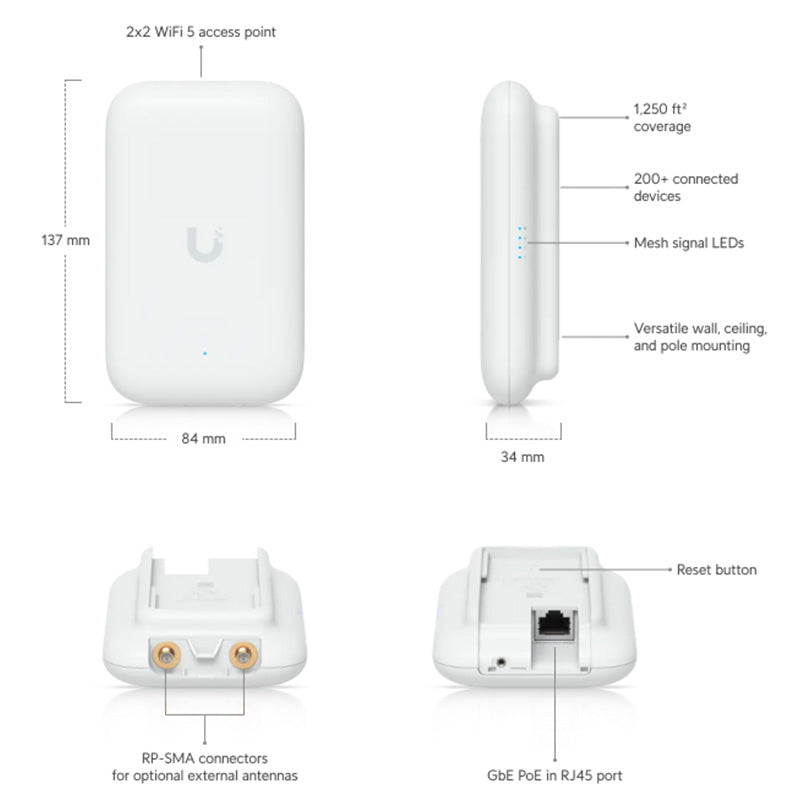

| Dimensions | 137 x 84 x 34 mm / (5.4 x 3.3 x 1.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |

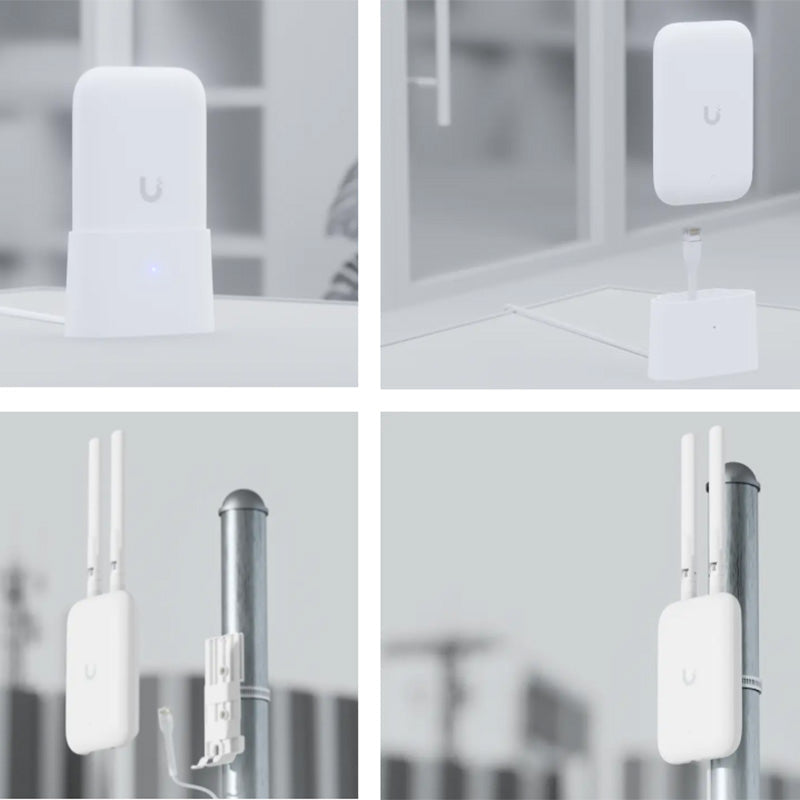

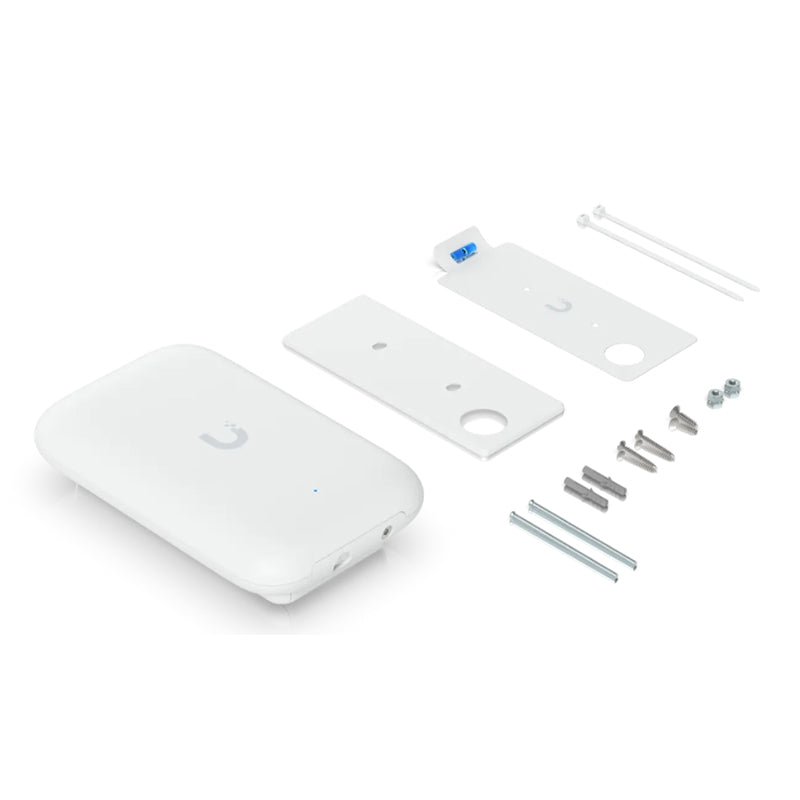

| Mounting | Ceiling, Wall, Pole, Table (With Accessory) / (Mounts Included) / Desktop Stand (Optional) |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate · 5 GHz | 866.7 Mbps (BW80) |
| Max. Data Rate · 2.4 GHz | 300 Mbps (BW40) |
| Antenna Gain · 5 GHz | 6.1 dBi |
| Antenna Gain · 2.4 GHz | 4.7 dBi |
| Max. TX Power · 5 GHz | 20 dBm |
| Max. TX Power · 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 8W |
| Supported Voltage Range | 44–57V DC |

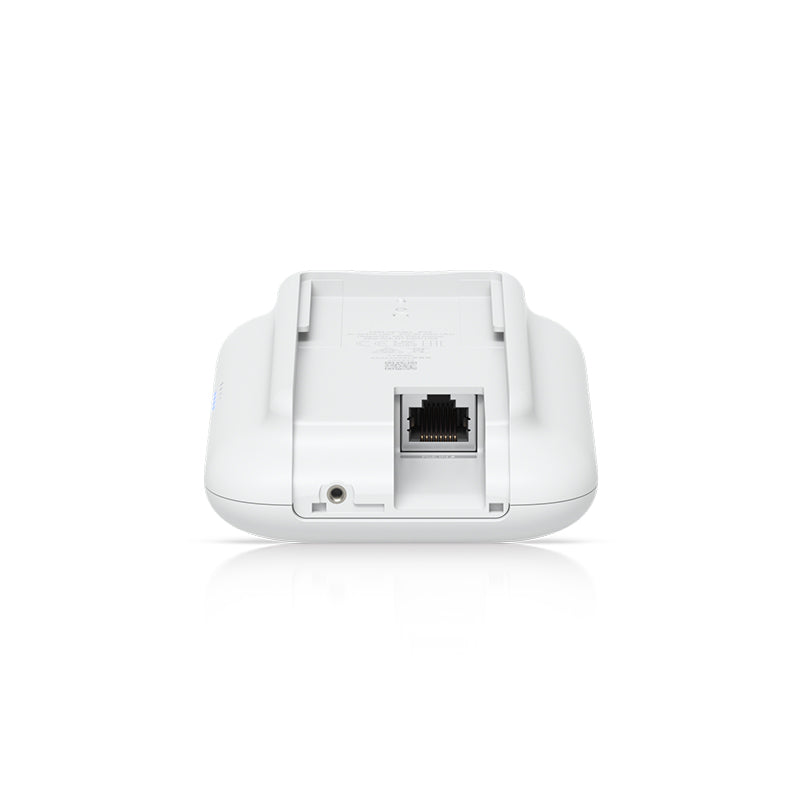

| Networking Interface | (1) GbE RJ45 port |
| Weight | 173 g (6.1 oz) |
| Wind Loading | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Pole Mount Diameter | 1~2" (25–50 mm) |
| Antennas | (1) Internal antenna / (2) RP-SMA connectors |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Polycarbonate, SGCC steel, plastic |
| LEDs · System | (1) Power: White/Blue / (4) Mesh Signal: Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06237-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.5.187 and later |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UK-Ultra · Ubiquiti's spec sheet
