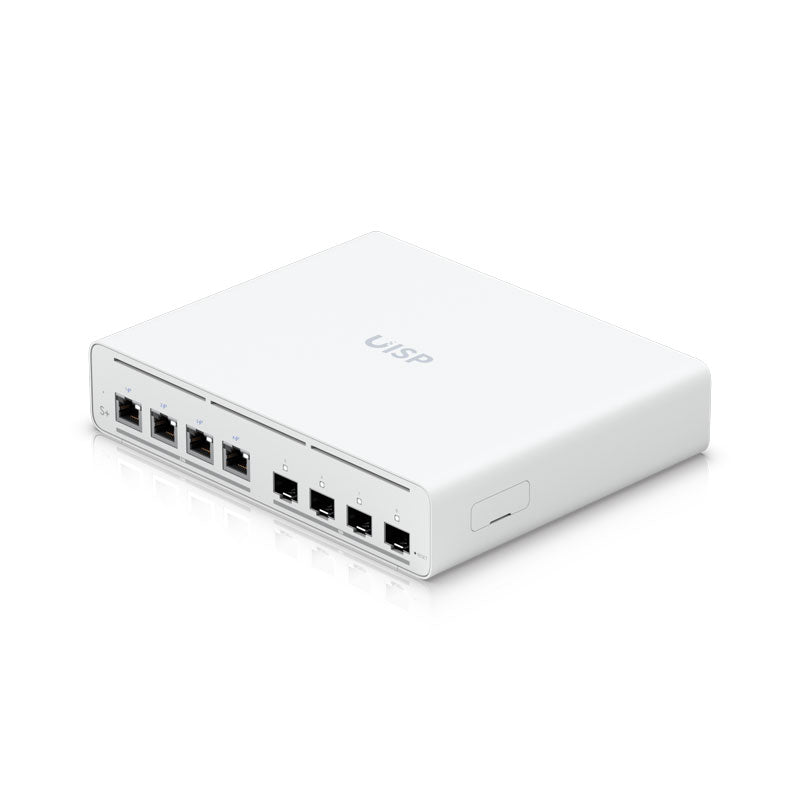

UISP-S-Plus Ubiquiti UISP Switch Plus

£360.57 GBP

Description

The Ubiquiti UISP-S-Plus is a compact, high‑performance 2.5 GbE PoE switch designed for demanding ISP deployments, delivering fast throughput, flexible mounting, and robust power options. It combines advanced PoE capabilities with 10G SFP+ uplinks to support modern network growth.

Features:

2.5 GbE PoE ISP Switch: Built for service providers needing reliable, high‑speed distribution.
Ports & Performance:

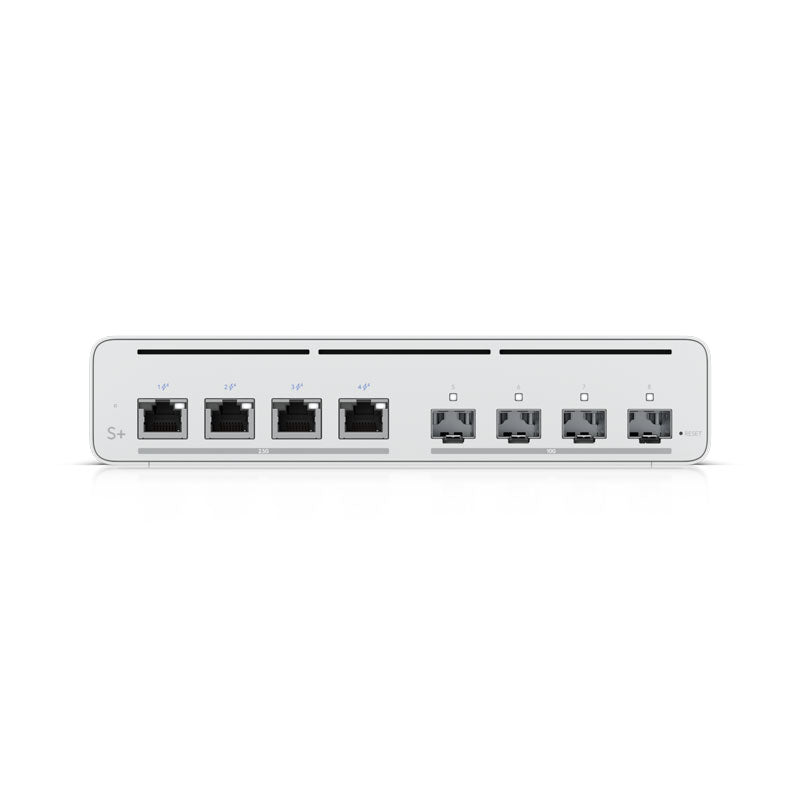

(4) 2.5 GbE RJ45 ports with 27V passive PoE output
(4) 10G SFP+ ports for high‑capacity uplinks
160W total PoE budget when powered with the included AC/DC adapter
50 Gbps non‑blocking throughput and 100 Gbps switching capacity

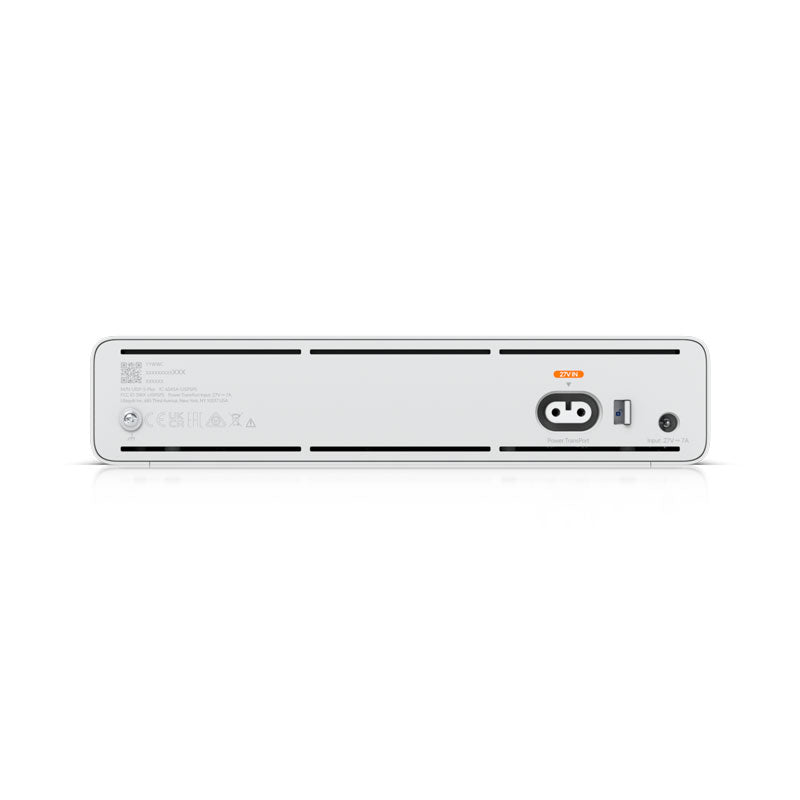

Advanced Features: Port isolation, speed limiting, DHCP snooping, and Power TransPort™ input for DC redundancy.
Flexible Deployment: Supports desk, wall, 1U rack, and outdoor installation (with UISP Box Plus). Managed via local web UI or UISP application

Compatible accessories:

UACC-Cable-PT

UISP-Box-Plus

Frequently asked questions5 questions

What ports does the UISP-S-Plus have?

It has four 2.5 GbE RJ45 ports with 27V passive PoE output and four 10G SFP+ ports for high-capacity uplinks. It provides 50 Gbps non-blocking throughput and 100 Gbps switching capacity.

How much PoE power can the UISP-S-Plus deliver?

It offers a total PoE budget of 160W when powered with the included AC/DC adapter. The four 2.5 GbE RJ45 ports provide 27V passive PoE output.

Can the UISP-S-Plus be installed outdoors?

Yes, outdoor installation is supported when the switch is used with the UISP Box Plus. For indoor use it can also be mounted on a desk, on a wall or in a 1U rack.

How is the UISP-S-Plus managed and what features does it offer?

It is managed through a local web UI or the UISP application. Features include port isolation, speed limiting and DHCP snooping, plus a Power TransPort input for DC redundancy.

Which accessories are compatible with the UISP-S-Plus?

The UACC-Cable-PT and the UISP-Box-Plus are listed as compatible accessories. The UISP Box Plus is the enclosure used for outdoor installation.
