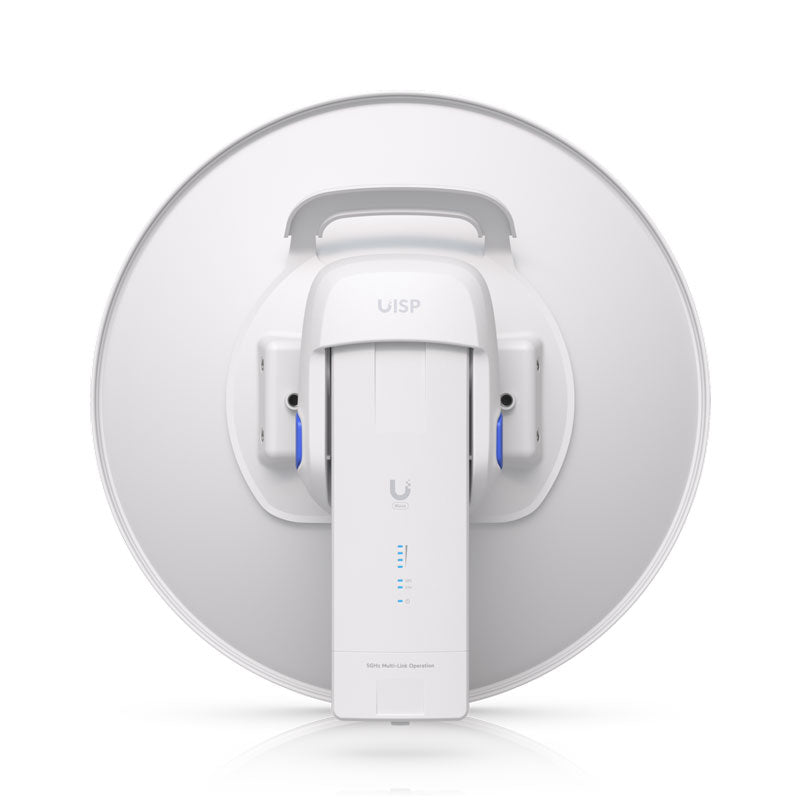

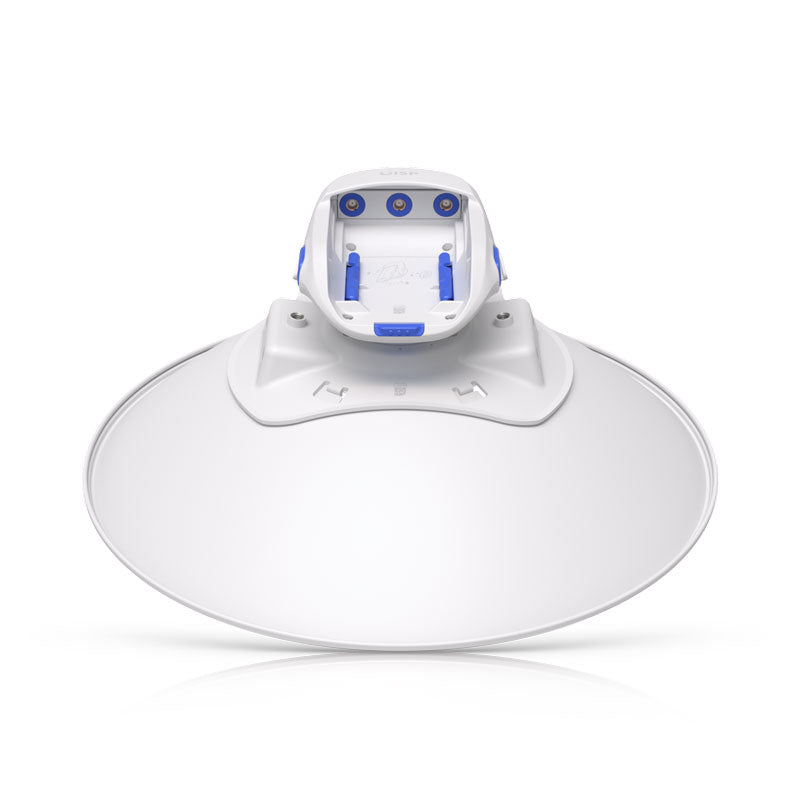

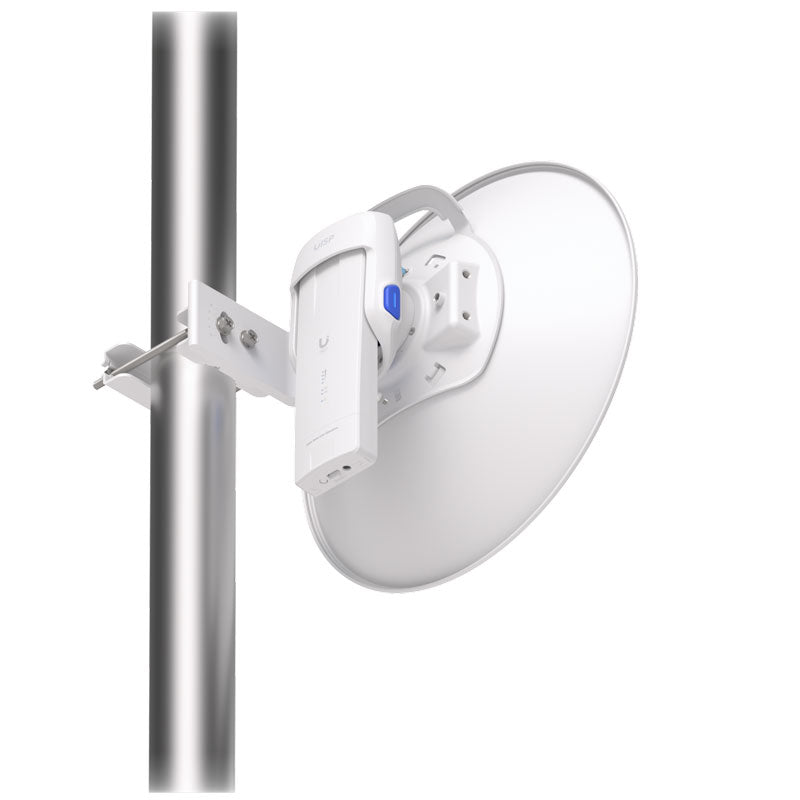

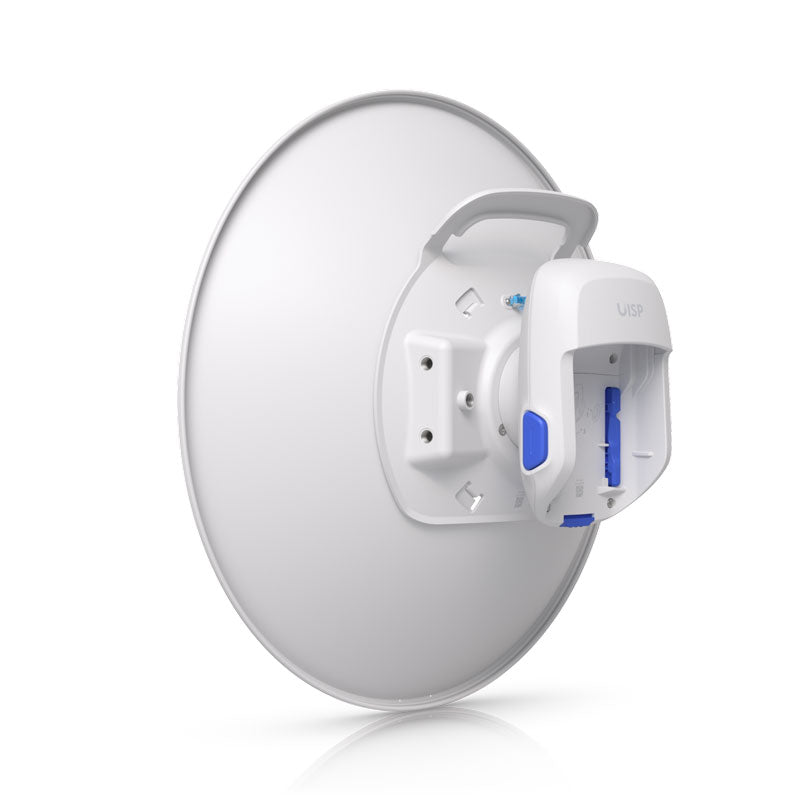

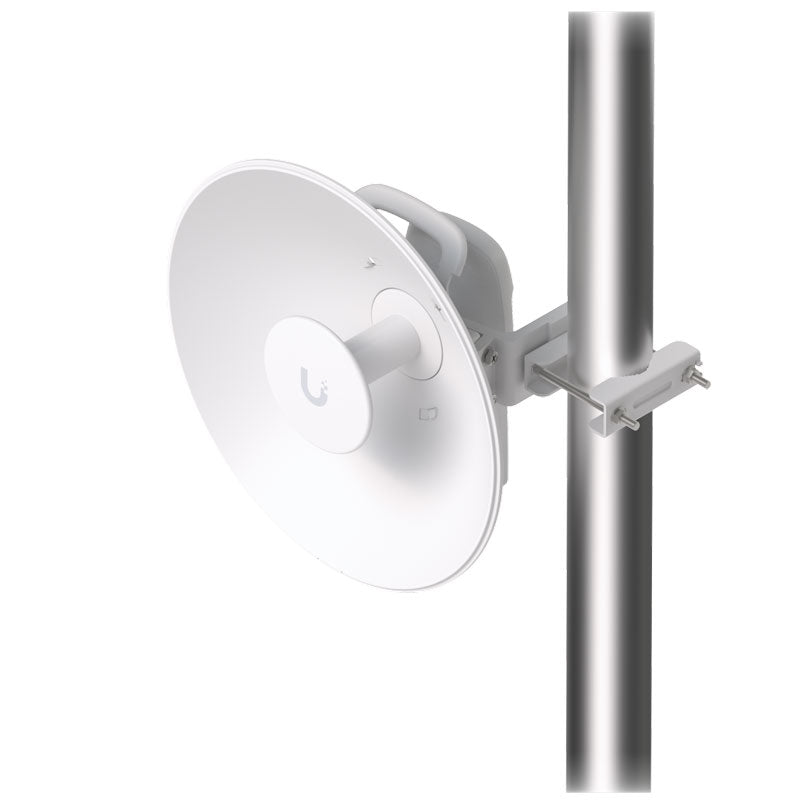

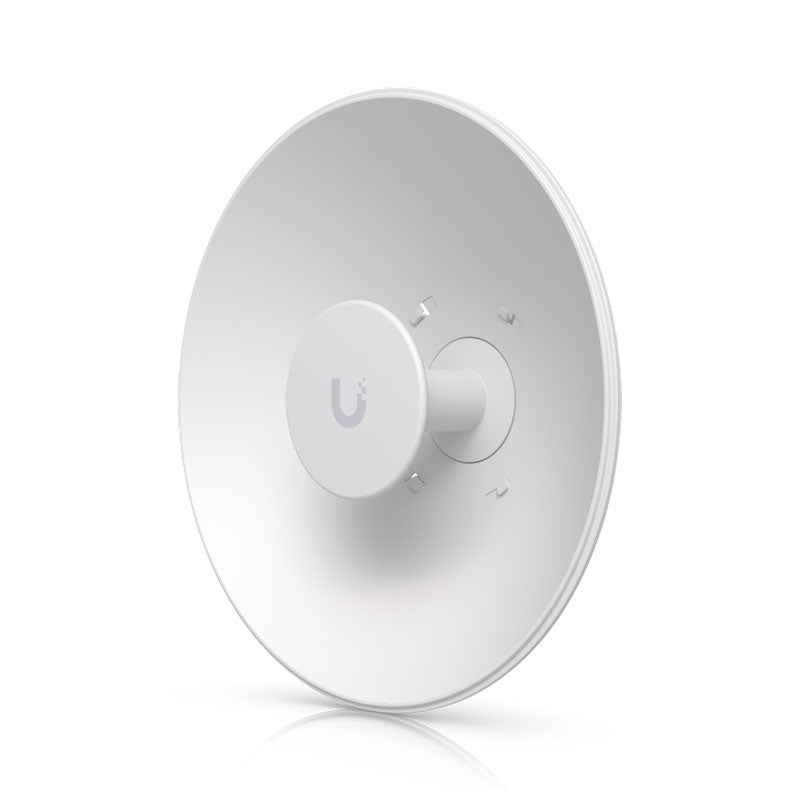

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
UISP-Dish-Mini Ubiquiti 5-7 GHz compact dish antenna
Description
Description
The Ubiquiti UISP Dish Mini is a compact, high‑gain directional antenna engineered for long‑range wireless links in the 5–7 GHz spectrum. Designed for seamless radio integration and reliable outdoor performance, it delivers exceptional signal strength in a lightweight, installer‑friendly form factor.
Features:
• 26 dBi high‑gain dish for focused, long‑distance point‑to‑point connectivity
• 5–7 GHz wideband support for flexible deployment across various wireless environments
• Direct radio‑mount design enabling quick, secure attachment to compatible UISP radios
• Compact, low‑wind‑load form factor ideal for rooftops, towers, and constrained mounting locations
• Durable outdoor construction built to withstand harsh weather conditions
• Optimised beam pattern for improved noise immunity and stable throughput
Specifications16 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | Antenna dish: ⌀420 x 140 mm (⌀16.5 x 5.5") / Antenna dish with Waveguide: ⌀420 x 211.3 mm (⌀16.5 x 8.3") |
| Weight | Antenna dish: 1.95 kg (4.3 lb) / Mount: 1 kg (2.2 lb) / Waveguide: 0.45 kg (1 lb) |
| Enclosure Material | Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate / Waveguide: Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Powder-coated galvanized steel, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 348 N at 200 km/h (78 lbf at 124 mph) |
| Mounting | Pole mount / Alignment mounting kit (Included) / Mechanical adjustment: ±20° elevation |
| Pole Mount Diameter | ⌀32–76 mm (⌀1.25–3") |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 26 dBi |
| Beamwidth | Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) / Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) |
| Electrical Downtilt | 0° |
| Max. VSWR | 2:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 15 dB |
