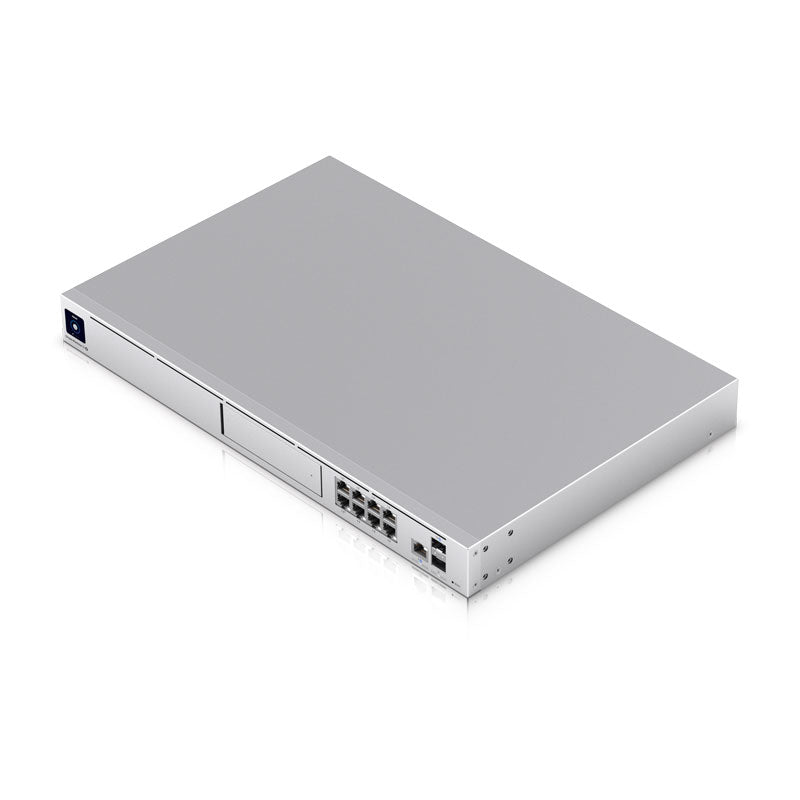

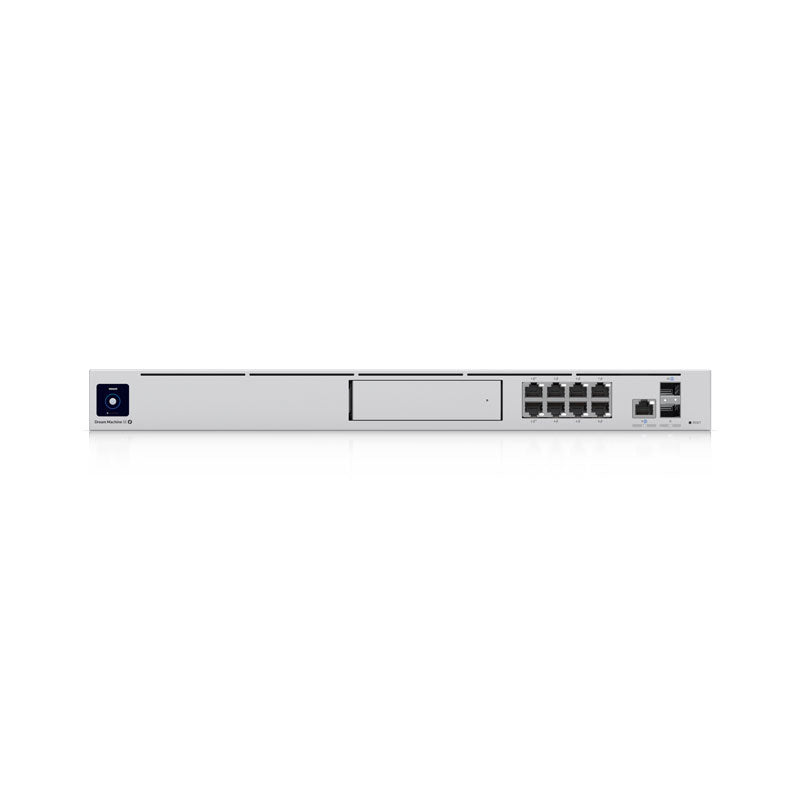

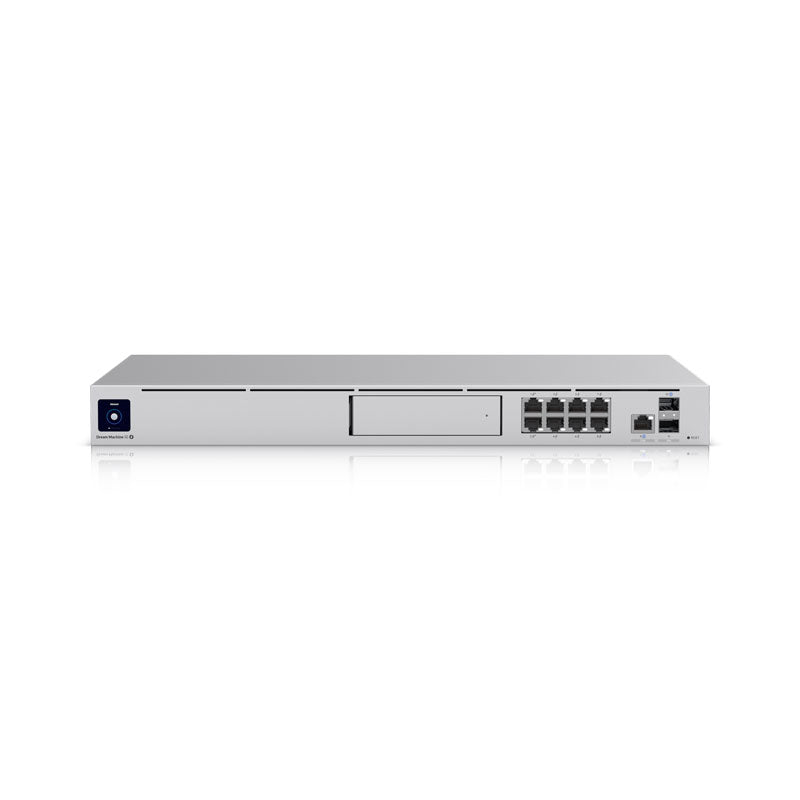

UDM-SE Ubiquiti UniFi Dream Machine Special Edition
Description
Description
The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage.
Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications.
Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).
Features:
1.7 GHz quad-core processor
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(8) GbE RJ45 ports, including (6) 802.3af PoE and (2) 802.3at PoE+ LAN ports
(1) 10G SFP+ LAN port
(1) 1.3' LCM color touchscreen for at-a-glance network monitoring
Customizable internet threat filtration and traffic identification for enhanced network security
Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app
1U-sized, rack-mountable device
Compatible with the SmartPower Redundant Power Supply system (sold separately)
Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5' HDDs
128 GB integrated storage for full UniFi OS Application experience
Specifications38 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm / (17.4 x 1.7 x 11.2") |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD / (14) 2K / (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+ / (1) 2.5 GbE RJ45 |
| Port Layout · 1 GbE RJ45 | 8 / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 1 / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover / DC Power Backup |
| Security | |
| IDS/IPS Signatures | 55,000+ / with CyberSecure |
| Networking | |
| MAC Address Table Size | 4,000 |
| Hardware | |
| NVR Storage | (1) 3.5" NVR HDD bay / Built-in 128 GB SSD for Faster Experience |
| PoE Budget | 180W |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Voltage Range PoE Mode | PoE: 44-57V / PoE+: 50-57V |
| Max. Power Consumption | 50W (Excluding PoE Output) |
| Power Method | (1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz / (1) USP-RPS DC input, 52V DC, 3.94A |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 170 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB eMMC / 128 GB SSD (Integrated) |
| Weight | 5 kg (10.9 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 07309-22-08356, SRRC |
