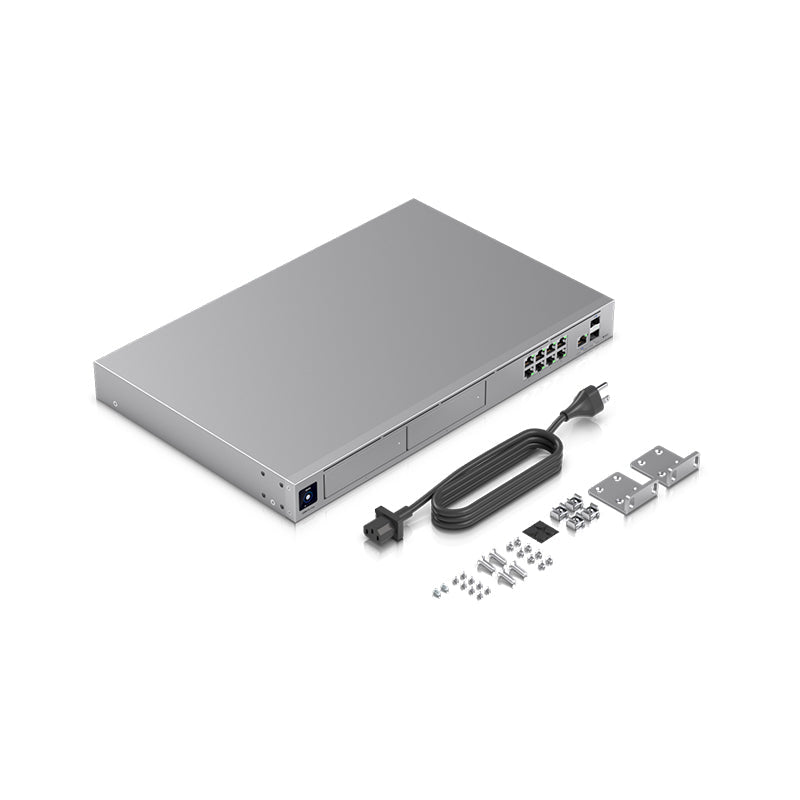

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.

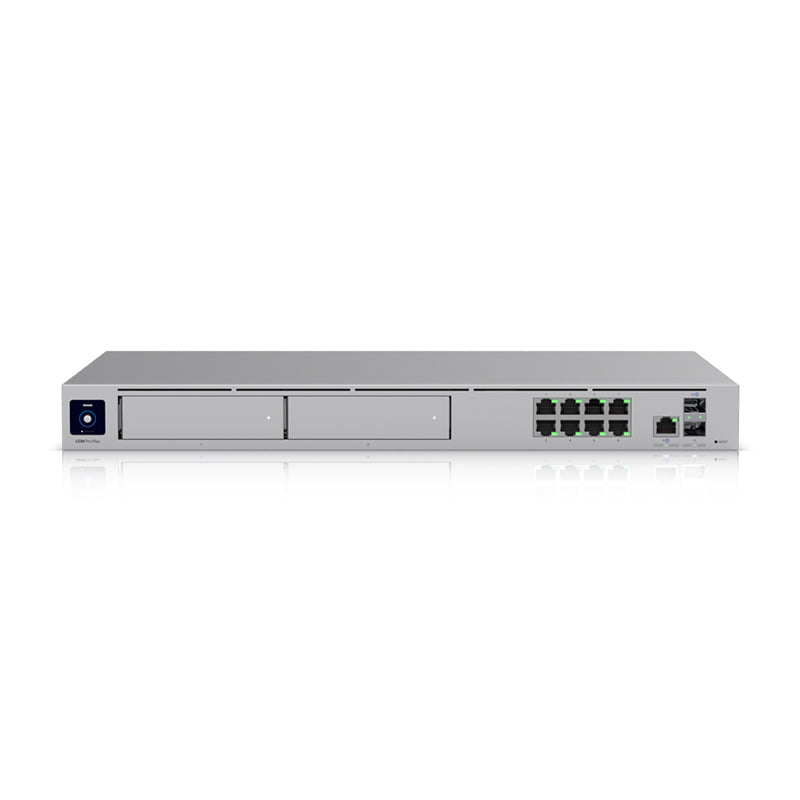

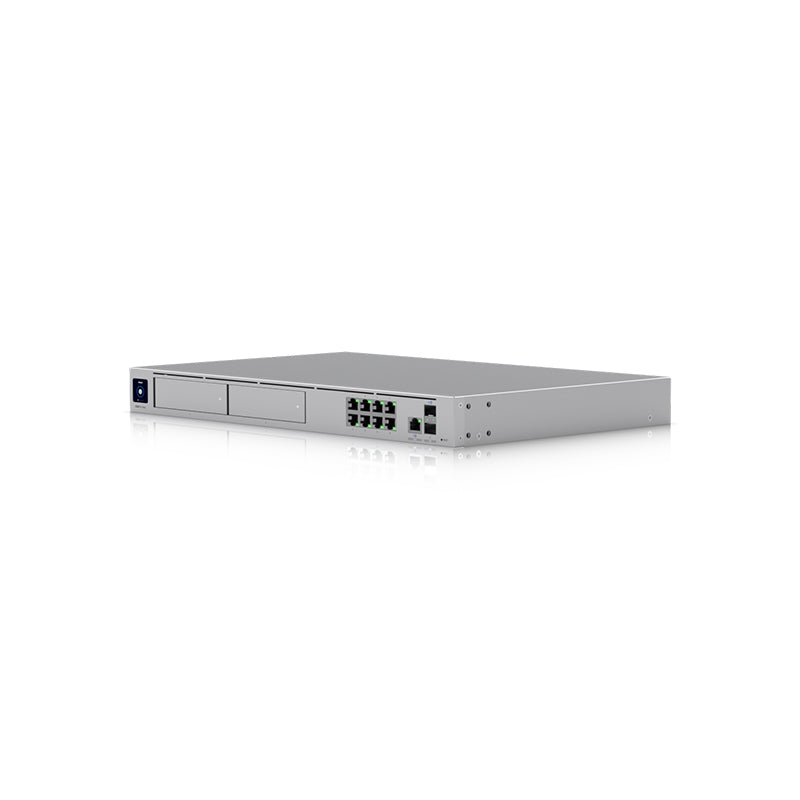

UDM-Pro-Max Ubiquiti UniFi Dream Machine Pro Max
Description
Description

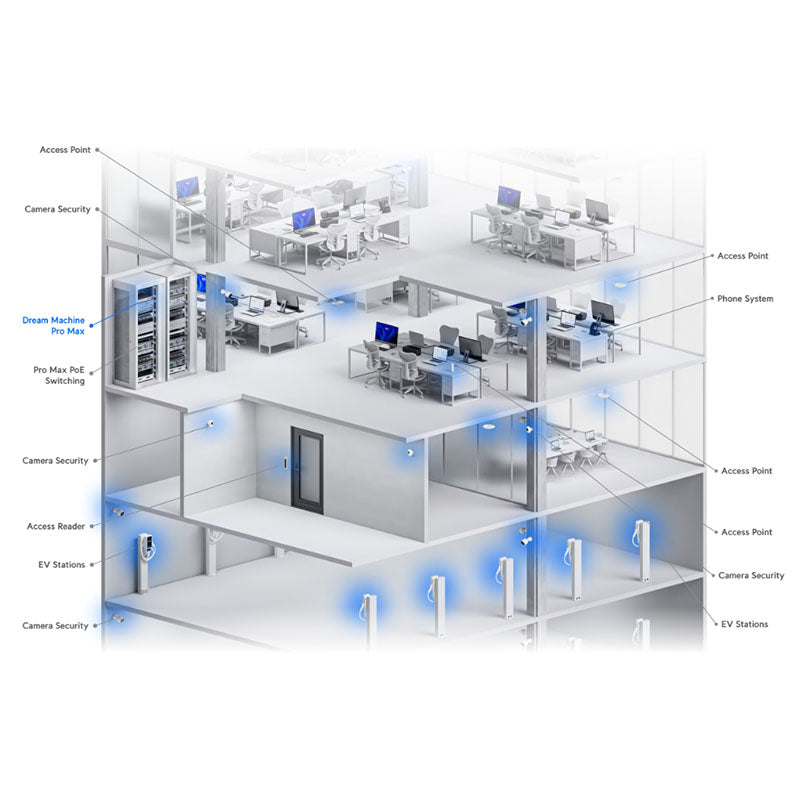

Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
Features:
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS

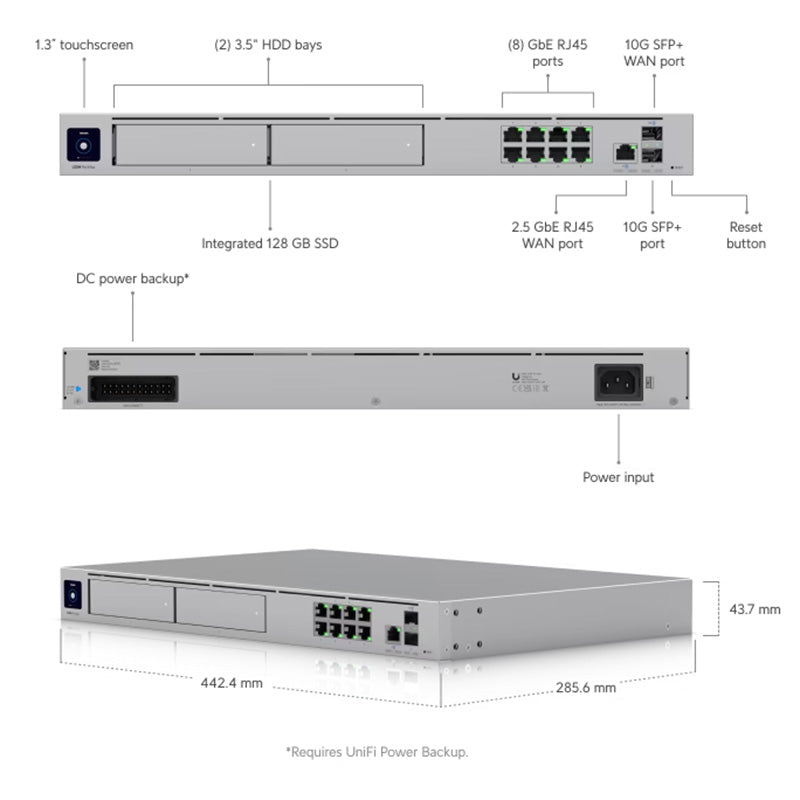

(1) 10G SFP+*, (8) GbE RJ45 LAN ports
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
(2) 3.5" NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
1.3" touchscreen
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Specifications34 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm / (17.4 x 1.7 x 11.2") |
| Managed UniFi Devices | 200+ |
| Managed Cameras | (50) HD / (25) 2K / (15) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 2,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+ / (1) 2.5 GbE RJ45 |
| Port Layout · 1 GbE RJ45 | 8 / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 1 / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover / DC Power Backup |
| Security | |
| IDS/IPS Signatures | 55,000+ / with CyberSecure |
| Networking | |
| MAC Address Table Size | 4,000 |
| Hardware | |
| NVR Storage | (2) 3.5" NVR HDD bays / Built-in 128 GB SSD for Faster Experience |
| Max. Power Consumption | 60W |
| Power Method | (1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz / (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 205 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A57 at 2.0 GHz |
| System Memory | 8 GB |
| On-board Storage | 32 GB eMMC / 128 GB SSD (Integrated) |
| Weight | 4.7 kg (10.4 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06369-24-08356, SRRC |
