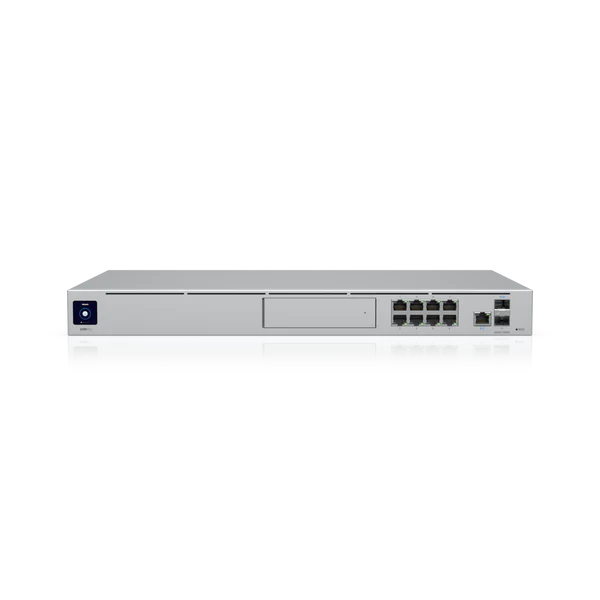

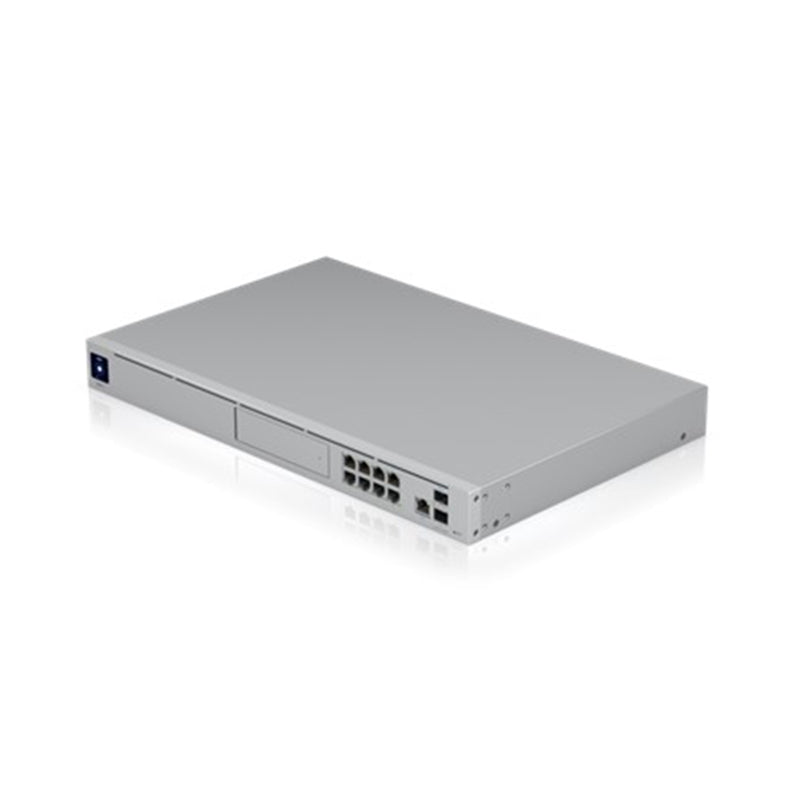

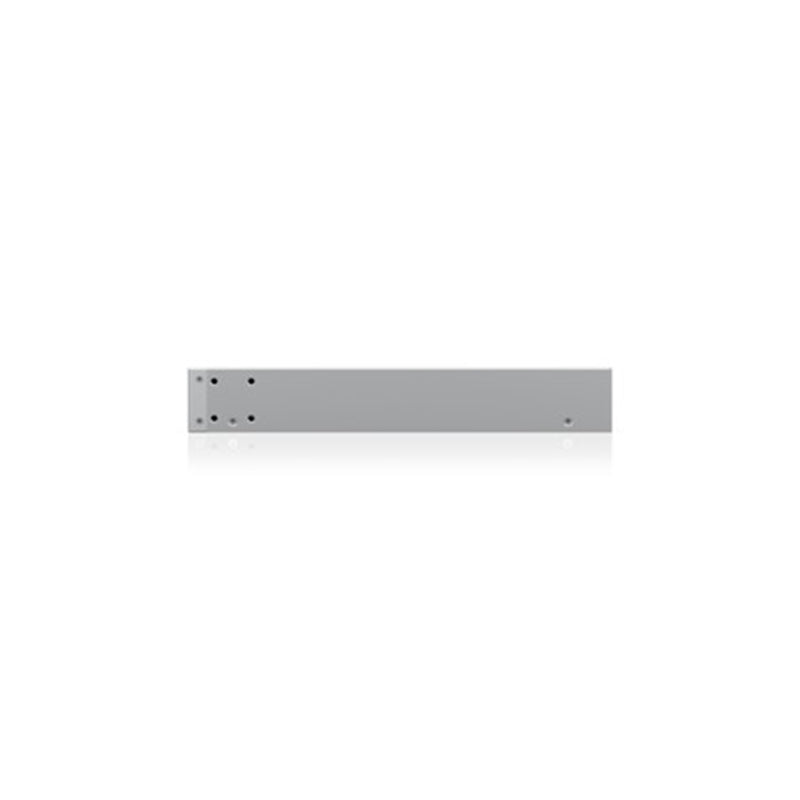

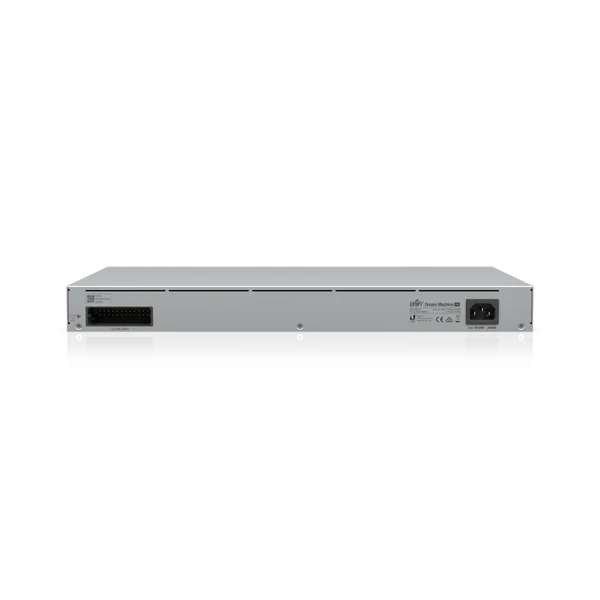

UDM-Pro Ubiquiti UniFi Dream Machine Pro
Description
Description
The Dream Machine Pro (UDM Pro) is an enterprise-grade UniFi OS Console that offers a scalable networking experience and comprehensive platform for multi-application use.
The UDM Pro is an all-in-one networking console that runs every UniFi OS application, like Network and Protect. It features a built-in security gateway, 10G SFP+ WAN support, an 8-port Gigabit switch, and network video recorder that supports compatible 3.5" hard disk drives (HDDs).
Features:
Runs every UniFi OS application, including the pre-installed UniFi Network
8-port switch with 1GbE RJ45 and 10G SFP+ ports
Integrated security gateway and UniFi Protect-ready network video recorder that supports compatible 3.5" HDDs
Enterprise-class internet threat management, deep packet inspection, and WiFi AI functionality
Powered by a fast, 1.7 GHz quad-core processor
1U-sized, rack-mountable console
Allows you to easily scale your deployment by connecting additional UniFi devices
Connect a USP RPS to create an uninterruptible network
Specifications33 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm / (17.4 x 1.7 x 11.2") |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD / (14) 2K / (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+ / (1) GbE RJ45 |
| Port Layout · 1 GbE RJ45 | 9 / (1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover / DC Power Backup |
| Security | |
| IDS/IPS Signatures | 55,000+ / with CyberSecure |
| Networking | |
| MAC Address Table Size | 4,000 |
| Hardware | |
| NVR Storage | (1) 3.5" NVR HDD bay |
| Max. Power Consumption | 33W |
| Power Method | (1) Universal AC input, 100–240V AC, 50/60 Hz / (1) USP-RPS DC input |
| Power Supply | AC/DC, internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 112 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB |
| Weight | 3.9 kg (8.6 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01136-20-08356, SRRC |
