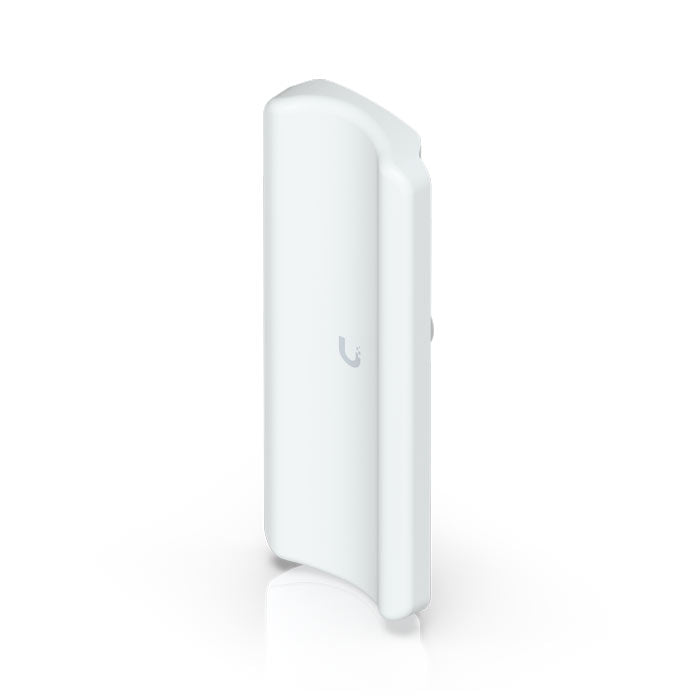

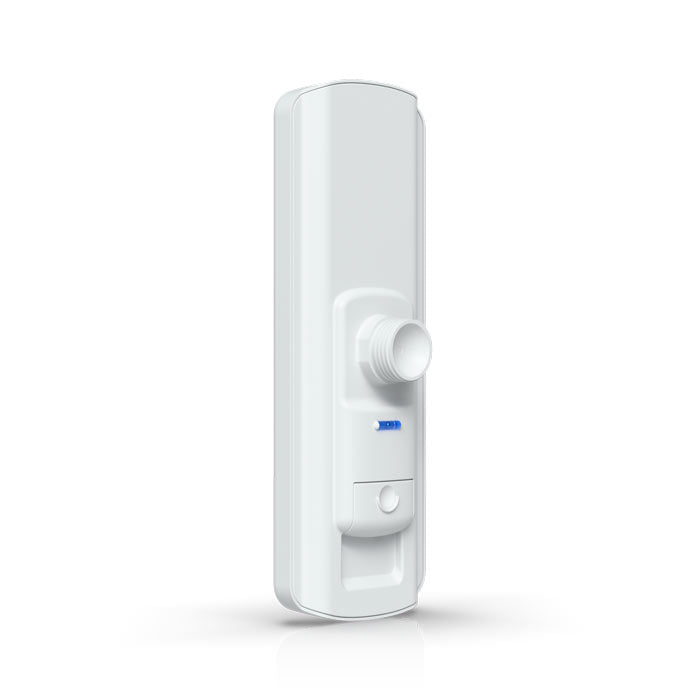

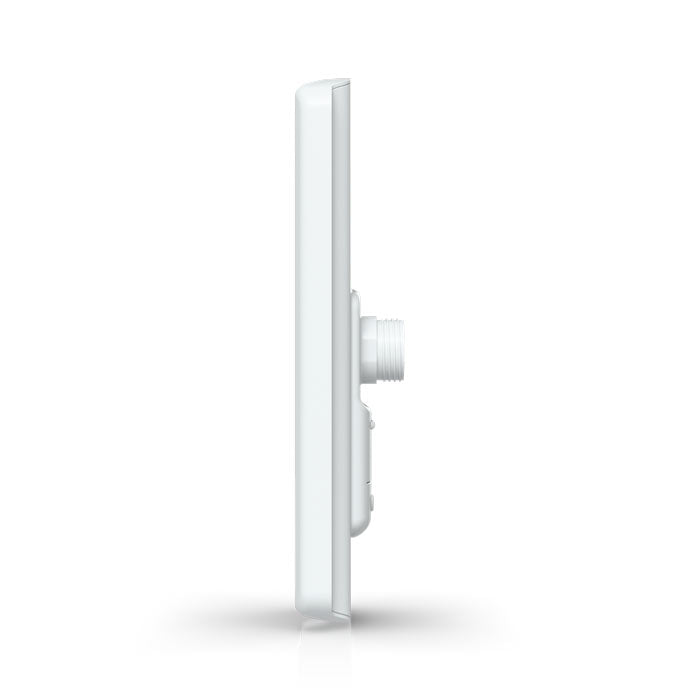

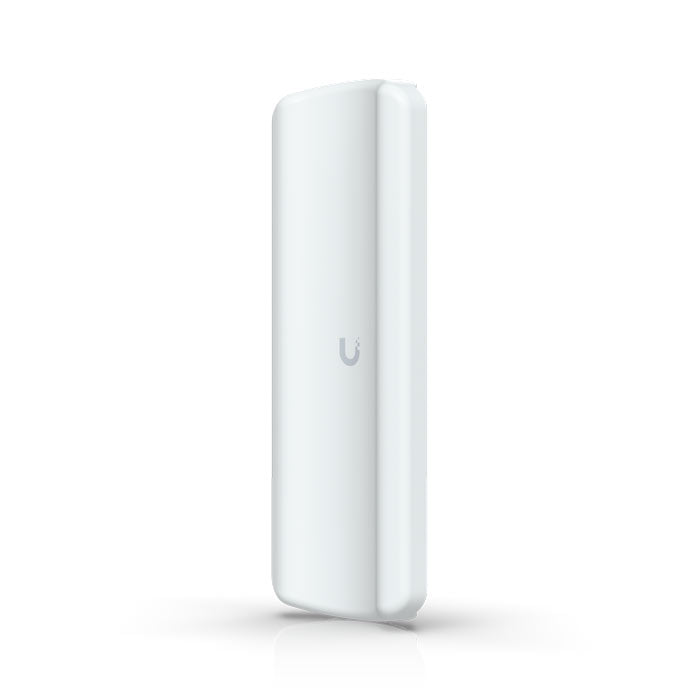

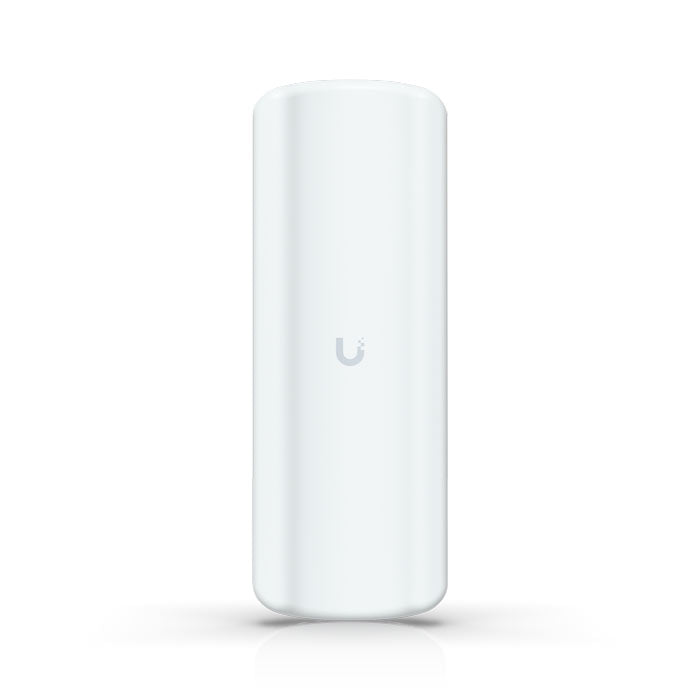

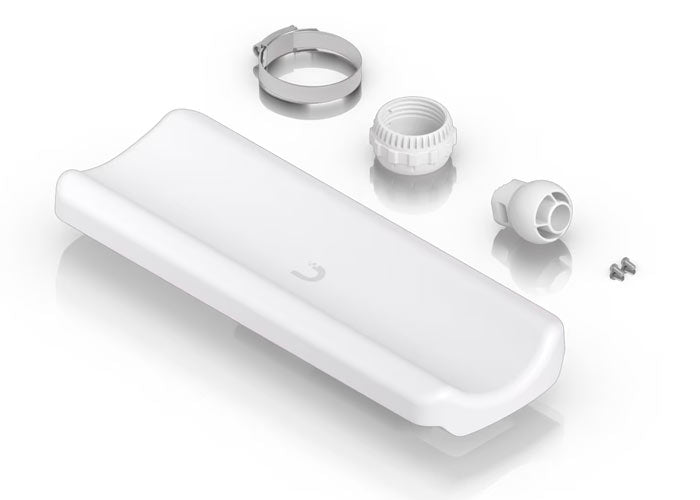

UDB-Pro-Sector – Ubiquiti UniFi Device Bridge Pro Sector Access Point
Description
Description
The UDB-Pro-Sector is a high‑performance 5 GHz point‑to‑multipoint wireless bridge designed by Ubiquiti for scalable outdoor connectivity within the UniFi ecosystem. Engineered for long‑range deployments, the UDB-Pro-Sector delivers reliable wireless links over distances of 5 km+ while supporting connections to 50+ UniFi Device Bridge Pro clients.
Built on WiFi 5 (802.11ac) technology with 2x2 MIMO, the UDB-Pro-Sector provides up to 400 Mbps aggregate throughput. Its integrated 17 dBi 90° sector antenna ensures wide and consistent coverage, making it ideal for campus networks, CCTV backhaul and multi‑building connectivity. The rugged IPX6‑rated weatherproof enclosure and PoE power simplify outdoor installation while ensuring long‑term reliability.
Key Features
- 5 GHz point‑to‑multipoint wireless bridge
- Supports 50+ UDB‑Pro client devices
- Up to 400 Mbps wireless throughput
- 90° sector antenna with 17 dBi gain
- 5 km+ range (line‑of‑sight)
- PoE powered via Gigabit Ethernet
- IPX6 weatherproof outdoor enclosure
- Managed via UniFi Network Controller
Ideal For
Business campuses, warehouses, farms, marinas, CCTV installations and multi‑building sites requiring stable long‑range wireless networking without trenching or fibre.
Compatible Products
UniFi Device Bridge Pro (UDB‑Pro)
Ubiquiti UniFi Switches – The Tech Geeks Australia
UniFi Network Controller
FAQs
Can the UDB-Pro-Sector be used for point‑to‑multipoint links?
Yes, the UDB-Pro-Sector is purpose‑built for point‑to‑multipoint deployments and supports over 50 Device Bridge Pro clients.
Is the UDB-Pro-Sector suitable for outdoor use?
Frequently asked questions1 question
Can the UDB-Pro-Sector be used for point‑to‑multipoint links?
Specifications33 specifications · 3 sections
| Overview | |
|---|---|

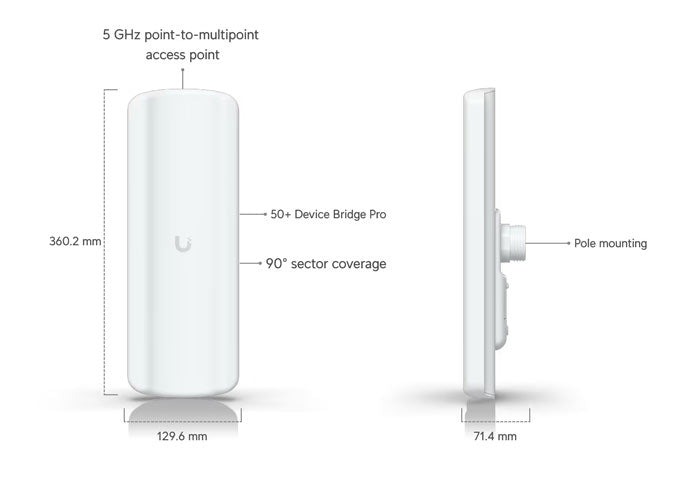

| Dimensions | 360.9 x 129.6 x 71.4 mm / (14.2 x 5.1 x 2.8”) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |

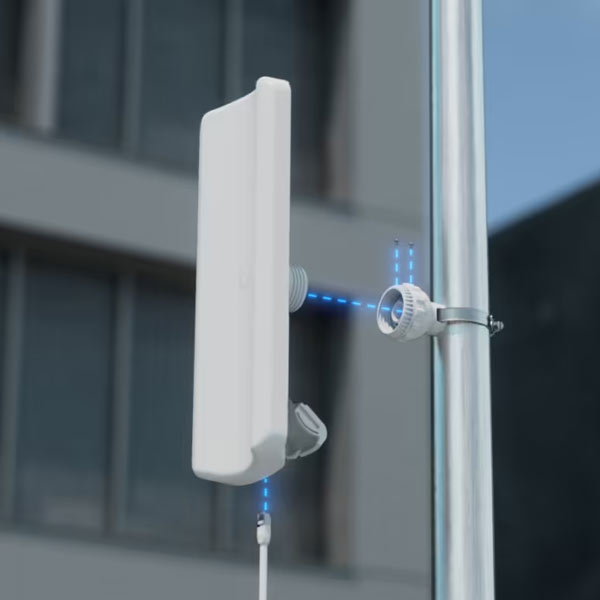

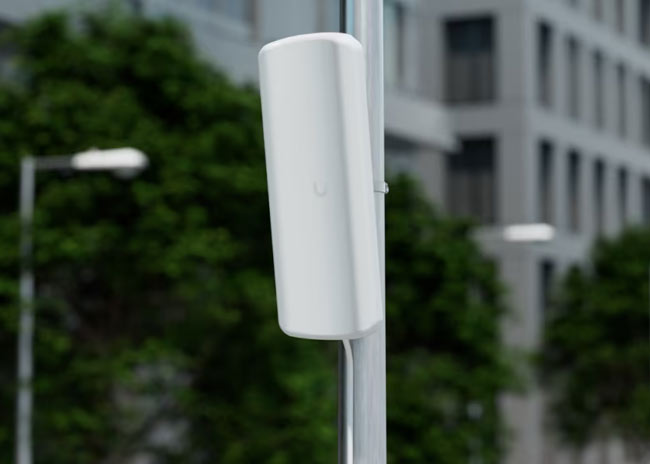

| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 |
| Max. Data Rate · 5 GHz | 400 Mbps (BW40) |
| Antenna Gain · 5 GHz | 17 dBi |
| Max. TX Power · 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5–57V DC |

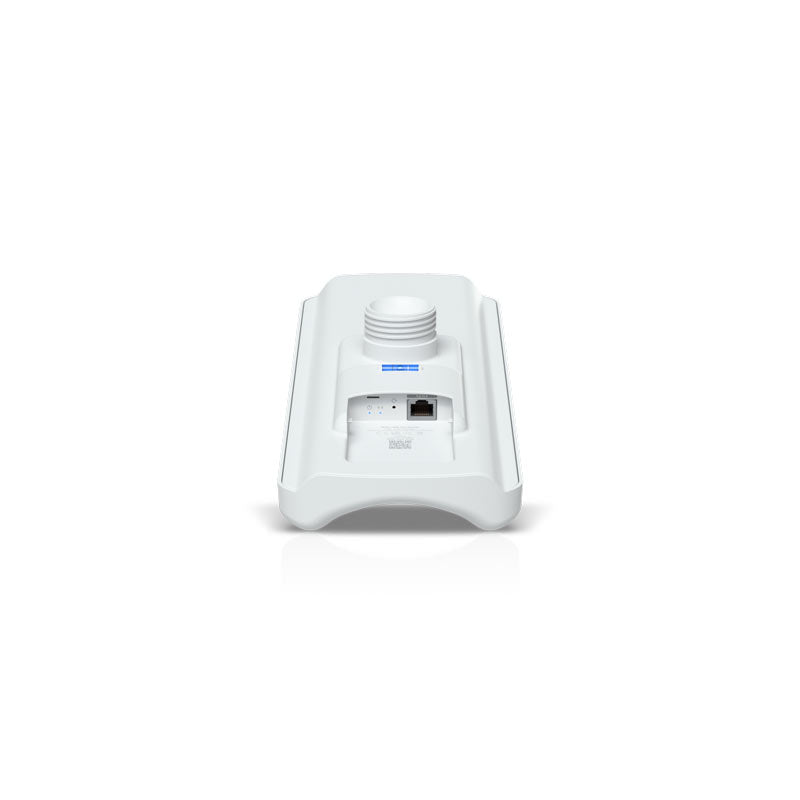

| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet / WiFi |
| Channel Bandwidth | 20/40 MHz |
| Wind Loading | 128.2N at 200 km/h |
| Weight | Device: 782 g (1.7 lb) / With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9—2.4" (24—60 mm) |
| Button | (1) Factory reset |
| LEDs · System | Power, Ethernet |
| Certifications | CE, FCC, IC, Anatel: 05978-25-08356 |
| Operating Frequency | US/CA: / U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz / / Worldwide: / 5150 - 5875 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
