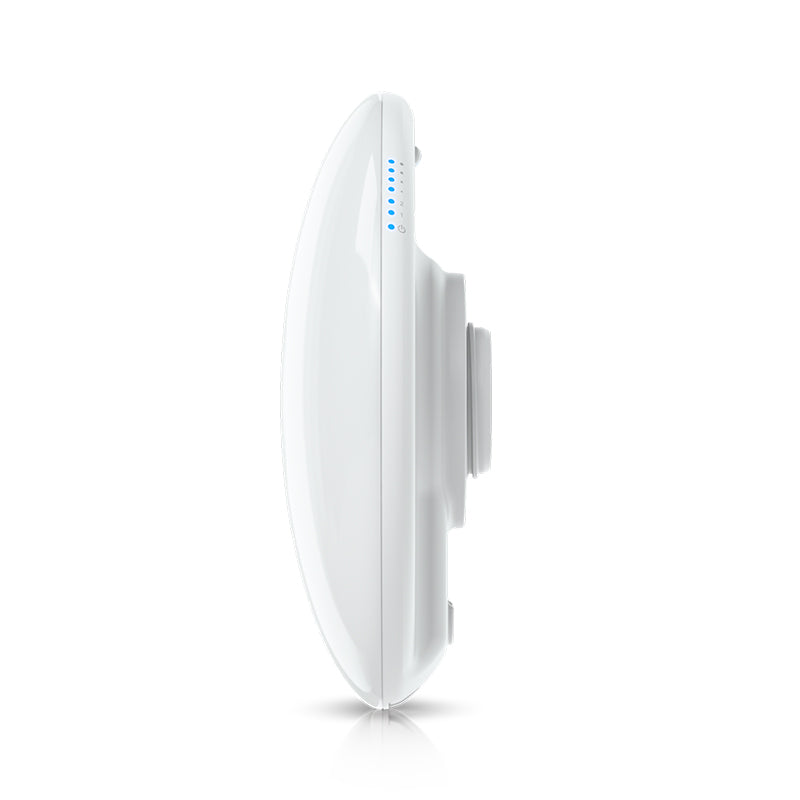

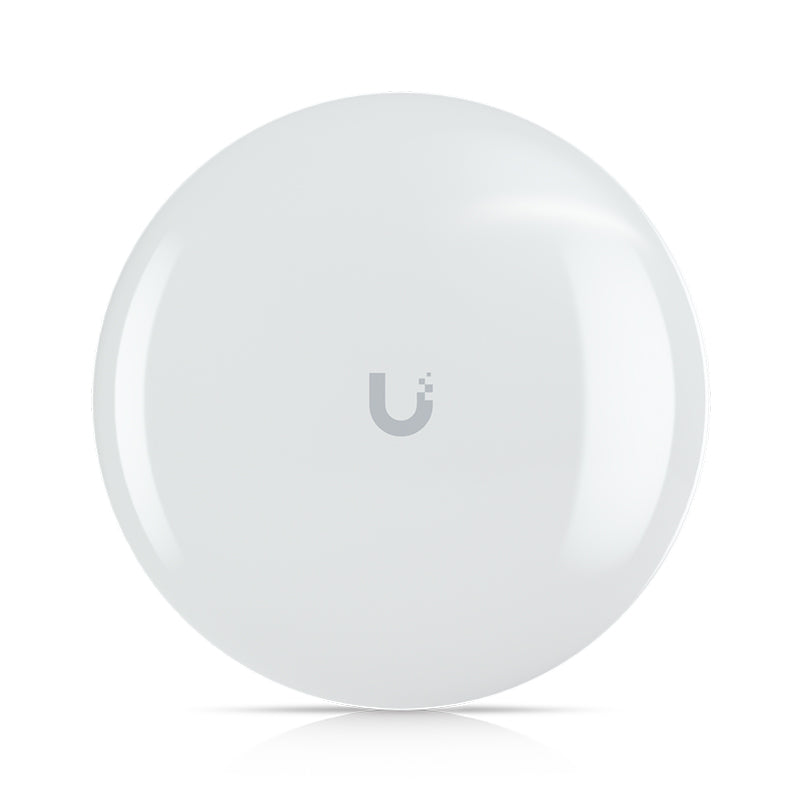

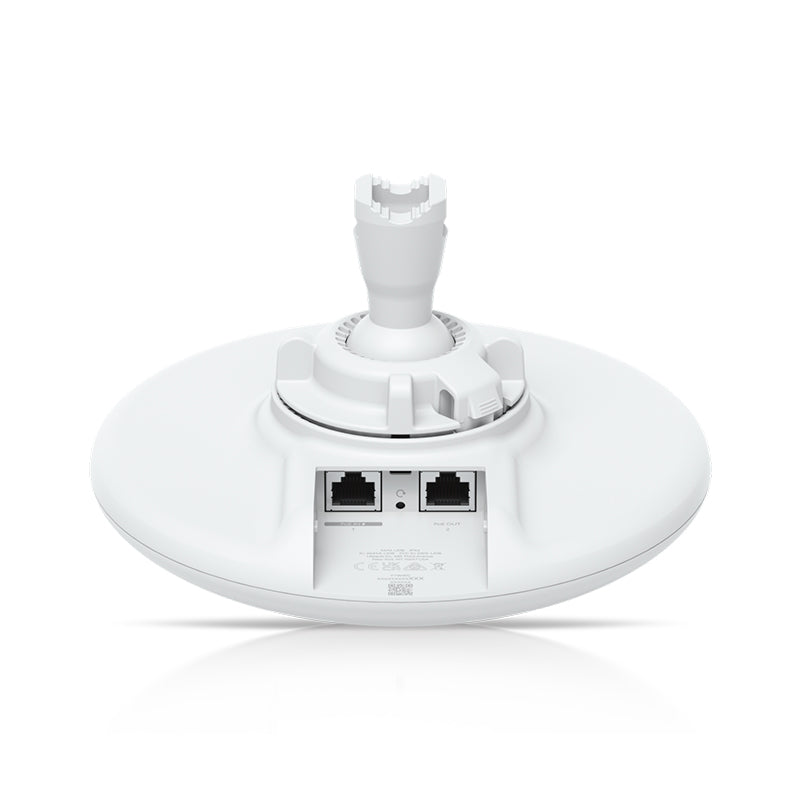

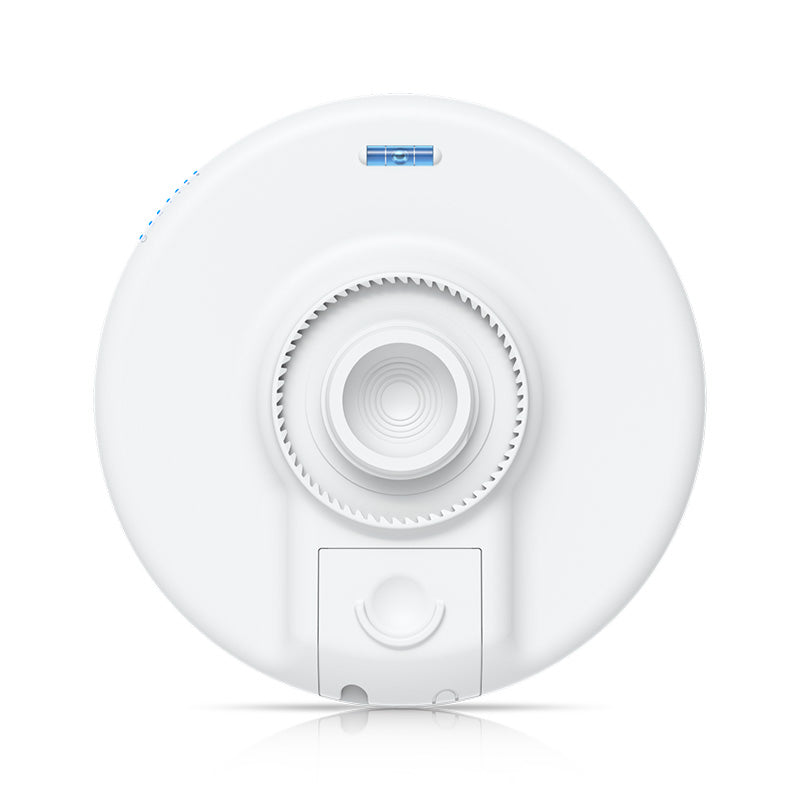

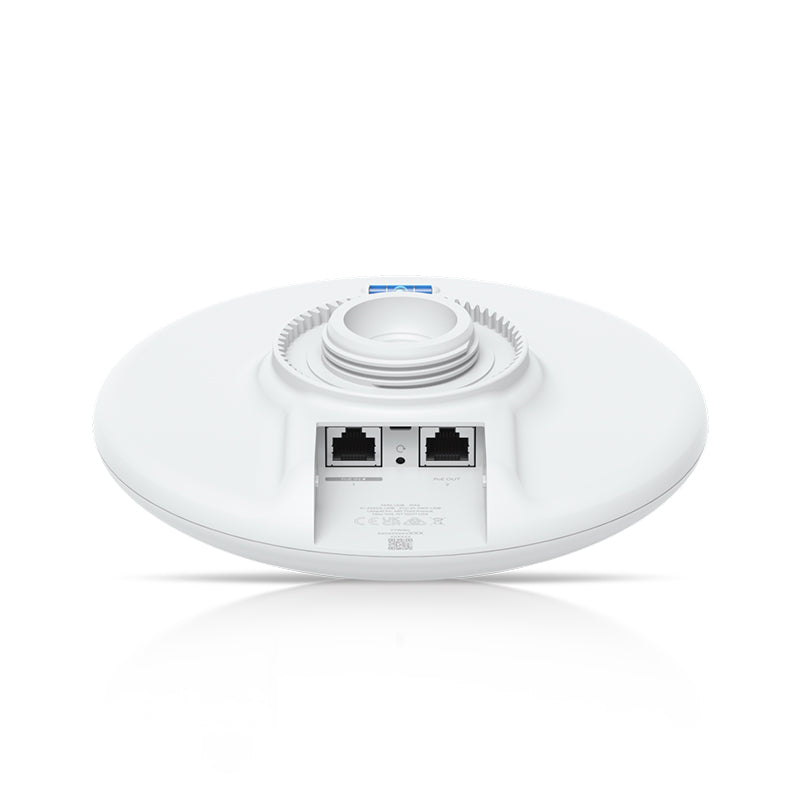

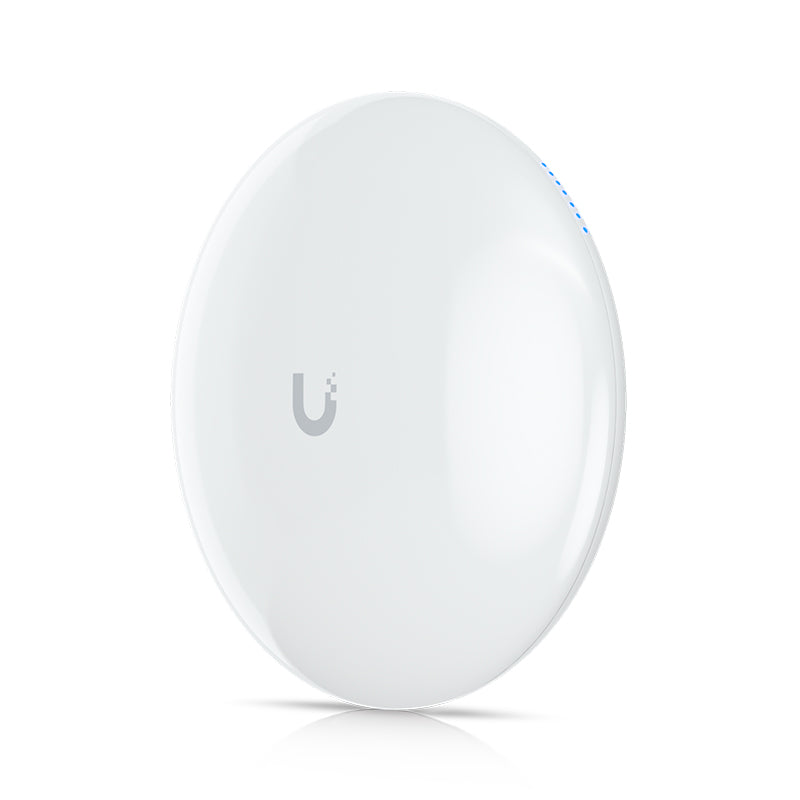

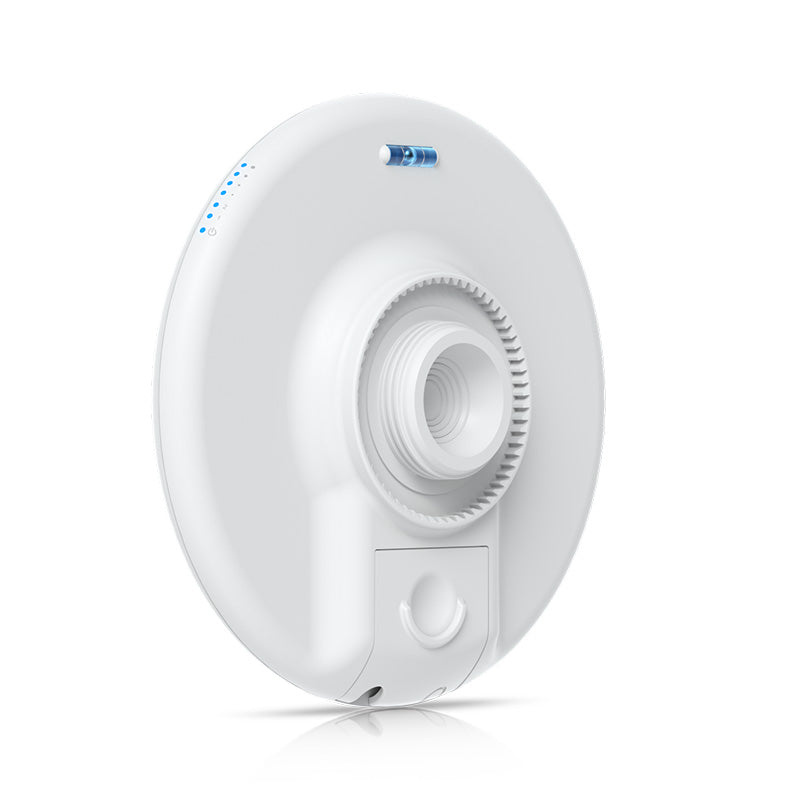

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
UDB-Pro - Ubiquiti UniFi Device Bridge Pro
Description
Description
The Ubiquiti UniFi Device Bridge Pro (UDB-Pro) is a high-performance 5 GHz wireless bridge designed for long-range outdoor connectivity and seamless integration with UniFi networks. With a coverage area of up to 5 km and PoE output capabilities, the UDB-Pro is perfect for extending network connectivity to remote locations, connecting buildings, or uplinking to UniFi access points.
Built with WiFi 5 (802.11ac) technology and 2×2 MIMO, the Device Bridge Pro delivers a maximum data rate of 867 Mbps on the 5 GHz band. Its 19 dBi antenna gain and 25 dBm max TX power ensure powerful, reliable connections over long distances. The compact, weatherproof design features IPX6 rating, making it suitable for harsh outdoor environments.
Key Features:
- 5 GHz wireless bridge with up to 5 km coverage area
- WiFi 5 (802.11ac) with 2×2 MIMO, maximum data rate of 867 Mbps
- 19 dBi antenna gain and 25 dBm max TX power for long-range connectivity
- PoE output capability (PoE+ input required for passthrough)
- IPX6 weatherproof rating for reliable outdoor performance

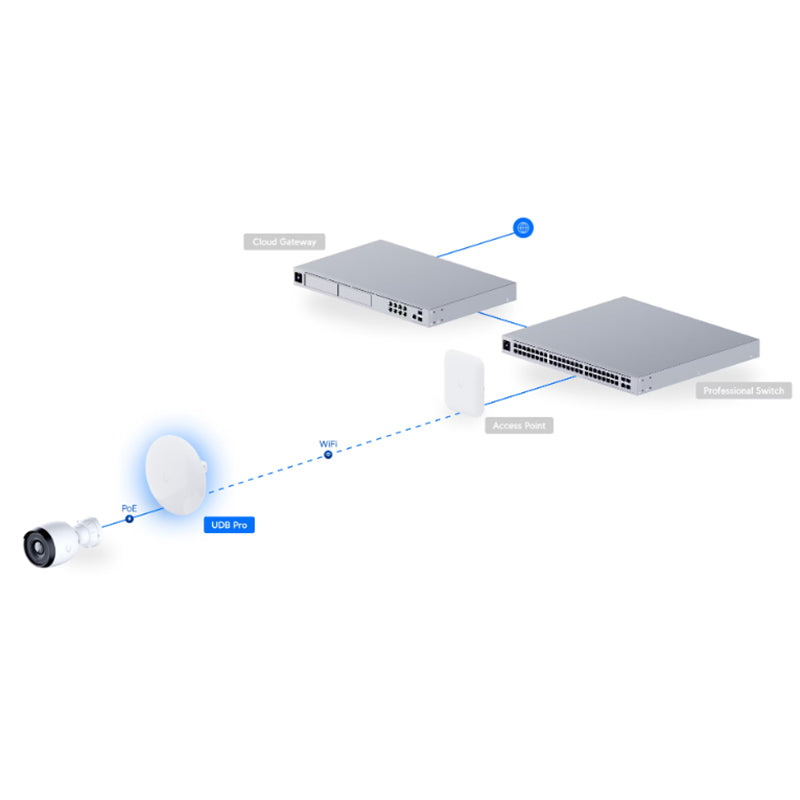

- Multiple deployment modes: point-to-point bridging with another UDB-Pro, client connection to UDB-Pro Sector for point-to-multipoint setups, or seamless uplink to UniFi WiFi access points

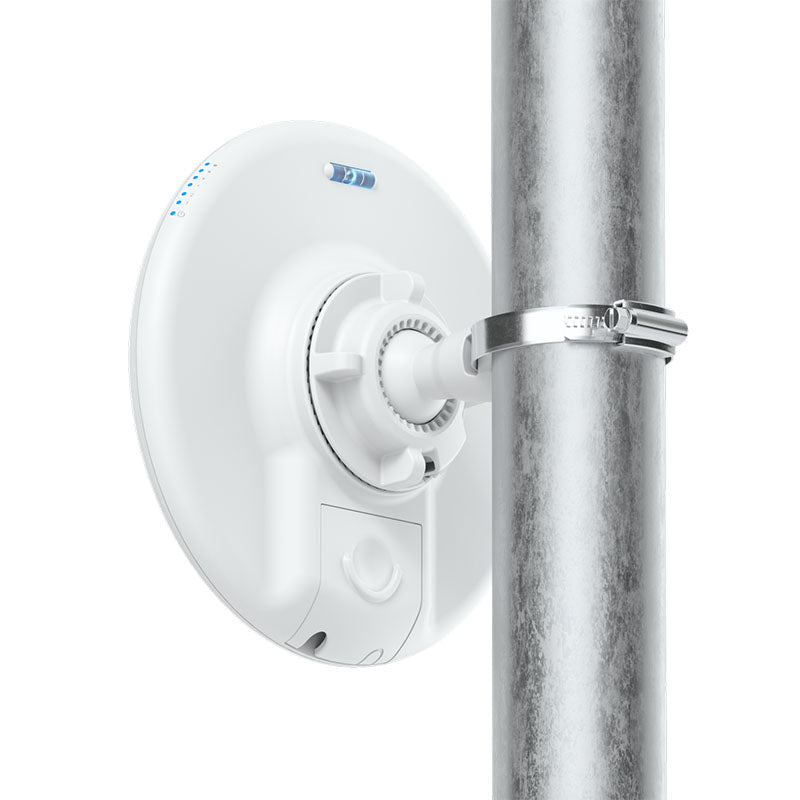

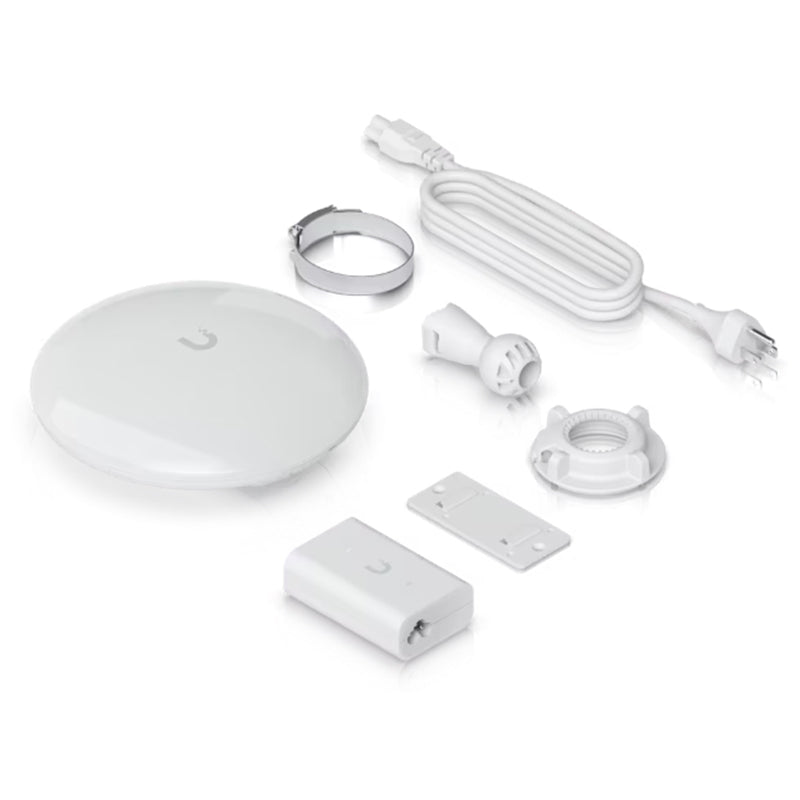

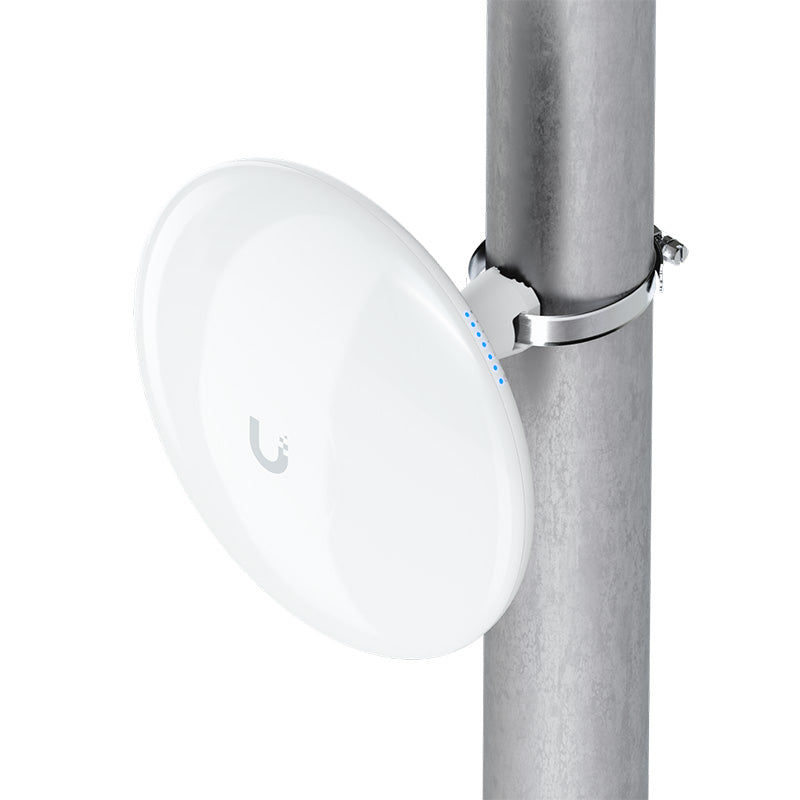

- Wall or pole mounting options with pole mount included
- 48V, 0.32A PoE adapter included
- Managed via UniFi Console, Official UniFi Hosting, or Self-Hosted UniFi Network Server
Ideal for: Network installers, system integrators, and businesses requiring reliable long-distance wireless connectivity for remote buildings, outdoor surveillance systems, or extending network infrastructure across challenging terrain.
Compatible Products
UniFi Device Bridge Pro Sector (UDB-Pro-Sector): The UDB-Pro can connect as a client to the UDB-Pro Sector for point-to-multipoint deployments, supporting up to 50+ Device Bridge Pro clients at distances over 5 km.
UniFi Access Points: The Device Bridge Pro seamlessly uplinks to UniFi WiFi access points for wireless mesh connectivity, providing flexible deployment options.
UniFi Network Controllers: Requires management via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server for configuration and monitoring.
Specifications35 specifications · 3 sections
| Overview | |
|---|---|

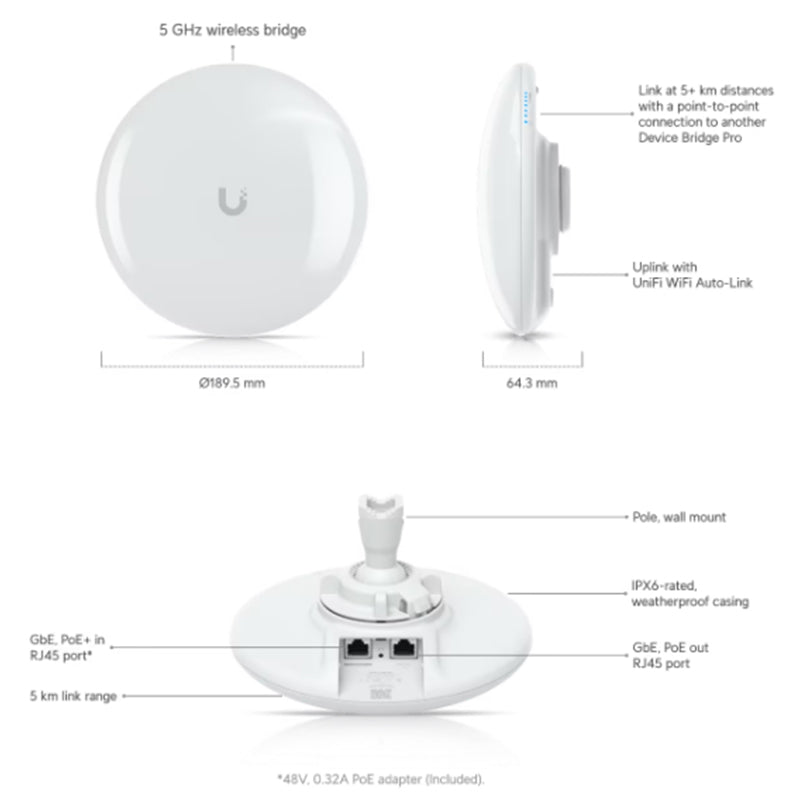

| Dimensions | ⌀189.5 x 64.3 mm / (⌀7.4 x 2.5") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Wall, pole |
| Mounting | Pole (Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE / PoE+ (Required for PoE output) |
| Power Supply | 48V, 0.32A PoE adapter (Included) |
| Performance | |
| MIMO · 5 GHz | 2 x 2 |
| Max. Data Rate · 5 GHz | 867 Mbps (BW80) |
| Antenna Gain · 5 GHz | 19 dBi |
| Max. TX Power · 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | (1) PoE in (PoE output not used) / (1) Passive PoE output |
| Channel Bandwidth | 20/40/80 (MHz) |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g (0.95 lb) / With mount: 515 g (1.1 lb) |
| Enclosure Material | UV-resistant polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.8–2.1" (20–53.1 mm) |
| Button | (1) Factory reset |
| LEDs · System | Power, (2) Ethernet status - main port/PoE out port, (4) signal strength |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: / U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz / / Worldwide: / 5150 - 5875 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
