Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
UCG-Max

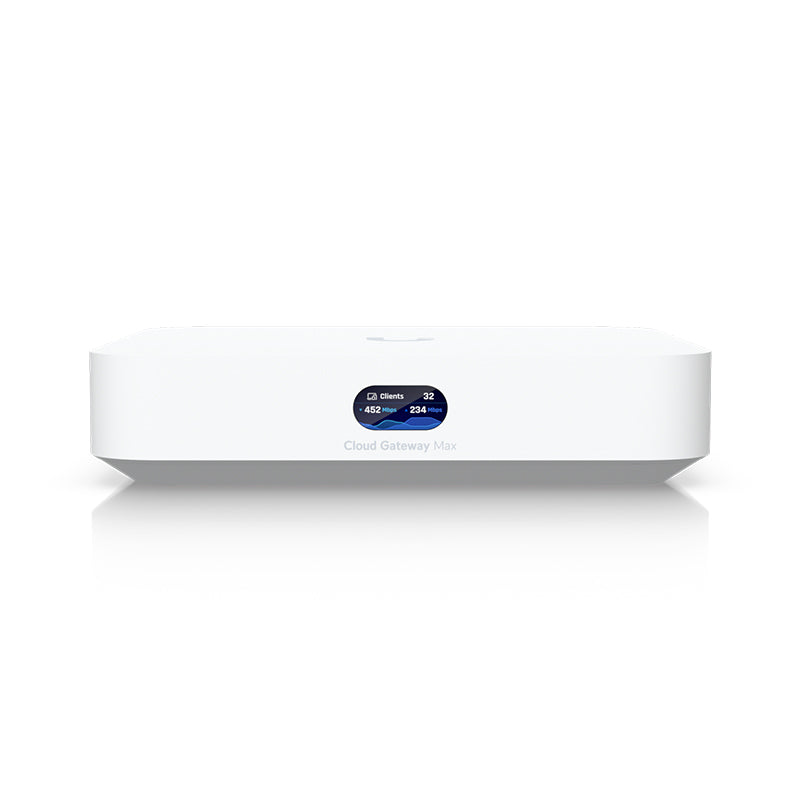

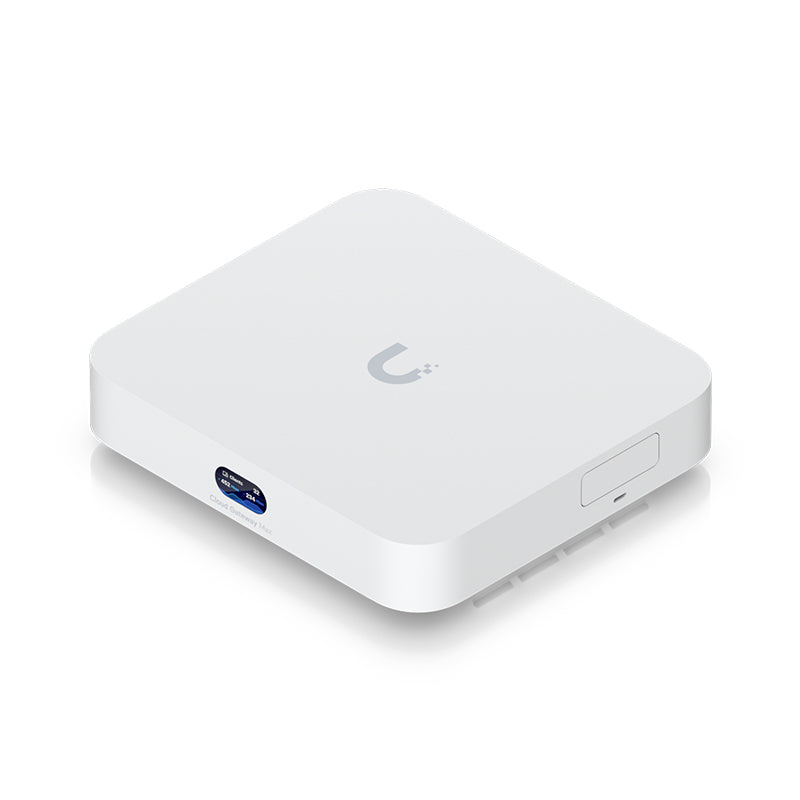

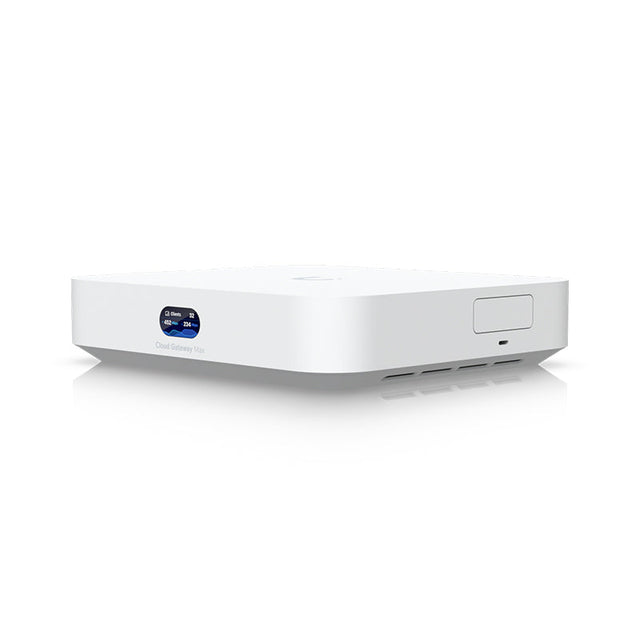

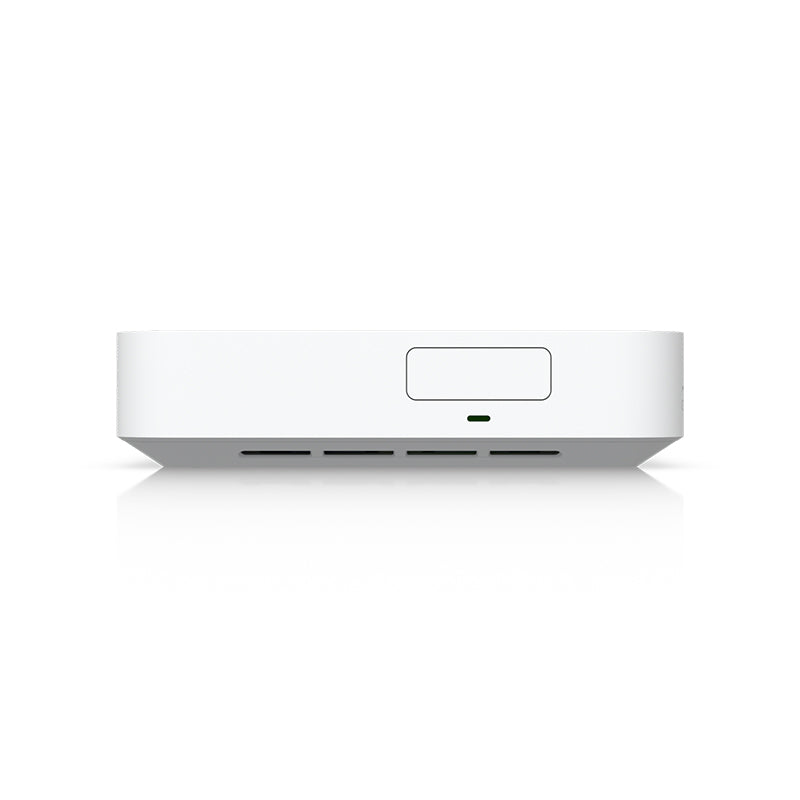

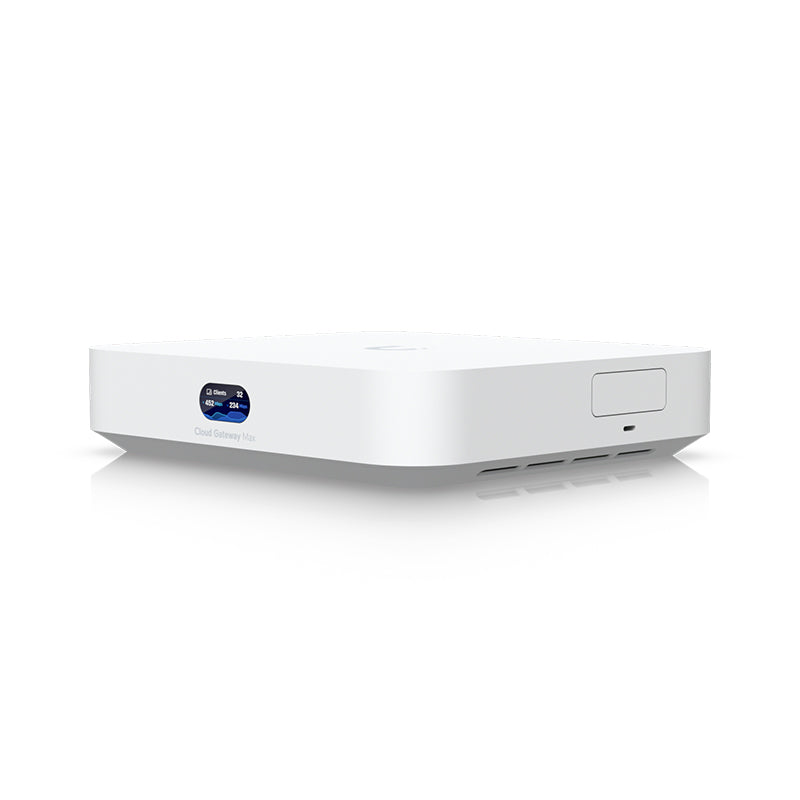

UCG-Max Ubiquiti Cloud Gateway Max (512GB Storage)
Regular price
£281.29 GBP
Unit price
Description
Description
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.
Features:
Includes full UniFi application suite for device management

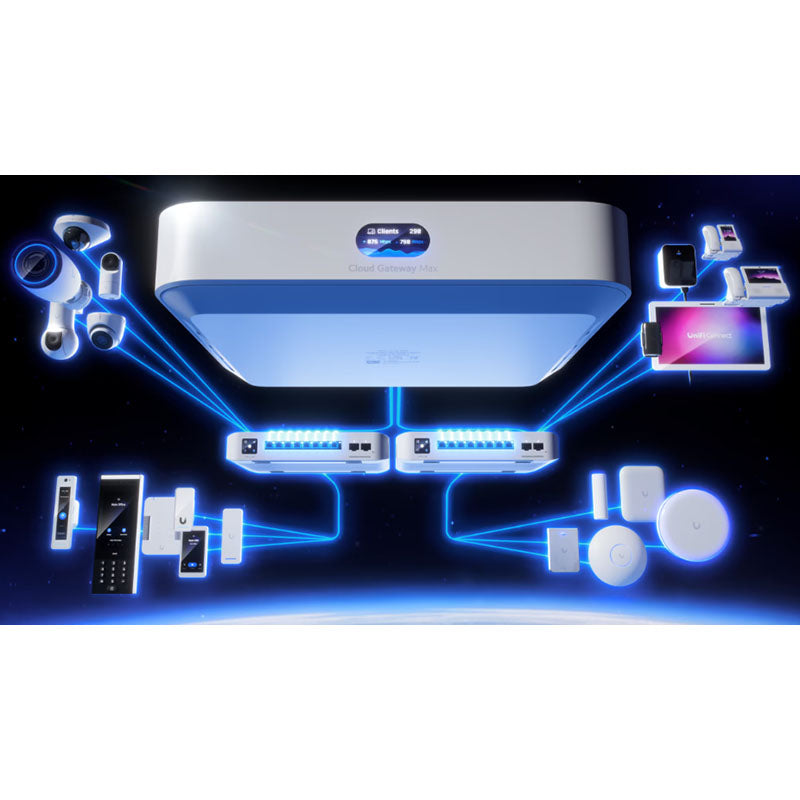

Manages 30+ UniFi devices and 300+ clients
1.5 Gbps routing with IDS/IPS
Multi-WAN load balancing
512GB NVMe SSD Installed as standard

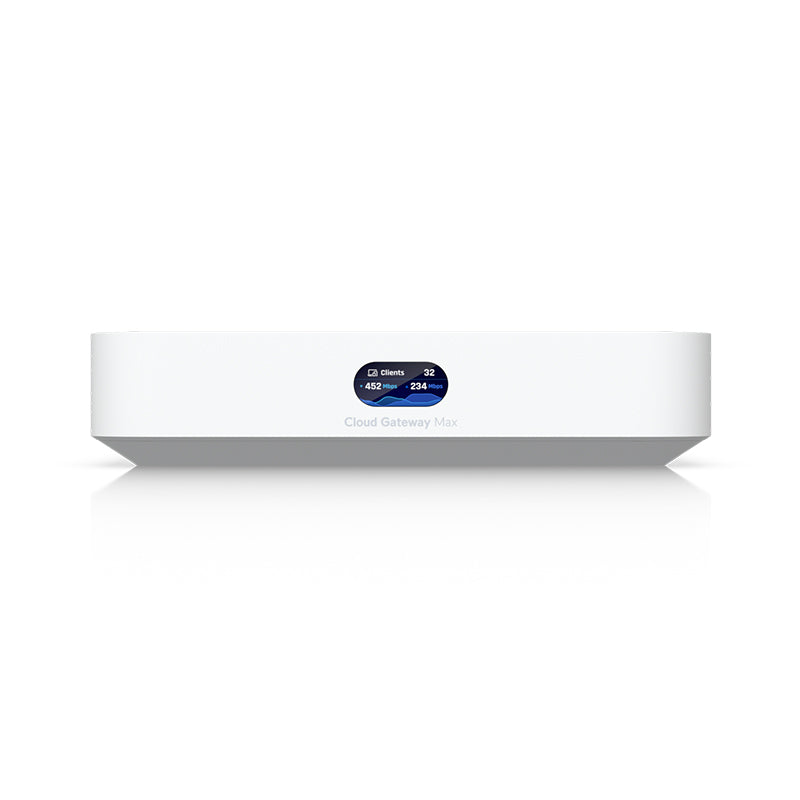

0.96" LCM status display

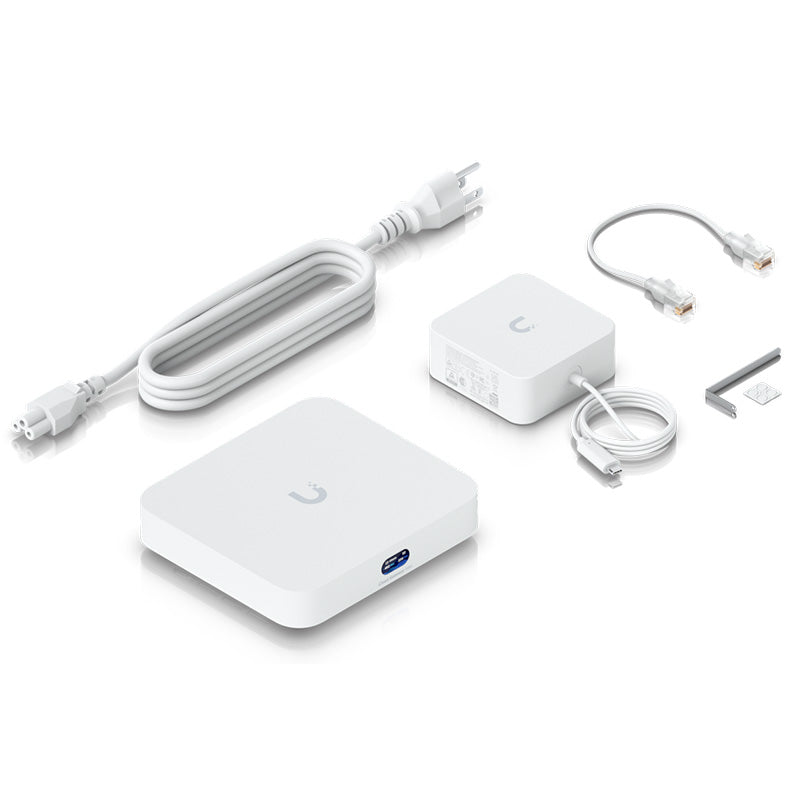

USB-C powered (adapter included)
SKU:
UCG-Max
Regular price
£281.29 GBP
Unit price
Specifications30 specifications · 5 sections
| Overview | |
|---|---|

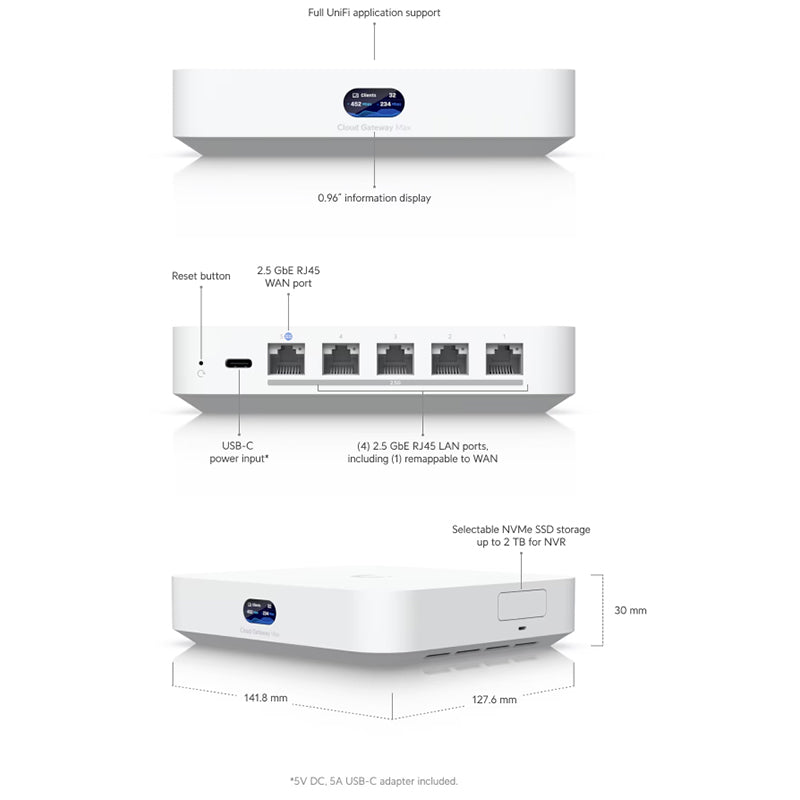

| Dimensions | 141.8 x 127.6 x 30 mm / (5.6 x 5 x 1.2") |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (15) HD / (8) 2K / (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

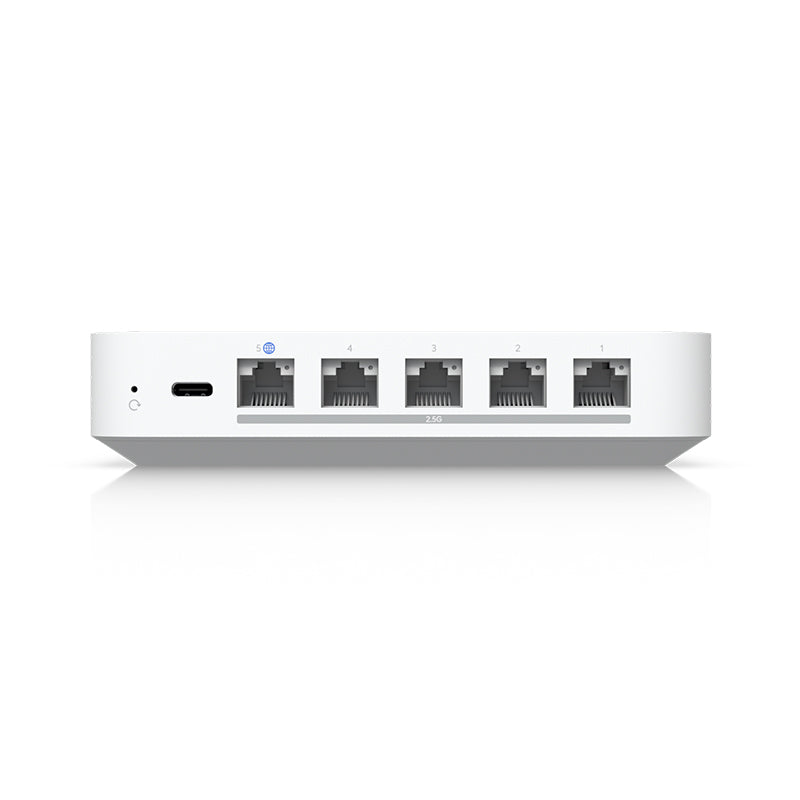

| Port Layout · 2.5 GbE RJ45 | 5 / (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| IDS/IPS Signatures | 55,000+ / with CyberSecure |
| Networking | |
| MAC Address Table Size | 2,000 |
| Hardware | |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| Max. Power Consumption | 16.1W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 55 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 460 g (1 lb) / With SSD: 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 09004-24-08356, SRRC |
| Software | |
| Application Requirements · Mobile App | UniFi iOS™ and Android™: Version 10.17.2 and later |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UCG-Max · Ubiquiti's spec sheet
