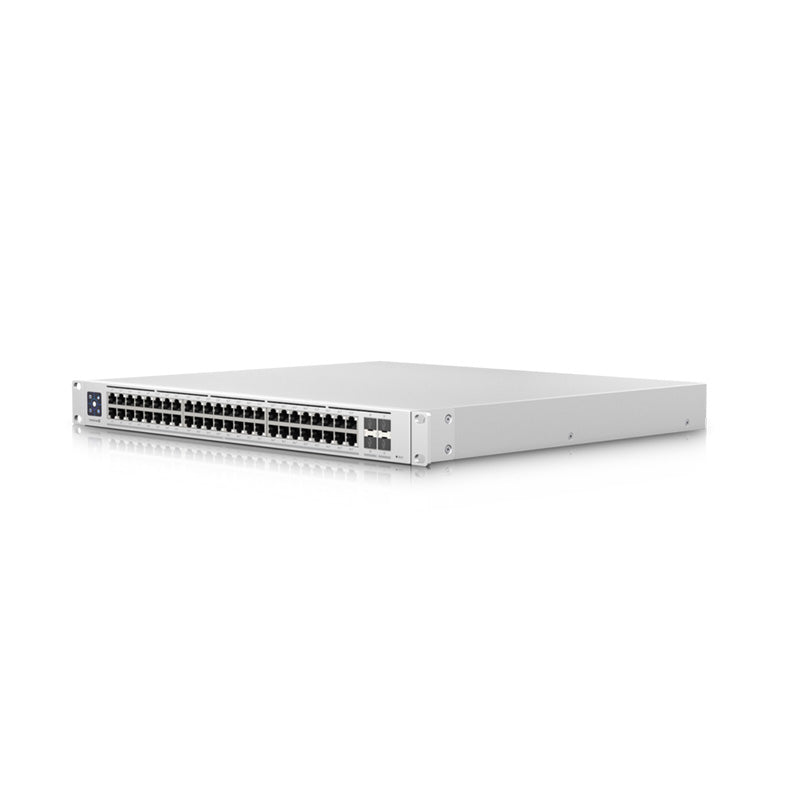

USW-Enterprise-48-PoE Ubiquiti UniFi Switch Enterprise 48 PoE
Description
Description
Layer 3, PoE switch with (48) 2.5GbE, PoE+ RJ45 ports and (4) 10G SFP+ ports.
The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).
The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately).
This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(48) 2.5GbE, PoE+ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input
720W total PoE supply
Layer 3 switching features
Managed with the UniFi Network application: Version 6.2.26 and later
Specifications35 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 400 x 44 mm / (17.4 x 15.7 x 1.7") |
| Port Layout · 2.5 GbE RJ45 | 48 (All PoE+) / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 4 / (10G/1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 160 Gbps |
| Total Non-Blocking Throughput | 160 Gbps |
| Forwarding Rate | 238 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 4 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 48 |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. Power Consumption | 150W (Excluding PoE Output) / 870W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 511.8 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) / With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 600 - 1,200 mm / (23.6- 47.2" ) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05485-22-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.2.26 and later |
