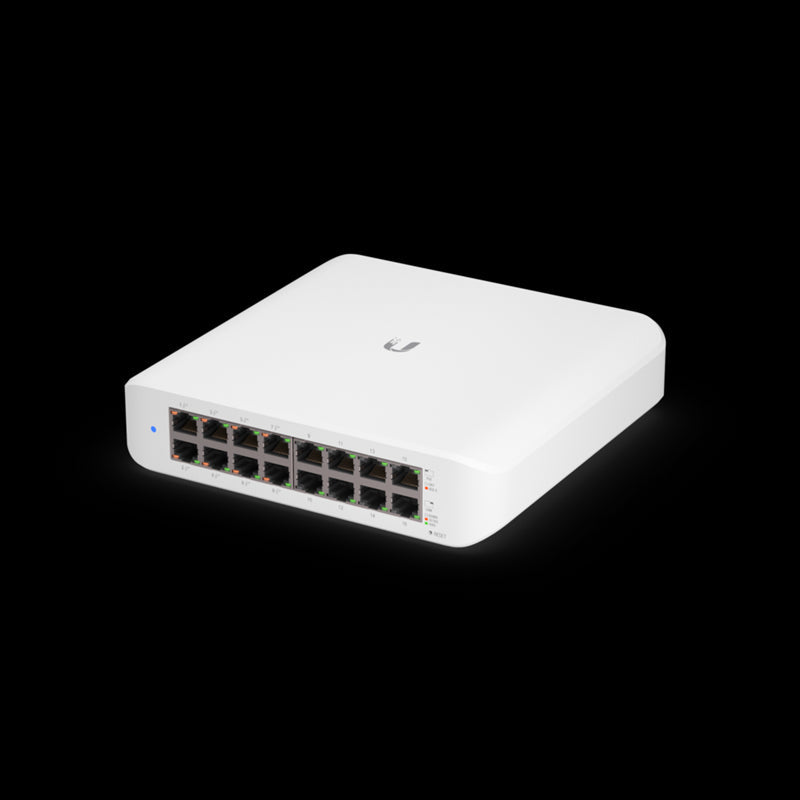

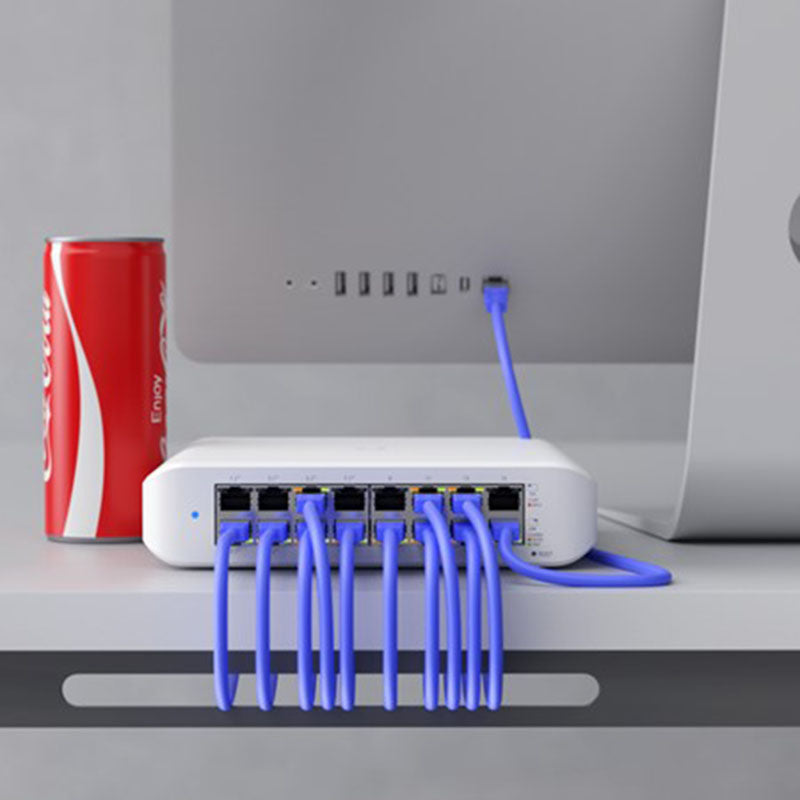

USW-Lite-16-PoE Ubiquiti UniFi Switch Lite 16 PoE
Description
Description
Layer 2, PoE switch with (16) GbE RJ45 ports, including (8) PoE+ ports.
The Switch Lite 16 PoE (USW Lite 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices.
The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:

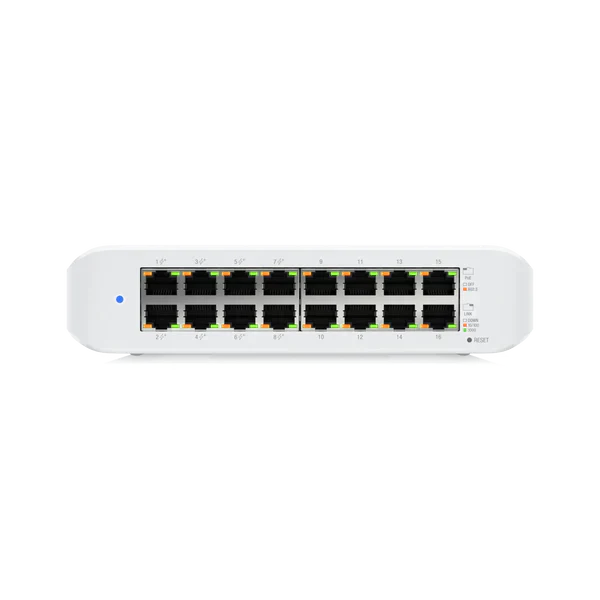

(8) GbE, PoE+ RJ45 ports
(8) GbE RJ45 ports
45W total PoE supply
Fanless, silent cooling

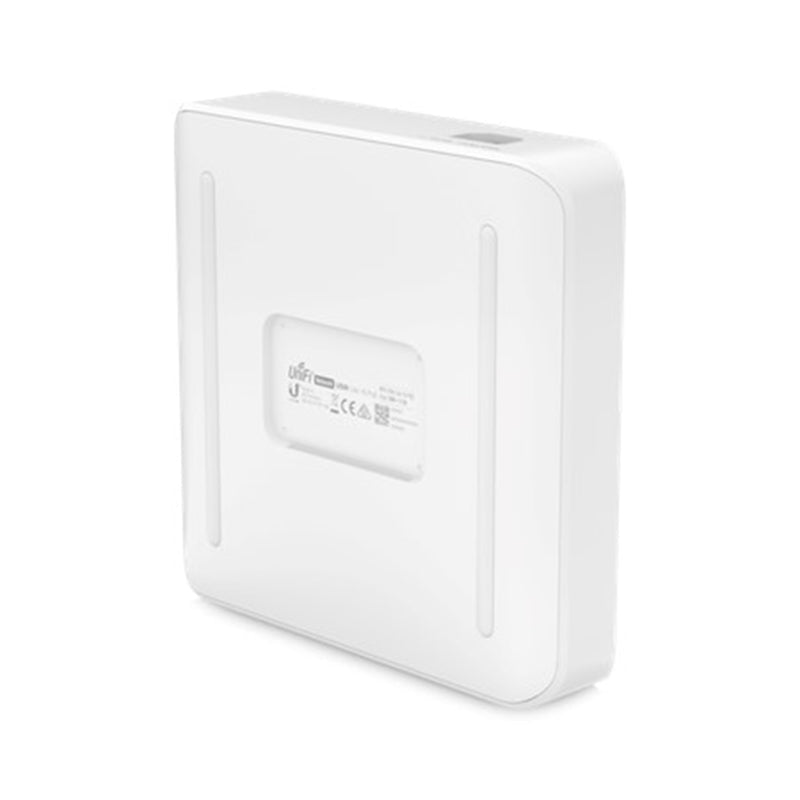

Wall-mountable (kit included)
Managed with the UniFi Network application: Version 5.13.5 and later
Specifications29 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 192 x 185 x 44 mm / (7.6 x 7.3 x 1.7") |
| Port Layout · 1 GbE RJ45 | 16 (8 PoE+) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 45W |
| Form Factor | Compact desktop, wall |
| Performance | |
| Switching Capacity | 32 Gbps |
| Total Non-Blocking Throughput | 16 Gbps |
| Forwarding Rate | 24 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 8 |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. Power Consumption | 15W (Excluding PoE Output) / 60W (Including PoE Output) |

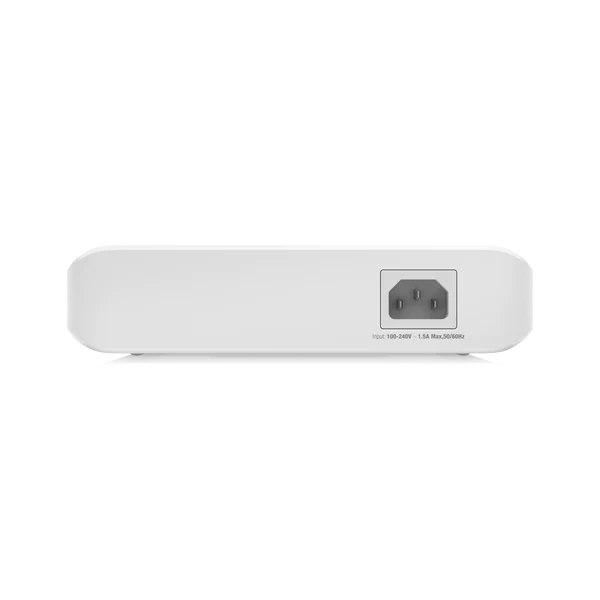

| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Heat Dissipation | 51.2 (Excluding PoE Output) |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.2.94 and later |
