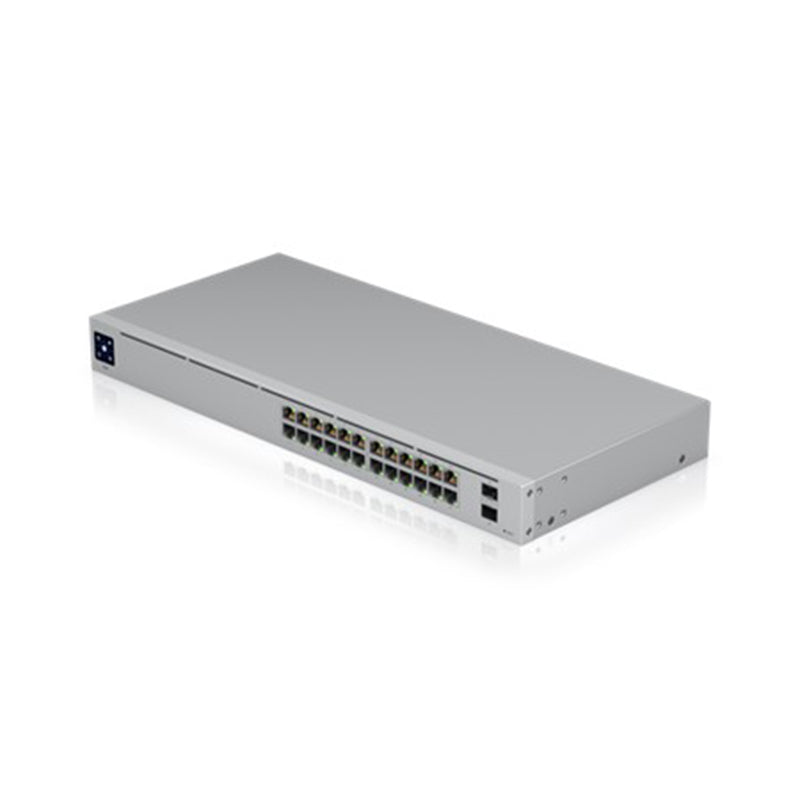

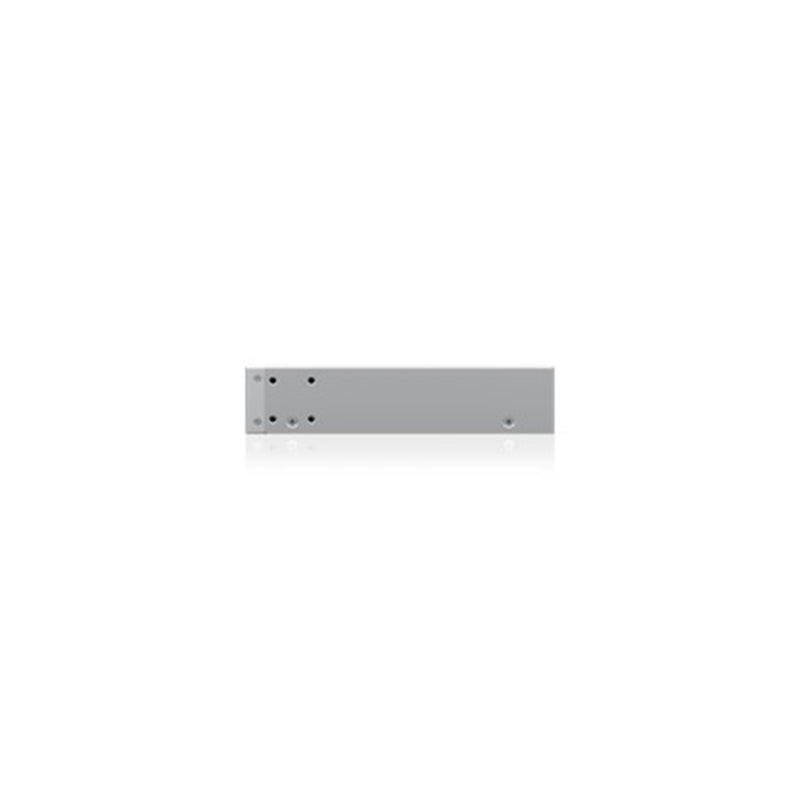

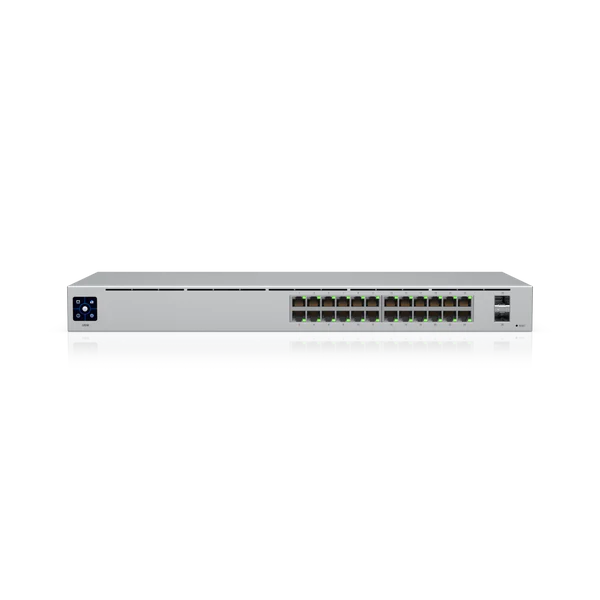

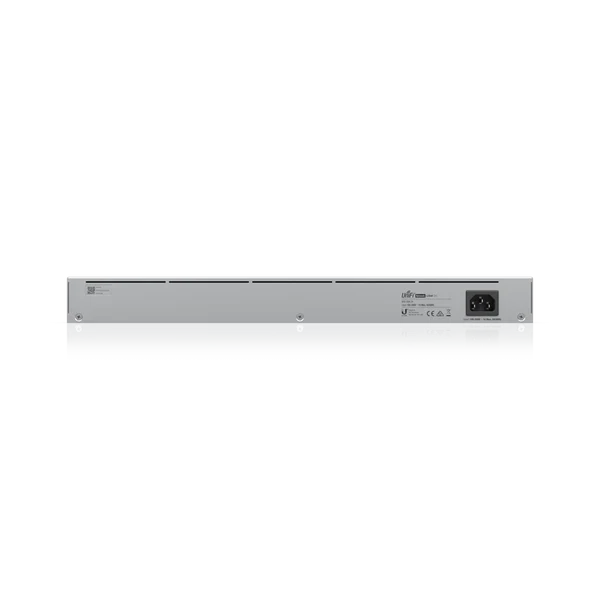

USW-24 Ubiquiti UniFi Switch 24
Description
Description
Layer 2 switch with (24) GbE RJ45 ports and (2) 1G SFP ports.
The Switch 24 (USW 24) is a fully managed, fanless switch with (24) GbE RJ45 ports and (2) 1G SFP ports.
The versatile USW 24 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(24) GbE RJ45 ports
(2) 1G SFP ports
(1) 1.3" LCM color touchscreen with AR switch management
Fanless, silent cooling
Managed with the UniFi Network application: Version 5.12.32 and later
Specifications28 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 200 x 44 mm / (17.4 x 7.9 x 1.7") |
| Port Layout · 1 GbE RJ45 | 24 / (1G/100M/10M) |
| Port Layout · 1G SFP | 2 / (1G) |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 52 Gbps |
| Total Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 39 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| Max. Power Consumption | 25W |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 85.3 BTU/hr |
| Weight | Without mounting brackets: 2.7 kg (6 lb) / With mounting brackets: 2.8 kg (6.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 17193-20-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.2.94 and later |
