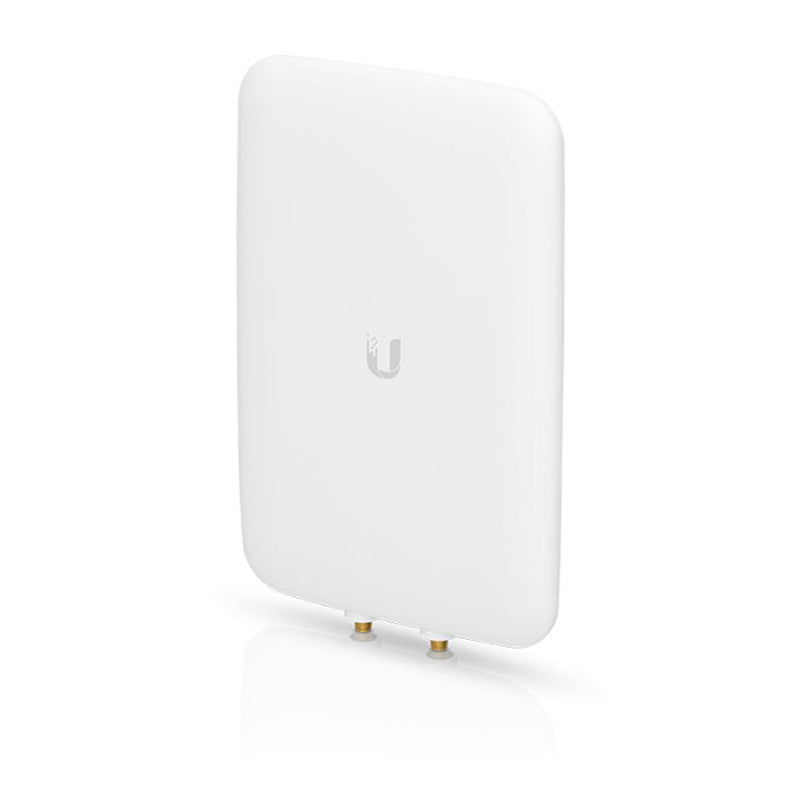

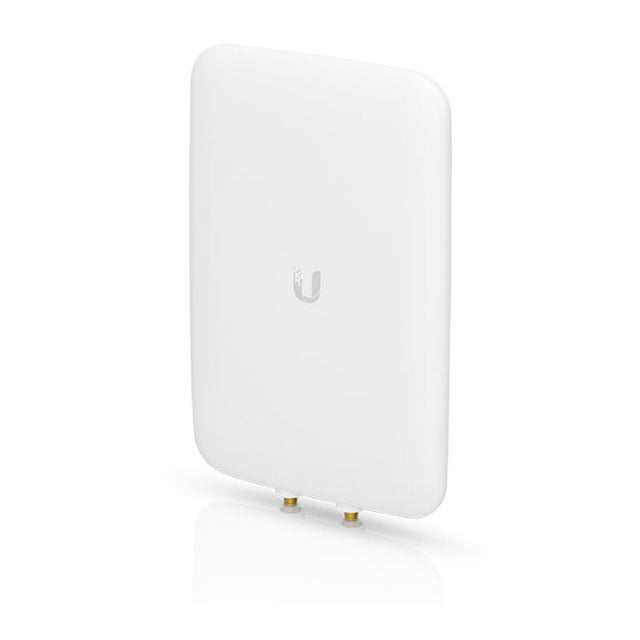

UMA-D Ubiquiti UniFi Access Point Mesh Dual-Band Antenna
Description
Description
The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M.
With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.
Antenna Features Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

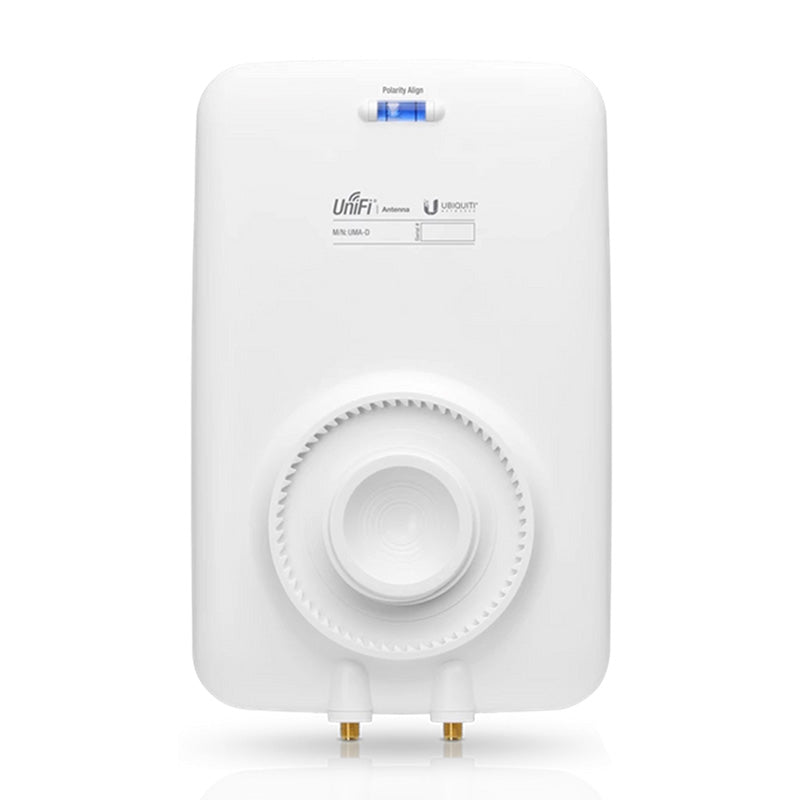

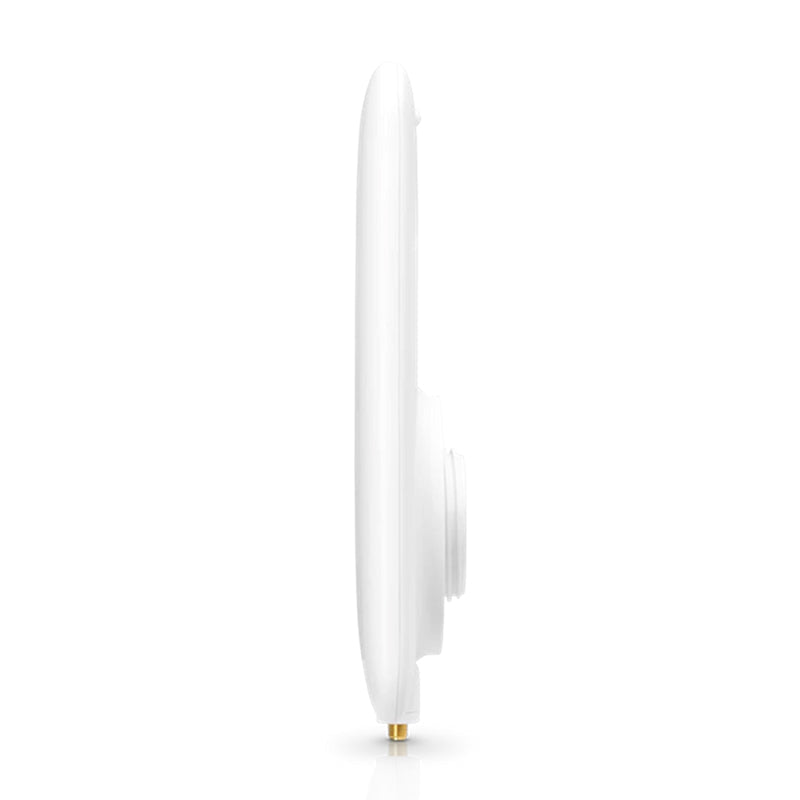

Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors. The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Features:
Outdoor Weather-Resistant Enclosure
High Efficiency Directional Radiation Pattern
Dual-Band, Dual-Polarity Optimized for 802.11ac
Ball Joint 3-Axis Mount for Precise Aiming
Wall/Poll Mount Included for Versatile Installation
Specifications18 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 201.3 x 128 x 32.5 mm / (7.9 x 5 x 1.3") |
| Weight | Without mount: 400 g (0.9 lb) / With mount: 480 g (1.1 lb) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Hardware | |
| Supported Frequency Range | 2.4–2.5 GHz / 5.1–5.9 GHz |

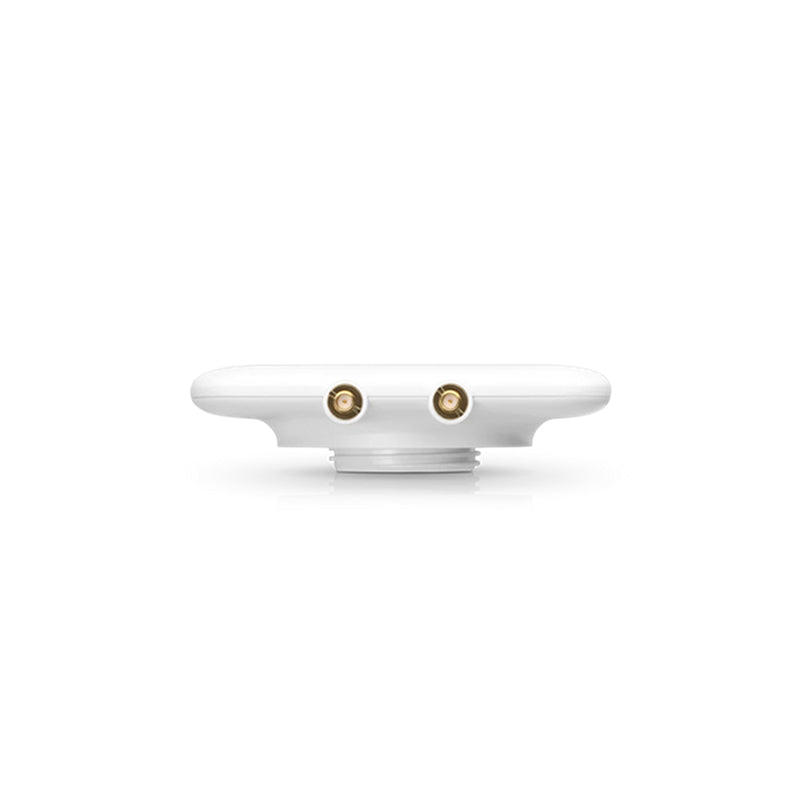

| RF Connections | (2) RP-SMA |
| Gain · 5 GHz | 15 dBi |
| Gain · 2.4 GHz | 10 dBi |
| HPOL Beamwidth · 5 GHz | 45° |
| HPOL Beamwidth · 2.4 GHz | 90° |
| VPOL Beamwidth · 5 GHz | 45° |
| VPOL Beamwidth · 2.4 GHz | 90° |
| Elevation Beamwidth · 5 GHz | 45° |
| Elevation Beamwidth · 2.4 GHz | 90° |
| Max VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-Pol Isolation · 5 GHz | 30 dB |
| Cross-Pol Isolation · 2.4 GHz | 25 dB |
| Certifications | Anatel: 06187-19-08356 |
