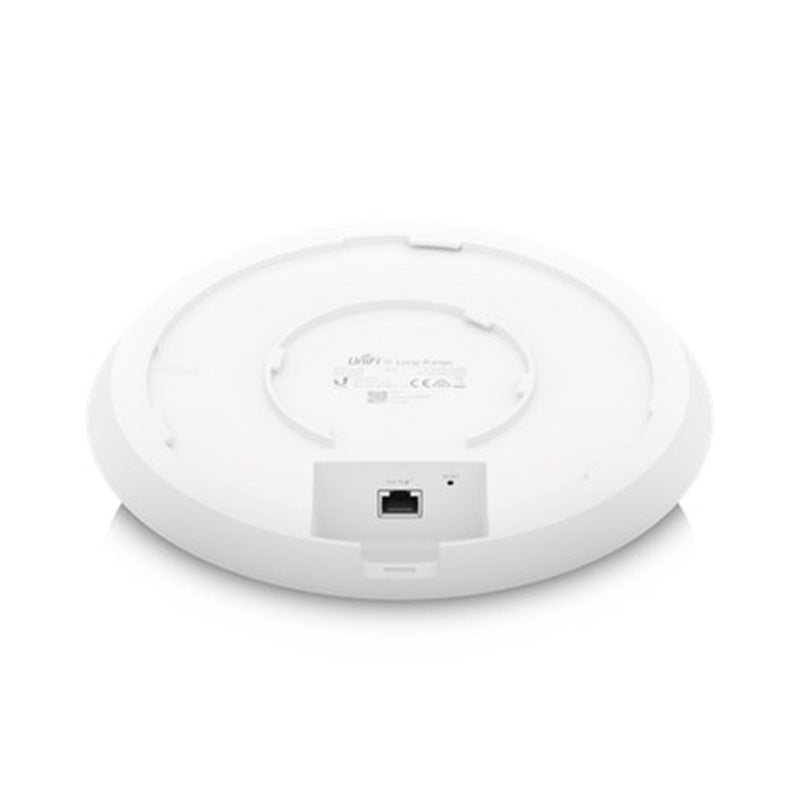

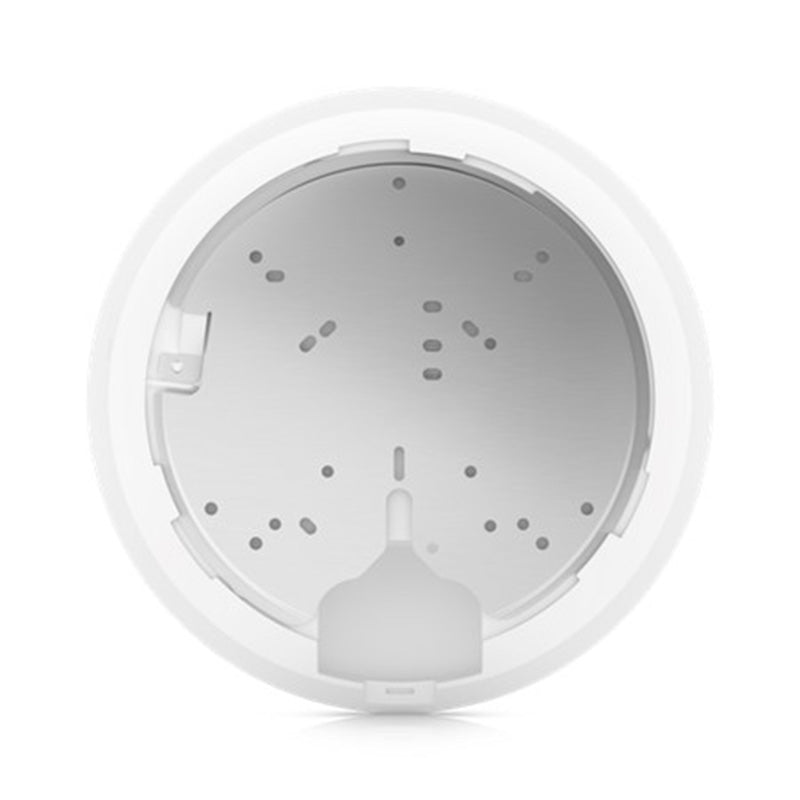

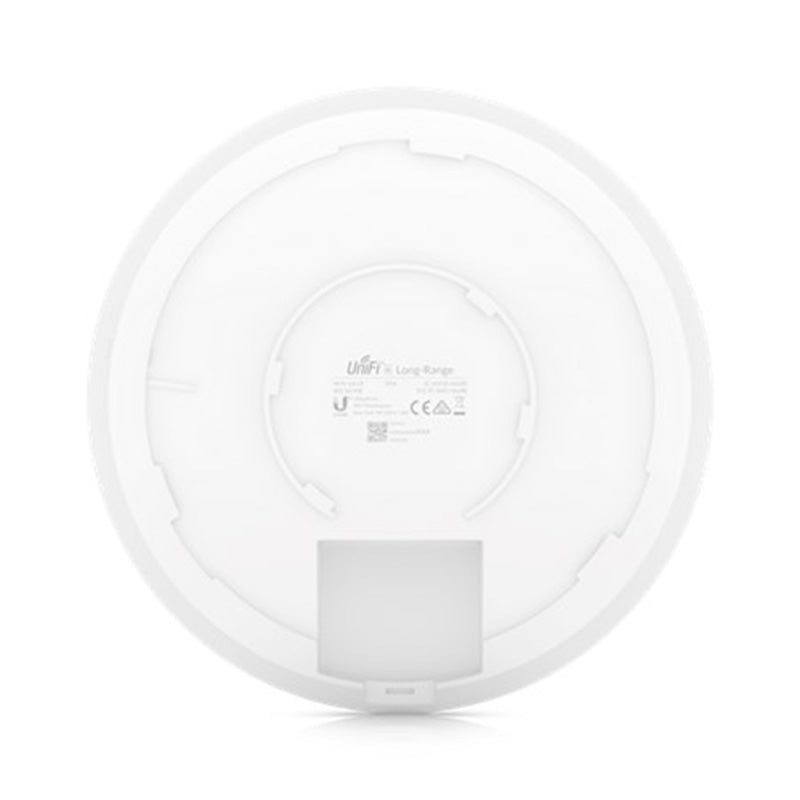

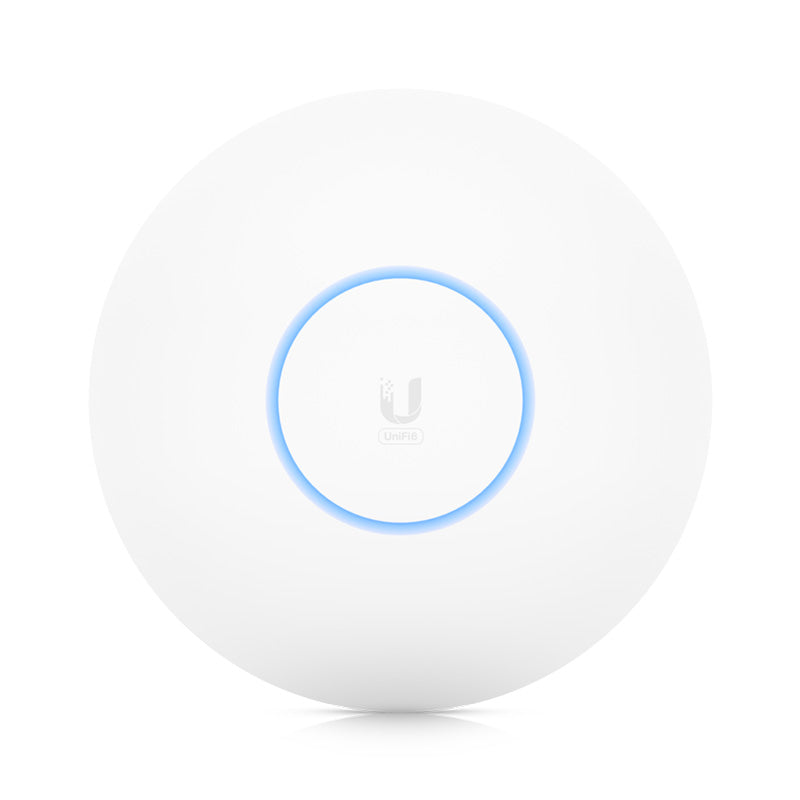

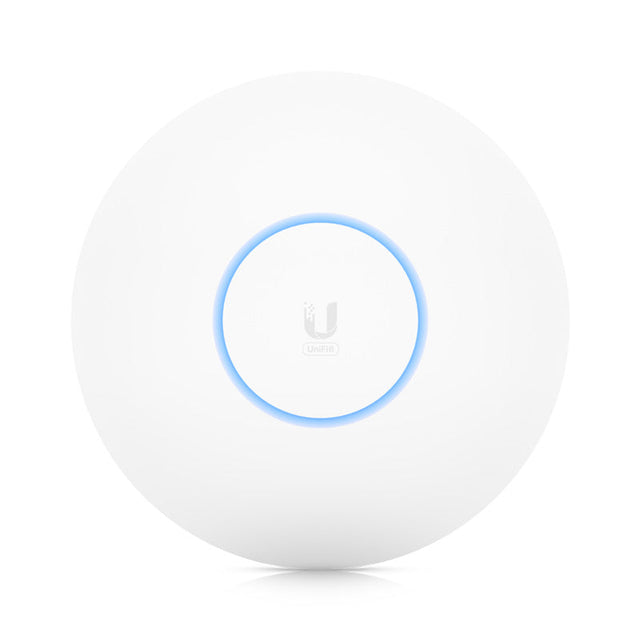

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
U6-LR Ubiquiti UniFi6 Long Range AP (no PoE injector)
Description
Description
Please note:
- No PoE Injector Included
- Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue colour modes.
The Access Point WiFi 6 Long-Range (U6 LR) is a high-performance access point that brings powerful, four-stream WiFi 6 coverage to enterprise networks. The U6 LR can reach an aggregate throughput rate up to 3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (4x4 MIMO) bands.
It also has a sideways, down-tilted antenna pattern to expand its coverage area. The water and dust-resistant U6 LR can be mounted either indoors or outside, blending seamlessly into virtually any environment so you'll never have to disrupt your space's aesthetic to enjoy excellent wireless coverage.
The U6 LR simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
High-efficiency 4x4 WiFi 6 (802.11ax)
5 GHz band (4x4 MU-MIMO and OFDMA) with 2.4 Gbps throughput rate
2.4 GHz band (4x4 MIMO) with 600 Mbps throughput rate
Powered by 802.3at PoE (PoE injector sold separately)
IP54-rated water and dust protection for indoor/outdoor mounting versatility
Specifications35 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀220 x 48 mm / (⌀8.7 x 1.9") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 8 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 350+ |
| Uplink | GbE |
| Mounting | Ceiling, Wall / (Pro Mount Included) |
| Weatherproofing | IP54 |
| Power Method | PoE+ |
| Performance | |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 4 x 4 (SU-MIMO) |
| Max. Data Rate · 5 GHz | 2.4 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 600 Mbps (BW40) |
| Antenna Gain · 5 GHz | 5.5 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 26 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80) / 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) / 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 18.5W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | Device: 800 g (1.8 lb) / With mount: 930 g (2.1 lb) |
| Management | Ethernet / Bluetooth |
| Enclosure Material | Polycarbonate |
| Mount Material | Stainless steel (SUS304) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 10457-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
