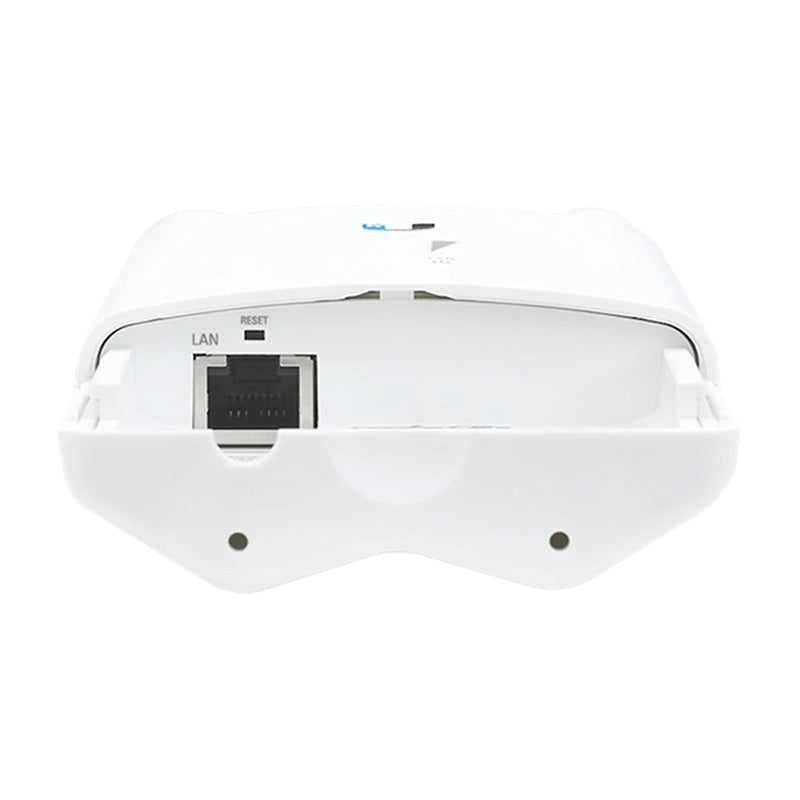

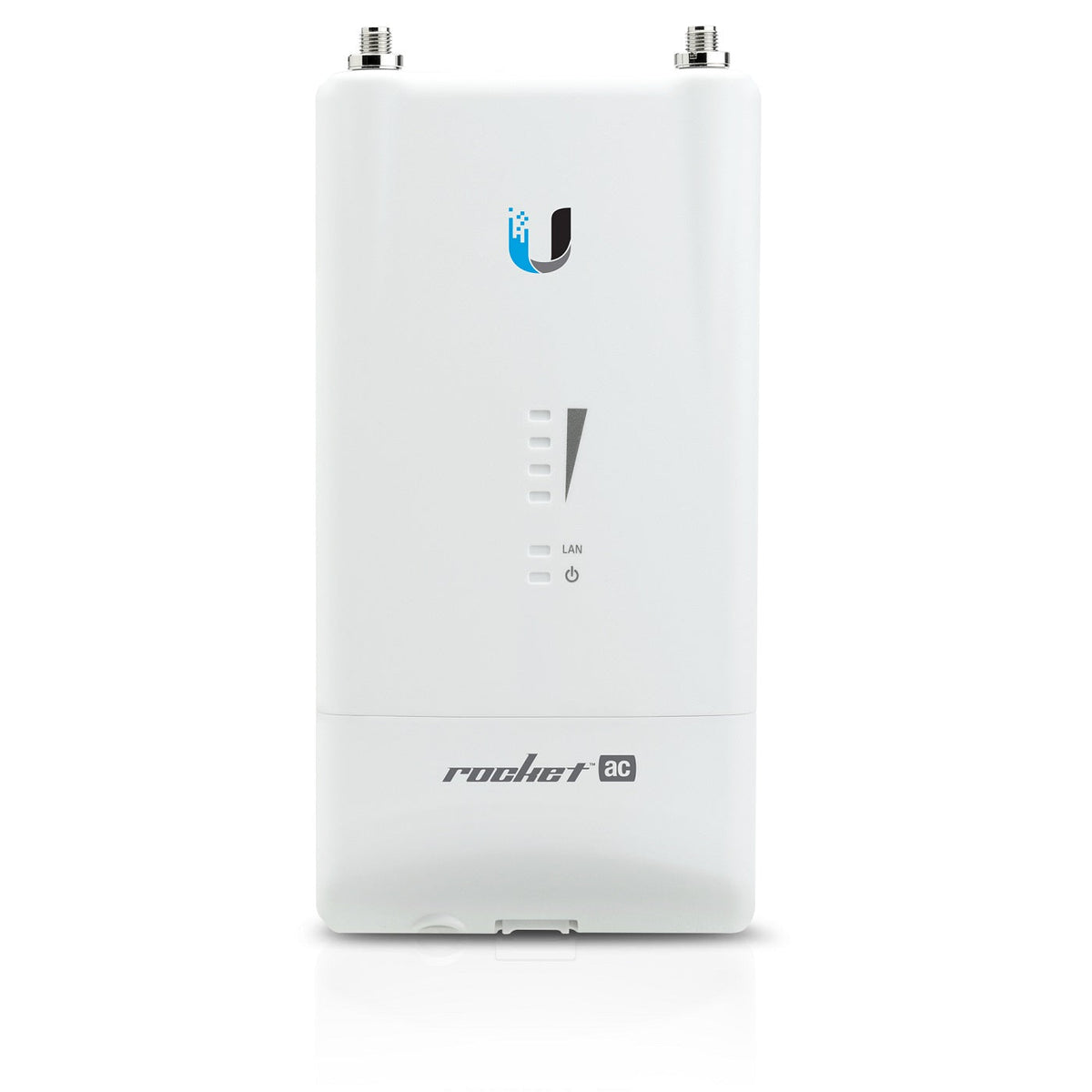

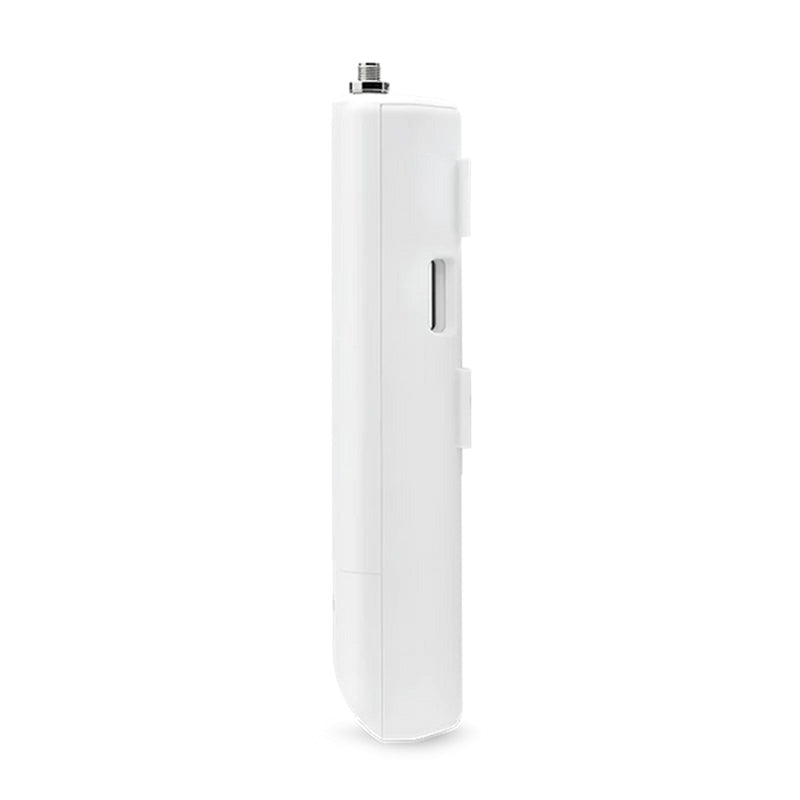

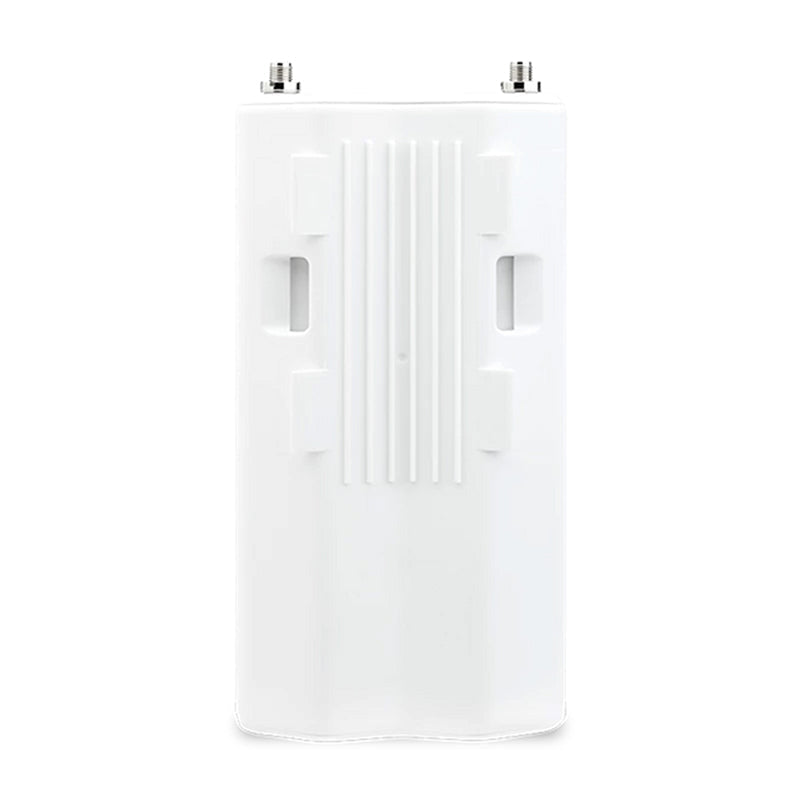

R5AC-Lite Ubiquiti airMAX Rocket AC Lite BaseStation
Description
Description
The R5AC-Lite Rocket AC features proprietary airMAX® ac technology, the Rocket ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance as well as Point-to-MultiPoint (PtMP) functionality.
Ubiquiti has designed the first airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket® ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
Pair the Rocket5ac Lite with airMAX ac antennas for optimal performance:
PtP backhaul Rocket5ac Lite with the RocketDish™ ac
PtMP links Rocket5ac Lite with the airMAX ac Sector
Features:
5 GHz Frequency Band
Gigabit Ethernet
Passive Power over Ethernet (PoE)
Output Power
Plug and Play Integration
Specifications17 specifications · 4 sections
| Mechanical | |
|---|---|
| Dimensions | 162 x 84 x 37 mm / (6.4 x 3.3 x 1.5") |
| Weight | 250 g (8.8 oz) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 8.5W |
| RF Connections | (2) RP-SMA (Waterproof) |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC, Anatel: 02861-15-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
