Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:

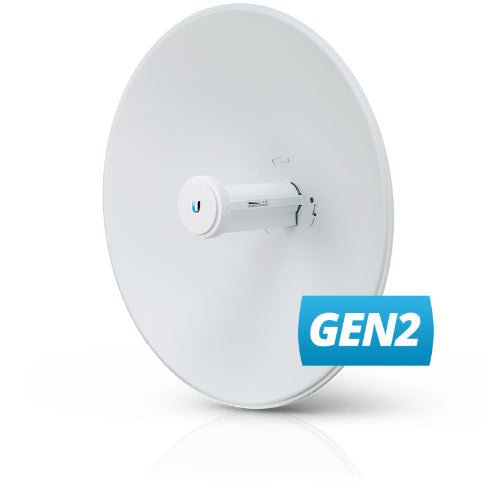

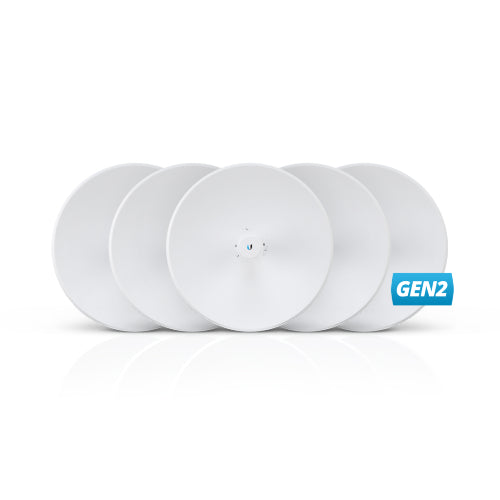

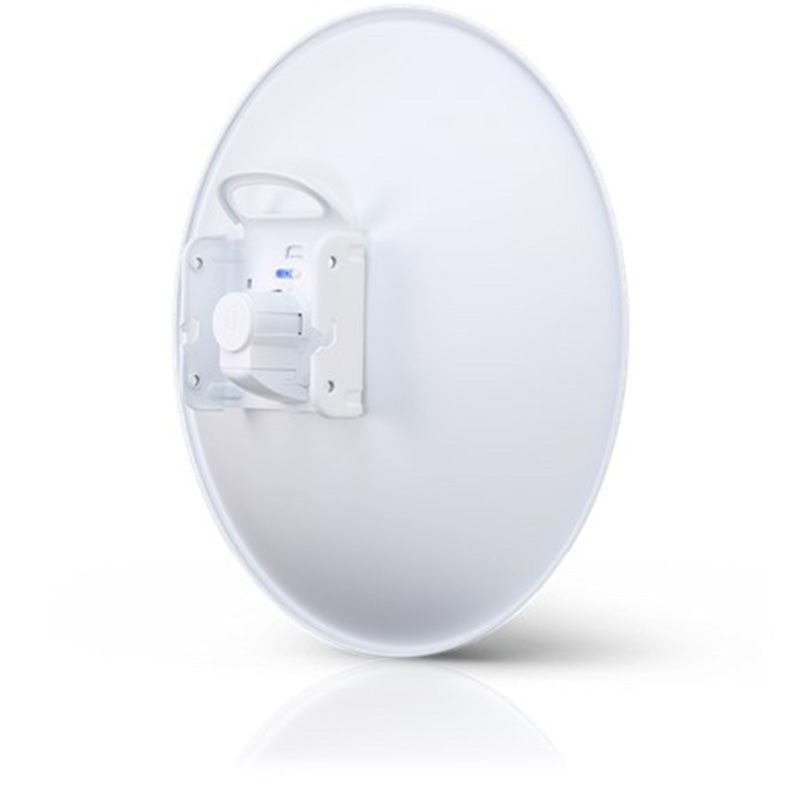

PBE-5AC-GEN2 Ubiquiti airMAX PowerBeam Gen2
Regular priceFrom
£99.67 GBP
Unit price
Description
Description
Powerful dish reflector design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup.
Excellent beam directivity provides the best performance for PtP or PtMP links located in high-noise environments.
Features:
Improved radio design
Improved mounting
Improved surge protection
Management WiFi Radio/UISP mobile app
AirOS 8
Up to 450+ Mbnps throughput
SKU:
Regular priceFrom
£99.67 GBP
Unit price
Specifications26 specifications · 7 sections
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230 mm / (16.5 x 16.5 x 9.1") |
| Weight | 2.2 kg (4.9 lb) |
| Enclosure Materials | UV-stabilized polycarbonate, powder-coated SPCC |
| Mounting | Pole Mount (Included) |
| Wind Loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 8.5W |
| Ambient Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS, Anatel: 12697-20-08356 |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| Software | |
| Operating Modes | Access Point / Station |
| System | |
| Channel Bandwidth | PtP Mode: 10/20/30/40/50/60/80 MHz / PtMP Mode: 10/20/30/40 MHz |
| Antenna Gain | 25 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150-5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model PBE-5AC-GEN2 · Ubiquiti's spec sheet
