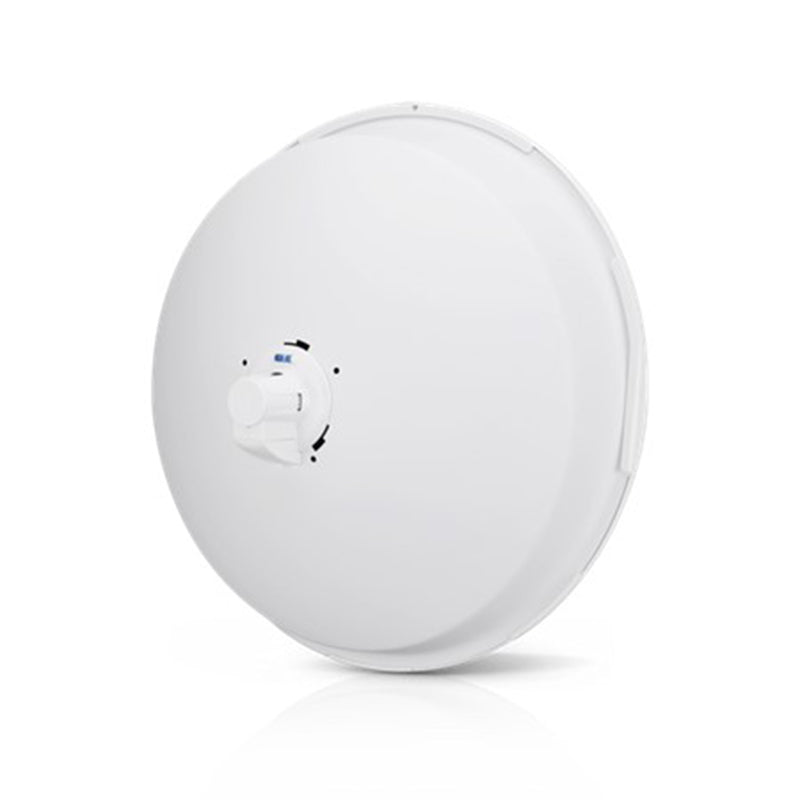

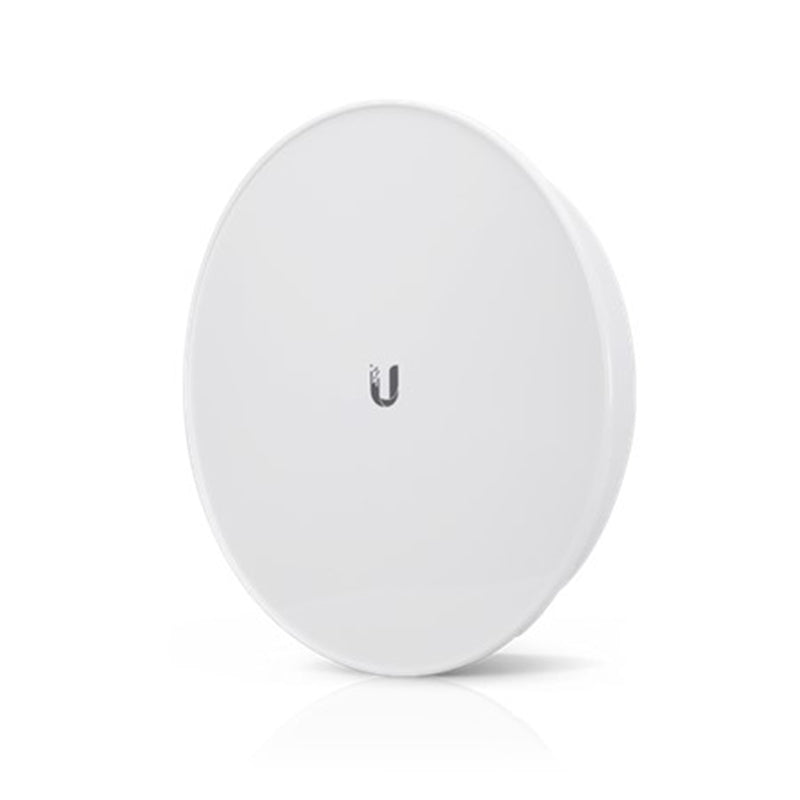

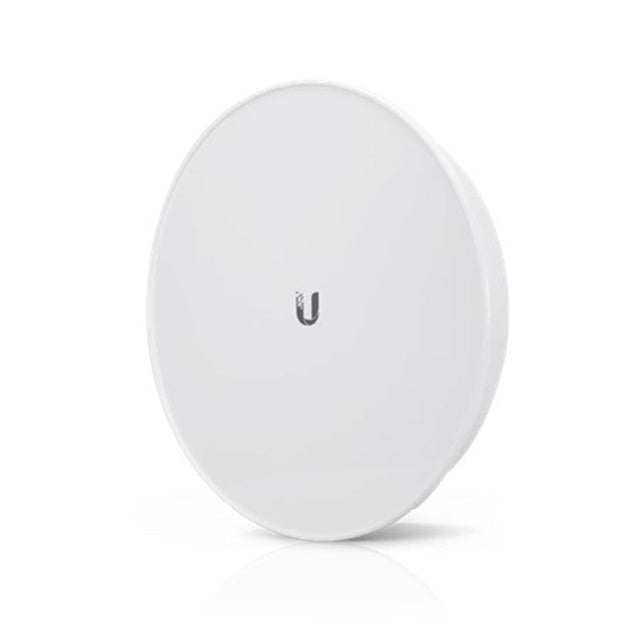

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
PBE-5AC-ISO-GEN2
PBE-5AC-ISO-GEN2 Ubiquiti airMAX PowerBeam ISO Bridge
Regular price
£128.94 GBP
Unit price
Description
Description
The airMAX PowerBeam AC 5 GHz ISO Bridge supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection.
It features a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO from nature's harshest elements.
The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO delivers improved noise immunity in co-location deployments.
SKU:
PBE-5AC-ISO-GEN2
Regular price
£128.94 GBP
Unit price
Specifications27 specifications · 7 sections
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230 mm / (16.5 x 16.5 x 9.1") |
| Weight | 2.2 kg (4.9 lbs) |
| Enclosure Materials | UV-stabilized polycarbonate, powder-coated SPCC |
| Mounting | Pole Mount (Included) |
| Wind Loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 8.5W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, RoHS |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | PtP Mode: 10/20/30/40/50/60/80 MHz / PtMP Mode: 10/20/30/40 MHz |
| Antenna Gain | 25 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model PBE-5AC-ISO-GEN2 · Ubiquiti's spec sheet
