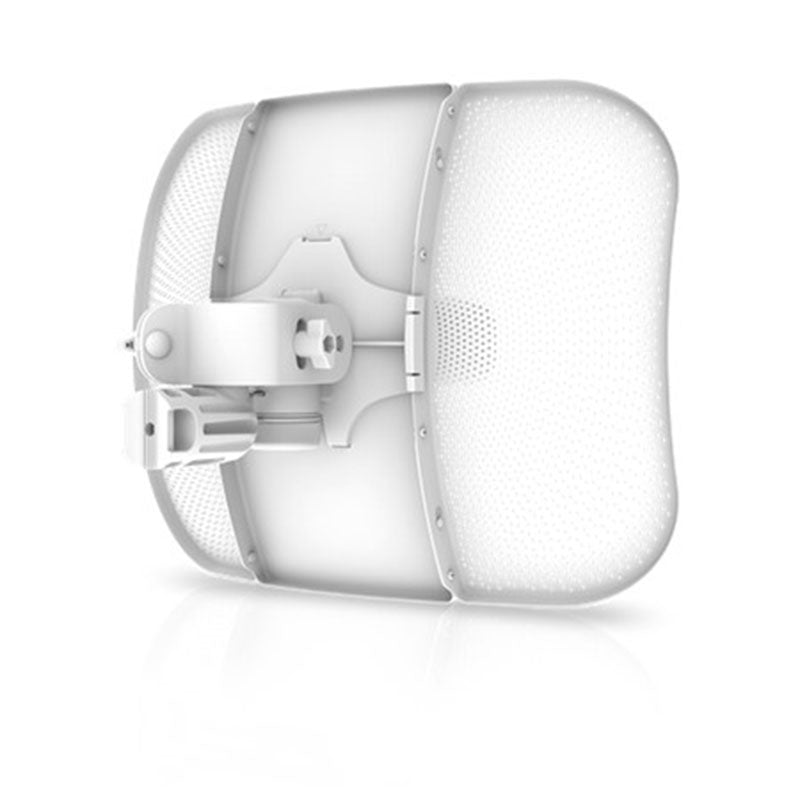

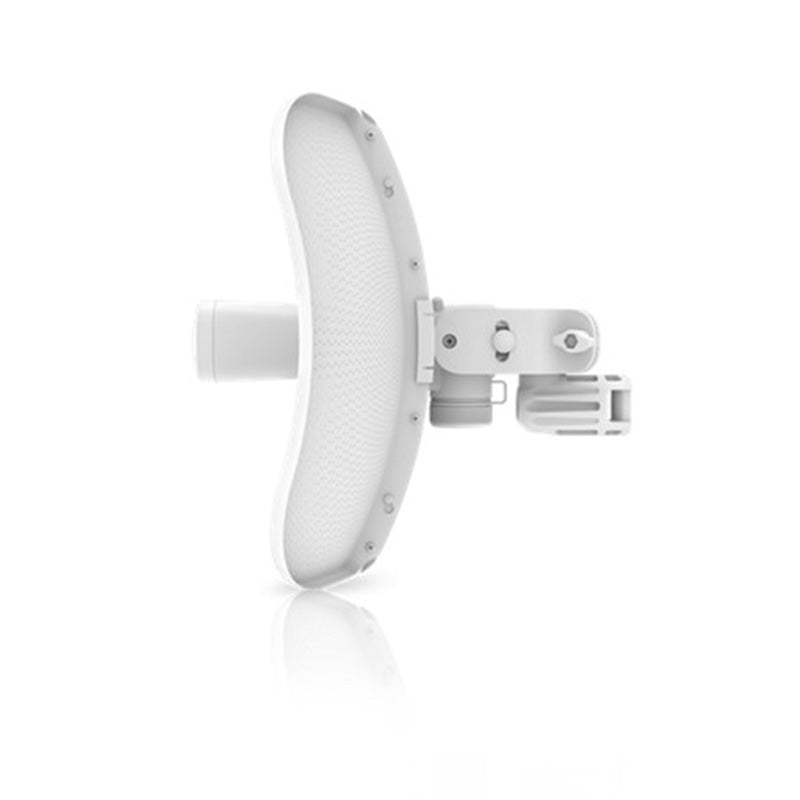

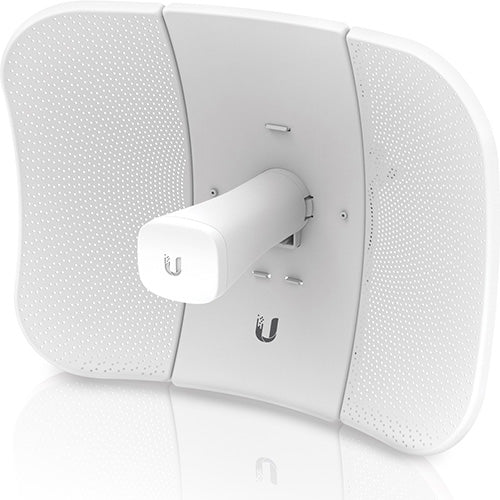

LBE-5AC-GEN2 Ubiquiti airMAX LiteBeam Bridge
Description
Description
The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds no tools needed. Only a single wrench is required for pole-mounting.
A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.
AirOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Features:
Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UISP mobile app
AirOS 8 and airView
Specifications20 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 358 x 271.95 x 272.5 mm / (14.1 x 10.7 x 10.7") |
| Weight | Without mount: 800 g (1.8 lb) / With mount 980 g (2.2 lb) |
| Wind Loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 7W |
| Max. Power Output | 25 dBm |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06359-19-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Total Throughput | 450+ Mbps |
| Antenna Gain | 23 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
