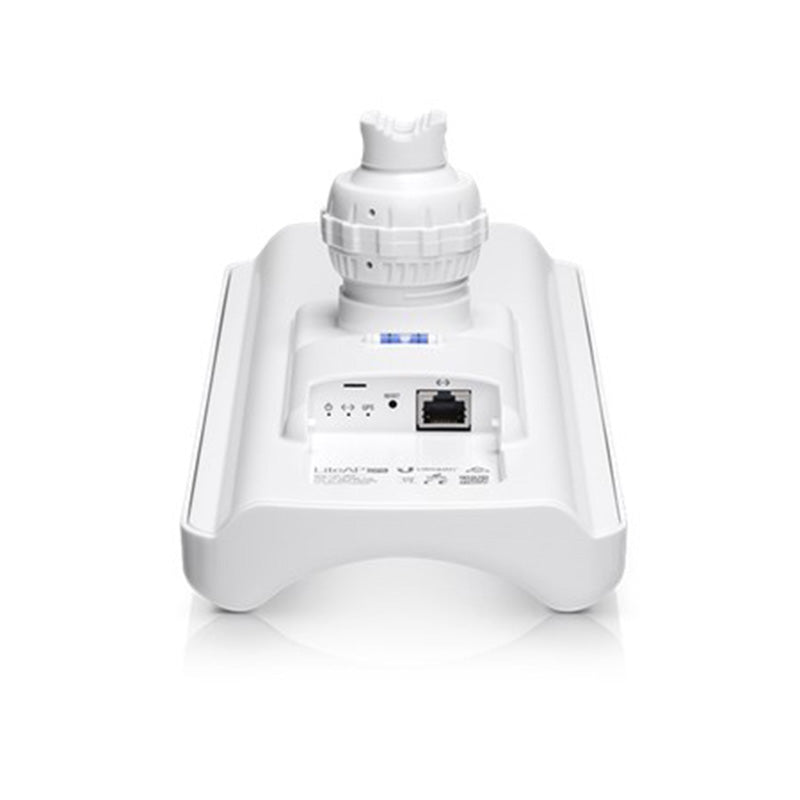

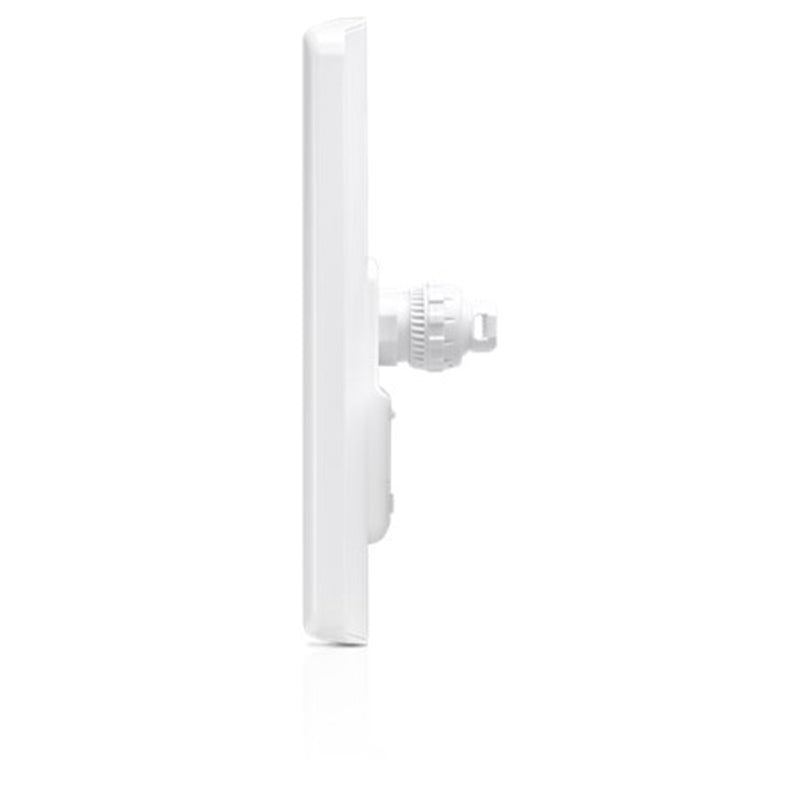

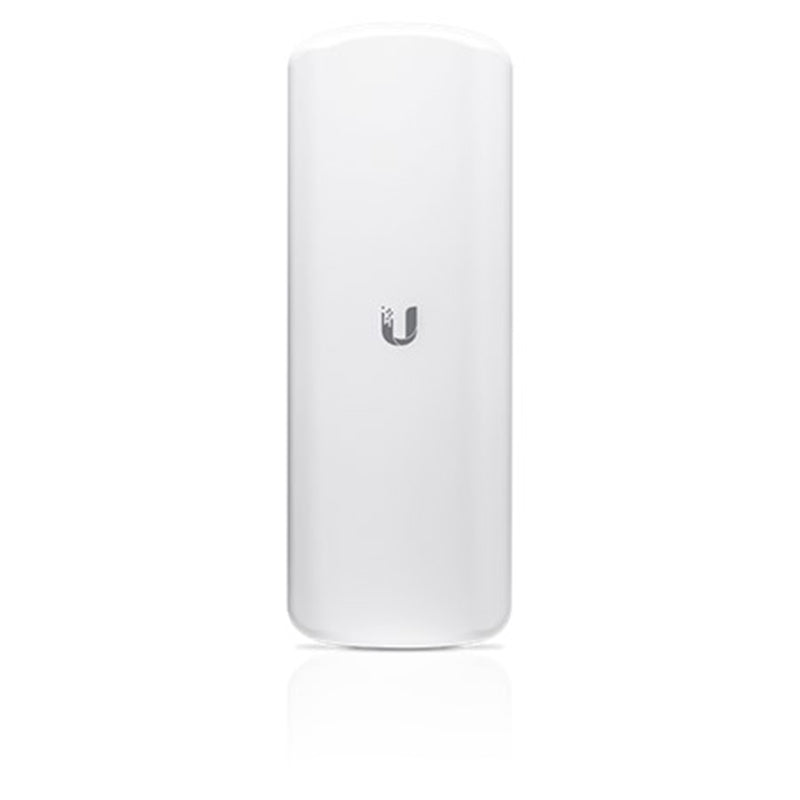

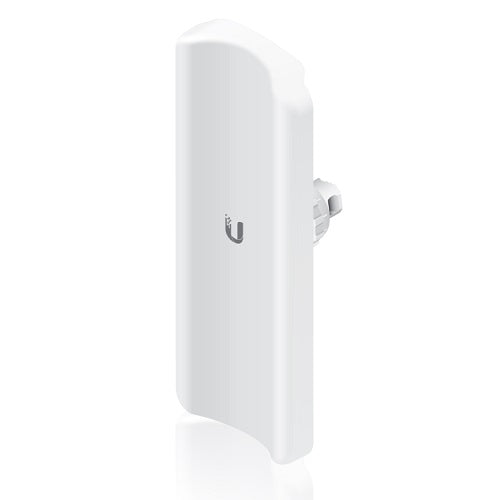

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
LAP-GPS Ubiquiti airMAX Lite GPS AP
Description
Description
Introducing the airMAX® LiteAP™ AC, the latest high-performance access point with affordable pricing from Ubiquiti.
Featuring an ultra-lightweight form factor, the LiteAP AC was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. Each of these models operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
Features:
GPS Sync support
Lightweight, low-cost solution
High-performance 90 degree antenna
Up to 450+ Mbps data throughput
Specifications21 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 361 x 129.6 x 71.3 mm / (14.2 x 5.1 x 2.8") |
| Weight | 752 g (1.66 lb) |
| Wind Loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 7.1W |
| Max. TX Power | 25 dBm |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC, Anatel: 06555-19-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Antenna Gain | 17 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
