Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
LBE-5AC-LR

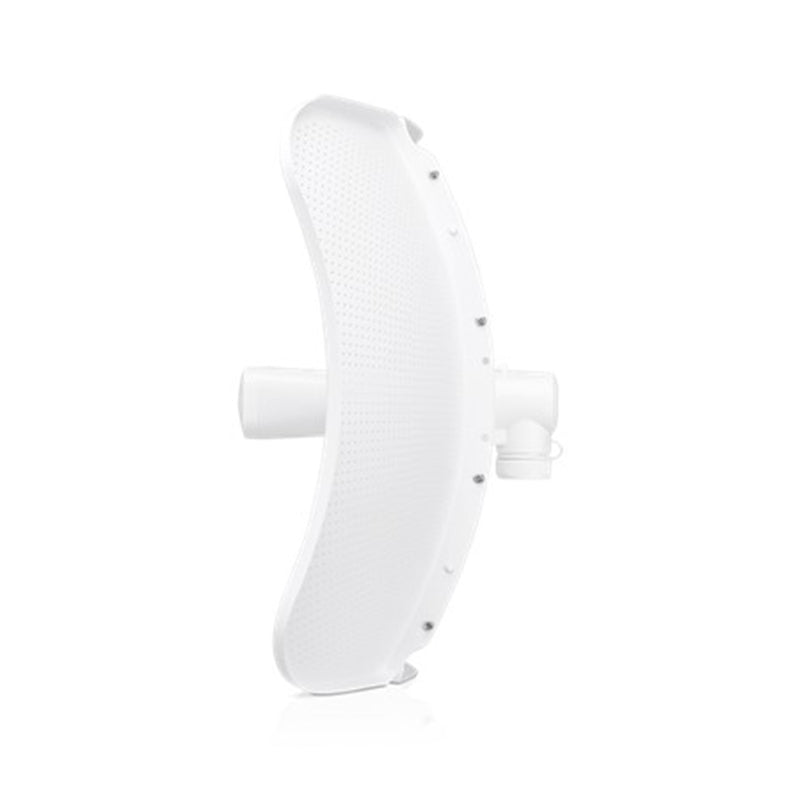

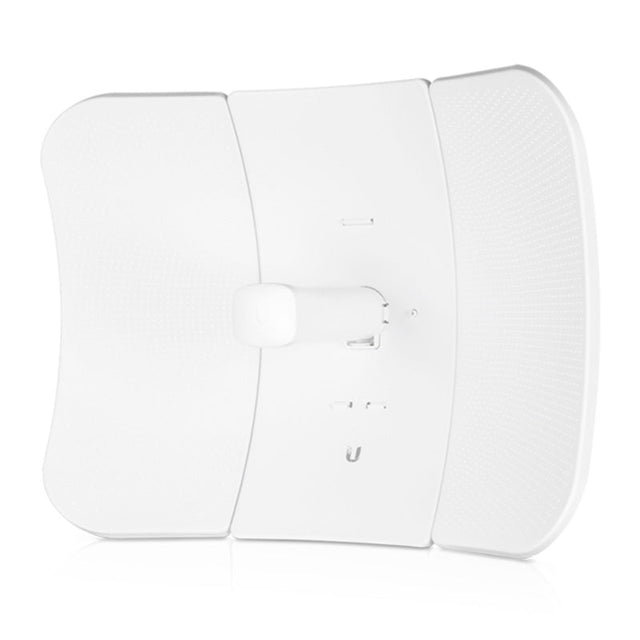

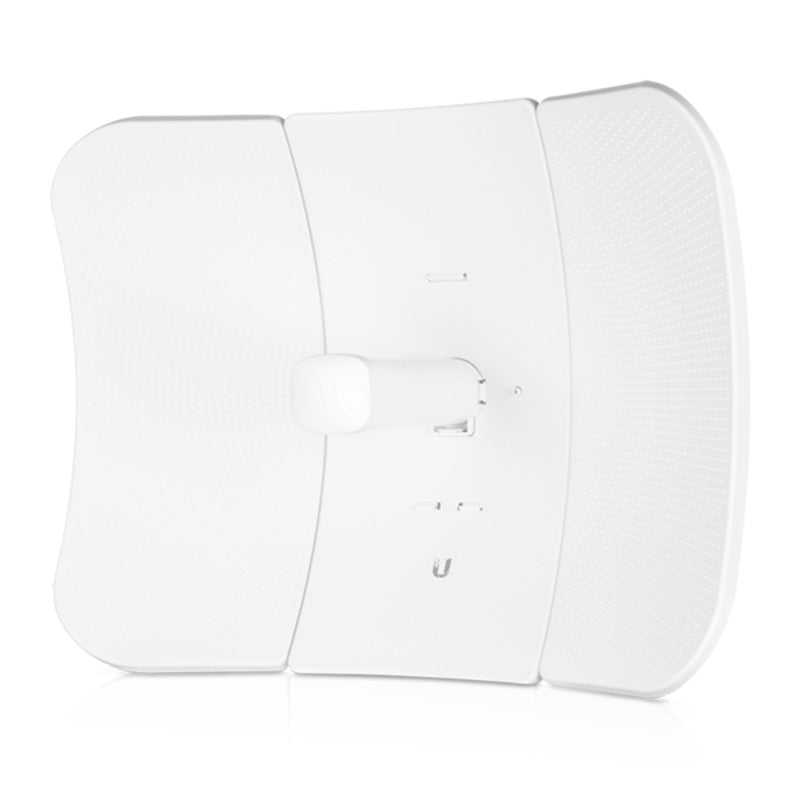

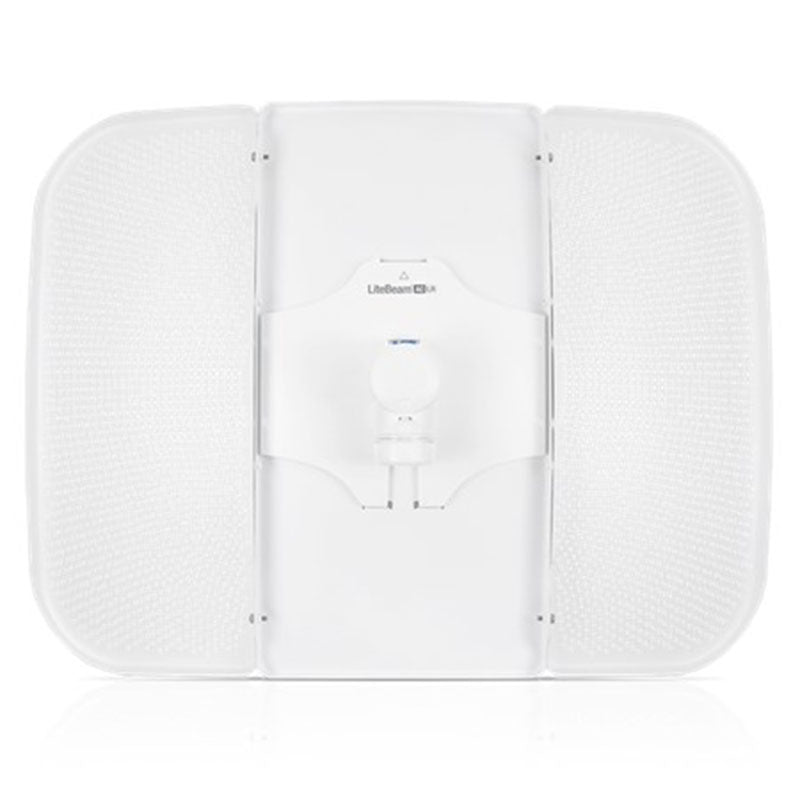

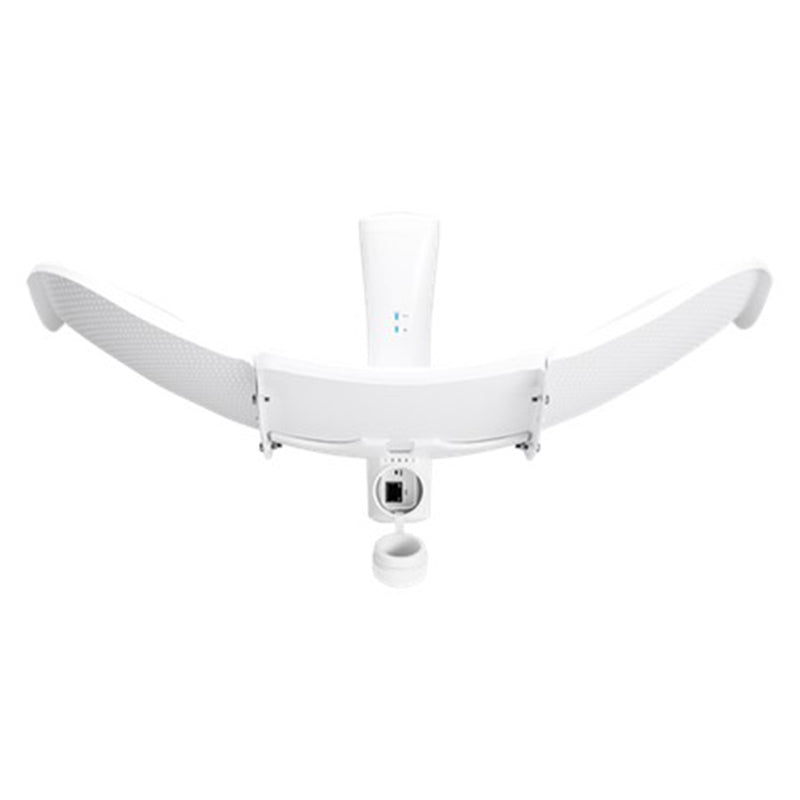

LBE-5AC-LR Ubiquiti airMAX LiteBeam Long-Range Station
Regular price
£105.61 GBP
Unit price
Description
Description
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.
Features:
Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UISP mobile app
AirOS 8
SKU:
LBE-5AC-LR
Regular price
£105.61 GBP
Unit price
Specifications22 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 512 x 385.8 x 258.3 mm / (20.2 x 15.2 x 10.2") |
| Weight | Without mount: 1.4 kg (3 lb) / With mount: 1.7 kg (3.8 lb) |
| Enclosure Materials | Aluminum, polycarbonate |
| Mounting | Pole Mount (Included) |
| Wind Loading | 550 N at 200 km/h (123.6 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20-27V DC |
| Max. Power Consumption | 7W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 09760-19-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | PtP mode: 10/20/30/40/50/60/80 MHz / PtMP mode: 10/20/30/40 MHz |
| Antenna Gain | 26 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150-5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C:5240-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model LBE-5AC-LR · Ubiquiti's spec sheet
