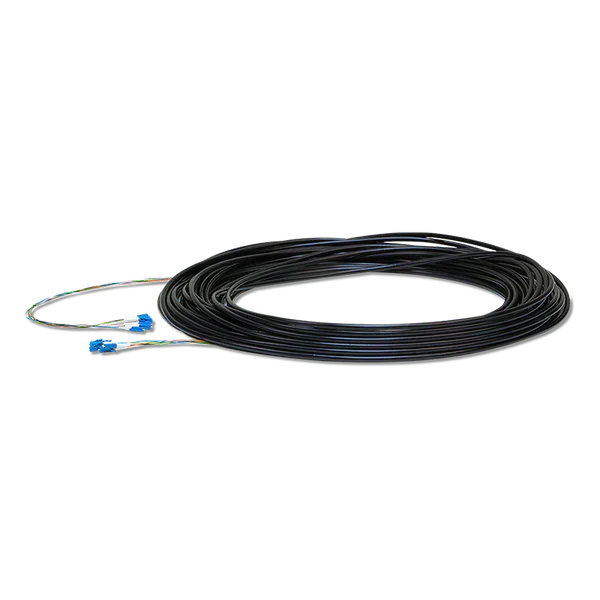

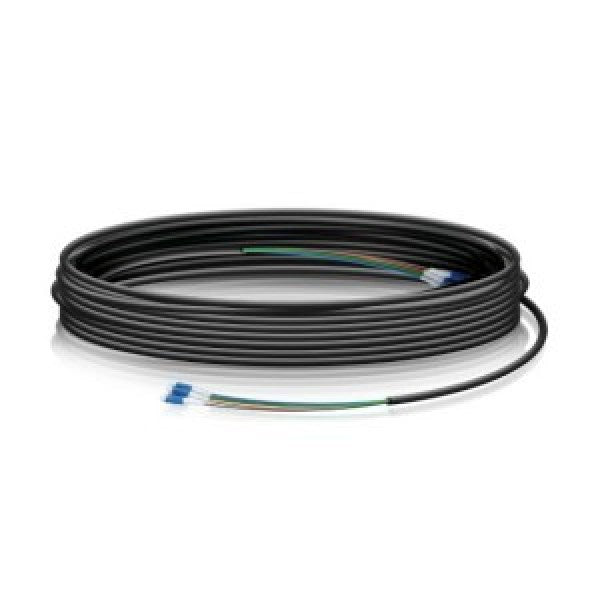

FC-SM Single Mode LC-LC Fiber Cable
Description
Description
Build your outdoor fiber network using our FiberCable. Lightweight and flexible.
FiberCable is ideal for tower deployments of our outdoor routing and switching products, such as EdgePoint.
Available in 100, 200, and 300 ft (30.48 / 60.96 / 91.44 m) lengths.
Features:
Outdoor-Rated Jacket with Ripcord
Integrated Weatherproof Tape
Kevlar Yarn for Added Tensile Strength
Outer Diameter of Cable: 6.0 ± 0.2 mm
Six-Strand Single-Mode (G.657.A2)
Outer Diameter of Fiber Strand: 0.25 mm Nominal
Insertion Loss
1310 nm: ≤0.5 dB/km
1550 nm: ≤0.5 dB/km
Click HERE to access the Datasheet
Specifications14 specifications · 1 sections
| Overview | |
|---|---|
| Available Lengths | 30.5/61/91.5 m / (100/200/300 ft) |
| Pack Options | Single Unit |
| Connector | (12) Simplex LC UPC |
| Operating Environment | Outdoor |
| Weatherproofing | IP65 |
| Cable · Fiber Mode | OS1 |
| Cable · Jacket Diameter | 6 mm (0.24") |
| Cable · Jacket Material | Thermoplastic polyurethane (TPU) with Kevlar strength member inside |
| Cable · Jacket Color | Black |
| Wavelength | 1310/1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.5 dB |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
