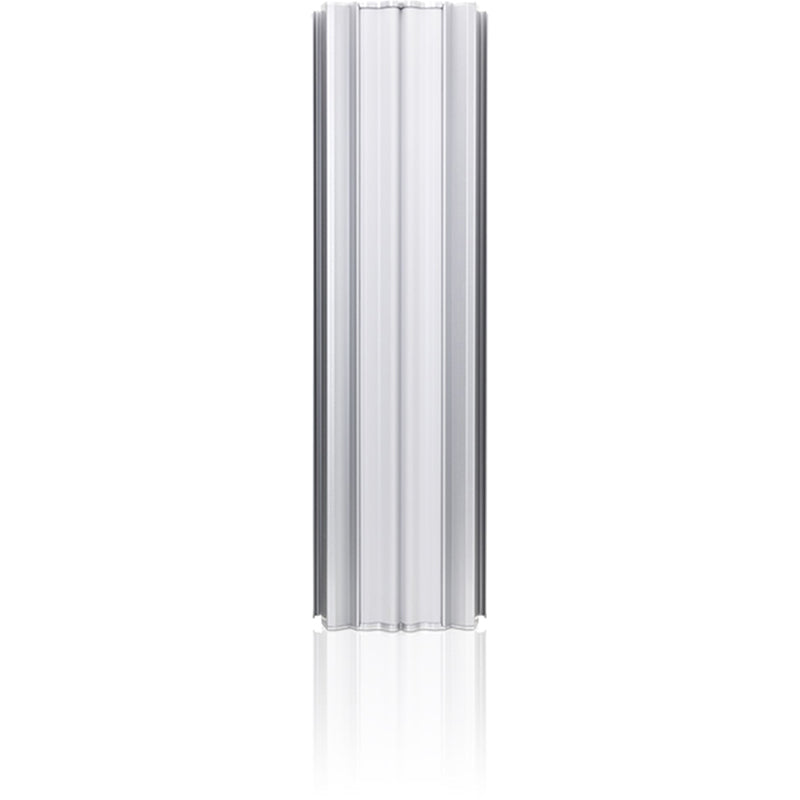

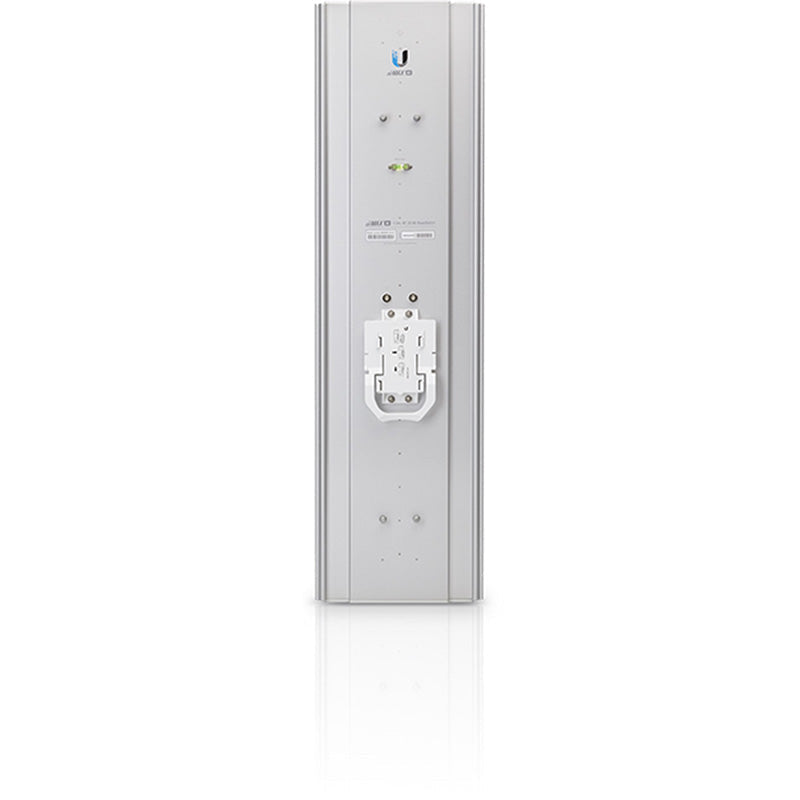

AM-5AC22-45 Ubiquiti airMAX AC Sector 5GHz Antenna
Description
Description
Ubiquiti has you covered with the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Breakthrough Performance the airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).
Due to innovative design, the Ubiquiti airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
Features:
5.10 - 5.85 GHz
22 dBi
Beamwidth: 45°
Dual-Linear Polarization
Universal Pole Mount (Included)
Rocket Bracket (Included)
Weatherproof RF Jumpers (Included)
Frequently asked questions5 questions
What frequency range and gain does this antenna offer?
Which radios is it compatible with?
What mounting hardware is included?
How does it cope with interference from nearby transmitters?
What are the size, weight and wind rating?
Specifications14 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 750 x 215 x 94 mm / (29.5 x 8.5 x 3.7") |
| Weight | 6 kg (13.2 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N at 200 km/h (78 lbf at 125 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Hardware | |
| Frequency Range | 5.10—5.85 GHz |
| Antenna Gain | 22 dBi |
| Electrical Downtilt | 2° |
| Electrical Beamwidth | 4° |
| VPOL Beamwidth | 45° (6 dBi) |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 30 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
