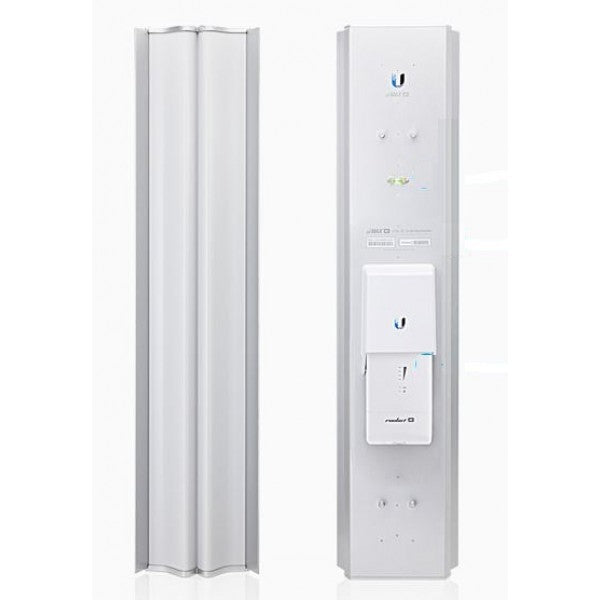

AM-5AC21-60 Ubiquiti airMAX AC Sector 5GHz Antenna

£181.99 GBP

Description

Ubiquiti has you covered with the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Performance the airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

Due to innovative design, the Ubiquiti airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.

Features:

5.10 - 5.85 GHz
21 dBi
Beamwidth: 60°
Dual-Linear Polarization
Universal Pole Mount (Included)
Rocket Bracket (Included)
Weatherproof RF Jumpers (Included)

Frequently asked questions5 questions

What is the Ubiquiti AM-5AC21-60 used for?

It is a 2x2 MIMO 5GHz sector antenna built for high-capacity, multipoint networks. It offers higher gain and strong beam performance, and is designed to complement Rocket 5ac radios.

What are the key specifications of this antenna?

It covers 5.10 - 5.85 GHz with 21 dBi gain and a 60° beamwidth. It uses dual-linear polarisation.

Which radios is it compatible with?

It is designed to complement the Rocket 5ac radios and is also compatible with RocketM5 models. However, optimal performance requires the Rocket5ac.

How well does it cope with interference on shared towers?

Its deflector design and reduced sidelobes and backlobes help reject interference from other transmitters in the area, including on the same tower. The improved signal-to-noise ratio can allow higher-order modulation such as 256QAM rather than 16QAM.

What mounting hardware and accessories are included?

A universal pole mount, a Rocket bracket and weatherproof RF jumpers are included.
