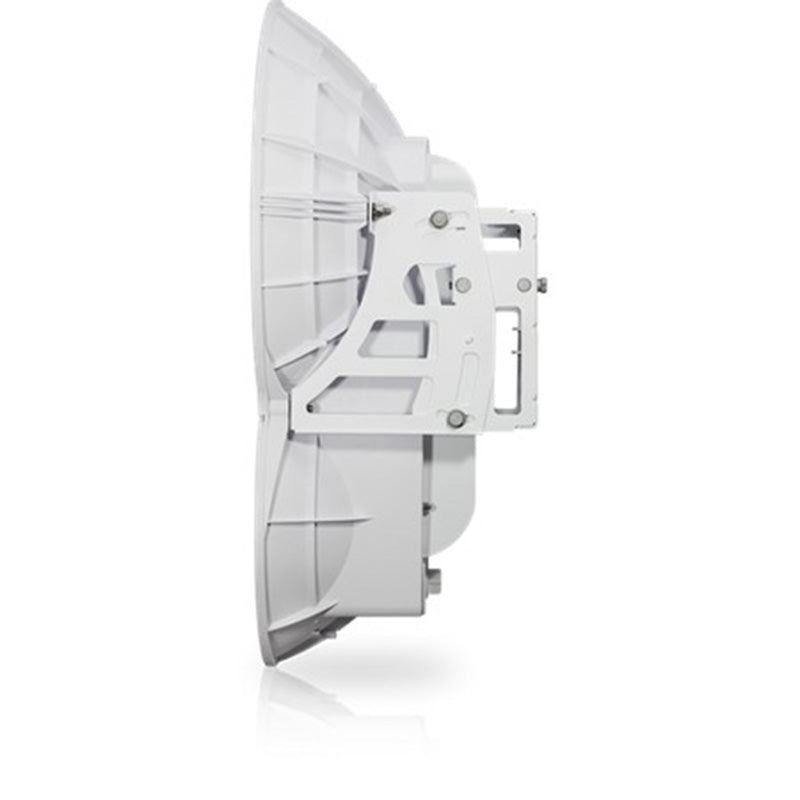

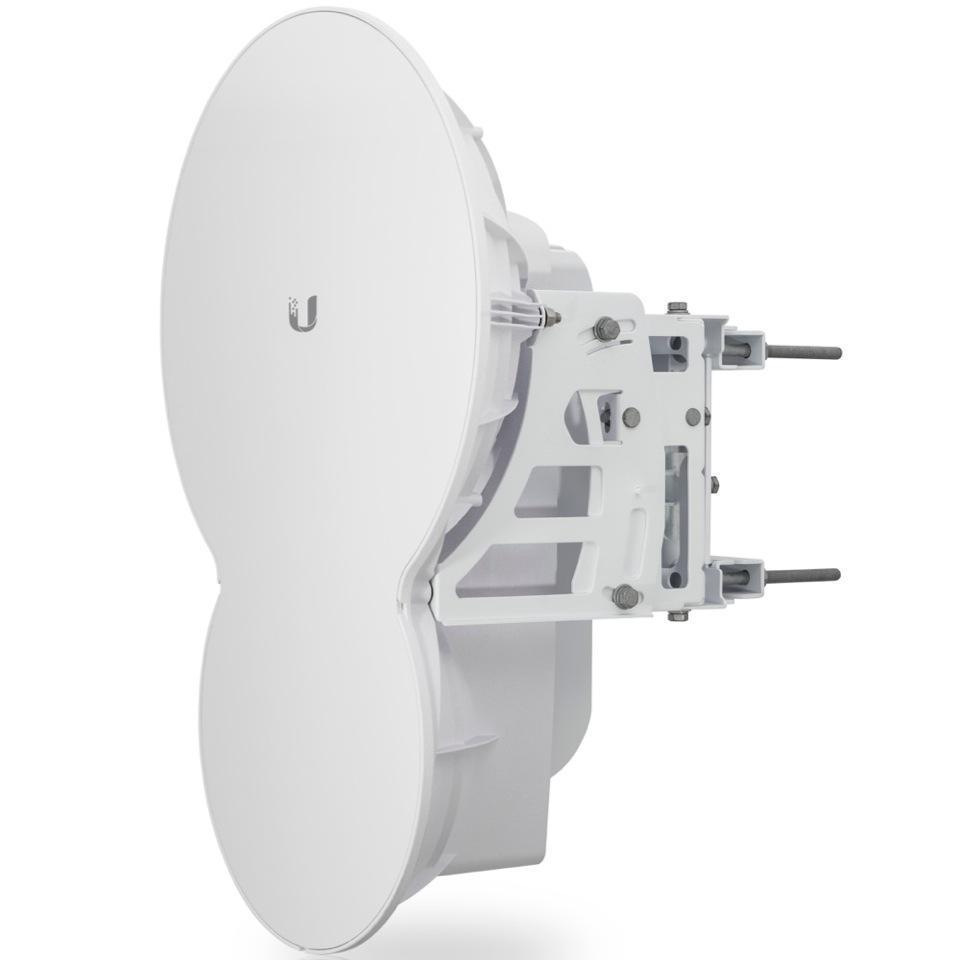

AF-24 Ubiquiti airFiber 24GHz Bridge

The Ubiquiti airFiber AF-24 provides a breakthrough in 24 GHz backhaul performance.

Systems for millimeter-wave frequencies typically experience RF losses when part of the RF is lost in the switches and filters. The Ubiquiti airFiber R&D team eliminated such RF losses with separate yet integrated TX and RX antennas, so the link budget is robust and the Ubiquiti airFiber AF-24 has better noise figure and higher transmit power efficiency.

The Ubiquiti airFiber AF-24 delivers superior speed with spectral efficiency in the worldwide, license-free, 24 GHz radio band. It delivers up to 1.5+ Gbps throughput at a range of up to 5+ km and features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range among 24 GHz products and allows for constellation threshold extension.

-- Two Ubiquiti airFiber untis are required for a complete link --

Features:

Supports 24 GHz frequencies
13+ km transmission range
Powered with the included 50V, 1.2A PoE Gigabit Ethernet adapter
(1) 10/100 Ethernet port (configuration and auxiliary)
(1) 10/100/1000 Ethernet port
1.5+ Gbps aggregate throughput
50W maximum power consumption
(8) status LEDs that denote port speed, activity, RF status, and GPS synchronization

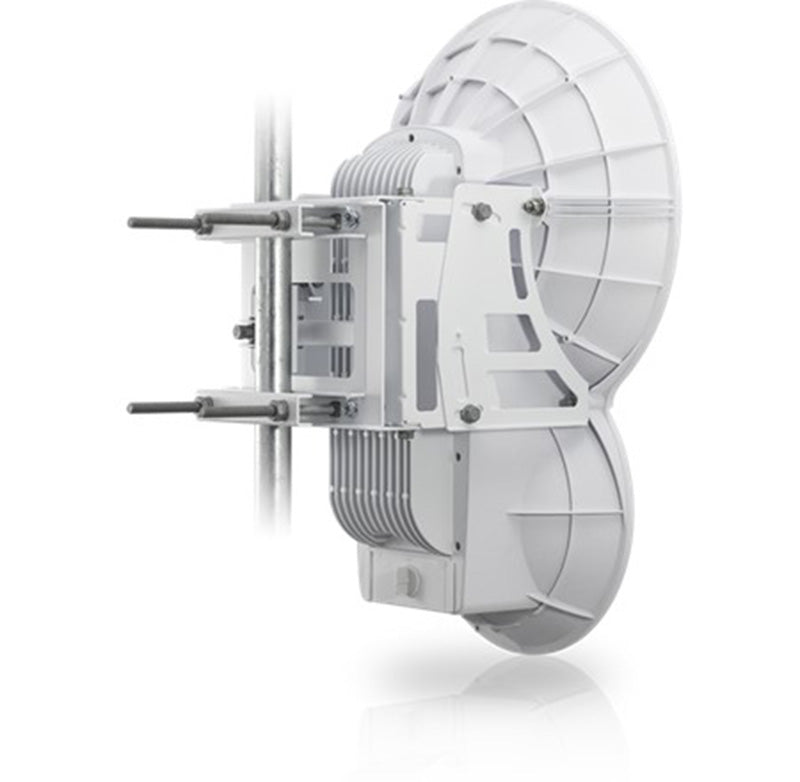

Included pole mounting kit
