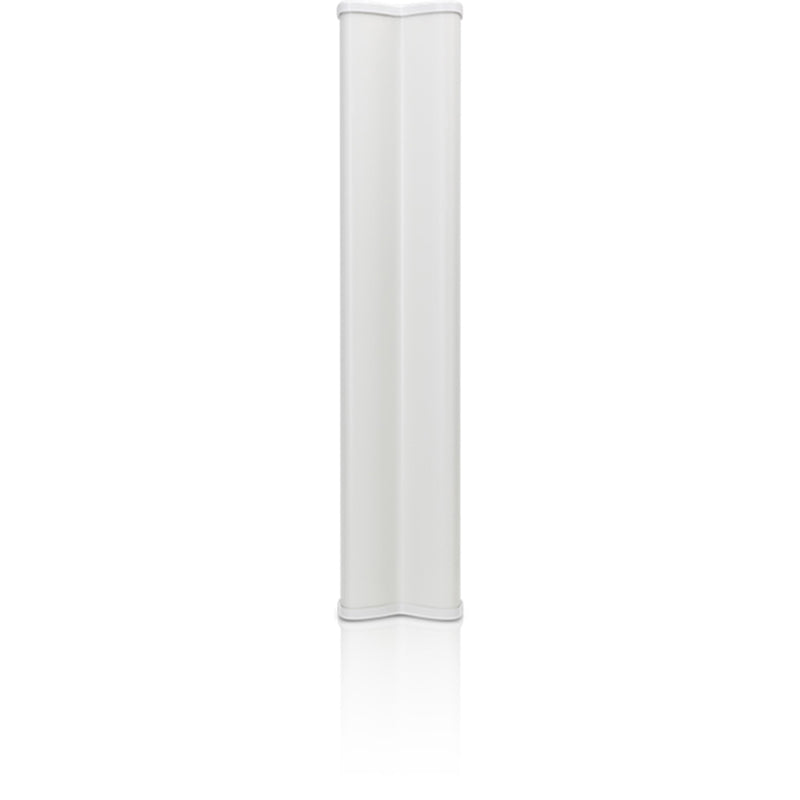

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
AM-2G15-120
AM-2G15-120 Ubiquiti airMAX Sector 2.4GHz Antenna
Regular price
£123.49 GBP
Unit price
Description
Description
Introducing the Ubiquiti airMAX Sector AM-2G15-120, which continues the evolution of Ubiquiti.
Advanced RF Isolation Antenna. Advanced Carrier-Class PtMP Basestation Antenna. 2x2 BaseStation Sector Antenna
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
15 dBi
Frequently asked questions5 questions
What is the Ubiquiti AM-2G15-120 designed for?
It is a 2x2 sector basestation antenna for Point-to-MultiPoint (PtMP) networks. It is intended to be paired with a Rocket M BaseStation to provide sector coverage.
What are the main RF specifications?
It operates across 2.3–2.7 GHz with 15–16 dBi gain, a 118° beamwidth (6 dB) and 4° electrical downtilt. Polarisation is dual-linear with a minimum 28 dB cross-pol isolation and a maximum VSWR of 1.5:1.
What mounting hardware is included?

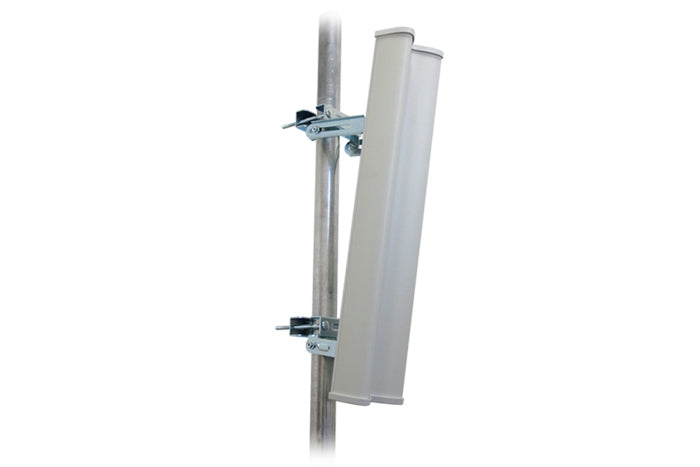

The universal pole mount, a Rocket M bracket and weatherproof RF jumpers are included. This covers mounting the antenna to a pole and attaching a Rocket M BaseStation.
How big is it and how well does it handle wind?
It measures 700 x 145 x 93 mm and weighs 4 kg. It survives winds of 200 km/h, with a wind loading of 107 N at 160 km/h.
Does this antenna meet any European radio standards?
Yes, it is specified to ETSI EN 302 326 DN2.
SKU:
AM-2G15-120
Regular price
£123.49 GBP
Unit price
Specifications14 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 700 x 145 x 93 mm / (27.6 x 5.7 x 3.7") |
| Weight | 4 kg (8.8 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 107 N at 160 km/h (24 lbf at 100 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Hardware | |
| Frequency Range | 2.3—2.7 GHz |
| Antenna Gain | 15—16 dBi |
| Electrical Downtilt | 4° |
| Electrical Beamwidth | 9° |
| VPOL Beamwidth | 118° (6 dB) |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model AM-2G15-120 · Ubiquiti's spec sheet
