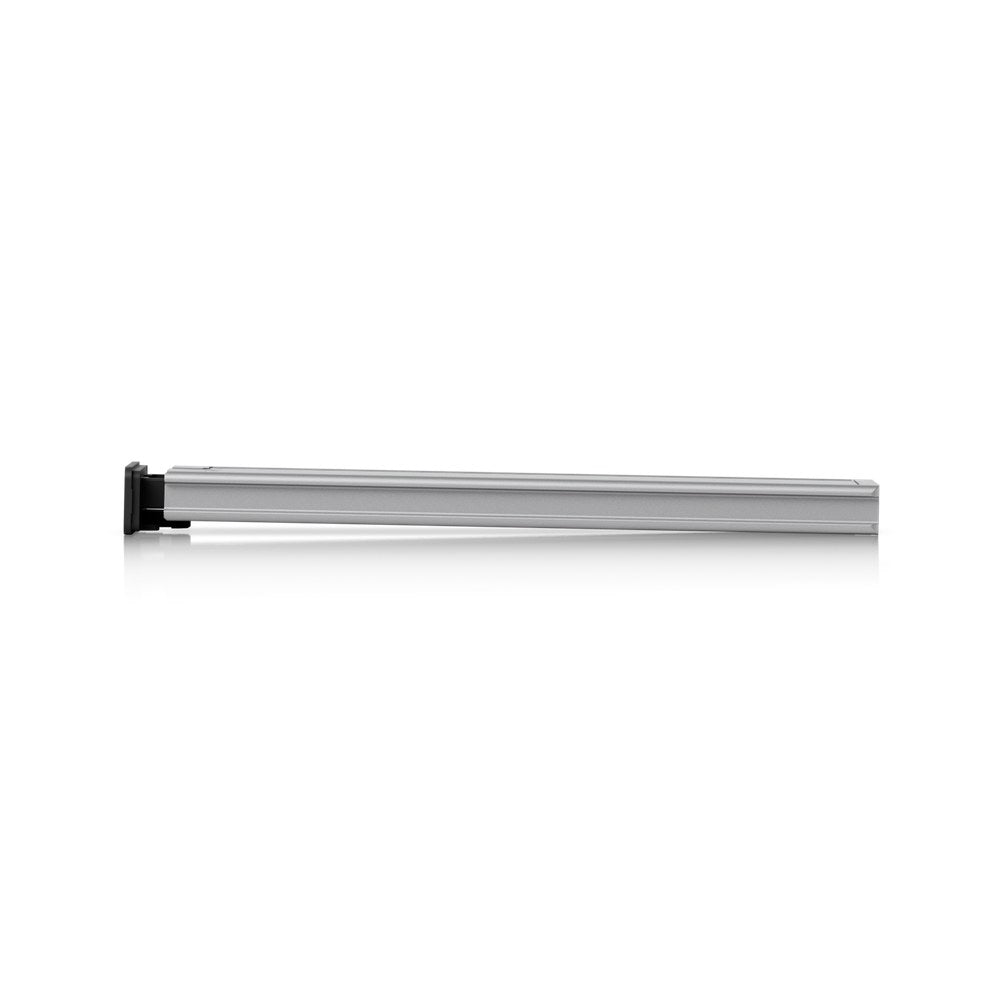

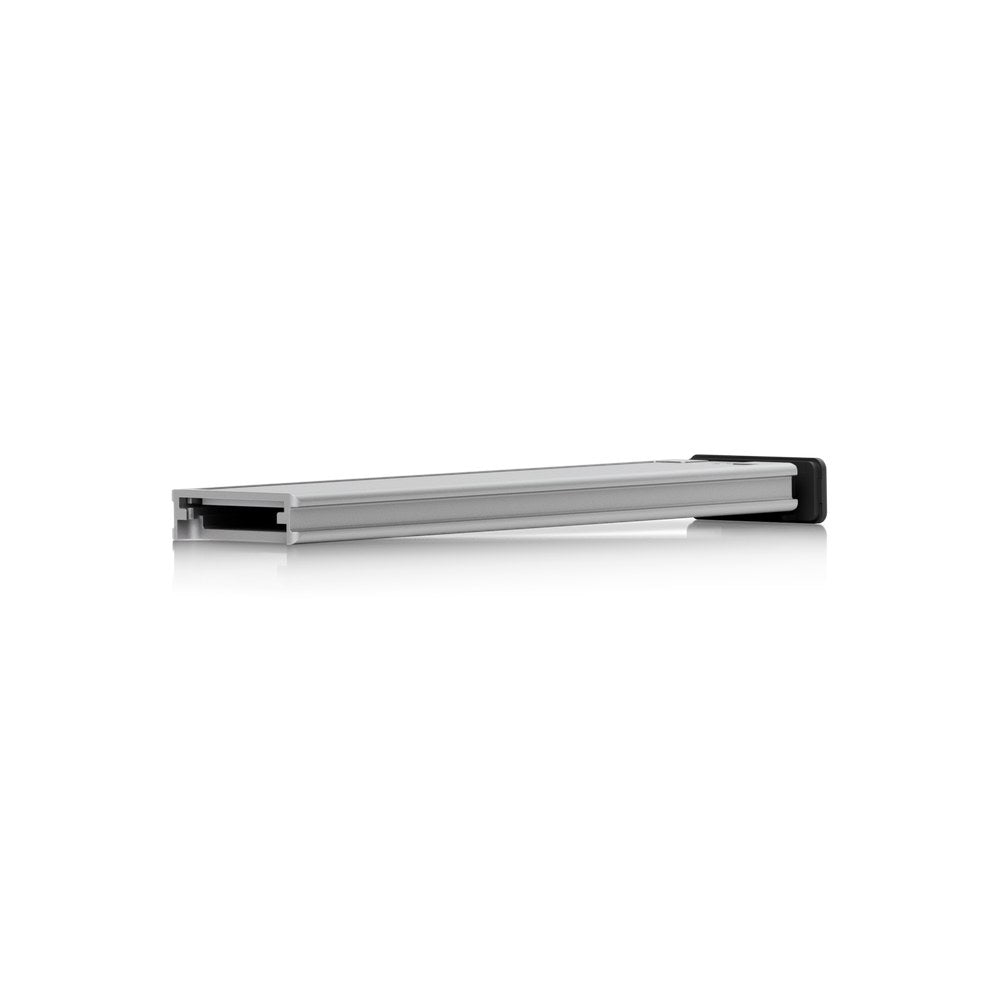

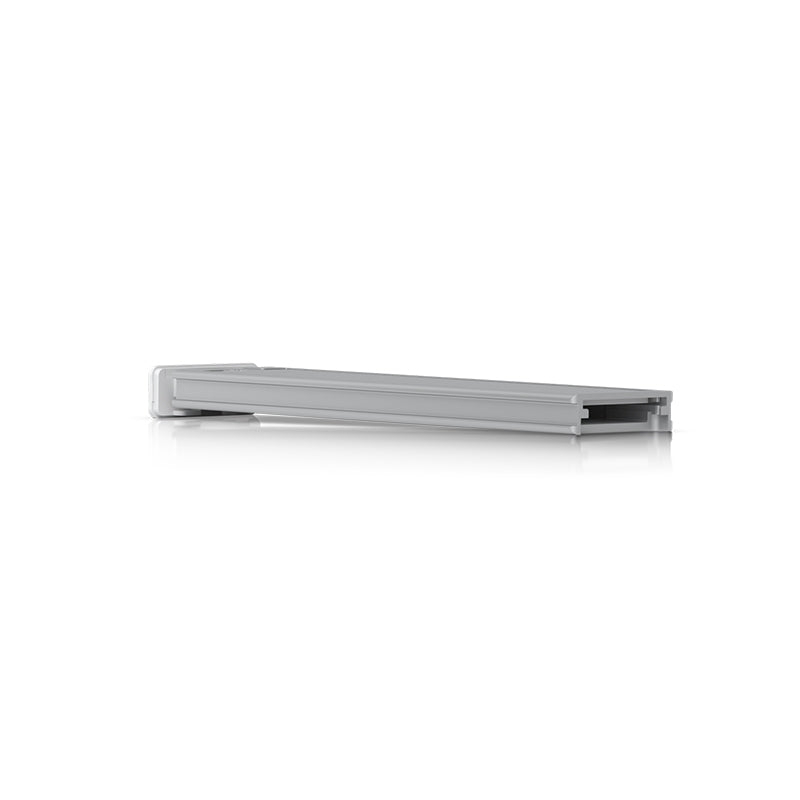

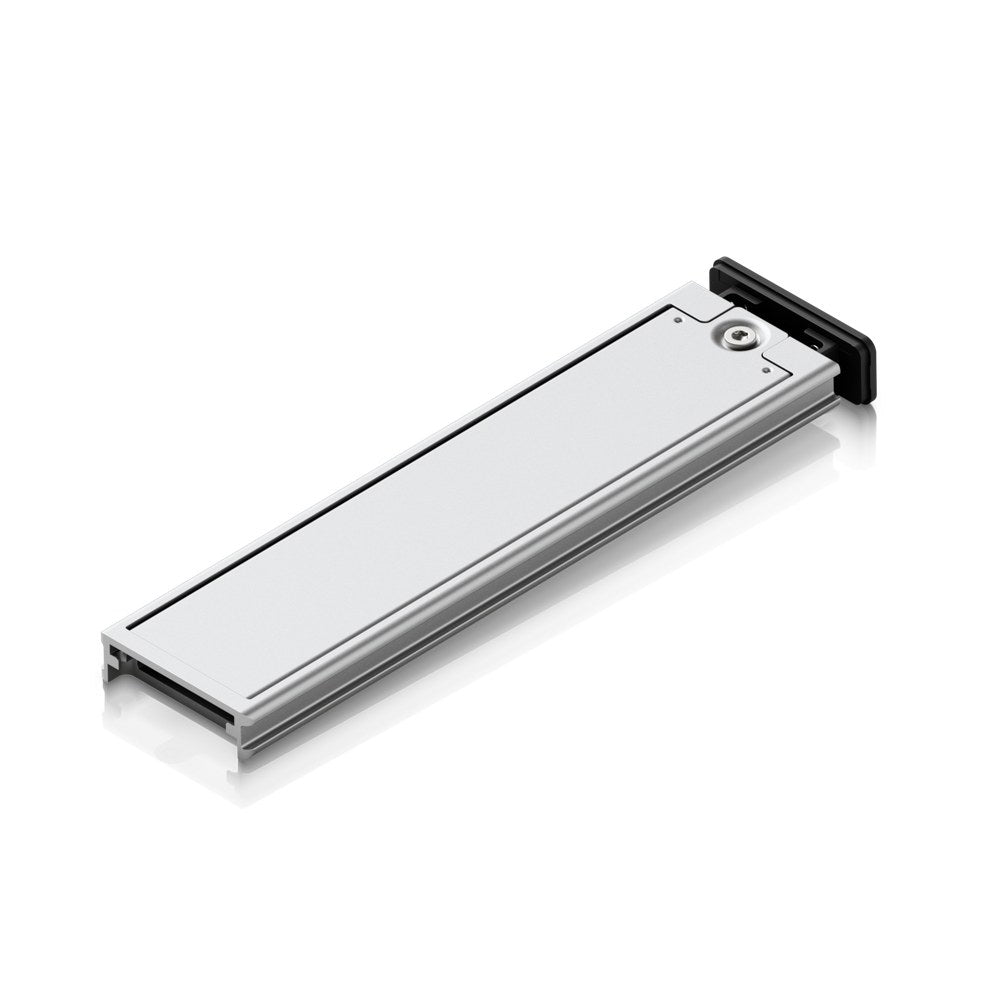

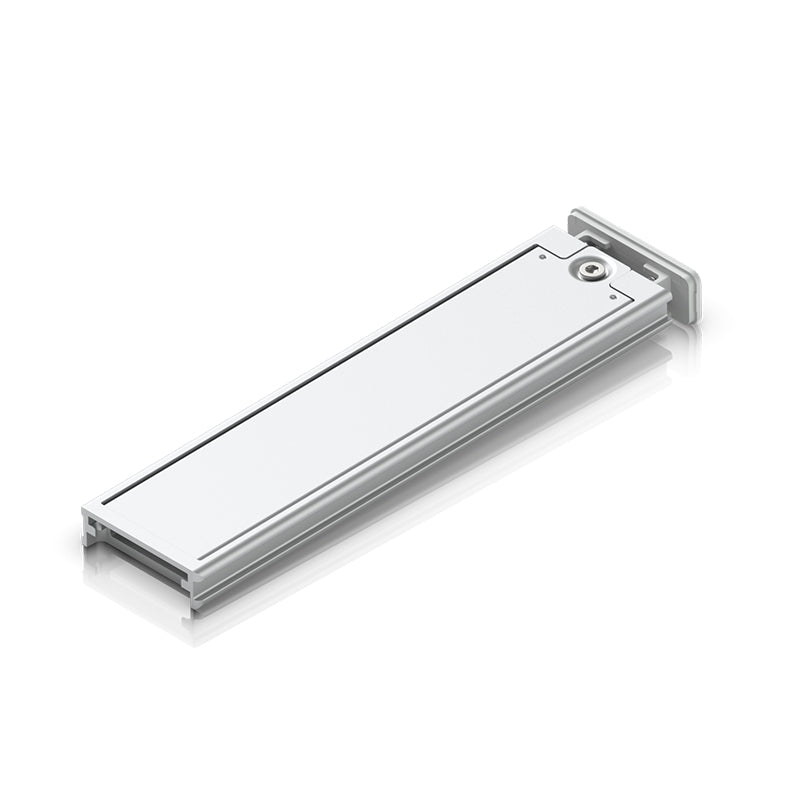

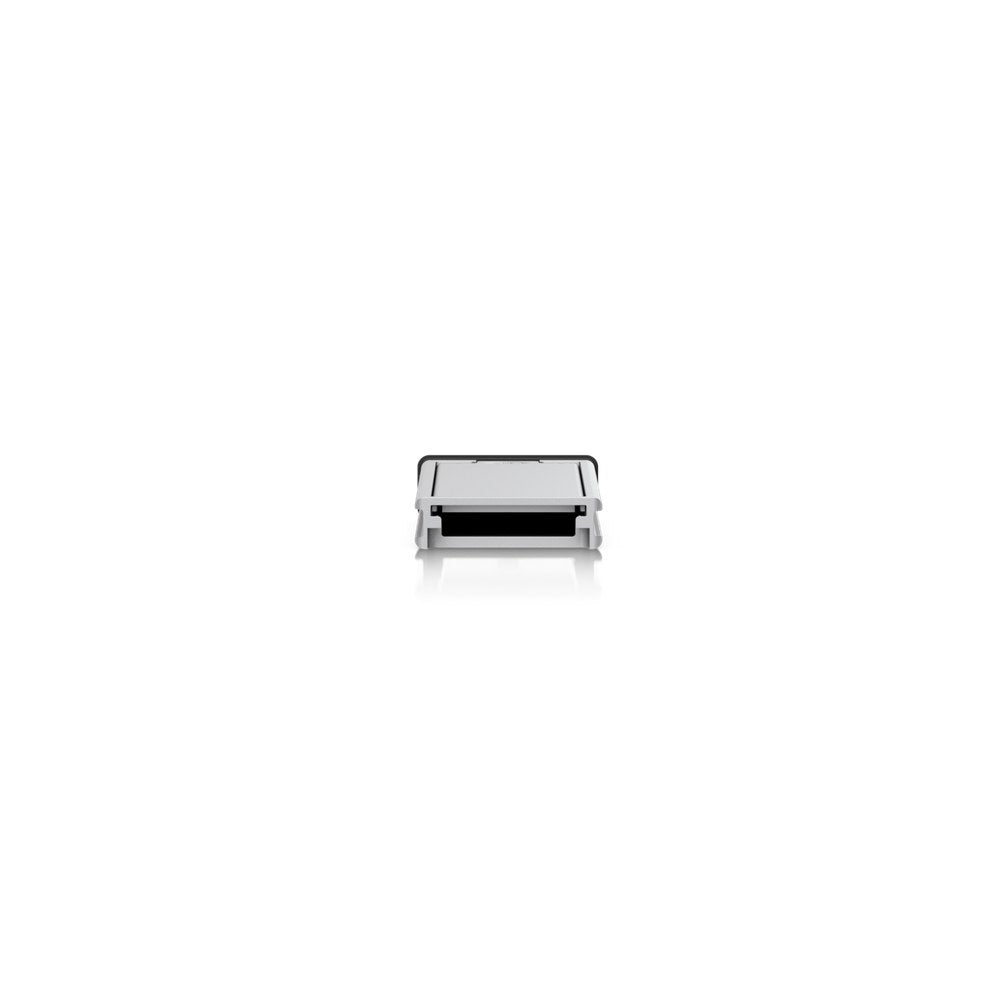

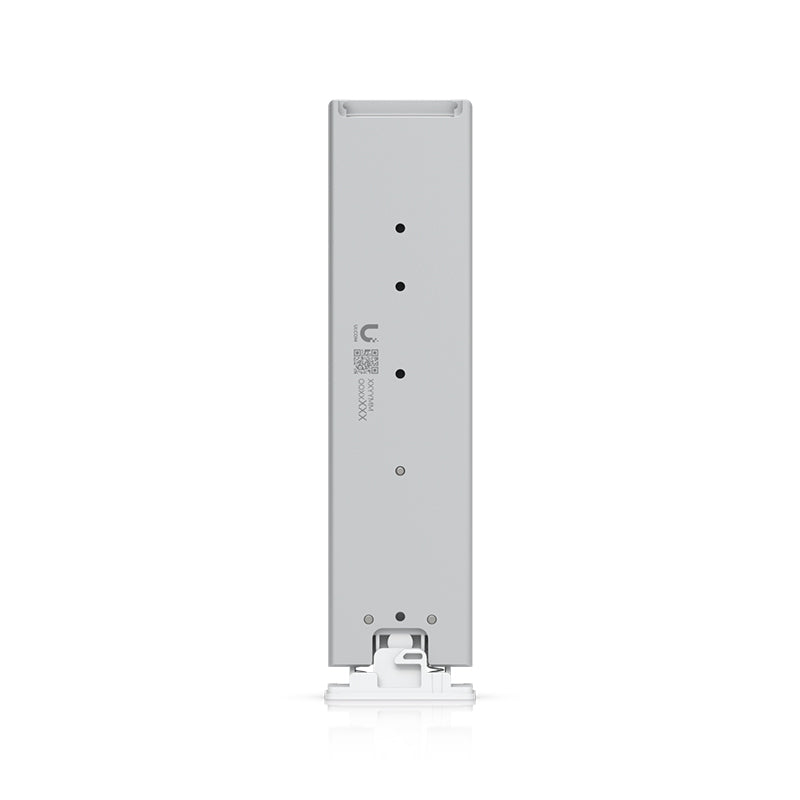

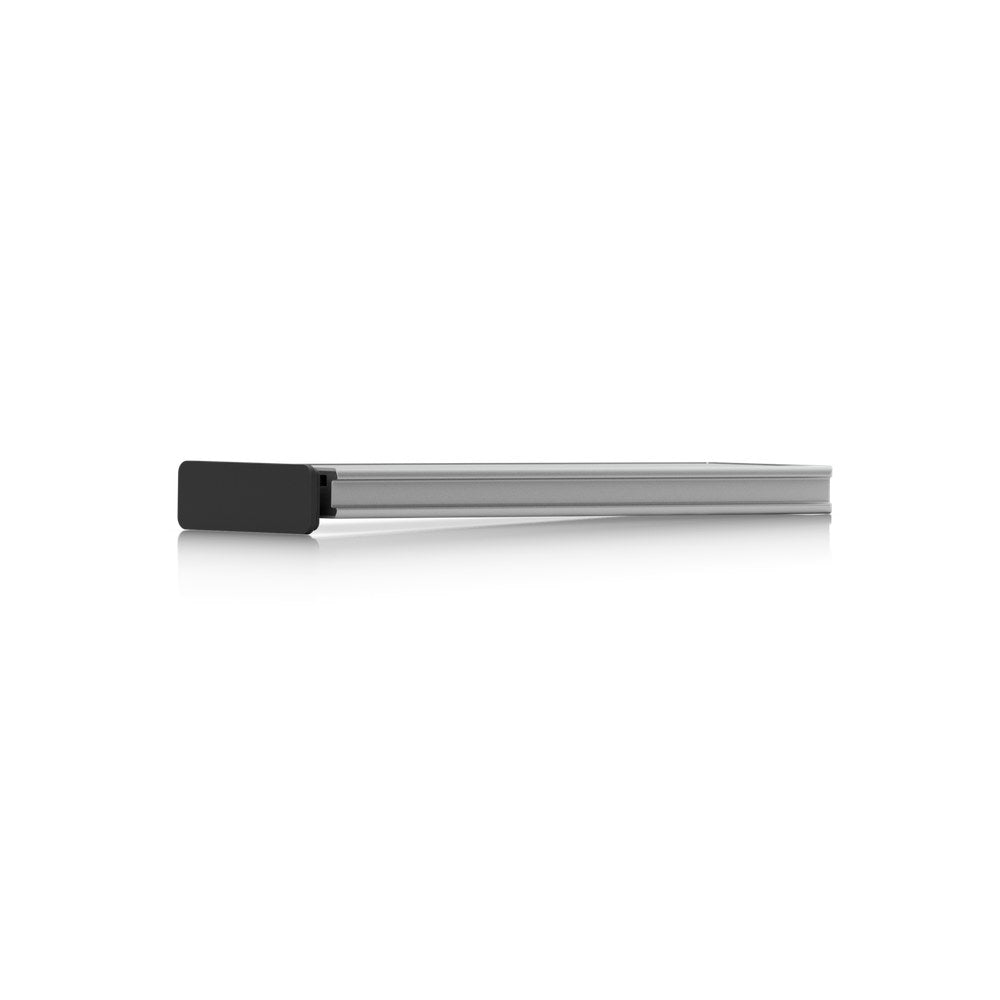

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:

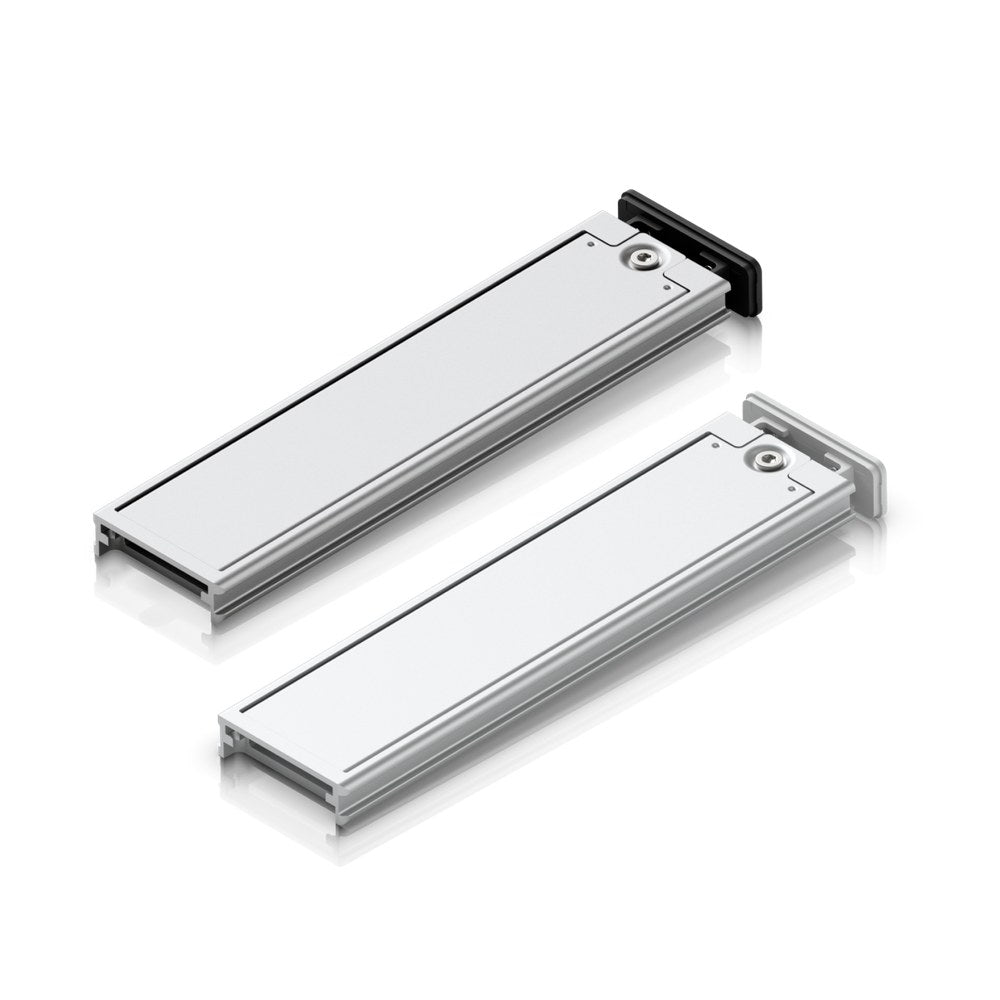

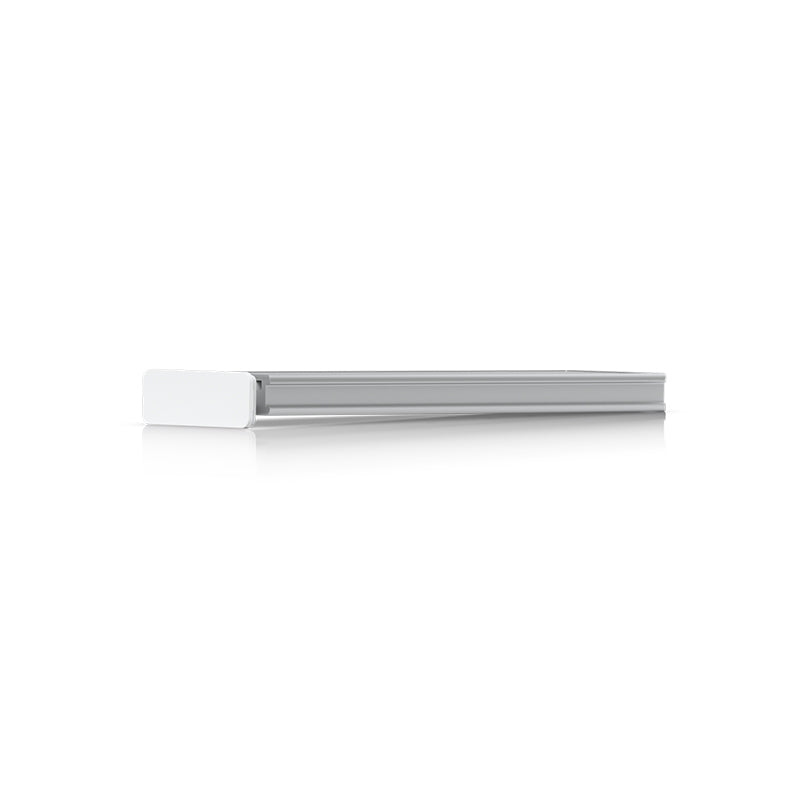

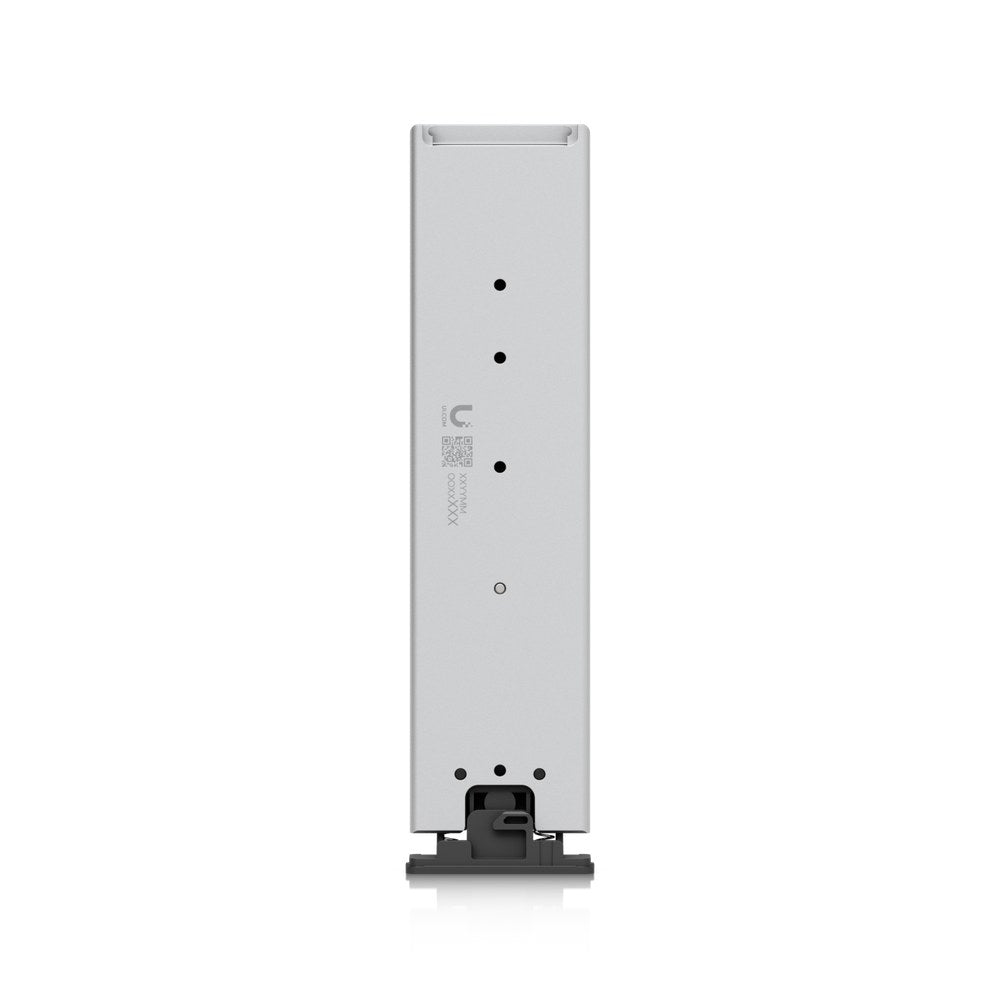

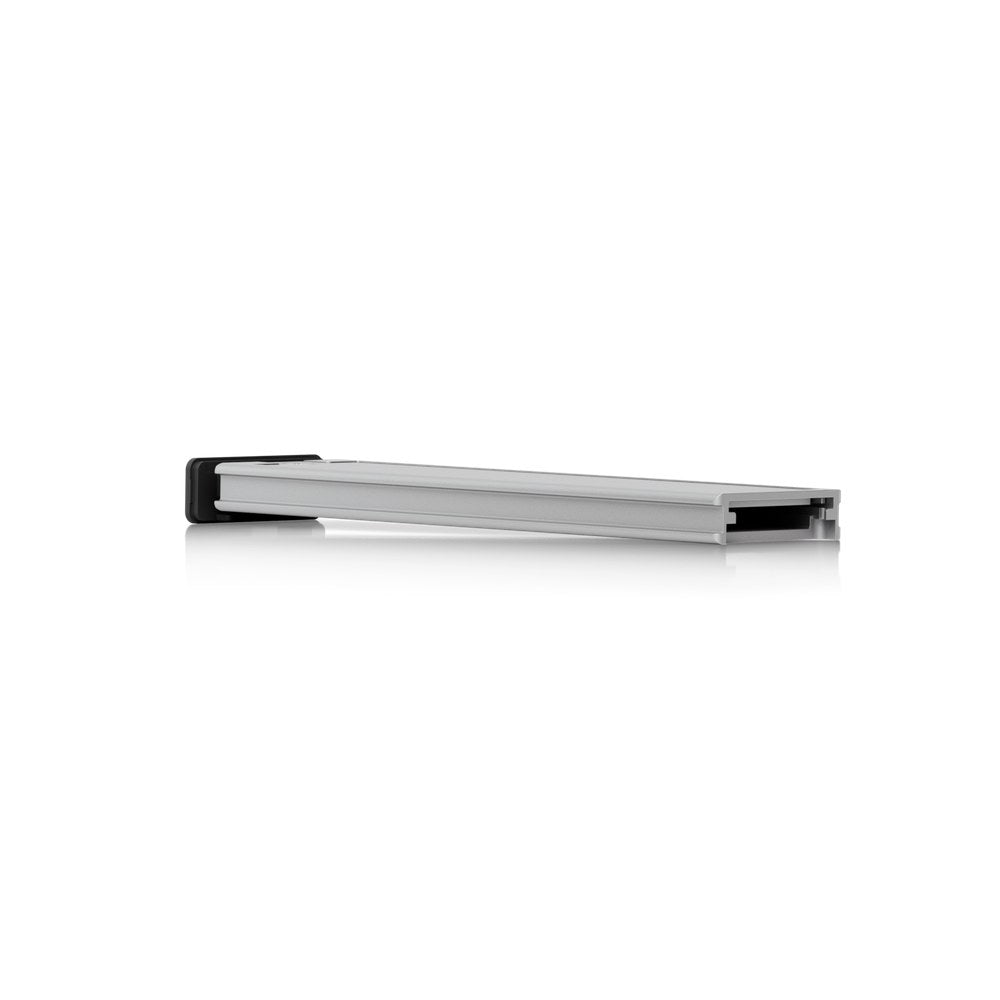

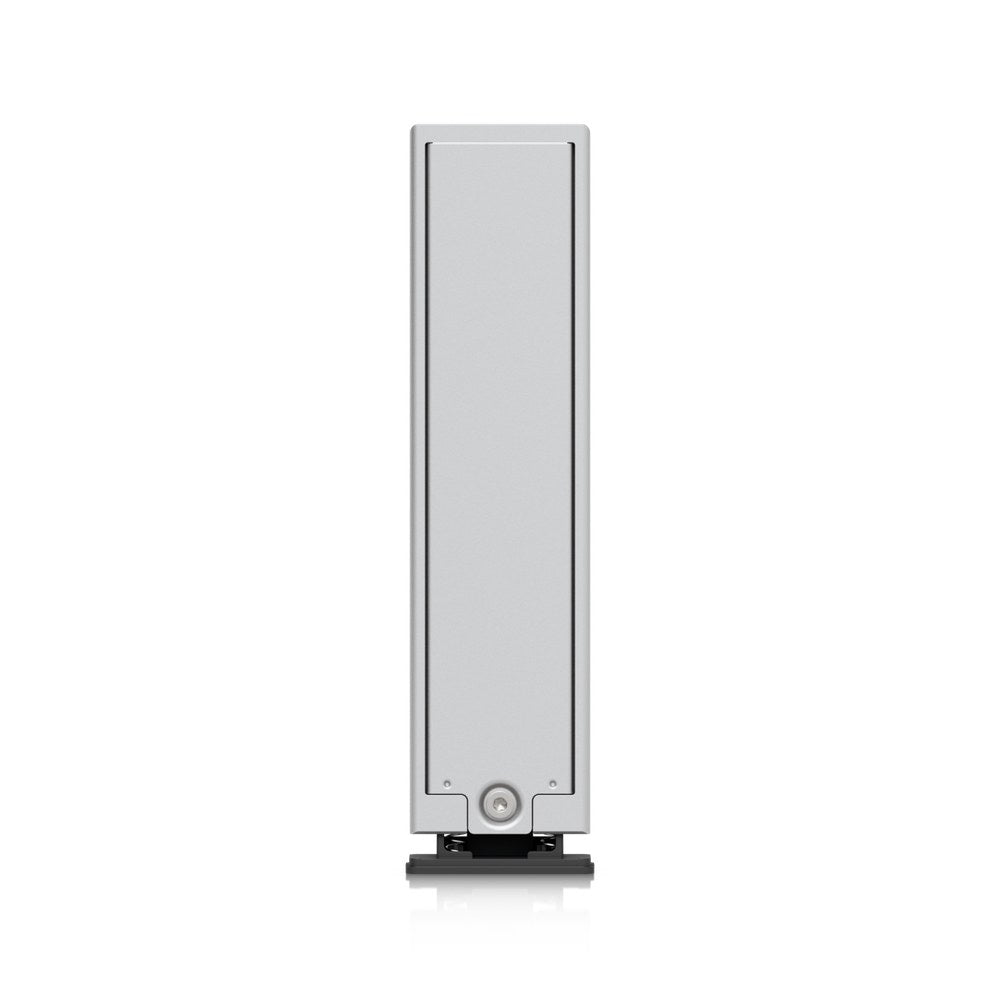

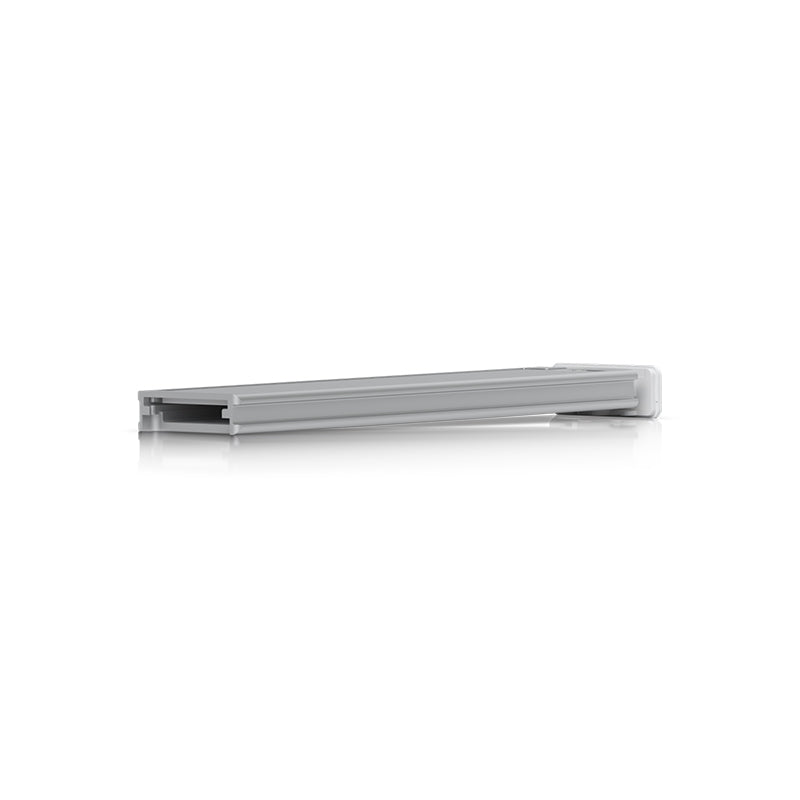

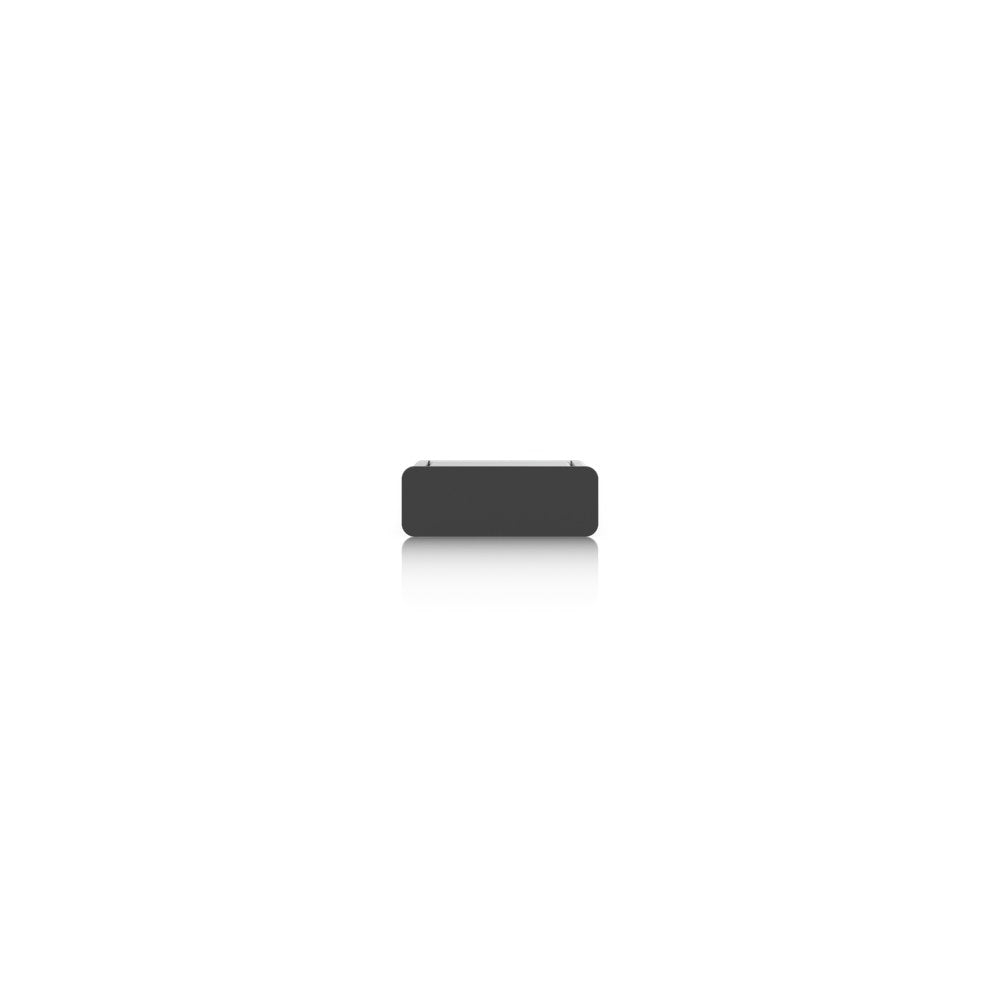

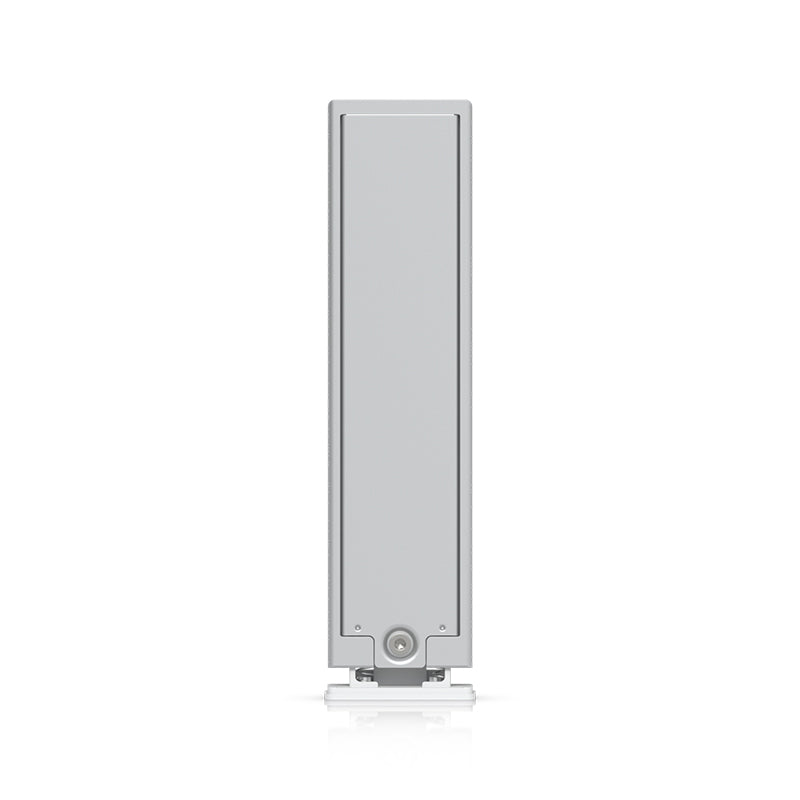

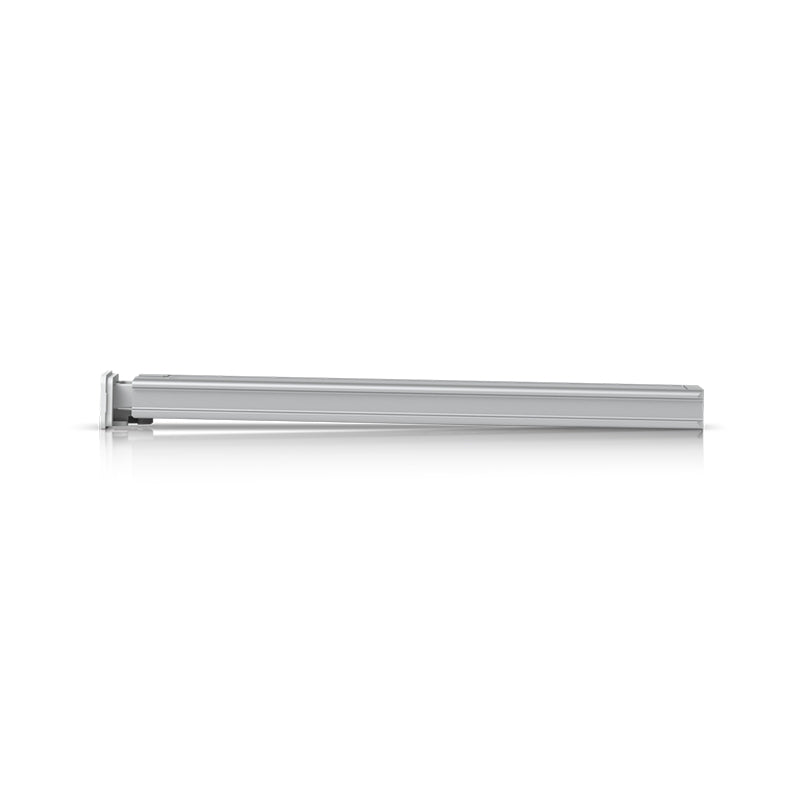

UACC-SSD-Tray Ubiquiti M.2 SSD Tray
Regular priceFrom
£16.70 GBP
Unit price
Description
Description

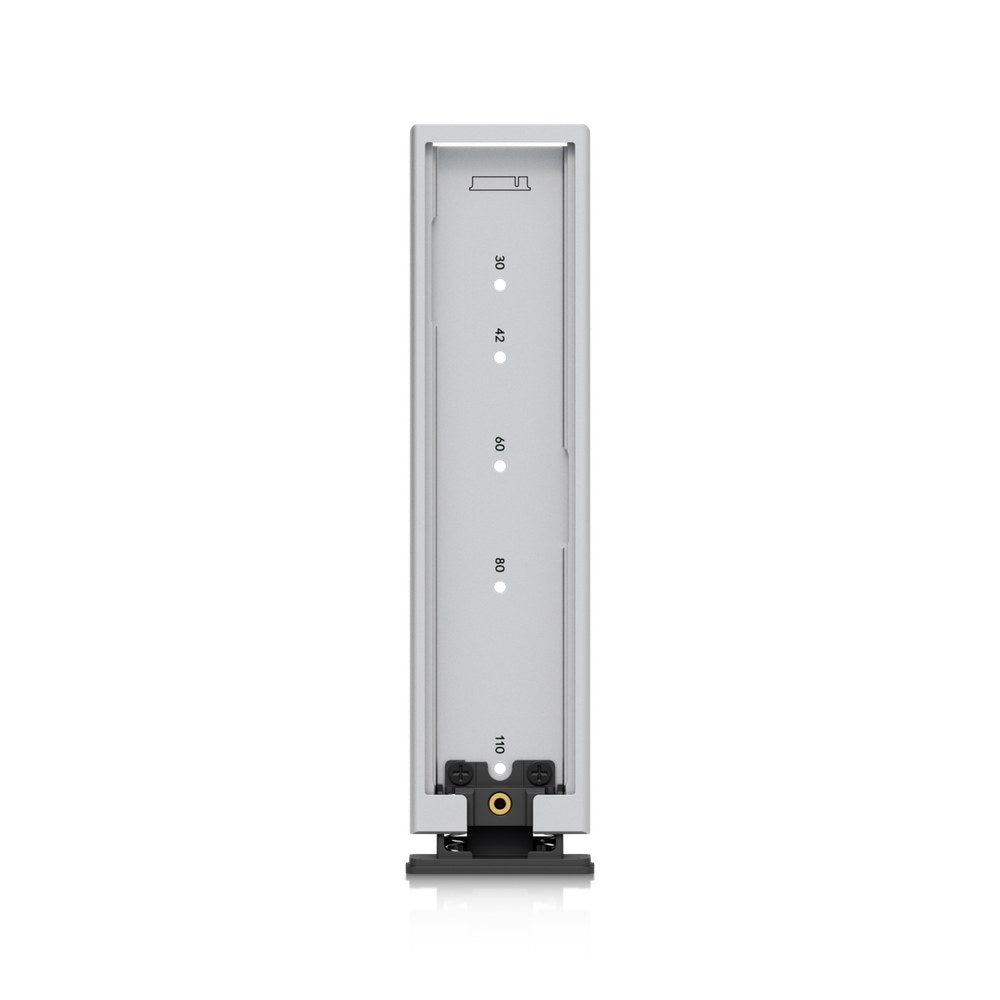

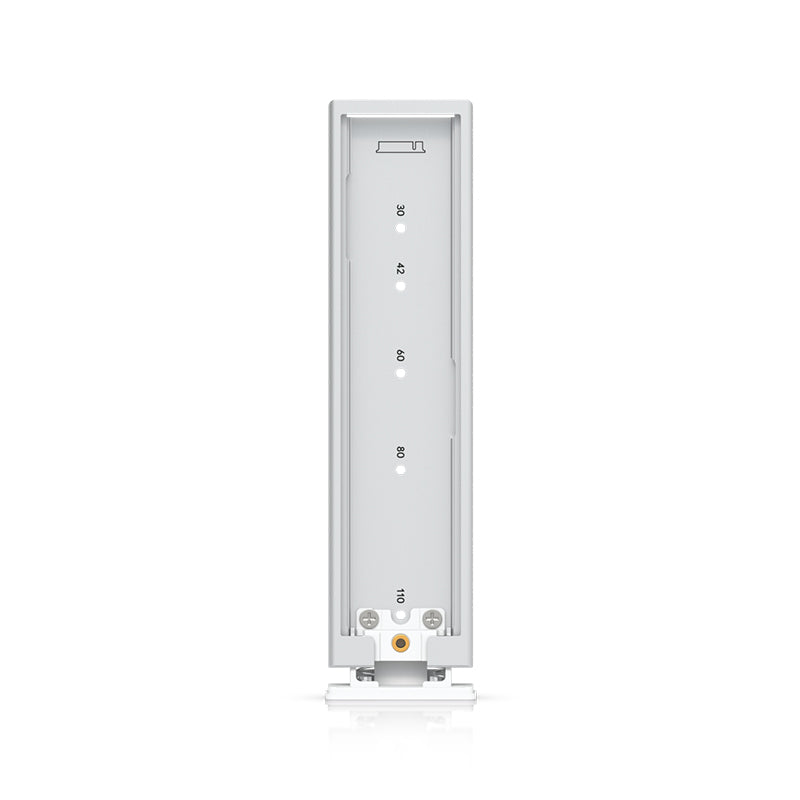

Optional storage insert for Cloud Gateway that supports one 2230, 2242, 2260, 2280, or 22110 sized M.2 NVMe SSD.
Cloud Gateway Max and Cloud Gateway Fiber supports M.2 NVMe with PCIe Gen3 x2 lanes. All M.2 NVMe SSDs are compatible, but will be limited to Gen3x2 performance.
Compatibility:
UCG-Max-NS UCG-FiberFrequently asked questions5 questions
What sizes of M.2 SSD does the tray support?
The tray supports one M.2 NVMe SSD in 2230, 2242, 2260, 2280 or 22110 sizes.
Which devices is the tray compatible with?
It is listed as compatible with the UCG-Max, UCG-Max-NS, UCG-Fiber (30W), UNAS-Pro-8, UNAS-4, UNAS-Pro-4 and ENAS.
What PCIe speed will my SSD run at?
UCG-Max/Fiber and UNAS-Pro-8/4 products operate at PCIe Gen3x2 per NVMe, and the UNAS-4 operates at PCIe Gen2x1 per NVMe.
Can I use any M.2 NVMe SSD?
Yes, all M.2 NVMe SSDs are compatible, but they will be limited to the Gen3x2 performance of the Cloud Gateway.
Is the SSD included?
No. The tray is an optional storage insert and the M.2 NVMe SSD is sold separately.
Specifications3 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 123.4 x 31.1 x 11.2 mm / (4.9 x 1.2 x 0.4") |
| Weight | 53 g (1.9 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate, stainless steel |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UACC-SSD-Tray · Ubiquiti's spec sheet
