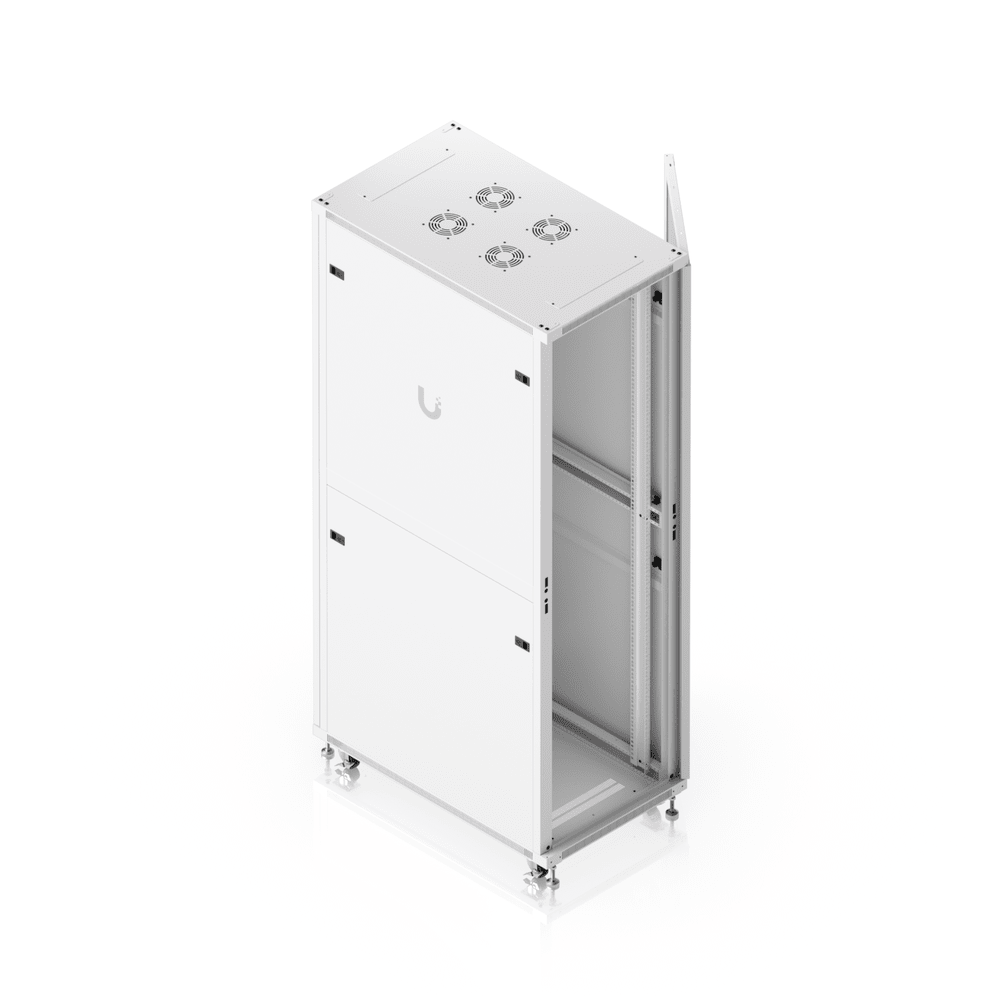

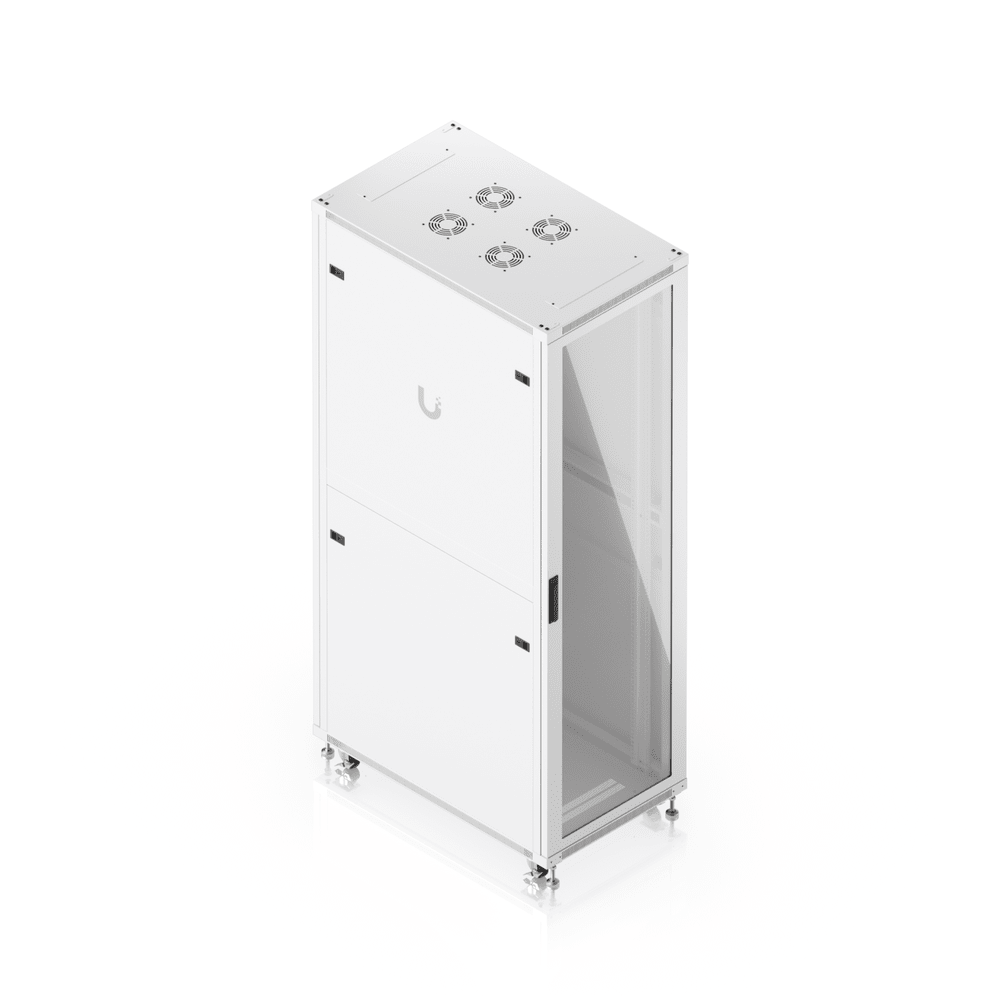

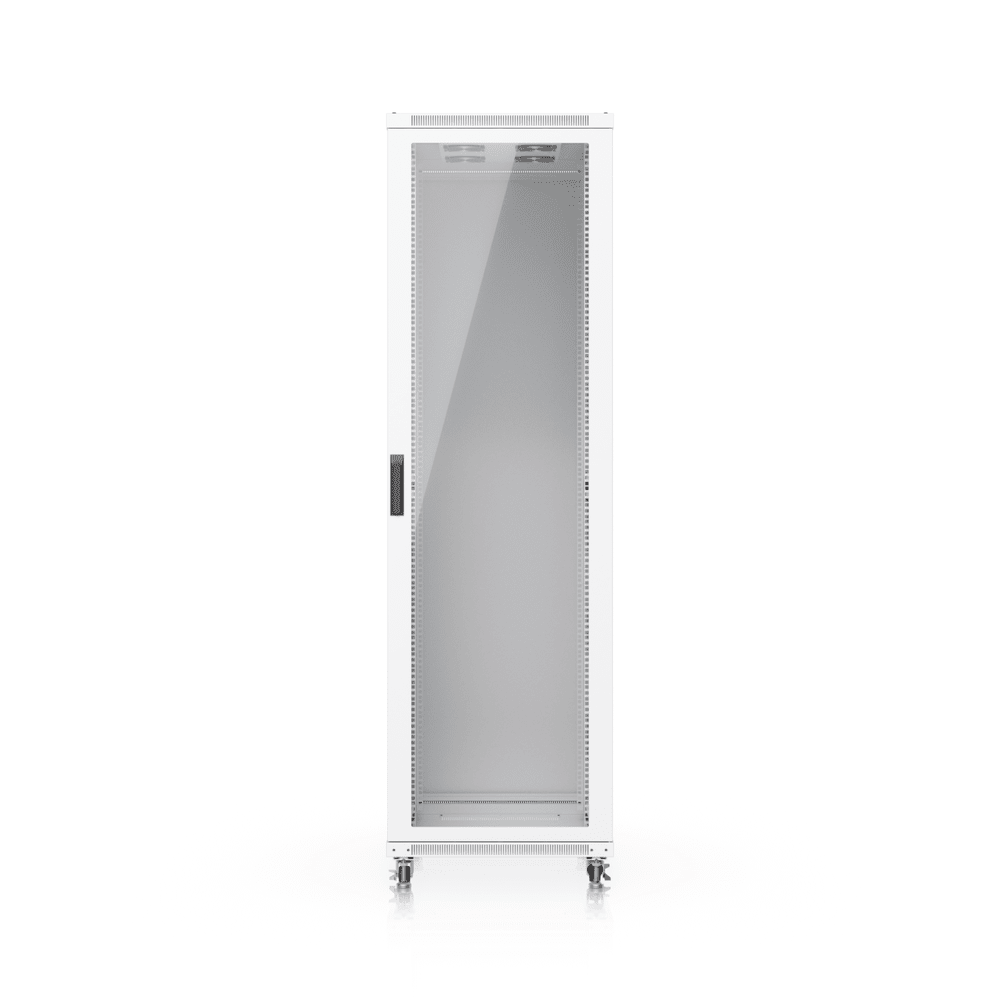

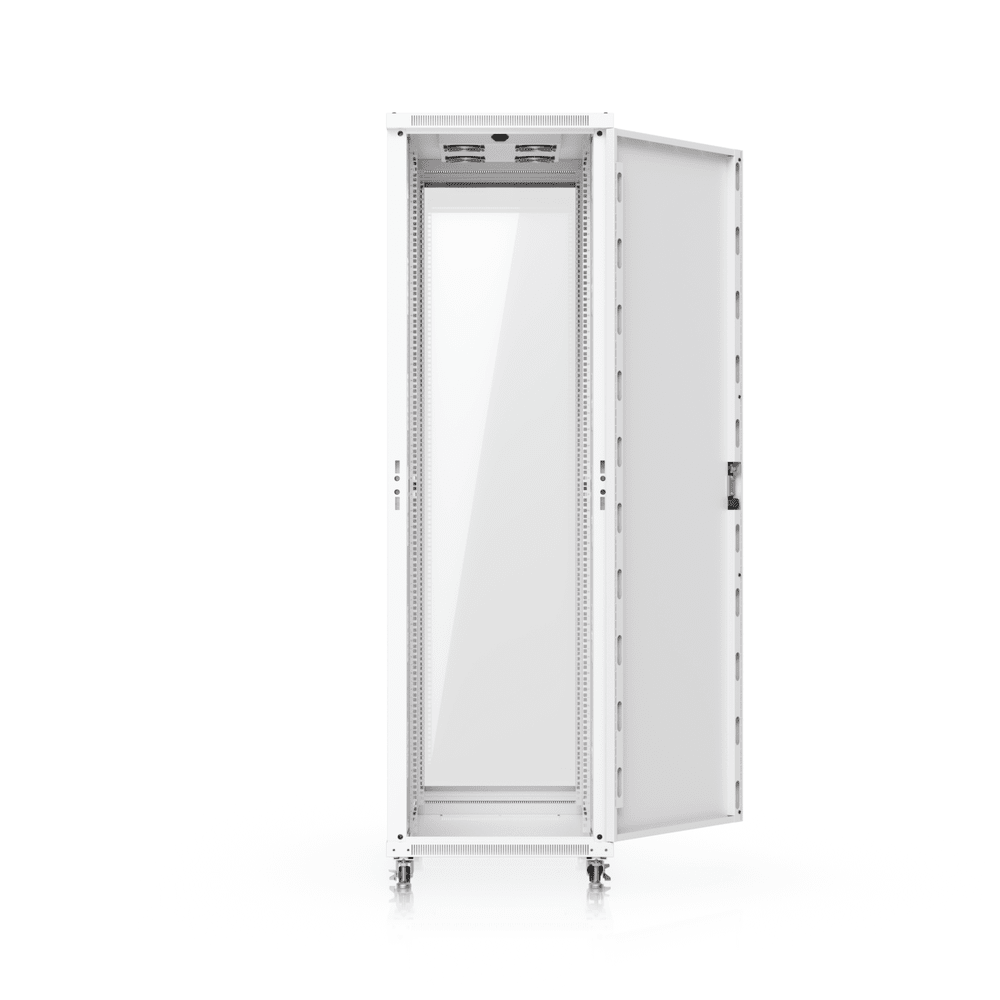

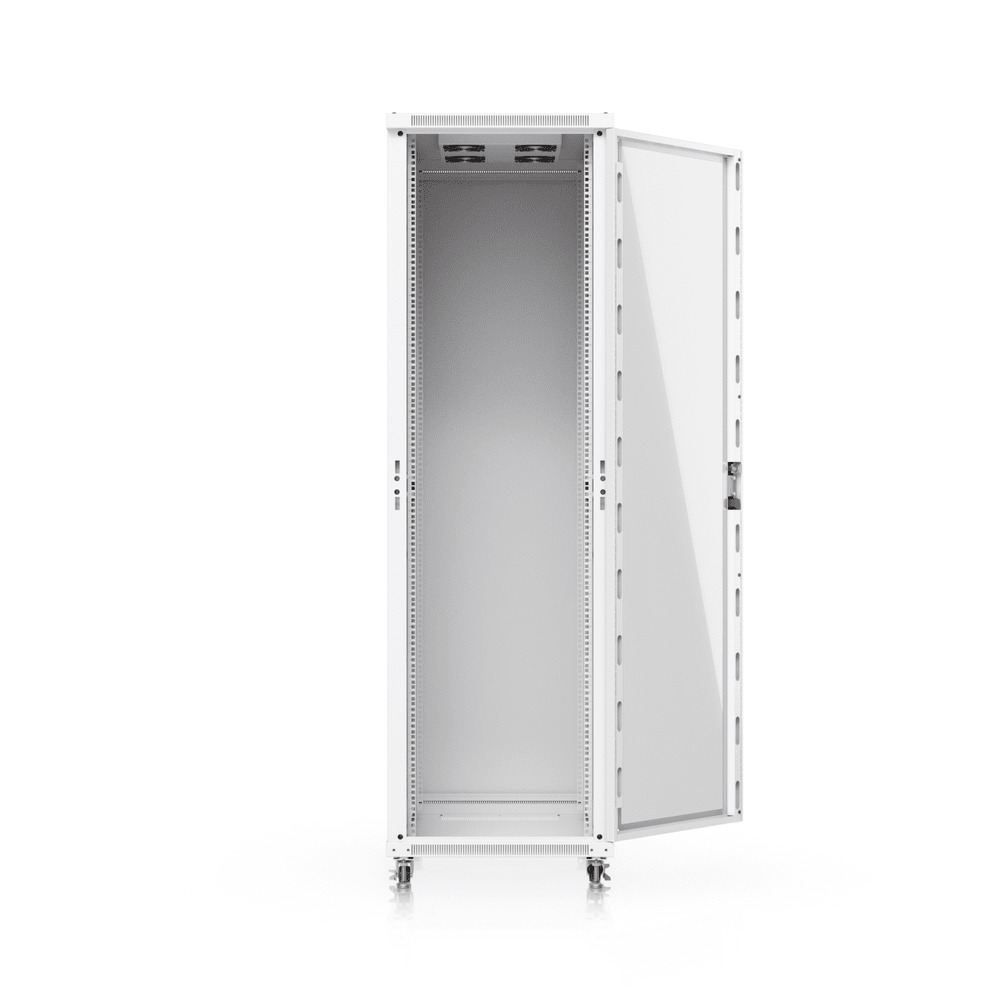

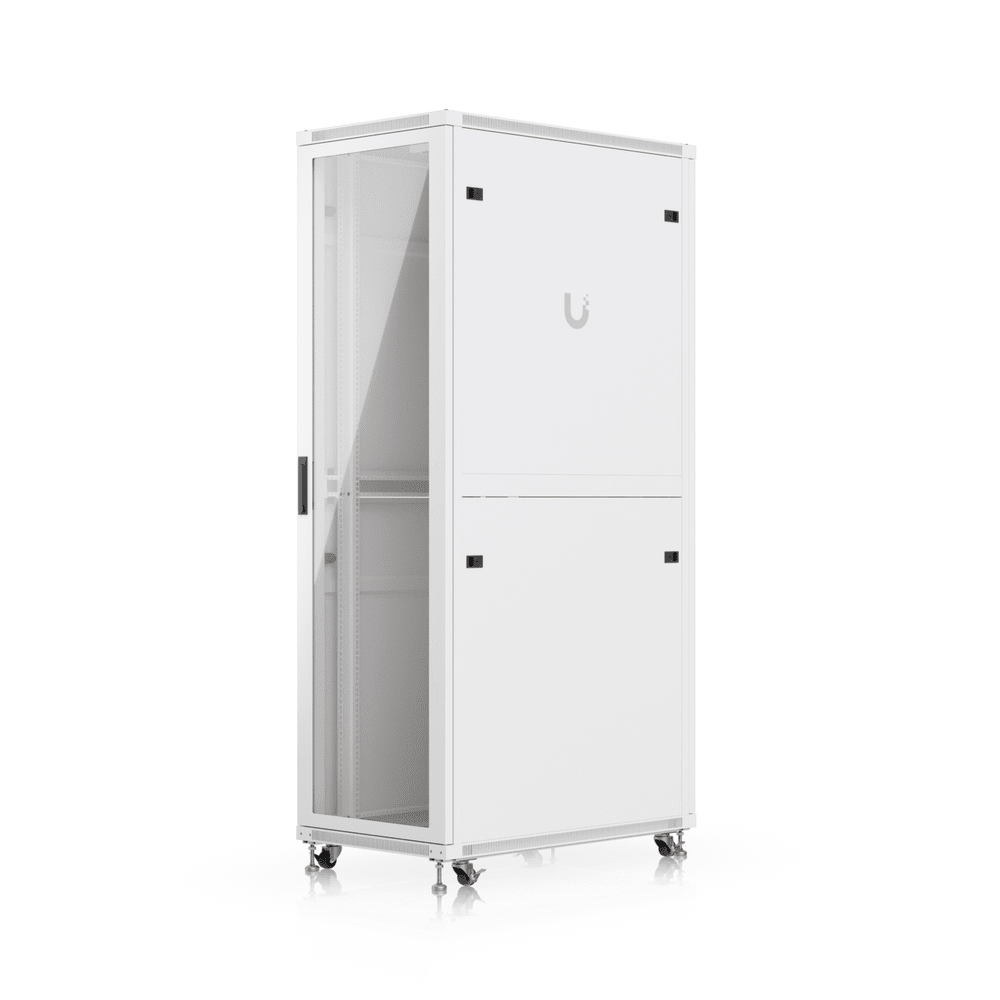

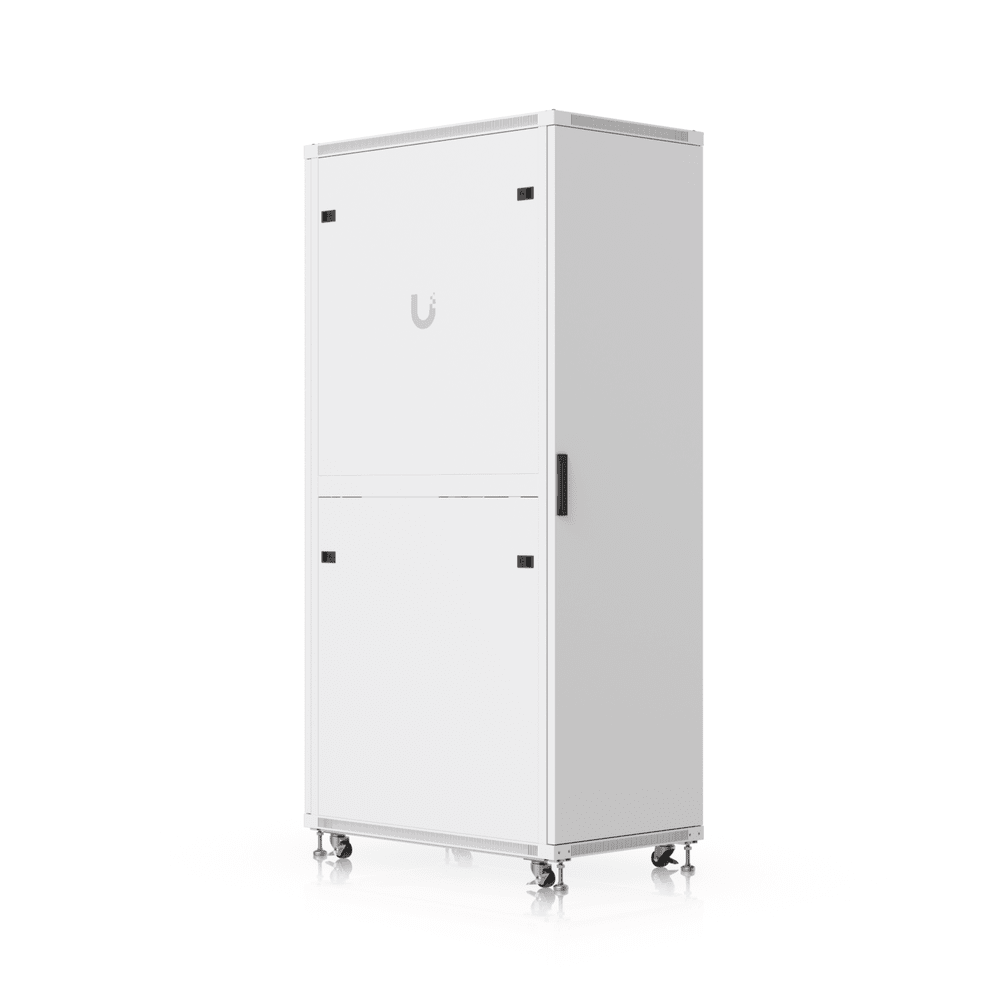

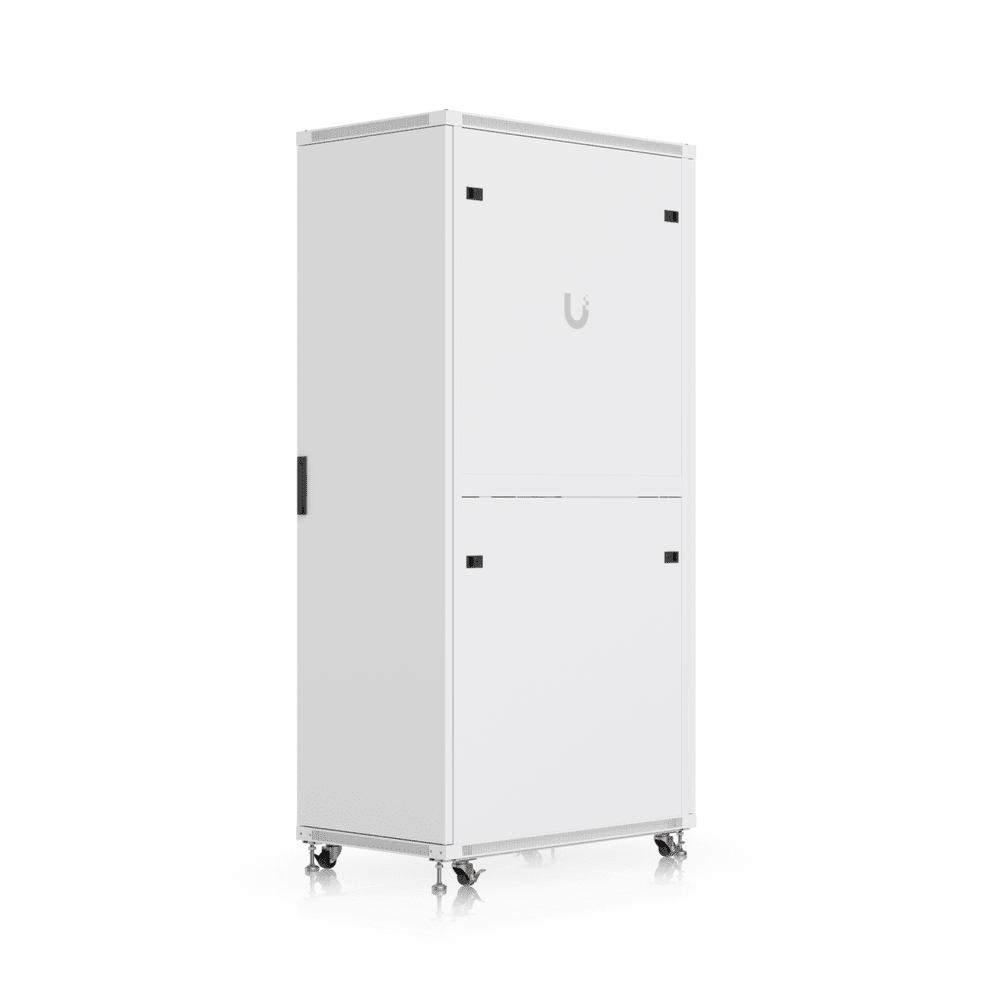

UACC‑Rack‑42U‑1000‑G – Ubiquiti 42U Floor‑Standing Rack Cabinet with Glass Door
Description
Description
The Ubiquiti UACC‑Rack‑42U‑1000‑G is a heavy‑duty, professional 42U floor‑standing rack cabinet engineered for enterprise‑grade network infrastructure and large‑scale UniFi deployments. Built from robust SPCC steel with a white powder‑coated finish, this cabinet delivers exceptional strength, stability and long‑term reliability.
Supplied fully assembled, the UACC‑Rack‑42U‑1000‑G features a lockable tempered glass front door and a lockable rear door for secure equipment housing and clear visibility. Integrated fan modules, vertical cable management, removable lockable side panels and adjustable mounting rails ensure excellent airflow, efficient organisation and straightforward maintenance.
Key Features:
- 42U floor‑standing rack cabinet with up to 800 kg static load capacity
- 1,000 mm depth supporting devices up to 877 mm deep
- Tempered glass front door, lockable and reversible
- Integrated cooling fans for optimal airflow
- Lockable castors and levelling feet for stability and positioning
- Removable, lockable side panels and vertical cable management
Ideal for:
Specifications18 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Packaging: 740 x 1,165 x 2,223 mm (29.1 x 45.9 x 87.5") / Rack with caster: 600 x 1,000 x 2,050 mm (23.6 x 39.4 x 80.7") / Rack without caster: 600 x 1,000 x 1,966 mm (23.6 x 39.4 x 77.4") |
| Weight | Packaging: 120.6 kg (265.9 lb) / Rack: 92.4 kg (203.7 lb) |
| Enclosure Material | SPCC steel / Door/side panels: 1.2 mm (0.05") / Main body: 1 mm (0.04") / Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 42U |
| Rack Features · Rack Type | 4 post, enclosed cabinet |
| Rack Features · Mounting Hole Type | Square |
| Rack Features · Adjustable Mounting Depth | Default 652.3 mm (25.7") / Max. 877.3 mm (34.5") / Adjustable pitch 15 mm (0.6") |
| Rack Features · Max. Weight Capacity | Static 800 kg (1764 lb) / Rolling 320 kg (705 lb) |
| Rack Features · Front Door | Tempered glass / Default left-hand outswing, reversible |
| Rack Features · Rear Door | Solid / Default left-hand outswing, reversible |
| Rack Features · Side Panels | (4) Solid, removable and lockable |
| Rack Features · Mounting | Floor stand |
| Rack Features · Fan Module | (4) Pre-installed 120 x 120 x 38 mm AC fan units |
| Rack Features · Cable Entry Opening | (2) Top: 335 x 52.5 mm (13.2 x 2.1") / (2) Bottom: 335 x 52.5 mm (13.2 x 2.1") |
| Rack Features · Security | (1) Front door lock / (1) Rear door lock / (8) Side panel locks / (3) Keys |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
