Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
UA-SK-Elevator

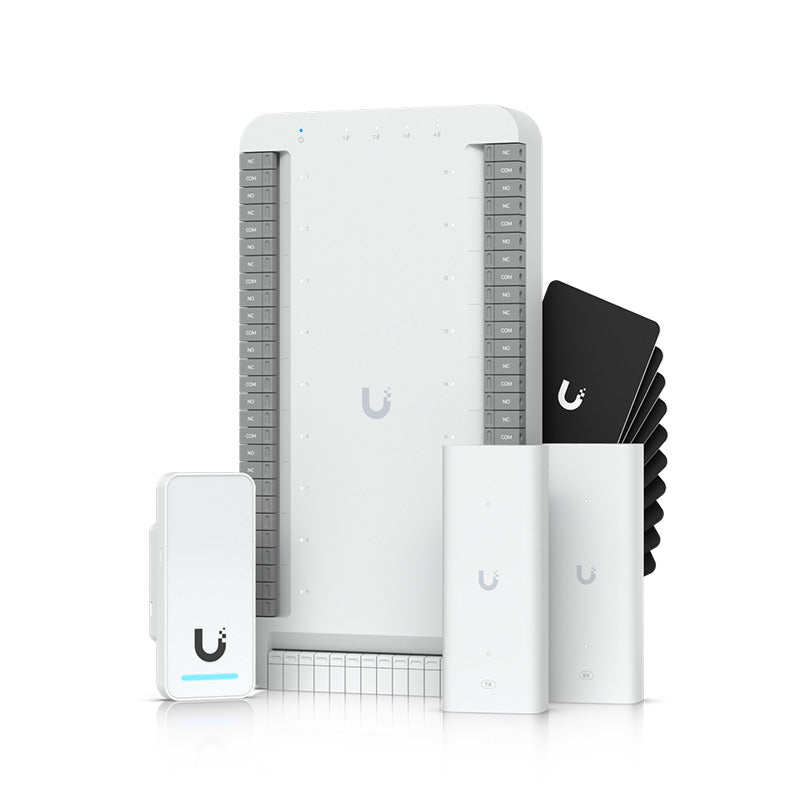

UA-SK-Elevator Ubiquiti UniFi Access Elevator Starter Kit
Regular price
£800.16 GBP
Unit price
Description
Description

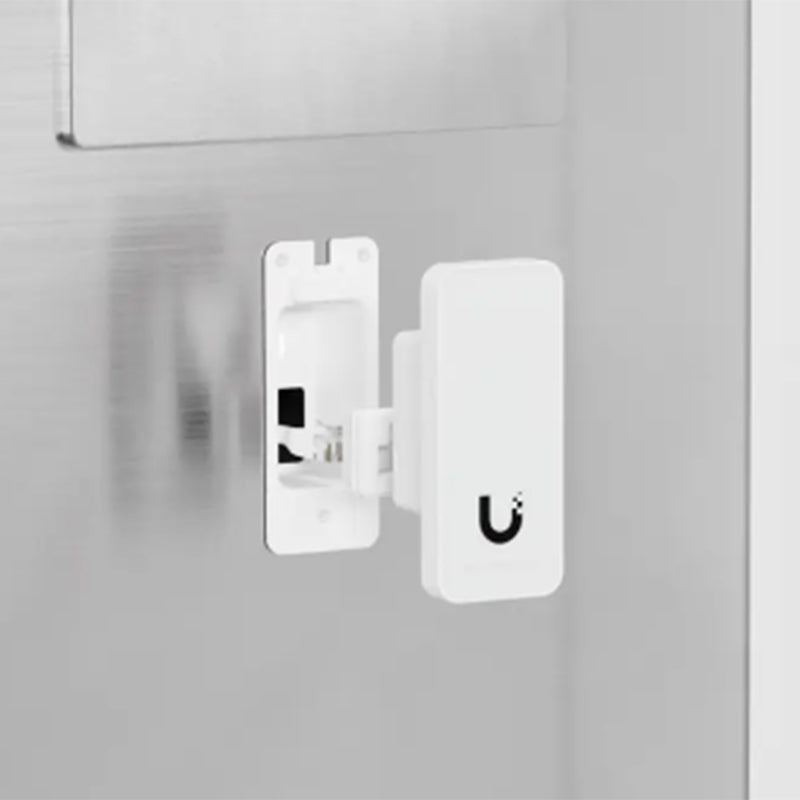

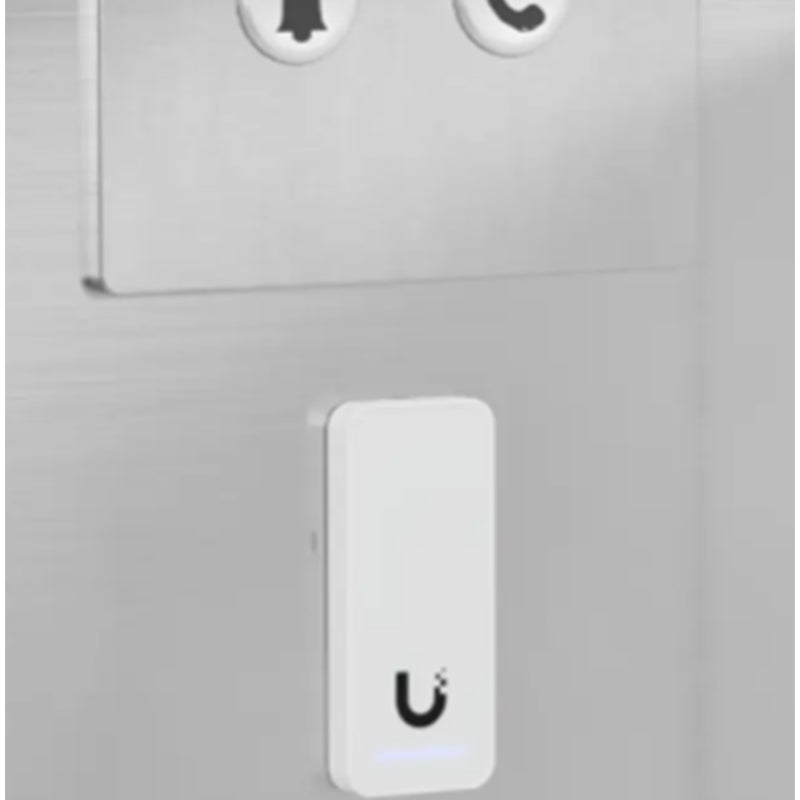

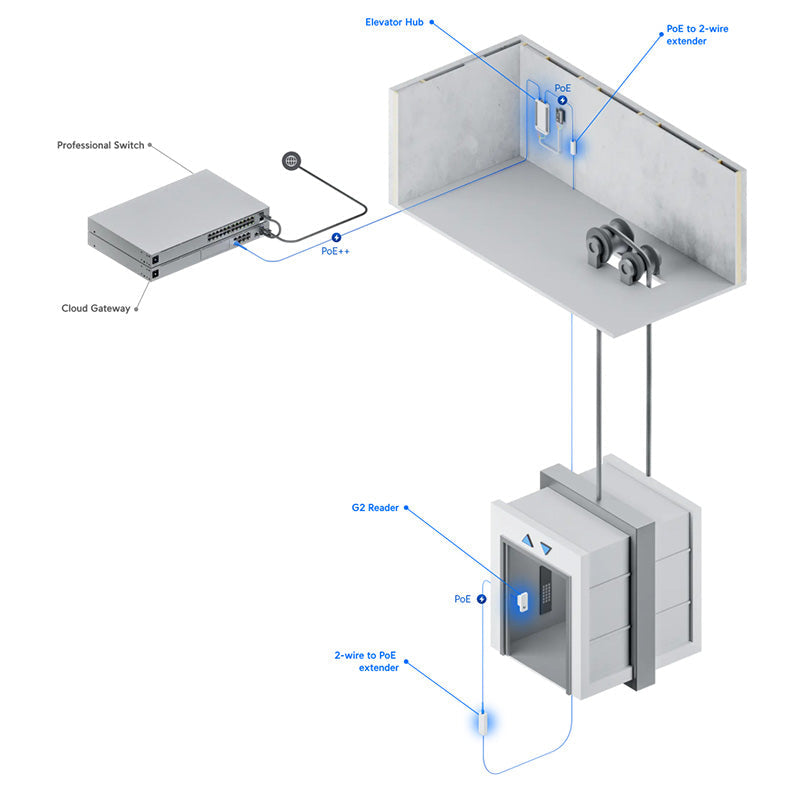

Connects to in-elevator readers using PoE to authorize user's floor selection. Support for up to 18 floors and digital inputs for car status and emergency.
Features:

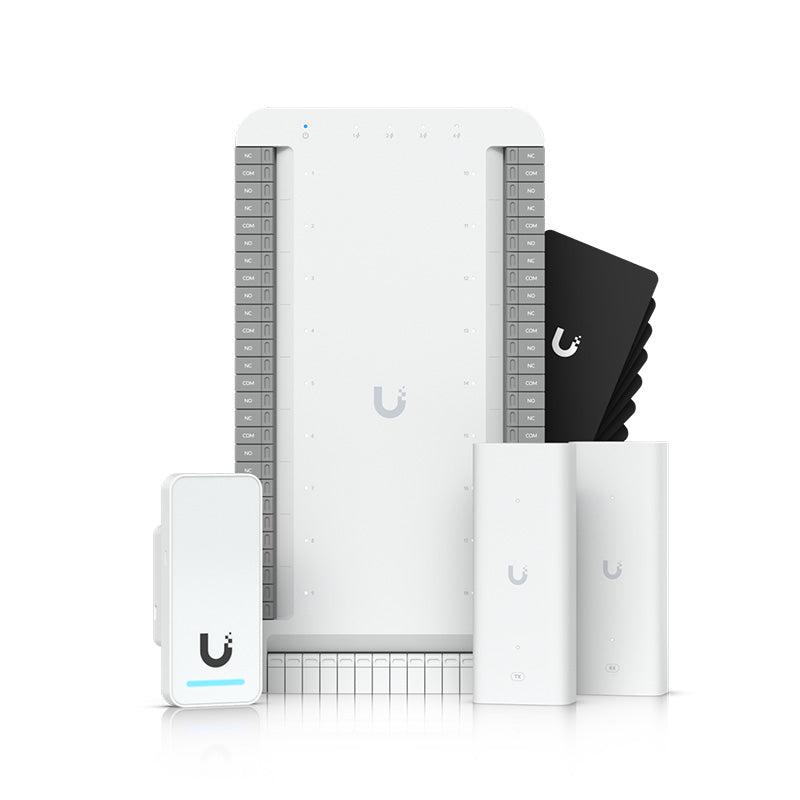

(1) Elevator Hub
(1) G2 Reader
(2) 2-wire PoE extenders
(10) Access Cards
SKU:
UA-SK-Elevator
Regular price
£800.16 GBP
Unit price
Specifications70 specifications · 5 sections
| Overview | |
|---|---|

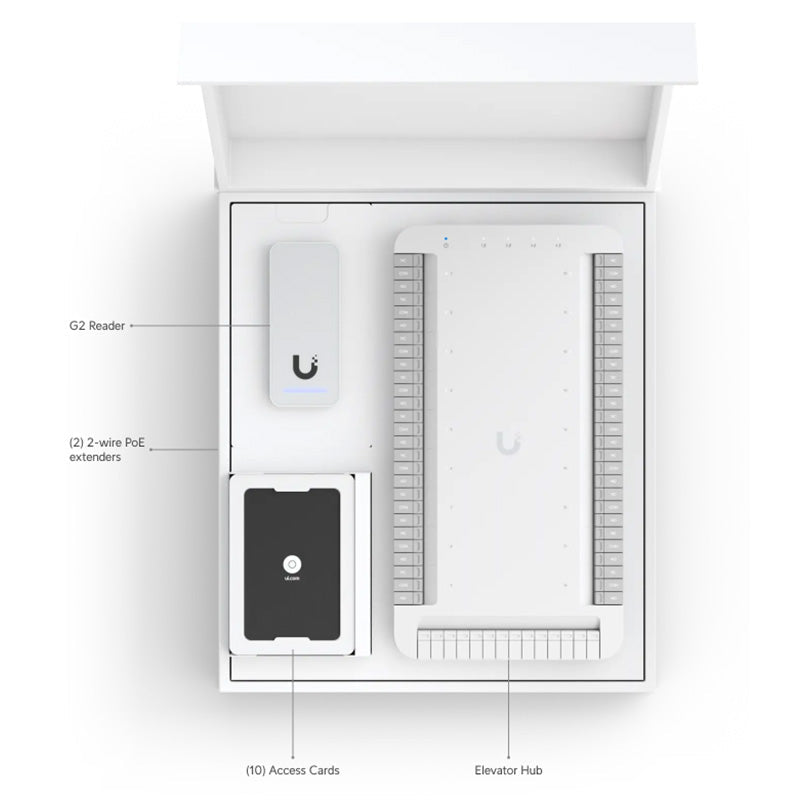

| In the Box | (1) Elevator Hub / (1) G2 Reader / (2) 2-wire PoE extenders / (10) Access Cards |

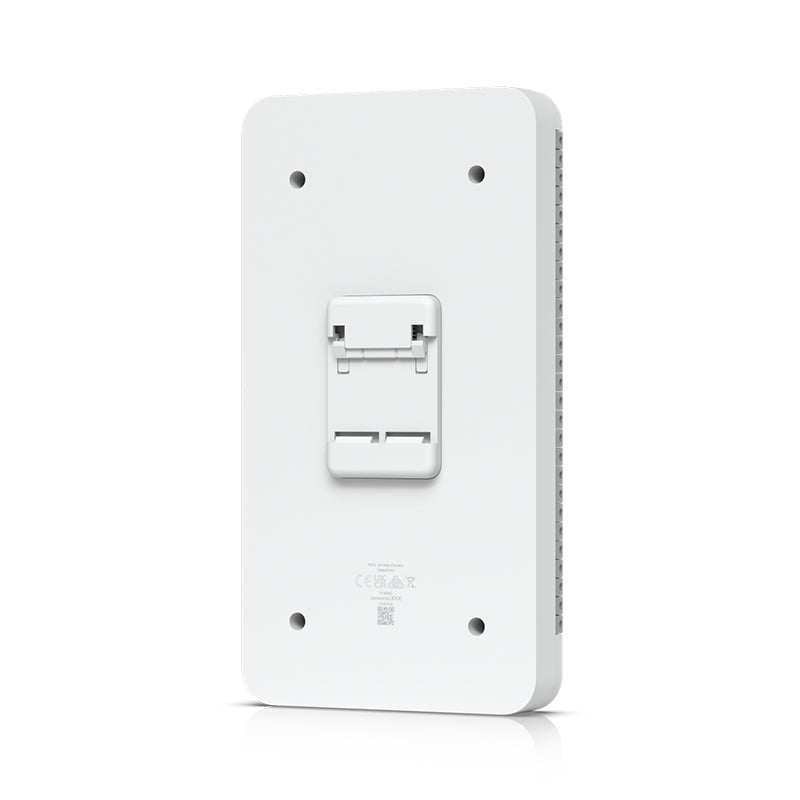

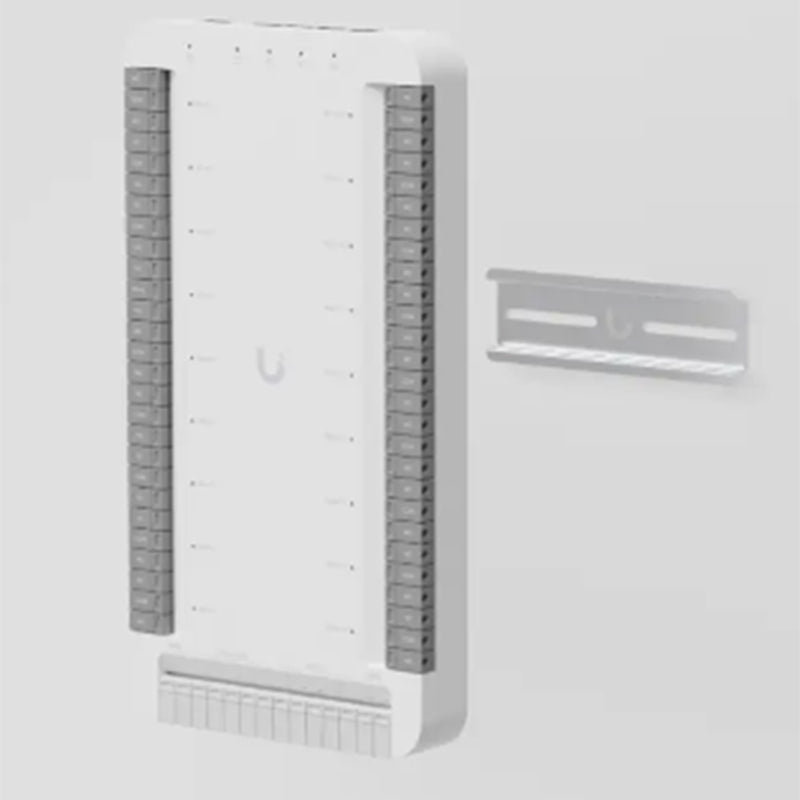

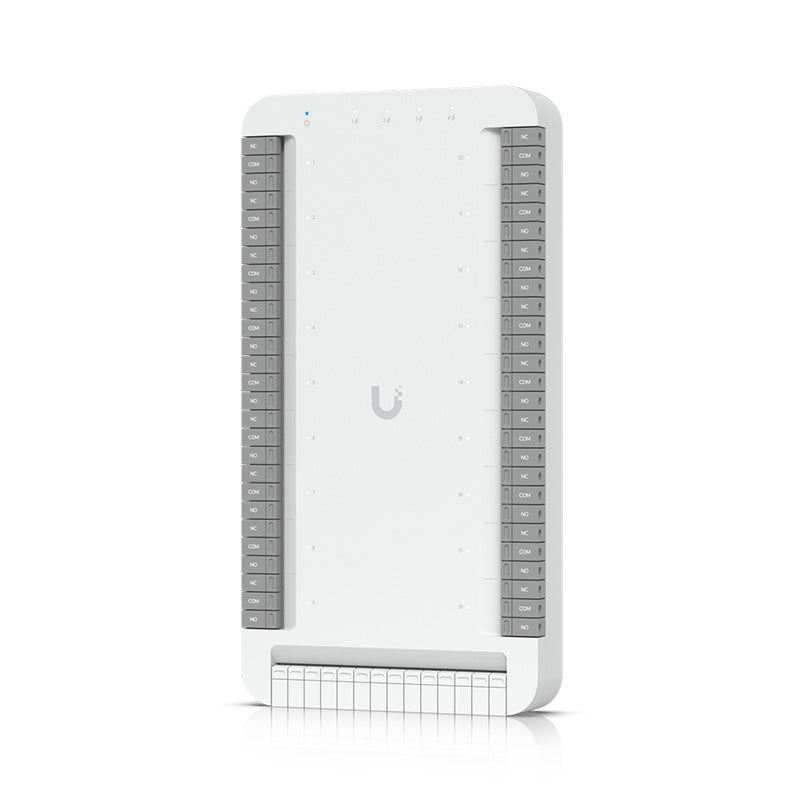

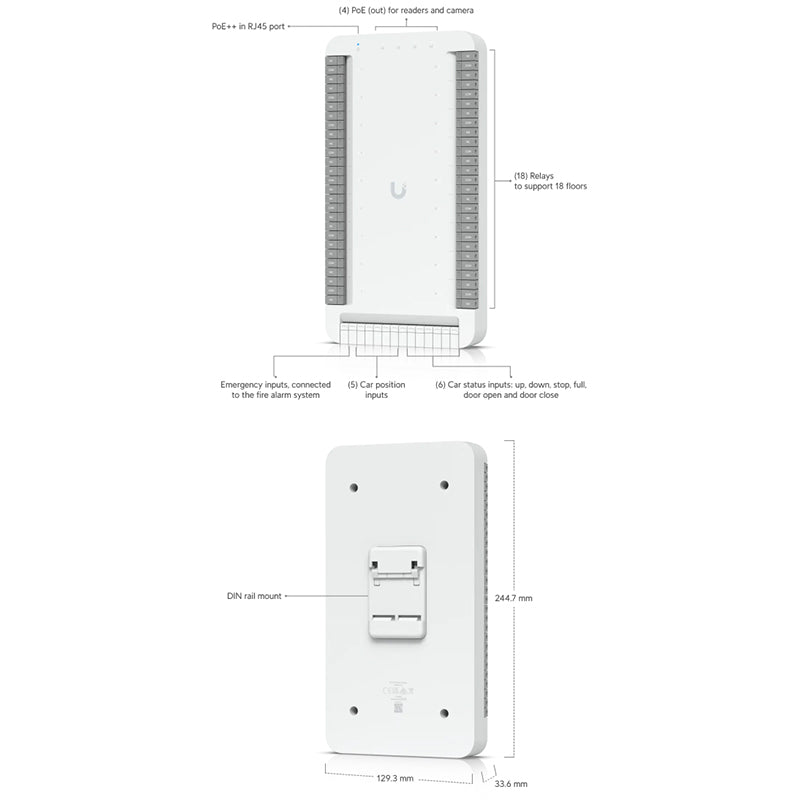

| Elevator Hub | |
| Dimensions | 129.3 x 244.7 x 33.6 mm / (5.1 x 9.6 x 1.3") |
| Maximum User Count | 6,000 |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Weight | 537 g (1.2 lb) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Networking Interface | (4) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1.2A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Management | (1) 10/100/1000 Base-T |
| Max. Power Consumption | 7W (Without PoE output) |
| Digital Input | (1) Emergency / (1) Car position (5-bit) / (1) Car status: Up/Down/Stop/Full / (1) Door status: Open/Close |
| Outputs | (18) Relays / Rating 30V DC/2A |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset / Terminal blocks |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

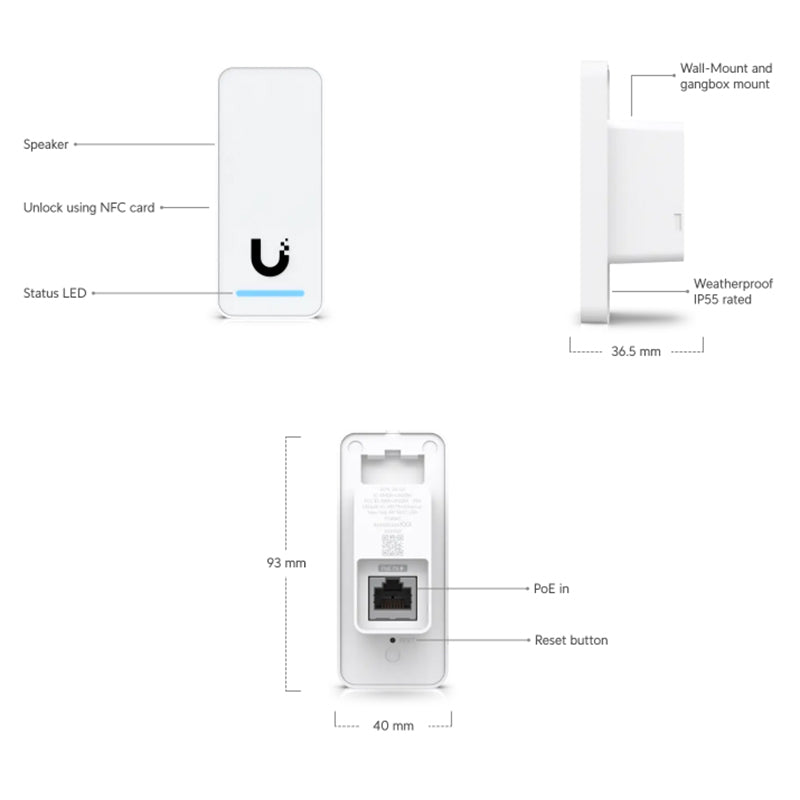

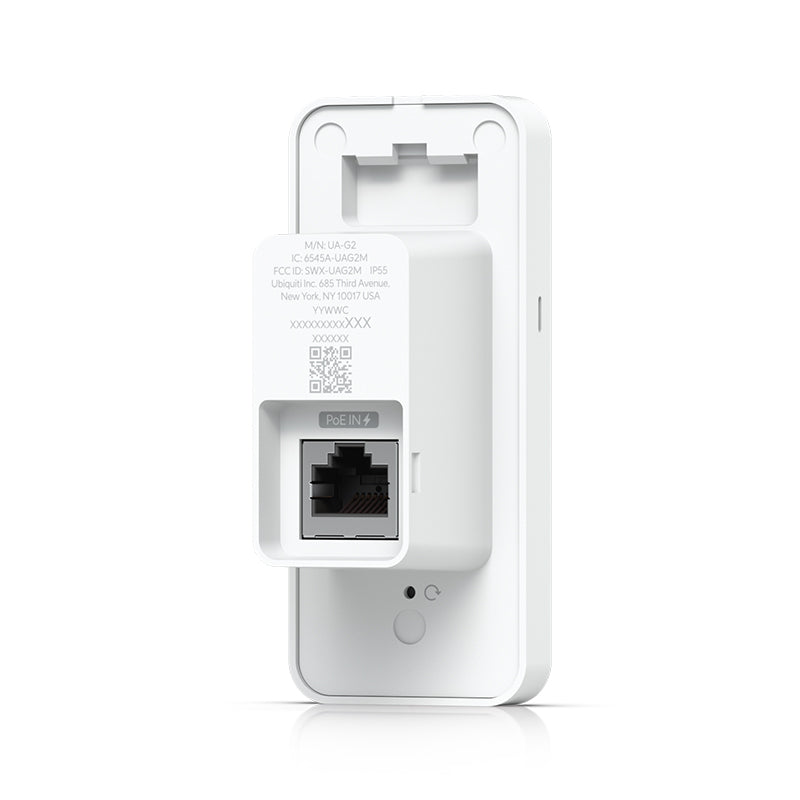

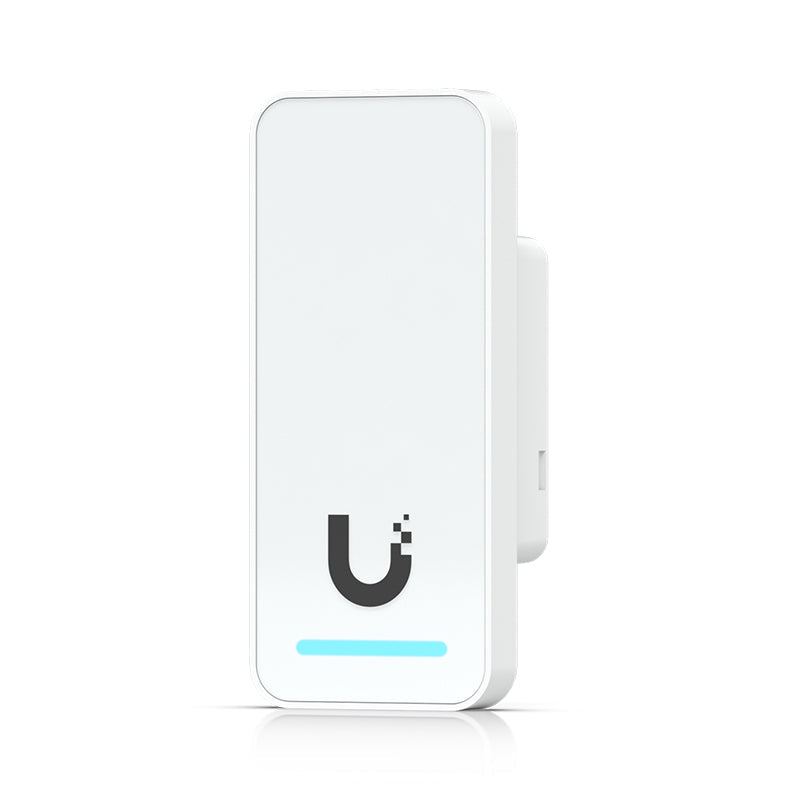

| G2 Reader | |
| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
| Weatherproofing | IP55 |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | Proximity sensor |
| Speaker | (1) Yes, 0.7W |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G2/UA-G2-Black, V02 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

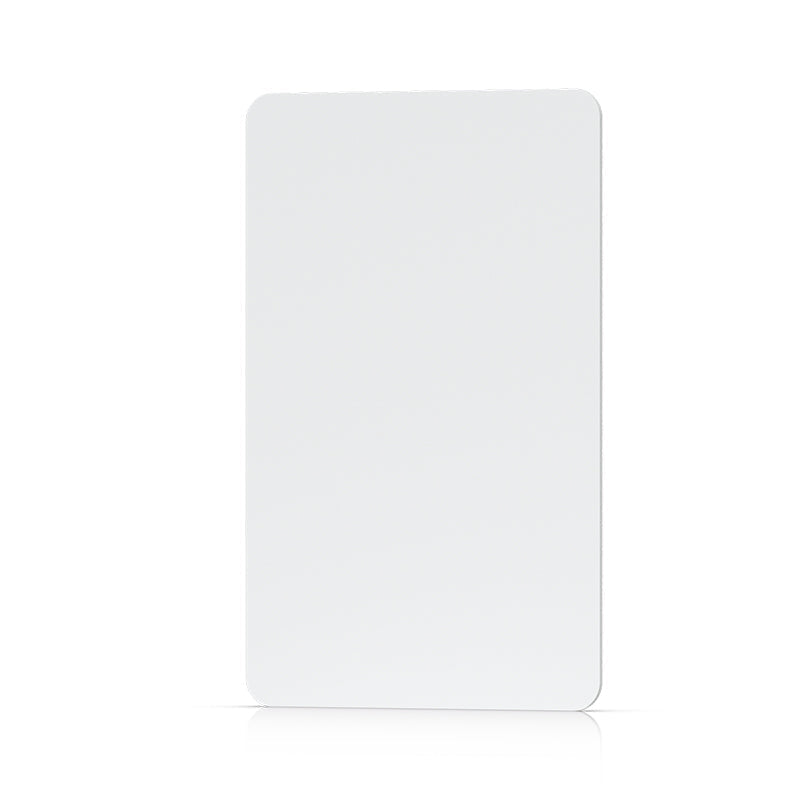

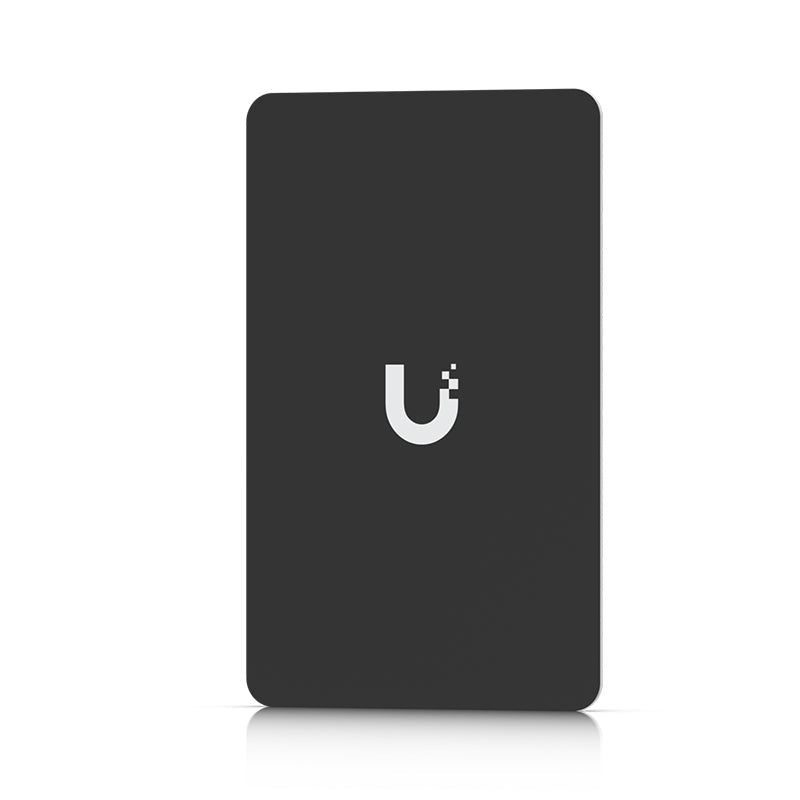

| Access Card | |
| Dimensions | 85.6 x 53.98 x 0.84 mm / (3.37 x 2.13 x 0.03") |
| Weight | 5 g (0.18 oz) |
| Format | ISO 7810 ID-1 |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A / MIFARE DESFire / UniFi Access Proprietary Security Protocol |

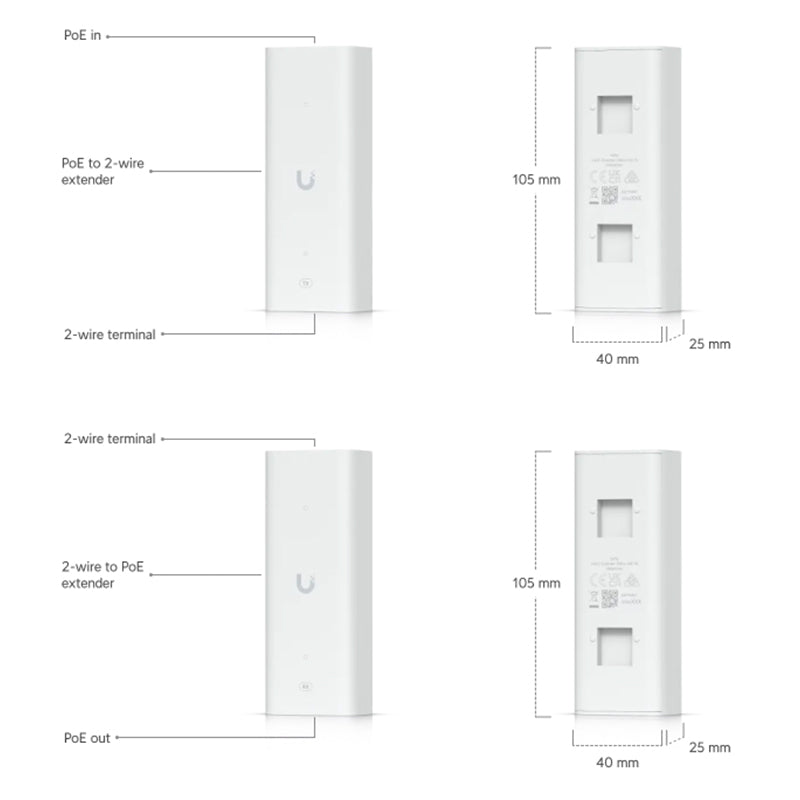

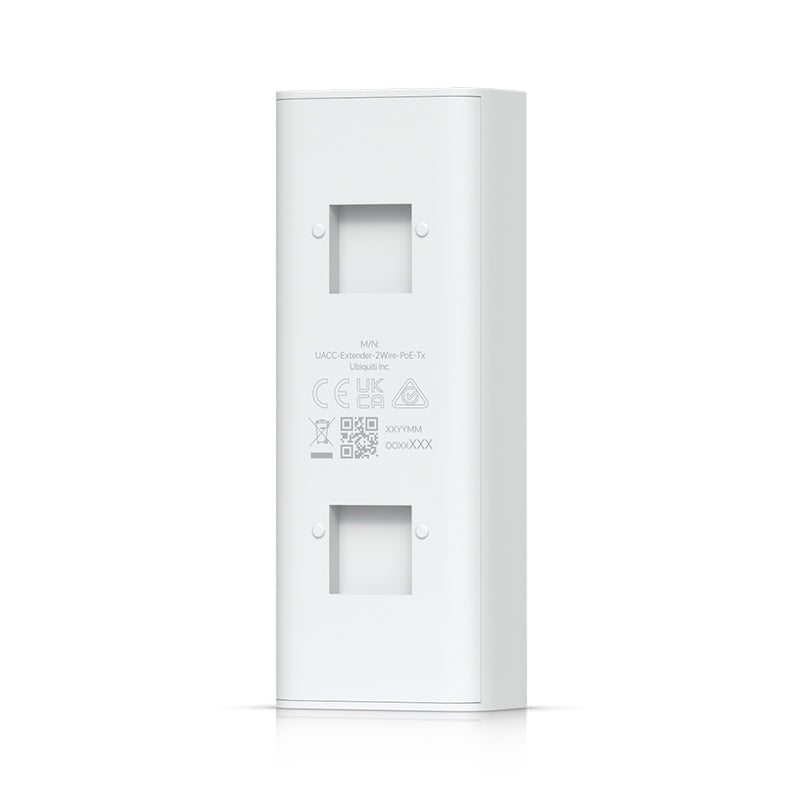

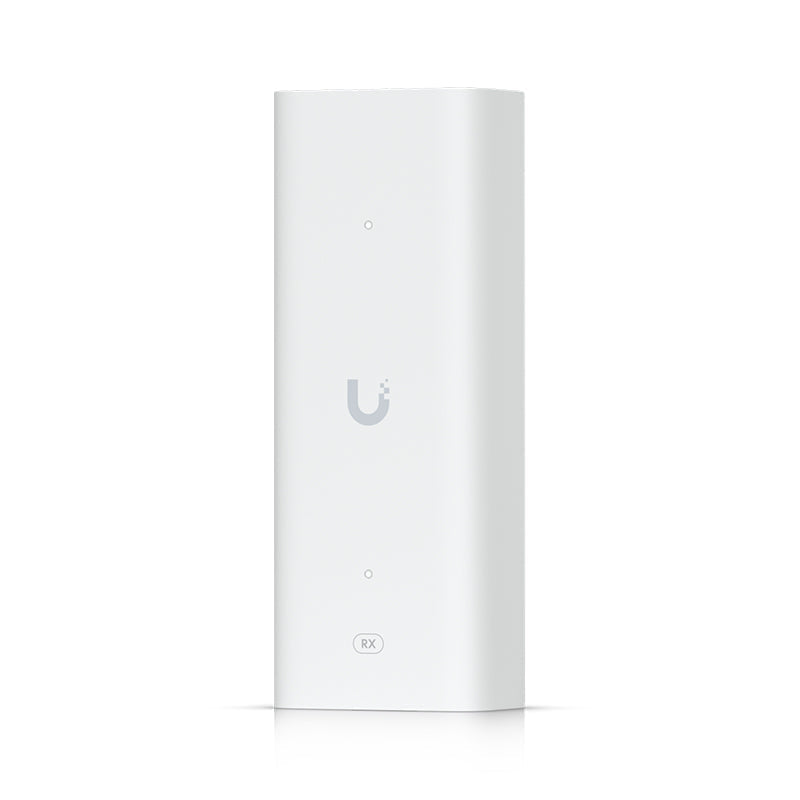

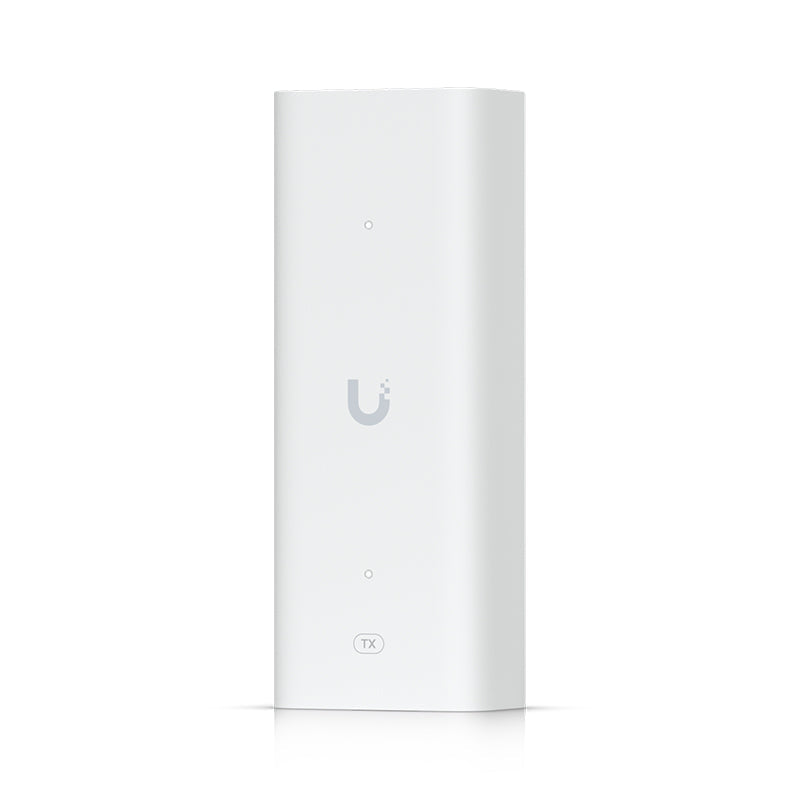

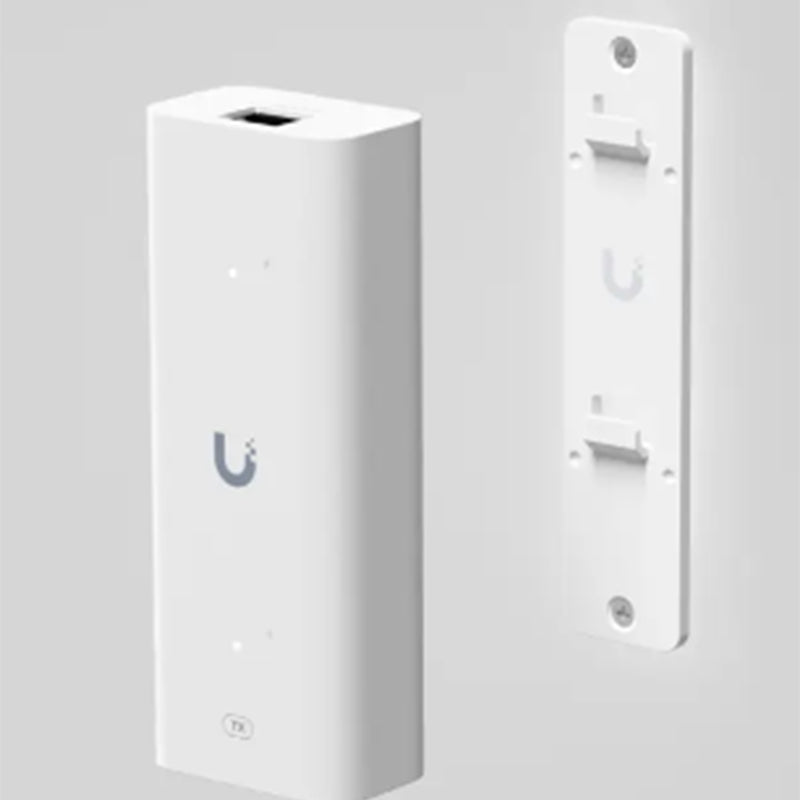

| Wire PoE Extenders | |
| Model | UACC-Extender-2Wire-PoE-Tx/Rx |
| Dimensions | 40 x 105 x 25 mm / (1.6 x 4.1 x 1") |
| Weight | PoE in: 77 g (2.7 oz) / PoE out: 79 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Networking Interface | (1) 10/100 MbE / (1) Homeplug AV |
| PoE Interface | PoE input: (1) PoE++, 50V DC, Max. 1.2A / PoE output: (1) PoE+, 48V DC, 0.72A |
| Management | (1) 10/100 MbE |
| Power Method | PoE++ |
| Max. Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | White |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UA-SK-Elevator · Ubiquiti's spec sheet
