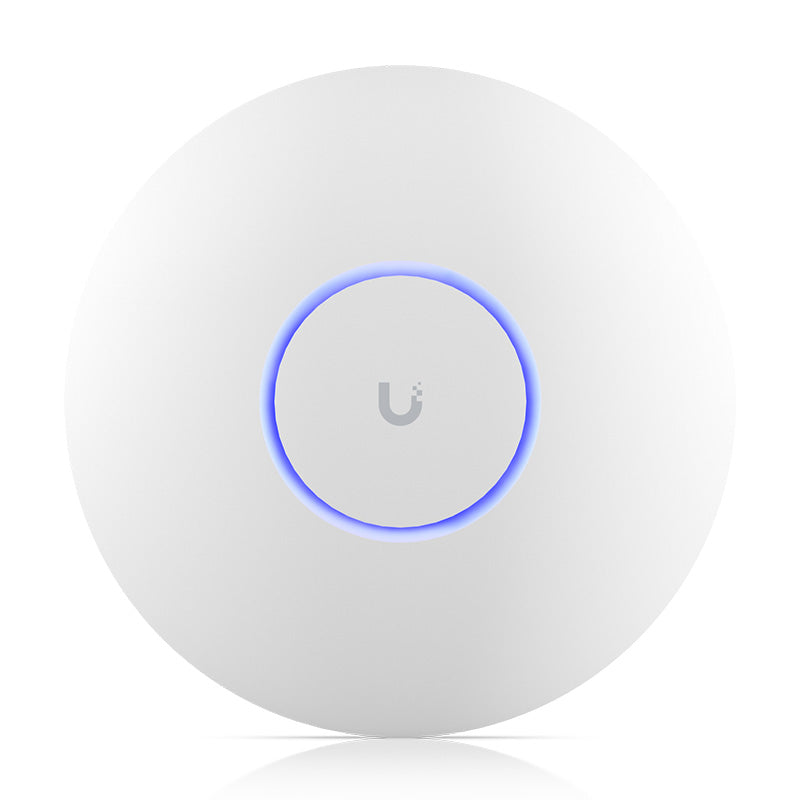

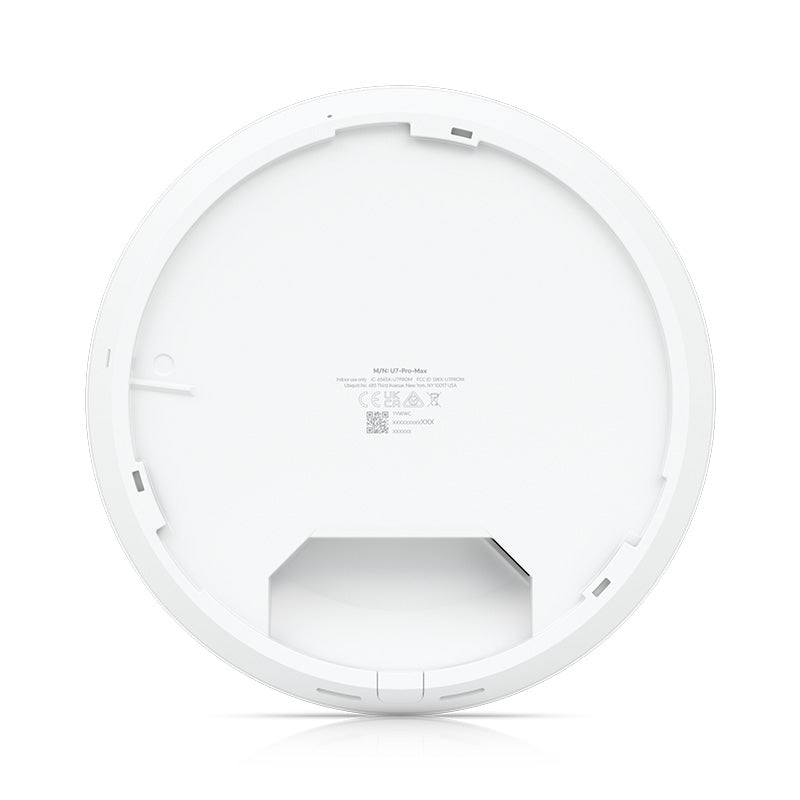

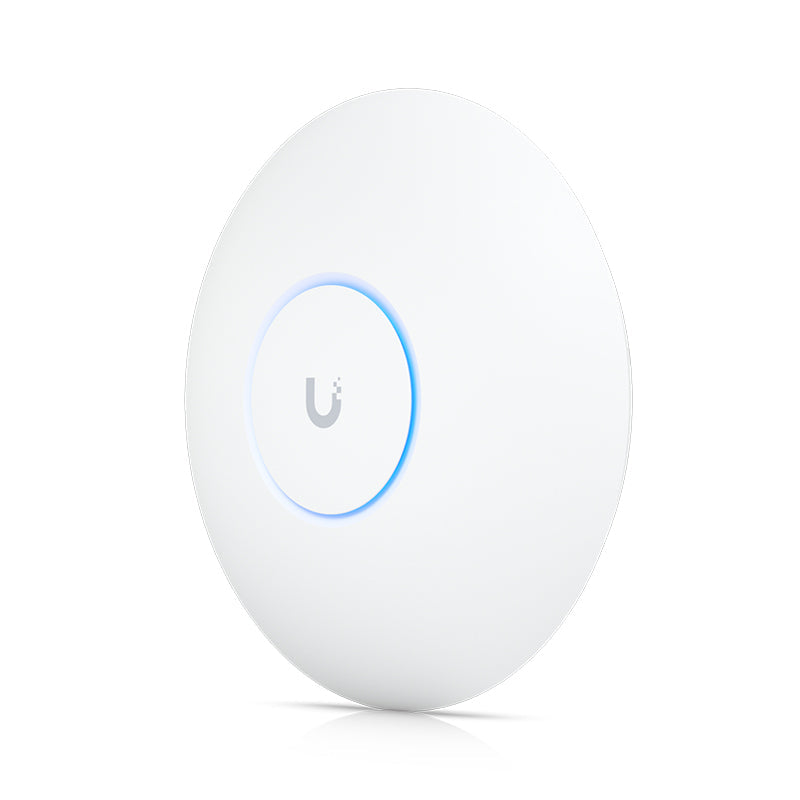

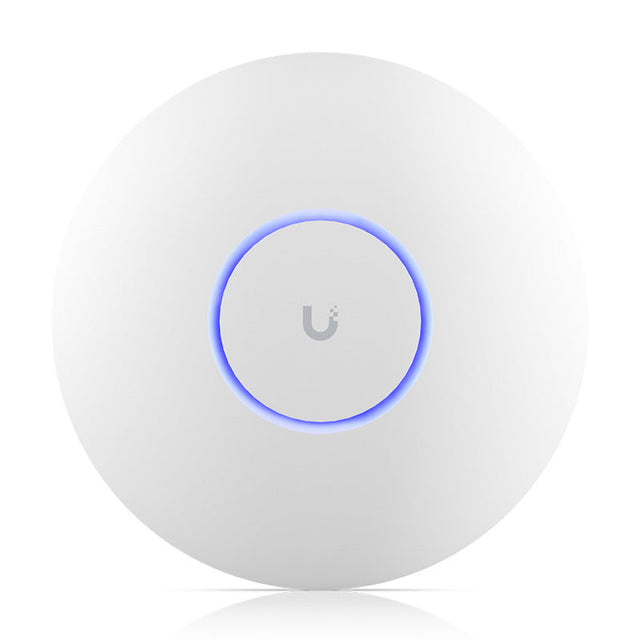

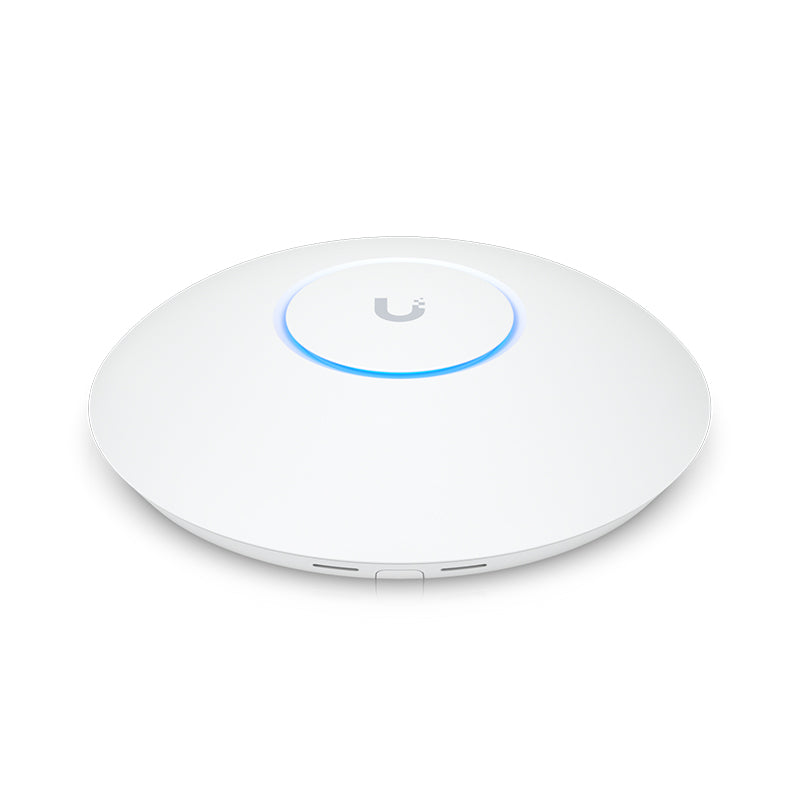

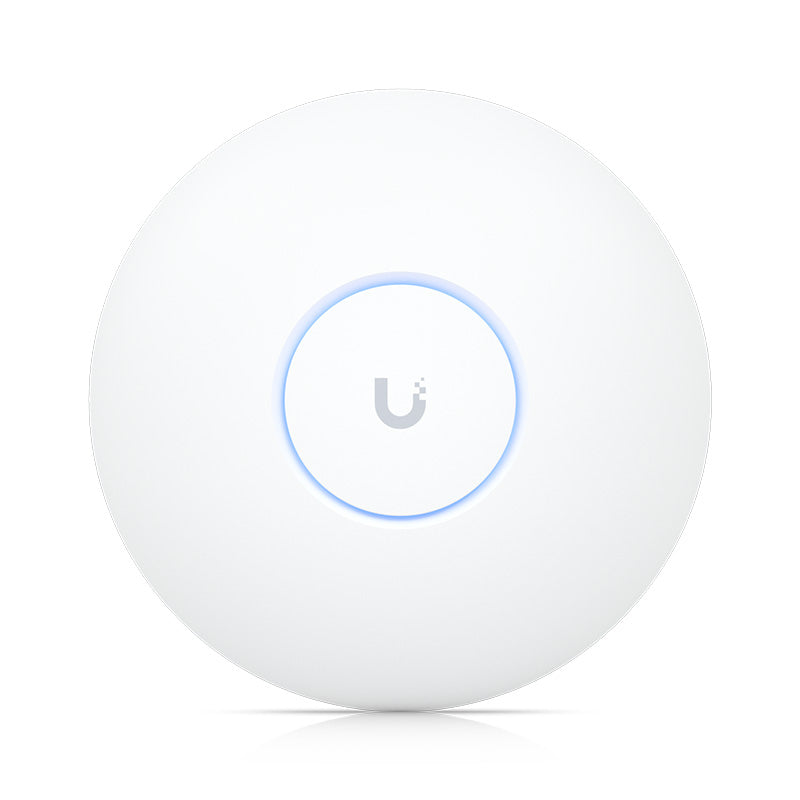

U7-Pro-Max Ubiquiti Unifi Wireless 7 Access Point
Description
Description

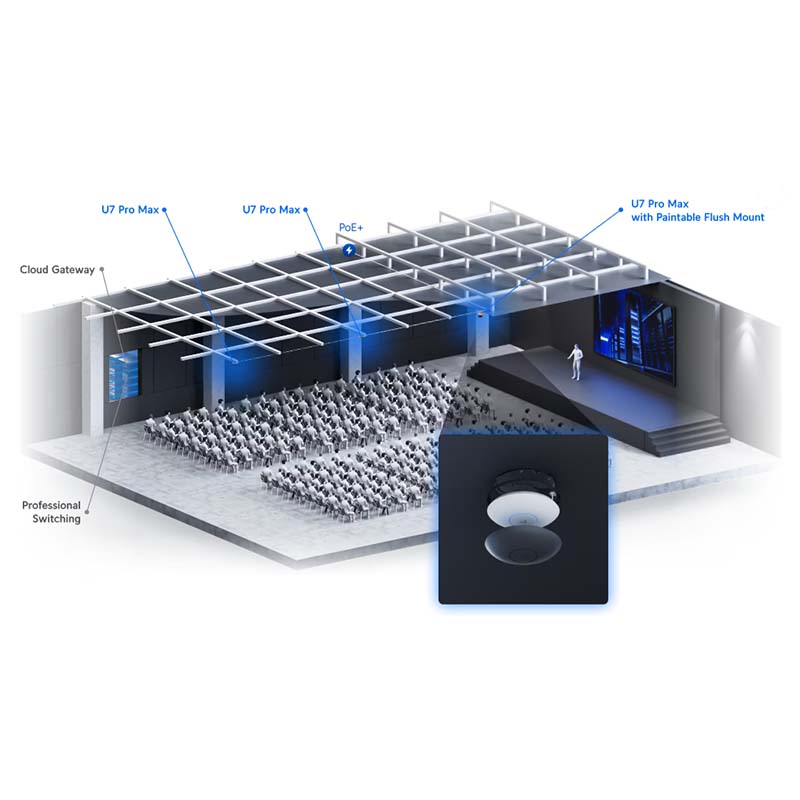

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Features:
WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection*
160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink
Note. 6 GHz operation is supported in these countries.
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.*Requires UniFi Network 8.2.93 and later.

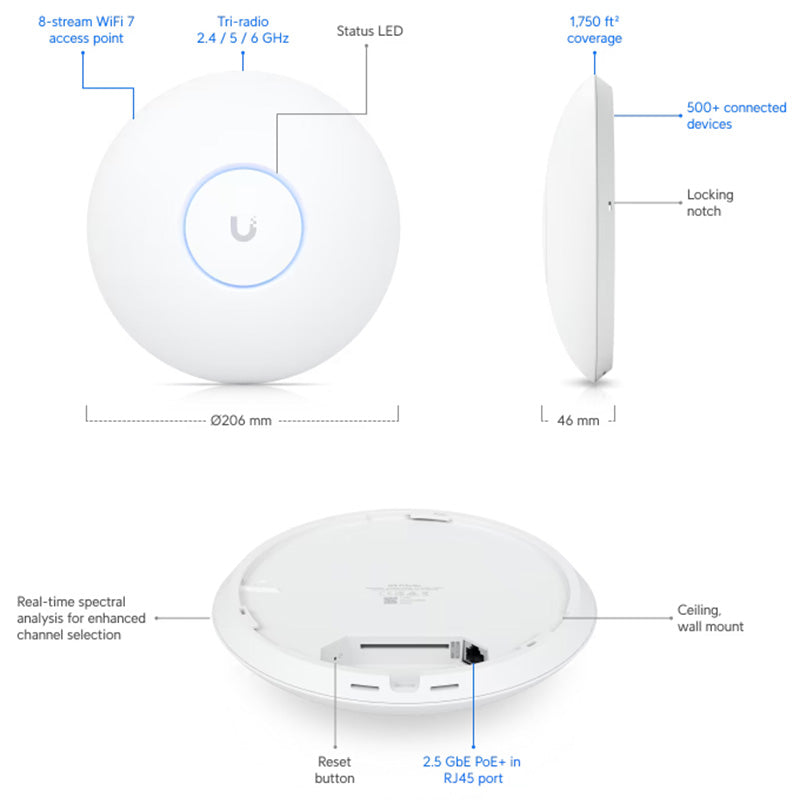

Specifications39 specifications · 4 sections
| Overview | |
|---|---|

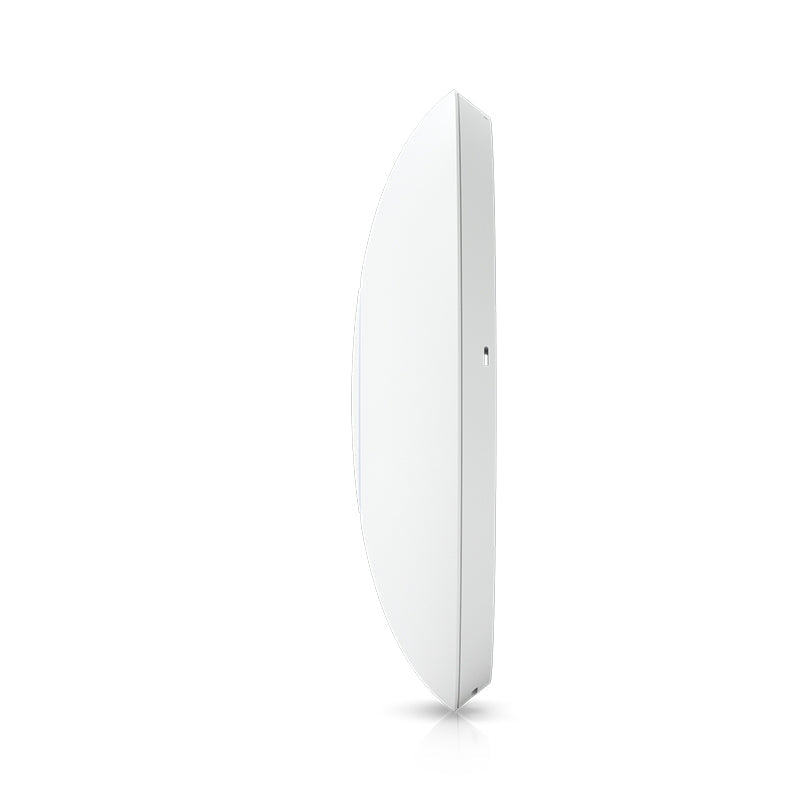

| Dimensions | ⌀206 x 46 mm / (⌀8.1 x 1.8") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 2.5 GbE |

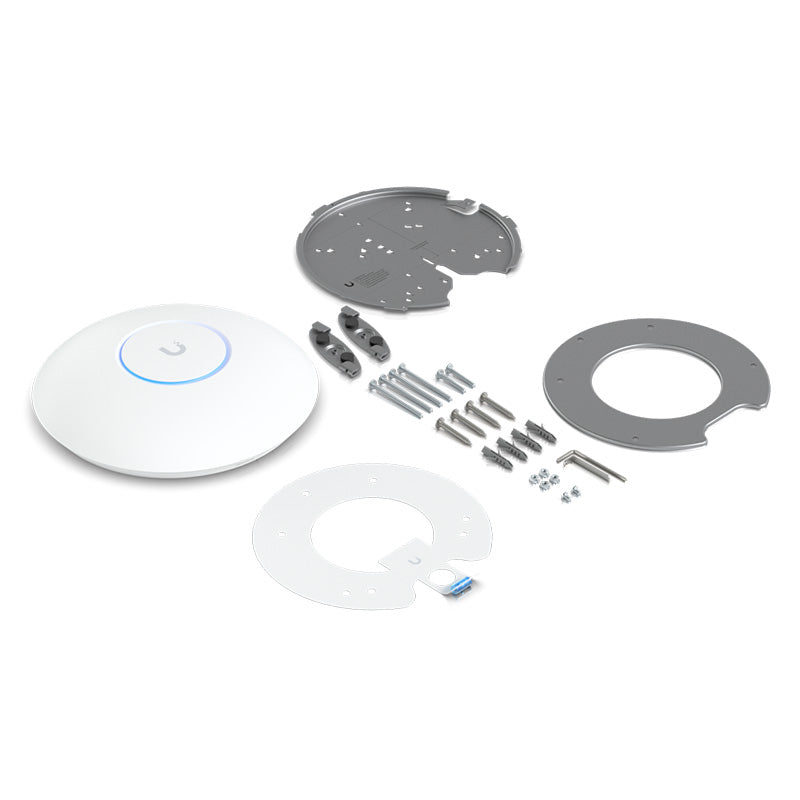

| Mounting | Ceiling, Wall / (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO · 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate · 5 GHz | 8.6 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 6 GHz | 5.9 dBi |
| Antenna Gain · 5 GHz | 6 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 6 GHz | 23 dBm |
| Max. TX Power · 5 GHz | 29 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) / 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| Supported Data Rates · 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 25W |
| Supported Voltage Range | 44–57V DC |

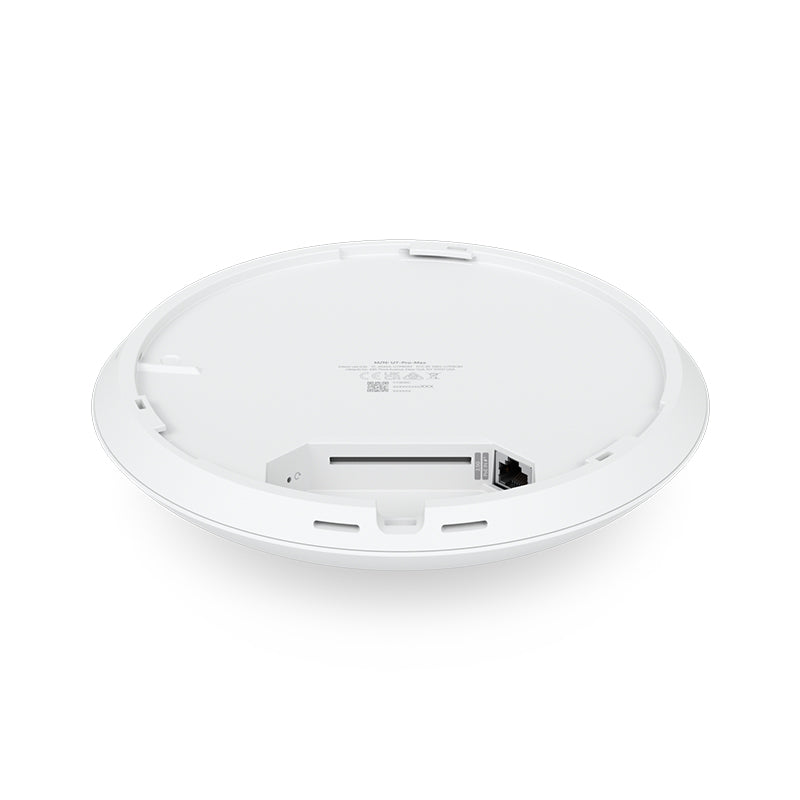

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 680 g (1.5 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 5925 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08959-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.2.93 and later |
