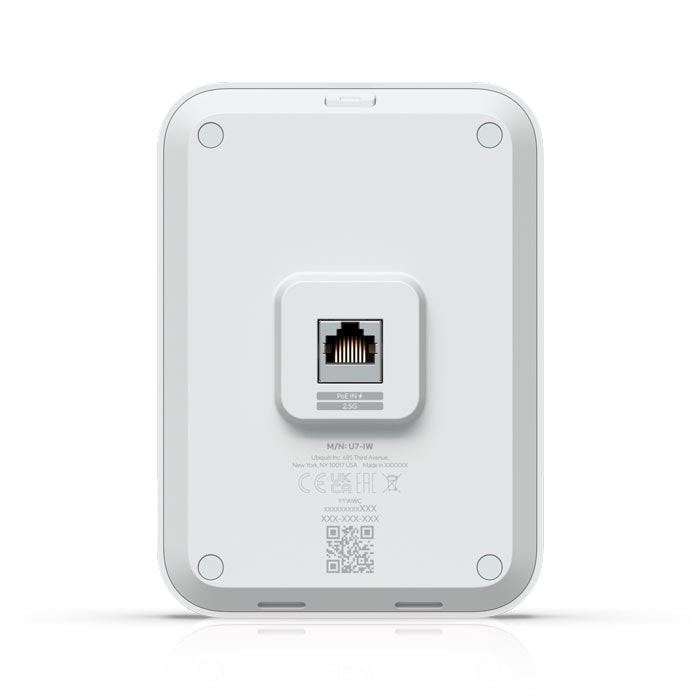

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.

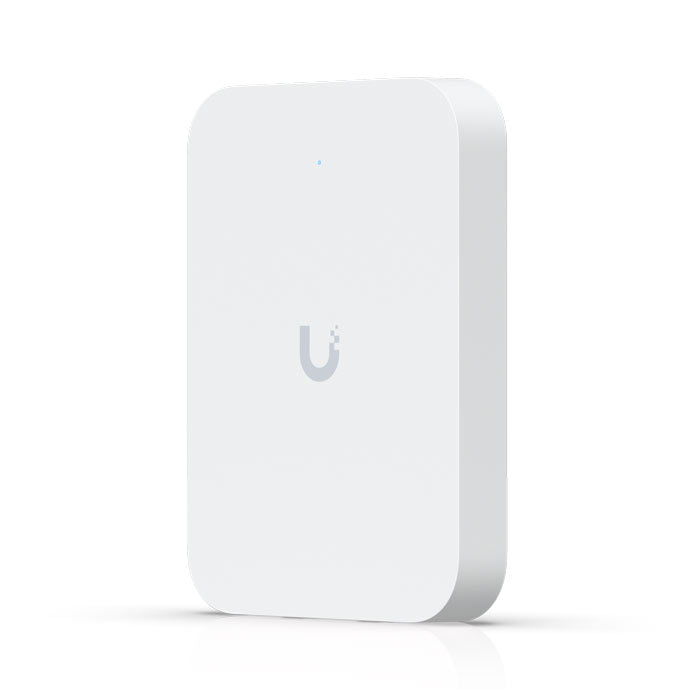

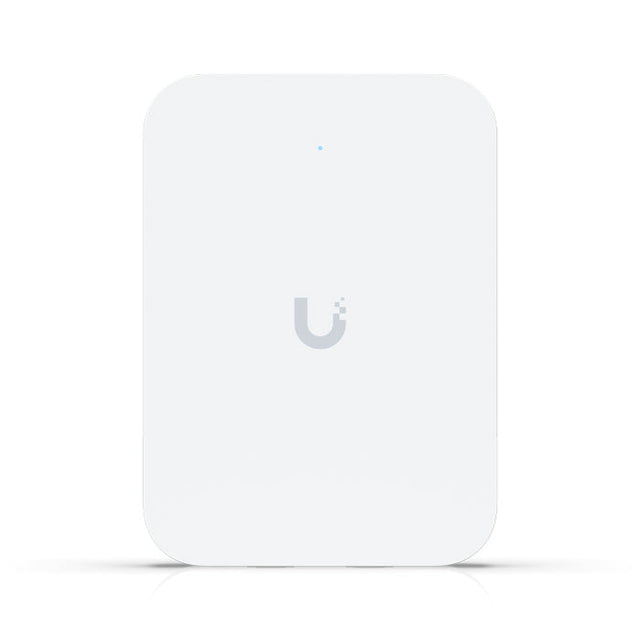

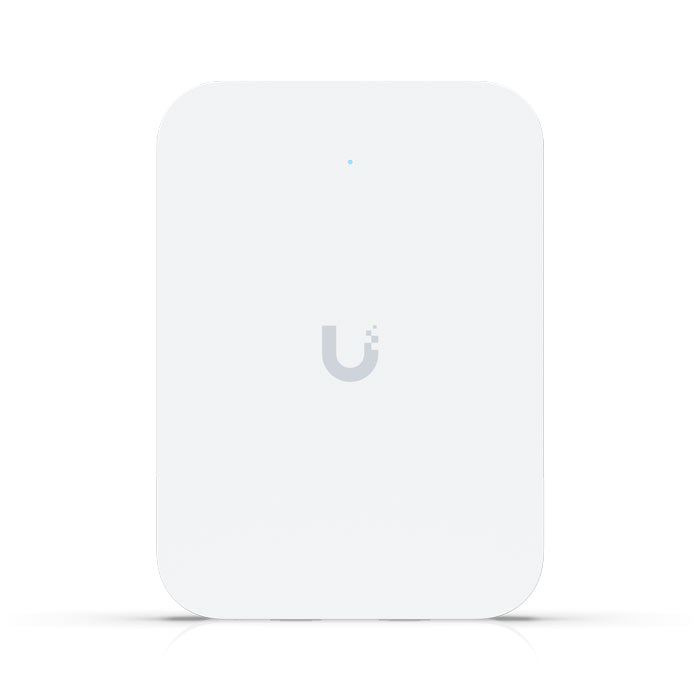

U7-IW – Ubiquiti UniFi U7 In‑Wall WiFi 7 Access Point (No PoE Injector)
Description
Description
The U7-IW is a next-generation UniFi WiFi 7 in-wall access point from Ubiquiti, designed for high-performance wireless connectivity in modern hospitality, residential and commercial environments. Supporting the latest 802.11be WiFi 7 standard, the U7-IW delivers ultra-fast speeds, improved efficiency and lower latency compared to previous generations.
Featuring 4 spatial streams across dual-band 2.4 GHz and 5 GHz, the U7-IW provides reliable coverage for up to 200+ connected devices. An integrated 2.5 GbE PoE switch allows downstream devices such as IP phones, IPTV units or workstations to be connected directly from the wall plate, reducing the need for additional switches.
Note: This SKU is supplied without a PoE injector. A compatible PoE or PoE+ switch is required for operation.

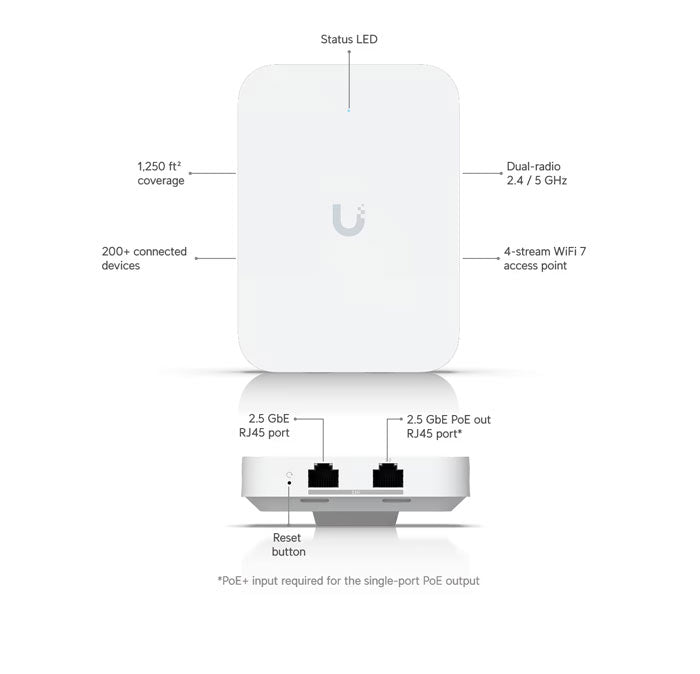

Key Features:
- WiFi 7 (802.11be) dual-band performance
- 4 spatial streams for high-speed wireless throughput
- Integrated 2.5 GbE switch with PoE input and PoE output
- Supports 200+ clients in high-density environments
- Fast roaming, band steering and advanced RF management
- Low-profile in-wall design ideal for discreet installations
Ideal for:
Hotels, serviced apartments, student accommodation, offices and smart homes requiring powerful, centrally managed WiFi with a clean in-wall installation.
Compatible Products:
UniFi Network Controller
UniFi PoE / PoE+ Switches
UniFi Gateways and Cloud Gateways
Frequently asked questions3 questions
Does the U7-IW include a PoE injector?
Can the U7-IW power other devices?
Is it compatible with older WiFi devices?
Specifications36 specifications · 4 sections
| Overview | |
|---|---|

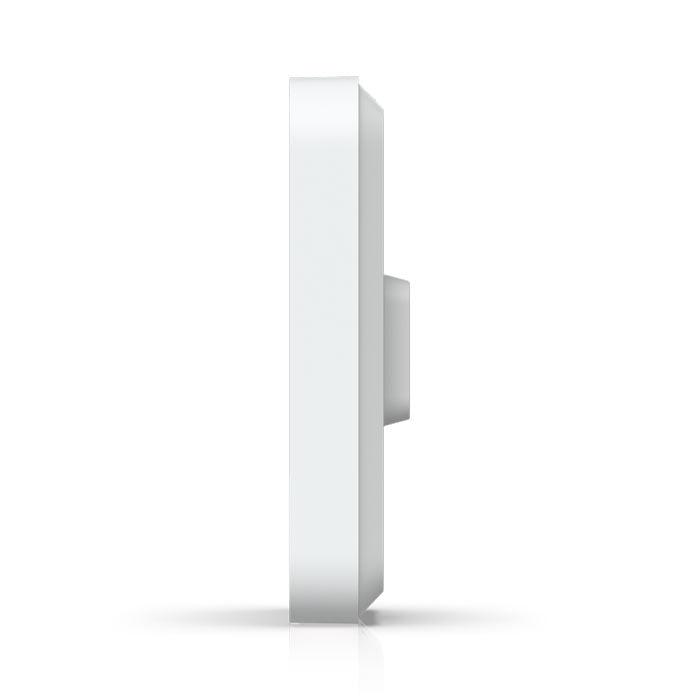

| Dimensions | 137 x 98.7 x 30.2 mm / (5.4 x 3.9 x 1.2") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |

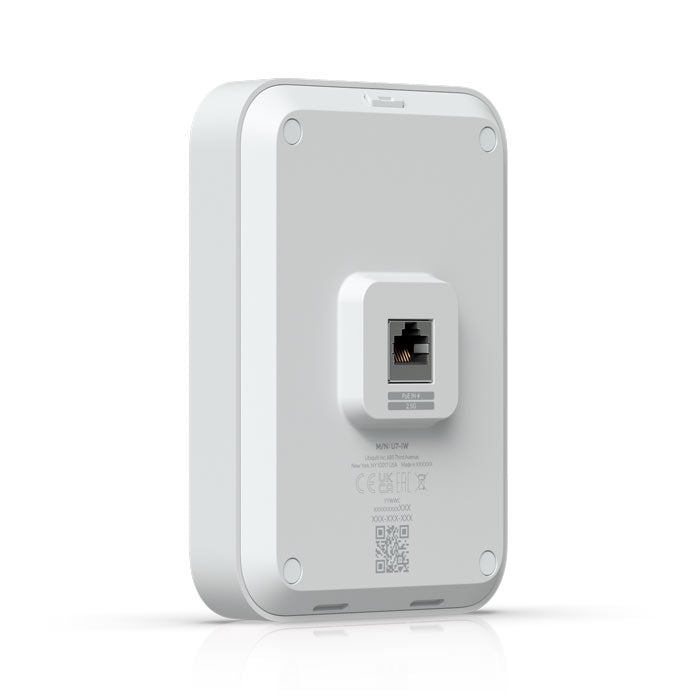

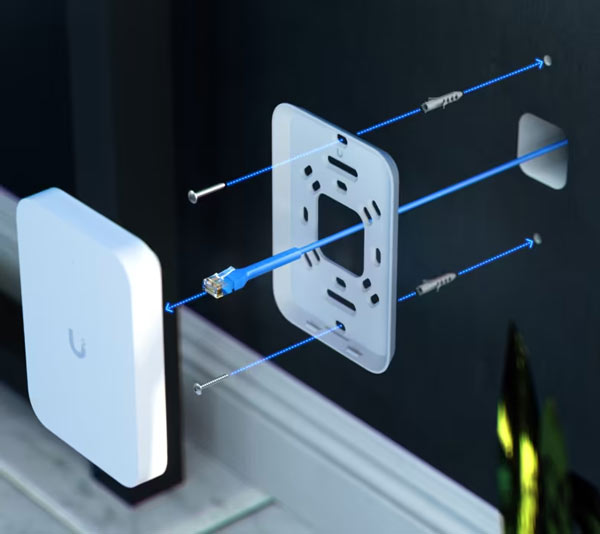

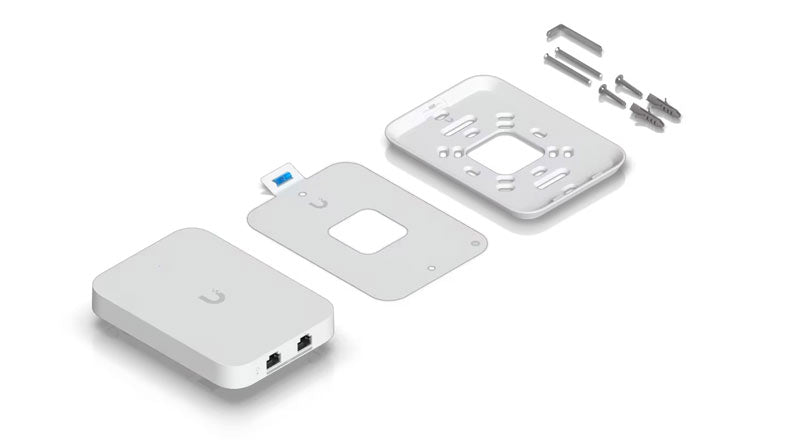

| Mounting | Wall / (Metal Wall Mount Included) |
| Power Method | PoE / PoE+ (Required for PoE output) |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 5 GHz | 8 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 5 GHz | 24 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 13W (Excluding PoE output) |
| Supported Voltage Range | 42.5–57V DC |

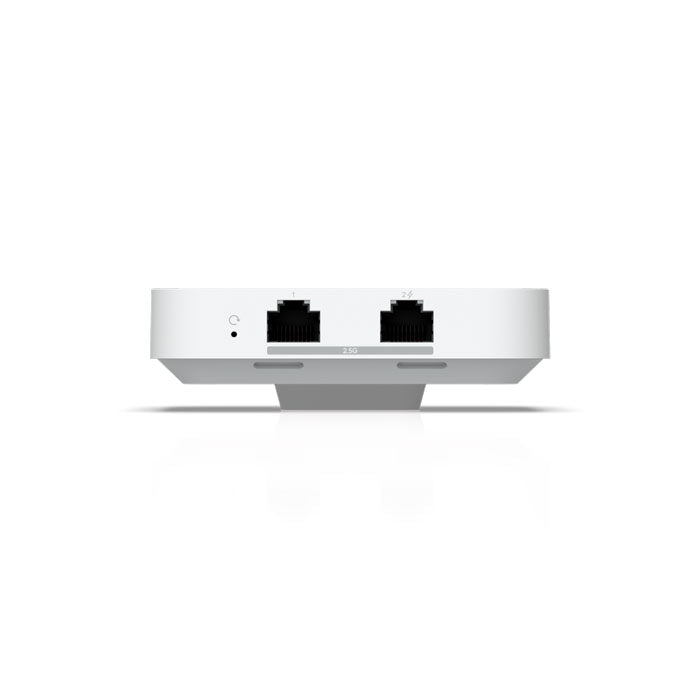

| Networking Interface | (3) 2.5 GbE RJ45 ports |
| Weight | 400 g (14.1 oz) |
| Management | Ethernet |
| Built-In Switch | (1) PoE+ input and / (1) PoE output |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 03909-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
| Application Requirements · Mobile App | iOS™ version 10.20.2 and later / Android™ version 10.21.7 and later |
