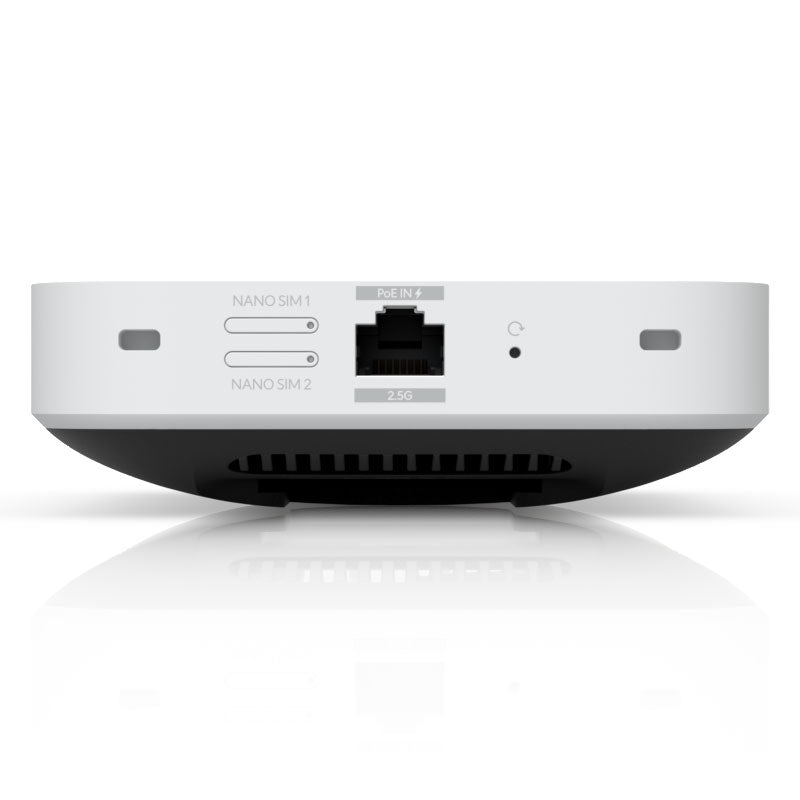

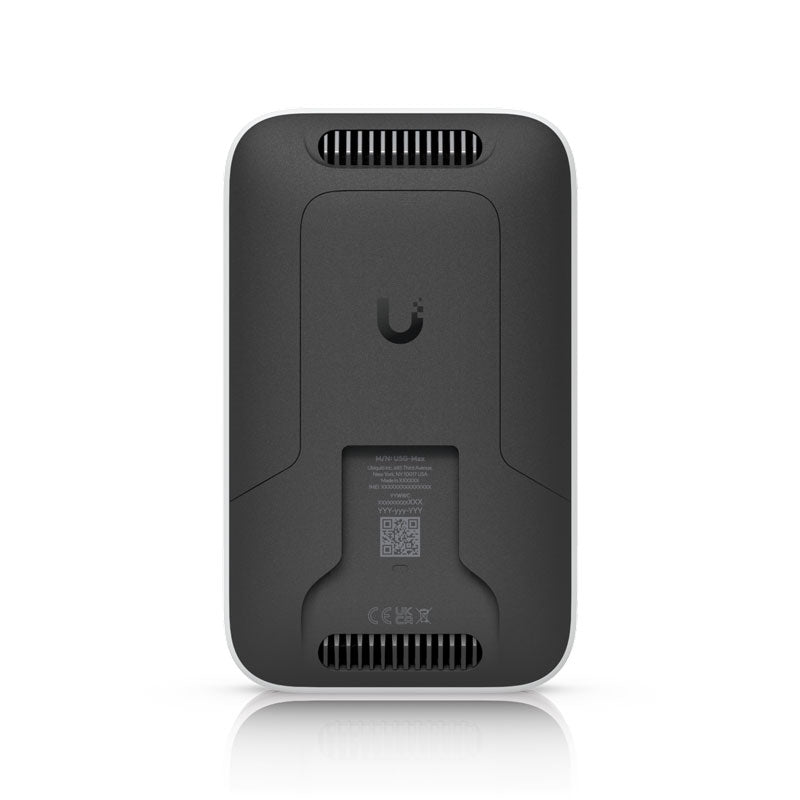

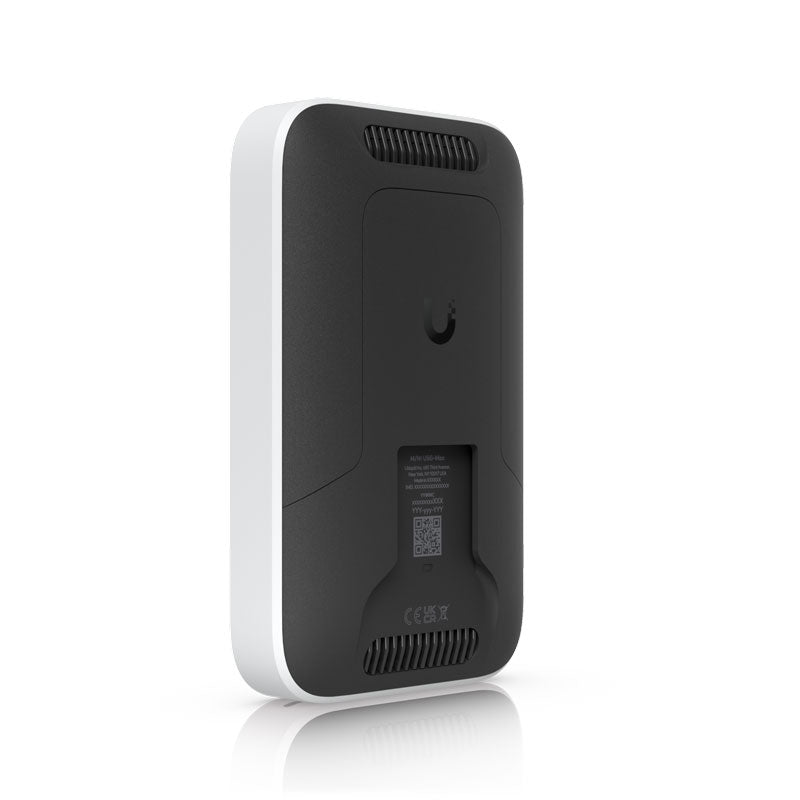

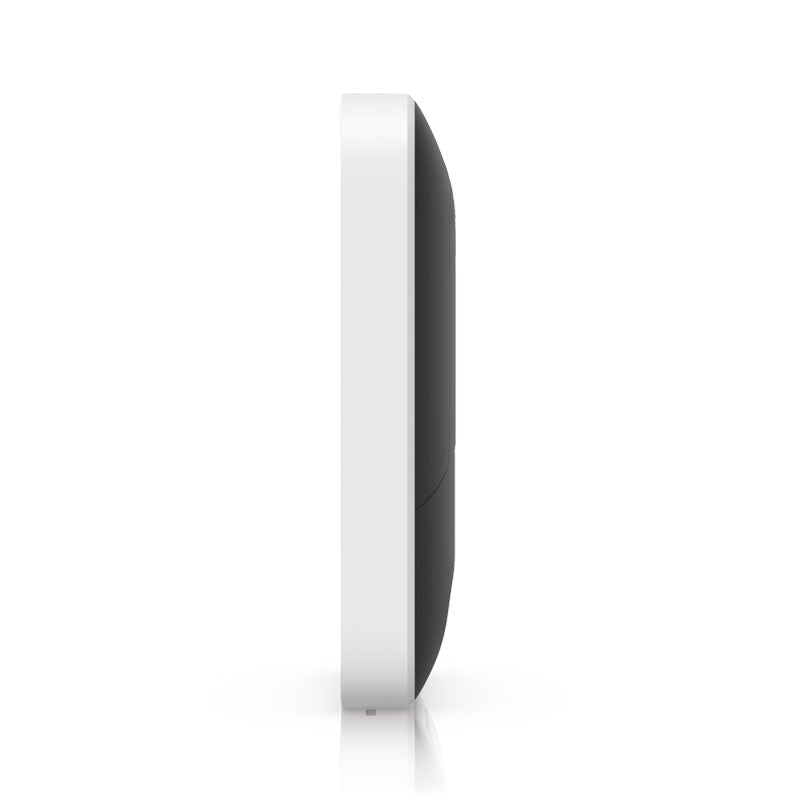

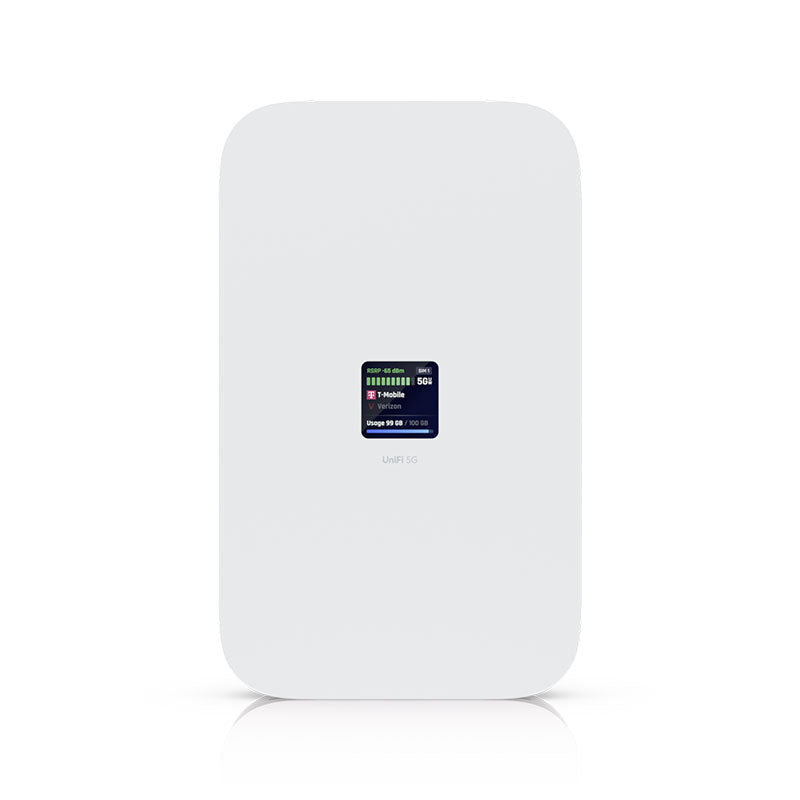

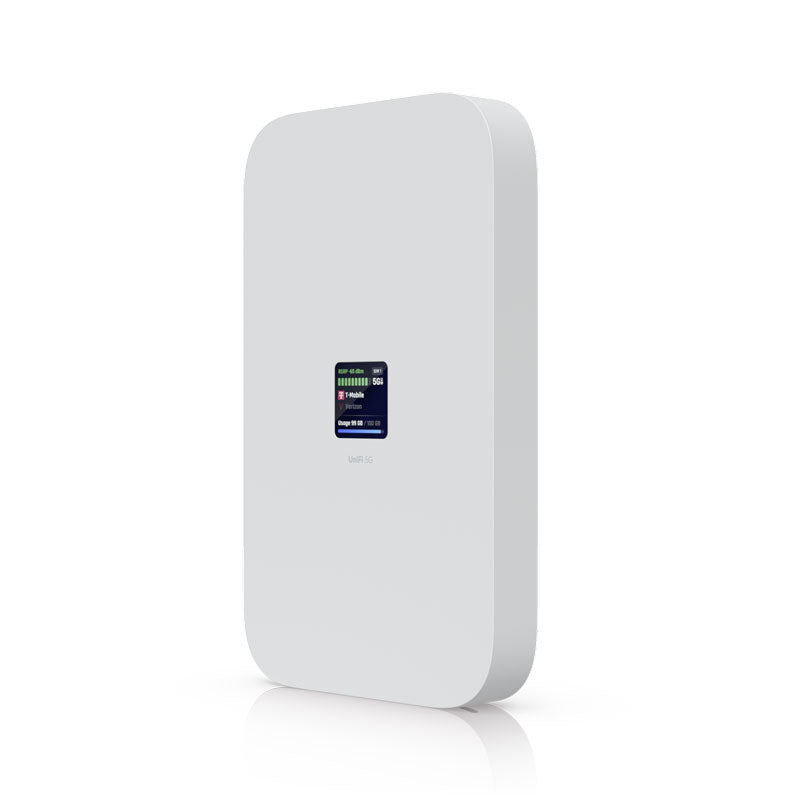

U5G-Max Ubiquiti UniFi 5G Max
Description
Description
UniFi 5G Max is a high-performance 5G modem designed to enhance any UniFi Cloud Gateway or UniFi Gateway with reliable cellular connectivity.
Featuring high-performance 5G (3.4 Gbps) modem, it is suitable for any Unifi deployment. Instantly adopted through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.
It supports dual SIM, with a secondary physical or eSIM, enabling seamless failover for critical applications. Ideal if you need stable, high-performance WAN connectivity for your UniFi network and want seamless backup internet without interrupting your IP assignments.
Specifications25 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | Device: 200 x 38 x 20.2 mm / (7.9 x 1.5 x 0.8") / Table stand: 48.1 x 48 x 55.2 mm / (1.9 x 1.9 x 2.2") |
| Networking Interface | (1) GbE RJ45 port / 5G RedCap and LTE |
| SIM | (1) Nano-SIM (4FF) / (1) eSIM |
| PoE Interface | (1) PoE input |

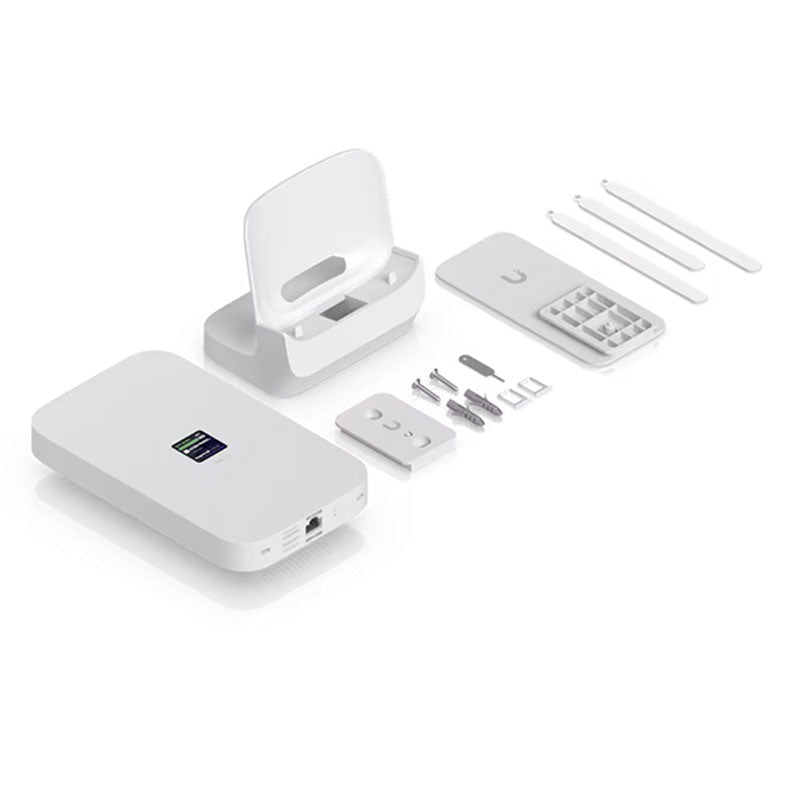

| Mounting | Desktop stand, wall, window mount (Included) |
| Mechanical | |
| Weight | Device: 122 g (4.3 oz) / Stand: 138 g (4.9 oz) / Wall mount: 66 g ( 2.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Galvanized steel, silicone rubber |
| Hardware | |
| Management | Ethernet |
| 5G NR · Category | 5G RedCap |
| 5G NR · Frequency Bands | n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41*, n48, n66, n71, n77, n78 |
| 5G NR · Max. TX Power | 23 dBm |
| 4G LTE · Frequency Bands | B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41,B42, B43, B48, B66, B71 |
| 4G LTE · Max. TX Power | HPUE power class 2: 26 dBm |
| Peak Data Speed · 5G SA | Downlink 220 Mbps / Uplink 120 Mbps |
| Peak Data Speed · 4G LTE | Downlink 195 Mbps / Uplink 100 Mbps |
| Antennas · Type | (2) Embedded omni-directional cellular antennas |
| Power Method | PoE |
| Display | 1.14" status display |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile |
| Software | |
| Application Requirements · UniFi Network | Version 10.4.57 and later |
| Application Requirements · Mobile App | UniFi iOS™ version 10.35.0 and later / UniFi Android™ version 10.38.2 and later |
