ENVR-Core Ubiquiti Enterprise Network Video Recorder Core
Description
Description

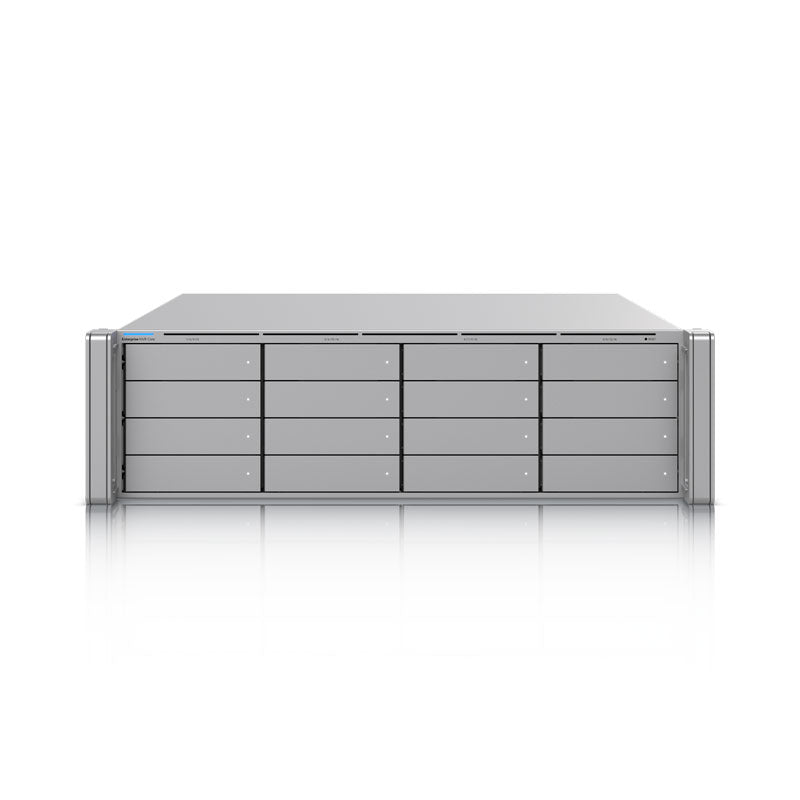

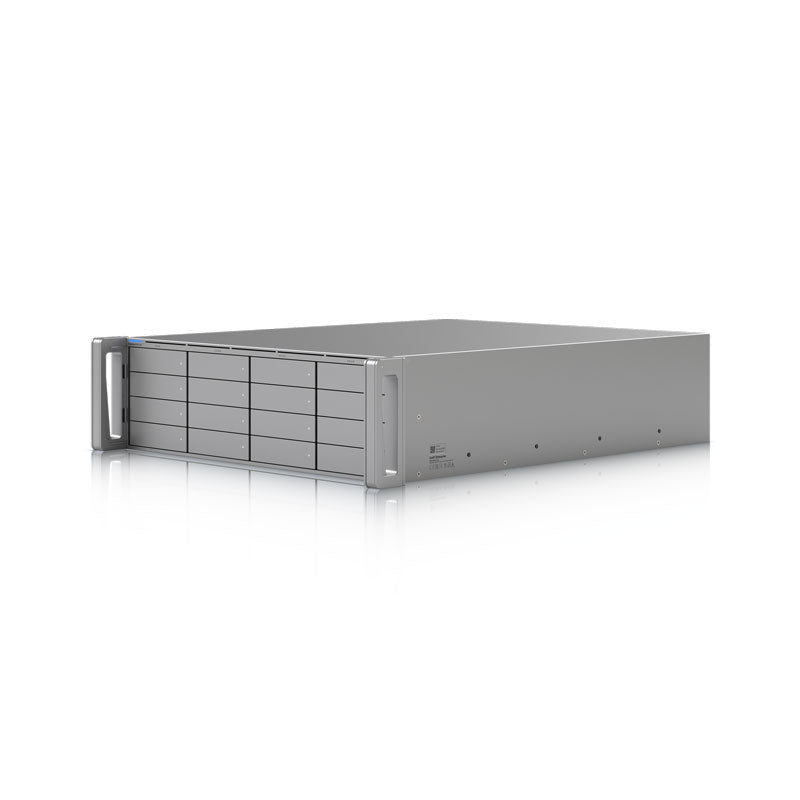

The Enterprise NVR Core is a 3U UniFi Protect network video recorder engineered for large‑scale, professional surveillance deployments. It supports up to sixteen 2.5‑inch or 3.5‑inch HDDs/SSDs and can manage as many as 300 4K cameras or 500 Full HD cameras.
With hot‑swappable power supplies and optional 16‑bay expansion units, it delivers high‑capacity, resilient video storage designed for demanding enterprise environments.
Does the Enterprise NVR Core support all UniFi Protect devices and features?
Yes. The Enterprise NVR Core supports UniFi Protect devices and features
Does the Enterprise NVR Core support UniFi Access?
Yes. The Enterprise NVR Core supports UniFi Access, allowing you to manage cameras and physical door access from a single device.
Does the Enterprise NVR Core work without a network connection?
Yes. The Enterprise NVR Core can operate without external network access. However, a UniFi or third-party gateway, or Layer 3 switch is required to assign IP addresses to the cameras.
Does the Enterprise NVR Core support third-party cameras?
Yes. The Enterprise NVR Core supports seamless integration with ONVIF-compliant third-party cameras, allowing smooth and easy migration of existing security systems to UniFi Protect.
What type of RAID storage protection does Enterprise NVR Core support?
The Enterprise NVR Core supports RAID 5, RAID 6, and RAID 10 with an optional hot spare drive to protect your surveillance recordings from data loss.
What type of drives does the Enterprise NVR Core support?
The Enterprise NVR Core supports a single drive (HDD or SSD) in either 2.5” or 3.5” format, with the following requirements:
- Minimum capacity: 1 TB
- Must be CMR (Conventional Magnetic Recording)
- 7200 RPM drives required
Can I expand the storage capacity of Enterprise NVR Core?
Yes. Enterprise NVR Core includes two (2) Mini-SAS HD ports specifically designed for storage expansion enabling longer retention periods for high quantities of cameras. Storage expansion units (UACC-ESE-16) will be available for purchase in the future.
What is the management port for on Enterprise NVR Core?
The management port provides dedicated recovery access for maintenance and troubleshooting, including UniFi Recovery Mode.
Specifications25 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 481.4 x 550 x 132 mm / (19 x 21.7 x 5.2") |
| Managed Cameras | (500) HD / (400) 2K / (300) 4K |
| Managed Access Hubs | 300+ |
| Storage Capacity | (16) 3.5" drive bays |

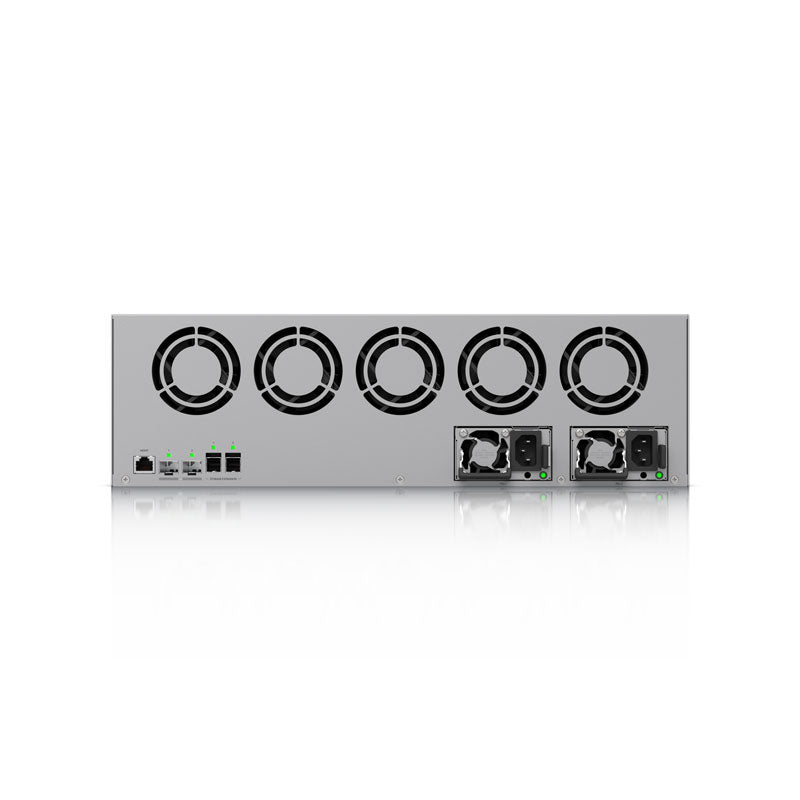

| Networking Interface | (2) 25G SFP28 ports (25G/10G/1G) / (1) GbE MGMT RJ45 port (1G/100M) |
| Expansion Port | (2) SFF-8644 ports (24G) |
| Form Factor | Rack Mount (3U) |
| Management Application | UniFi Protect / UniFi Access / UniFi Connect |
| Hardware | |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support / (2) Expansion ports, support up to 48 total HDD/SSD |
| Max. Power Budget for Drives | 313W |
| Max. Power Consumption | 237W |
| Power Method | (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 128-core Arm® v8.2 at 2.6 GHz |
| Memory | 64 GB |
| Management | Ethernet / Bluetooth |
| Weight | Without rails: 20.5 kg (45.2 lb) / With rails: 23.4 kg (51.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |

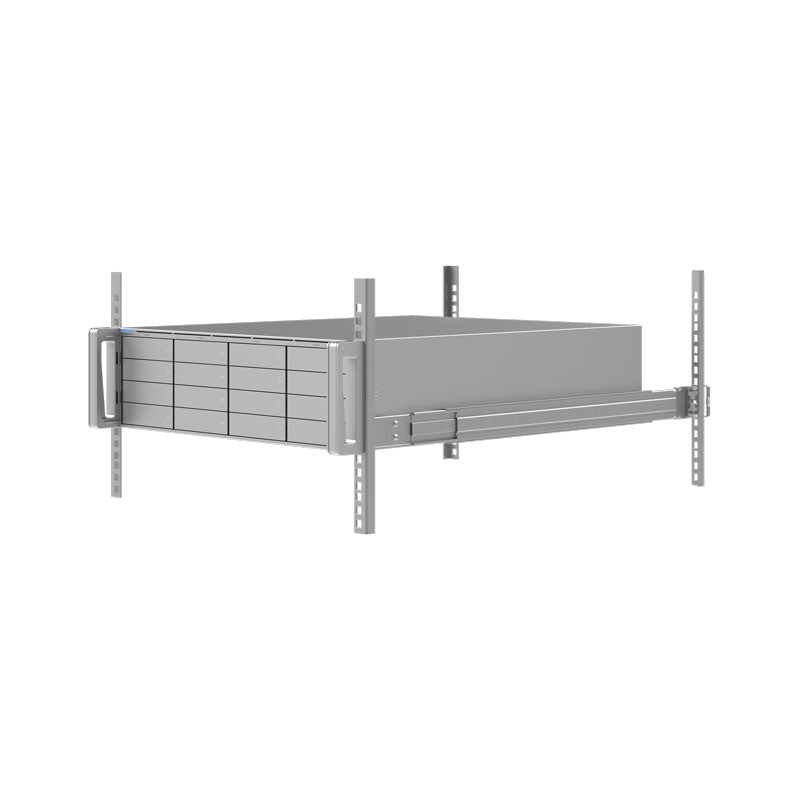

| Slide Rails | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42") |

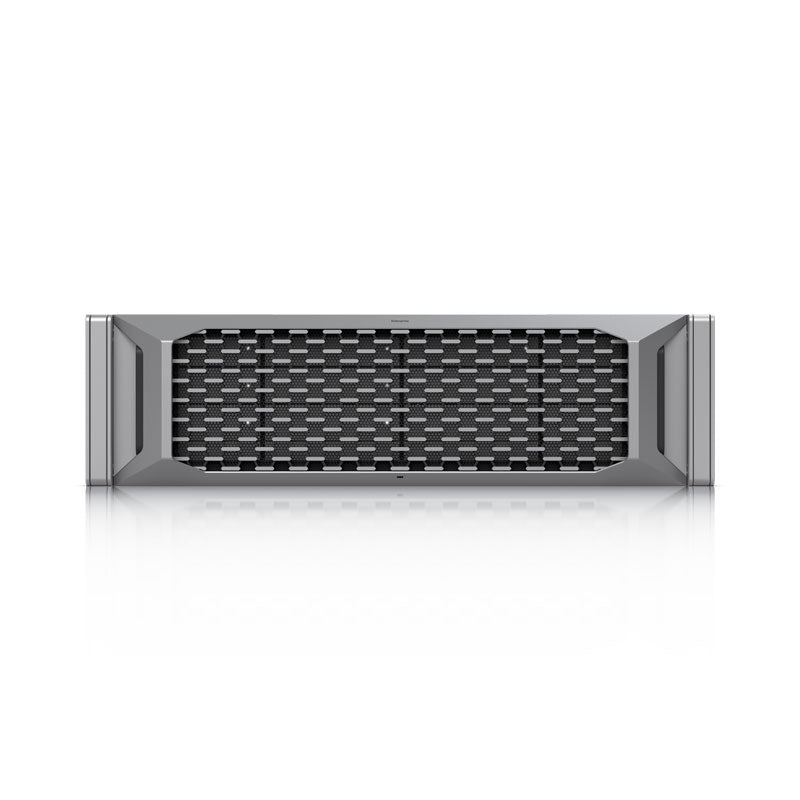

| Faceplate | 3U Bezel Lite (Included) / 3U Bezel (Optional) |
| Ambient Operating Temperature | 10 to 35° C (50 to 95° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · Mobile App | UniFi Protect iOS™ version 3.3.0 and later / UniFi Protect Android™ version 3.2.0 and later |
