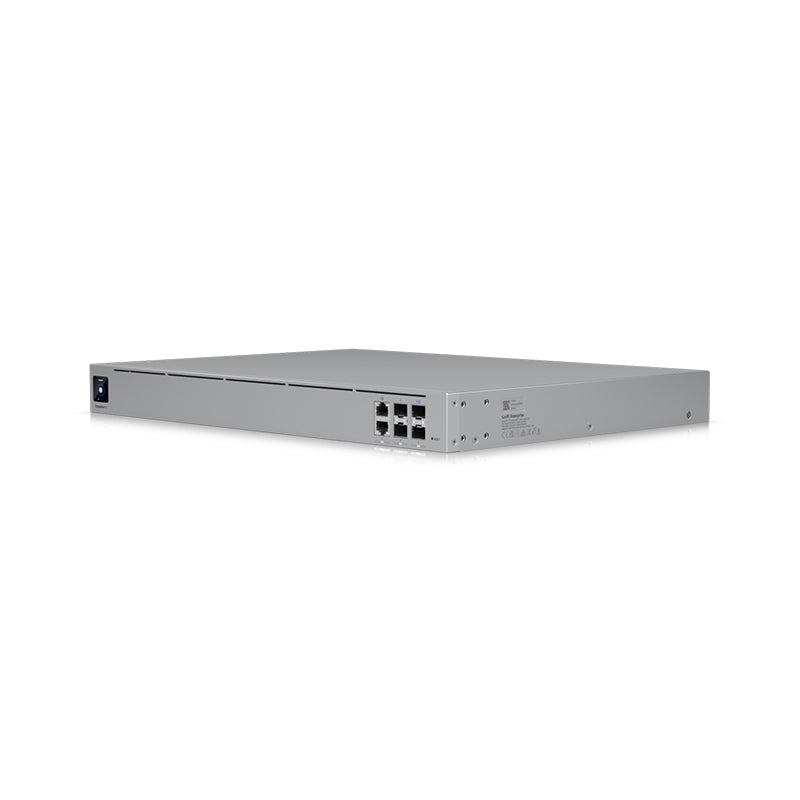

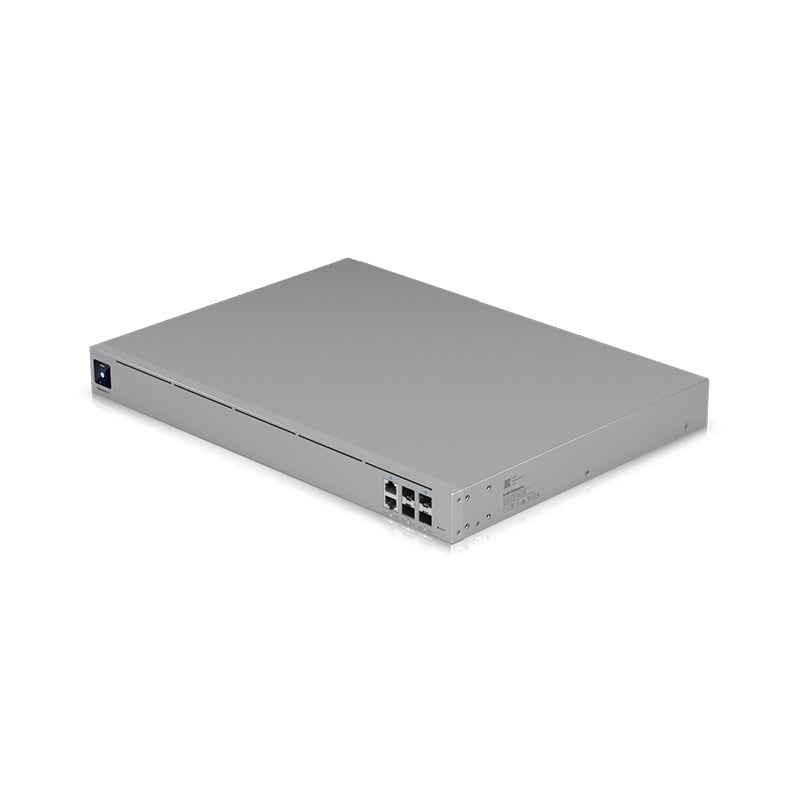

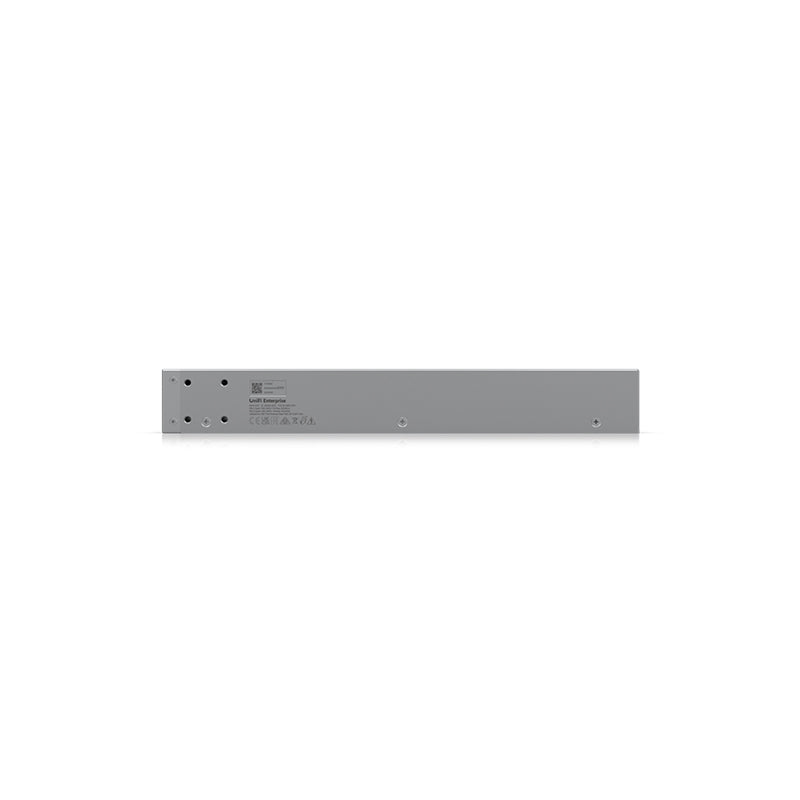

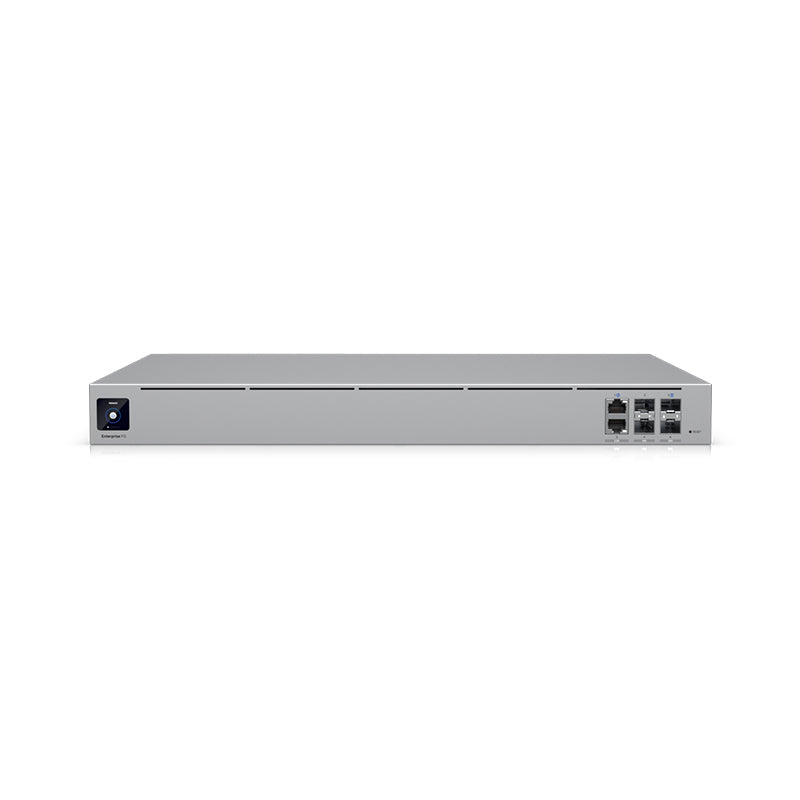

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
EFG Ubiquiti Enterprise Fortress Gateway
Description
Description
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.
Features:
Runs UniFi Network for full-stack network management

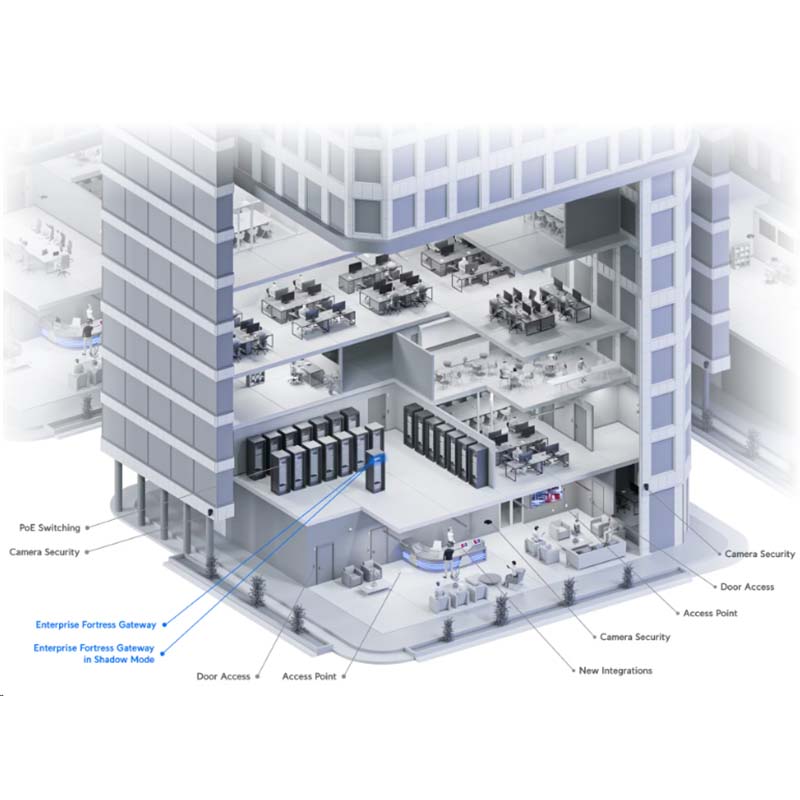

Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)*
12.5 Gbps routing with IDS/IPS
License-free, real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)

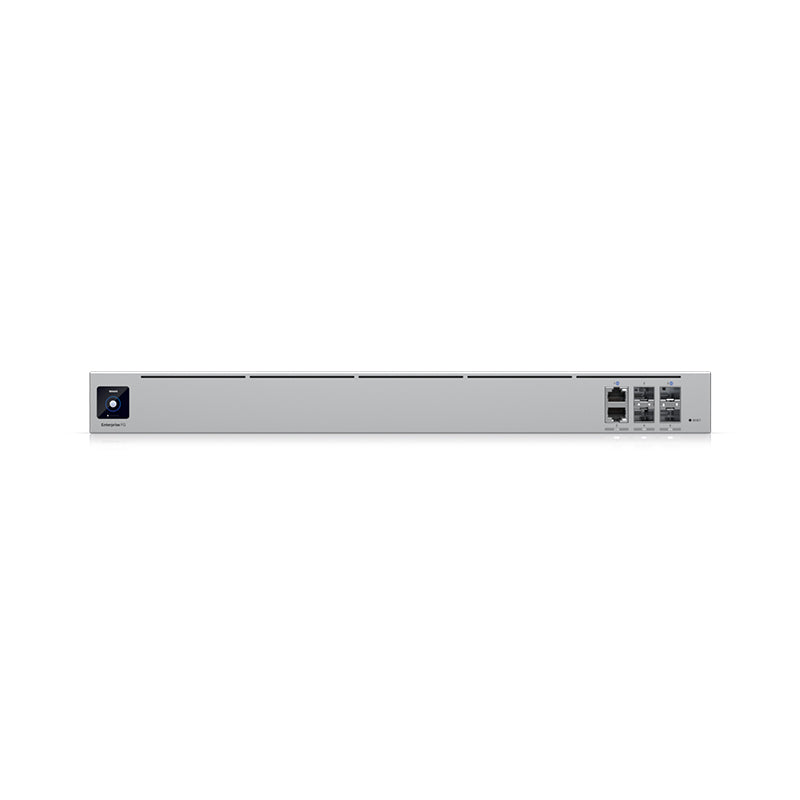

(2) 25G SFP28**, (2) 10G SFP+**, and (2) 2.5 GbE RJ45 ports (all LAN/WAN remappable)

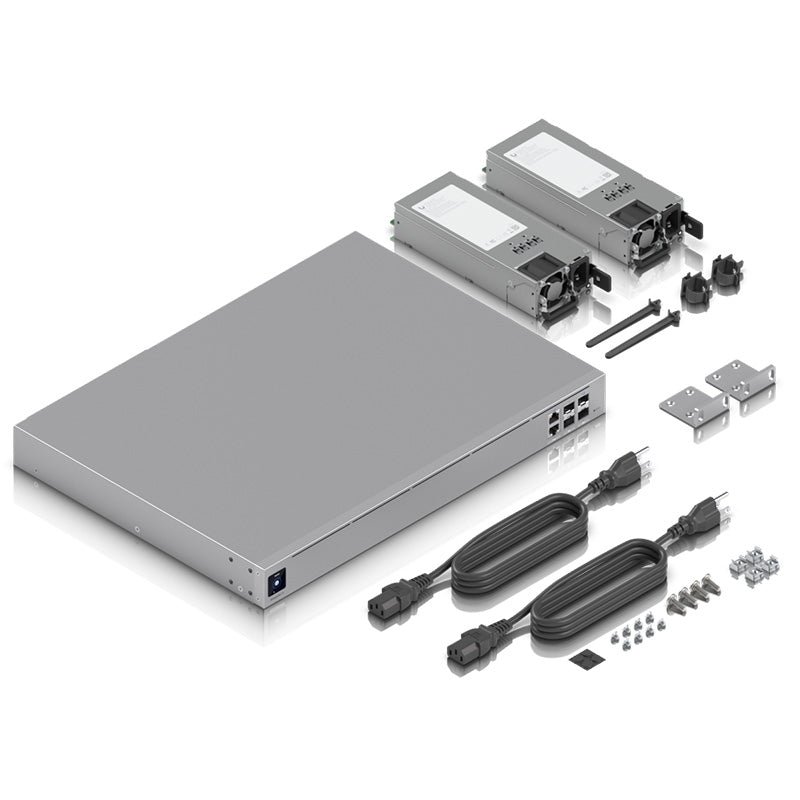

(2) included hot-swap PSUs for power redundancy
1.3" touchscreen
*Requires UniFi OS 4.0 and later. Must be paired with another EFG.
**Pair with an official SFP28 Module, SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Specifications41 specifications · 5 sections
| Overview | |
|---|---|

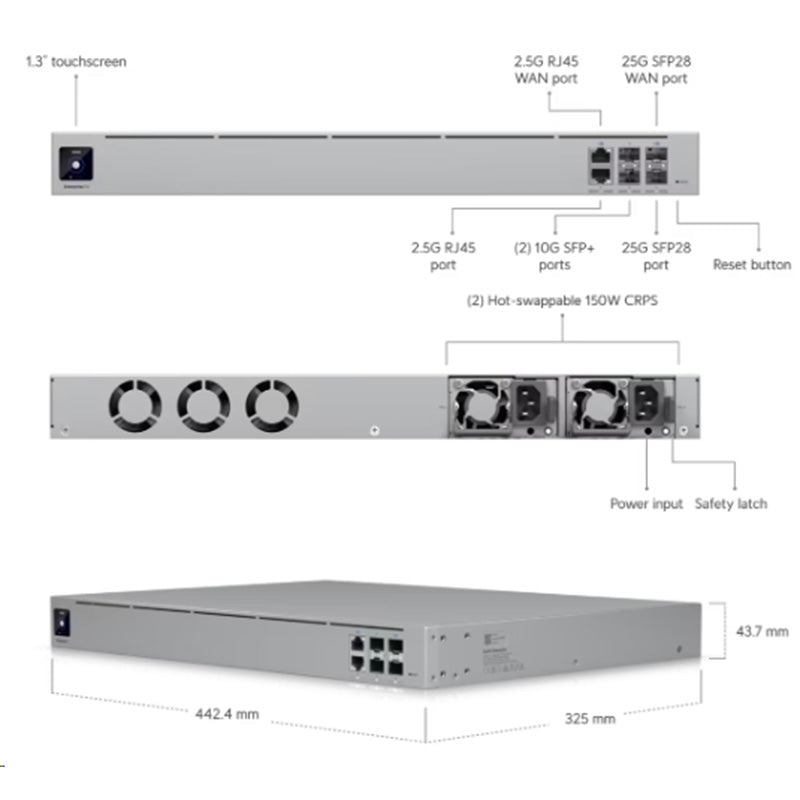

| Dimensions | 442.4 x 43.7 x 325 mm / (17.4 x 1.7 x 12.8") |
| Managed UniFi Devices | 500+ |
| Simultaneous Users Connected | 5,000+ |
| Max. WAN Port Count | 5 |
| Default WAN Ports | (1) 25G SFP28 / (1) 2.5 GbE RJ45 |
| Port Layout · 2.5 GbE RJ45 | 2 / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Port Layout · 25G SFP28 | 2 / (25G/10G/1G) |
| IDS/IPS Throughput | 12.5 Gbps |
| Capacity · SSL/TLS Inspection Concurrent Sessions | 10,000 |
| Capacity · Concurrent Sessions | 10 Million |
| Capacity · New Sessions / Second | 71,000 |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover / (2) Hot-Swappable PSUs |
| Security | |
| IDS/IPS Signatures | 95,000+ / with CyberSecure Enterprise |
| VPN & SD-WAN | |
| VPN Server Single User Throughput · Identity Endpoint One-Click VPN | 1.2 Gbps |
| VPN Server Single User Throughput · Teleport | 1.2 Gbps |
| VPN Server Single User Throughput · WireGuard | 1.2 Gbps |
| VPN Server Single User Throughput · OpenVPN | 210 Mbps |
| VPN Server Single User Throughput · L2TP | 280 Mbps |
| Site-to-Site VPN Single Tunnel Throughput · Site Magic | 1.1 Gbps |
| Site-to-Site VPN Single Tunnel Throughput · OpenVPN | 120 Mbps |
| Site-to-Site VPN Single Tunnel Throughput · IPsec | 580 Mbps |
| VPN Client Single Tunnel Throughput · WireGuard | 980 Mbps |
| VPN Client Single Tunnel Throughput · OpenVPN | 180 Mbps |
| Hardware | |
| Max. Power Consumption | 82W |
| Power Method | Universal AC input, 100–240V AC, 7A Max., 50/60 Hz |

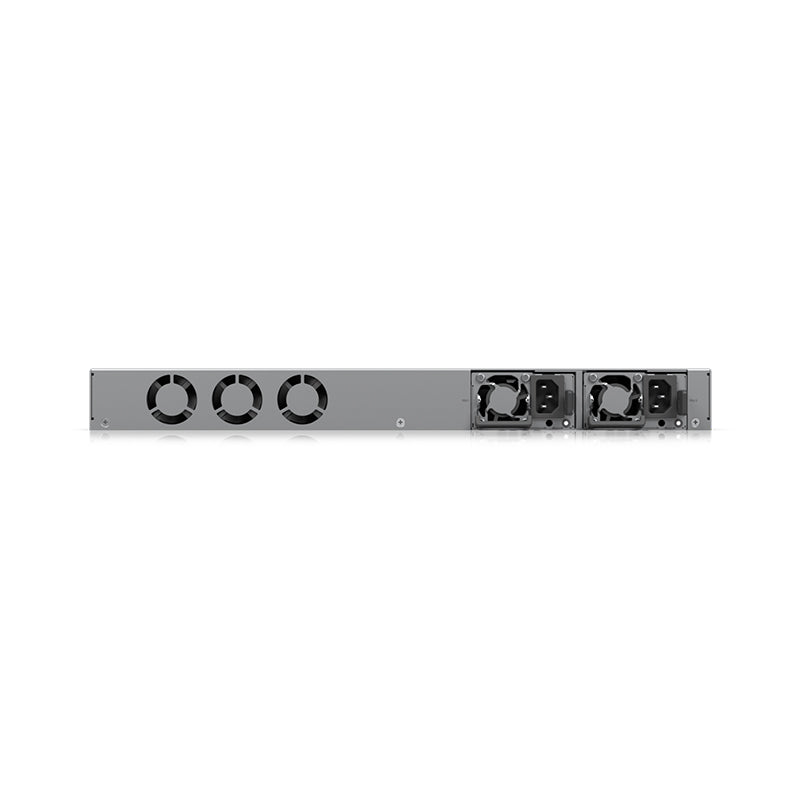

| Power Supply | (2) Hot-swappable 150W CRPS |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 280 BTU/hr |
| Processor | 18-core ARM® v8.2 at 2 GHz |
| Weight | 6.5 kg (14.3 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06375-24-08356, SRRC |
| Software | |
| Application Requirements · Mobile App | UniFi iOS™:Version 10.16.2 and later / UniFi Android™: Version 10.17.2 and later |
