Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
ECS-48-PoE

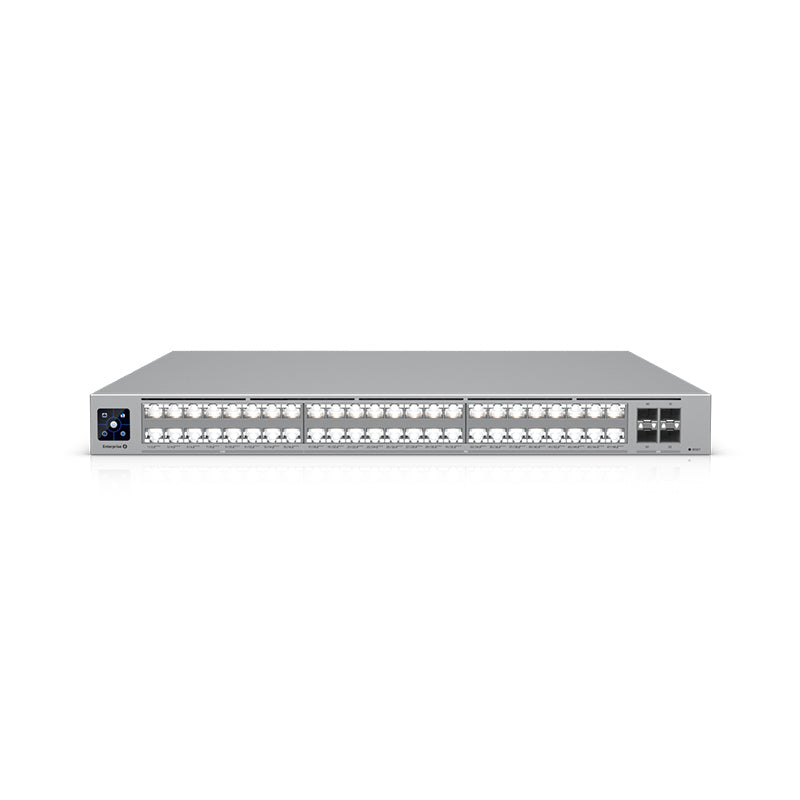

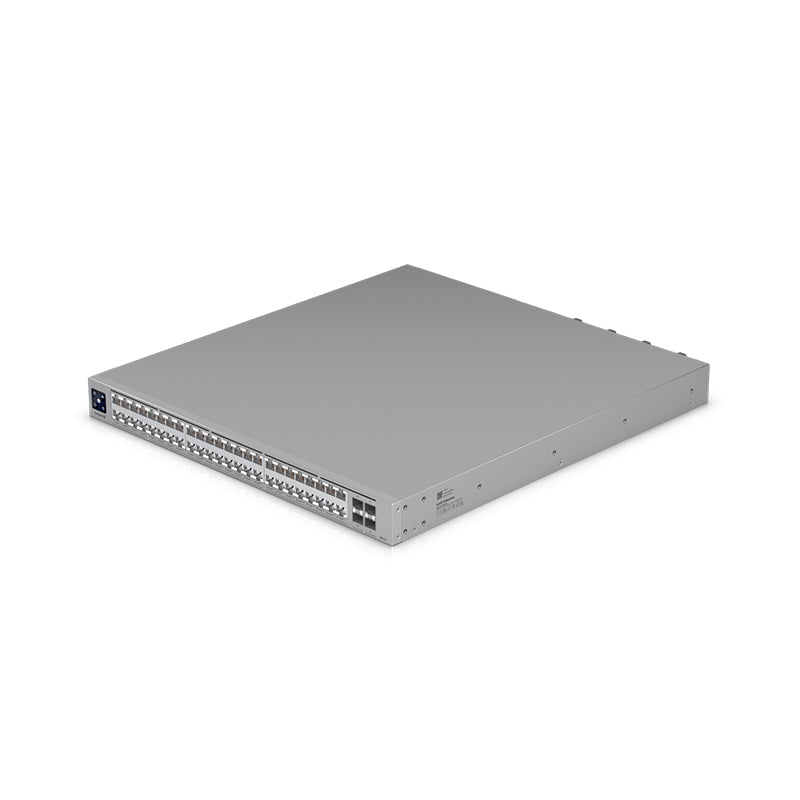

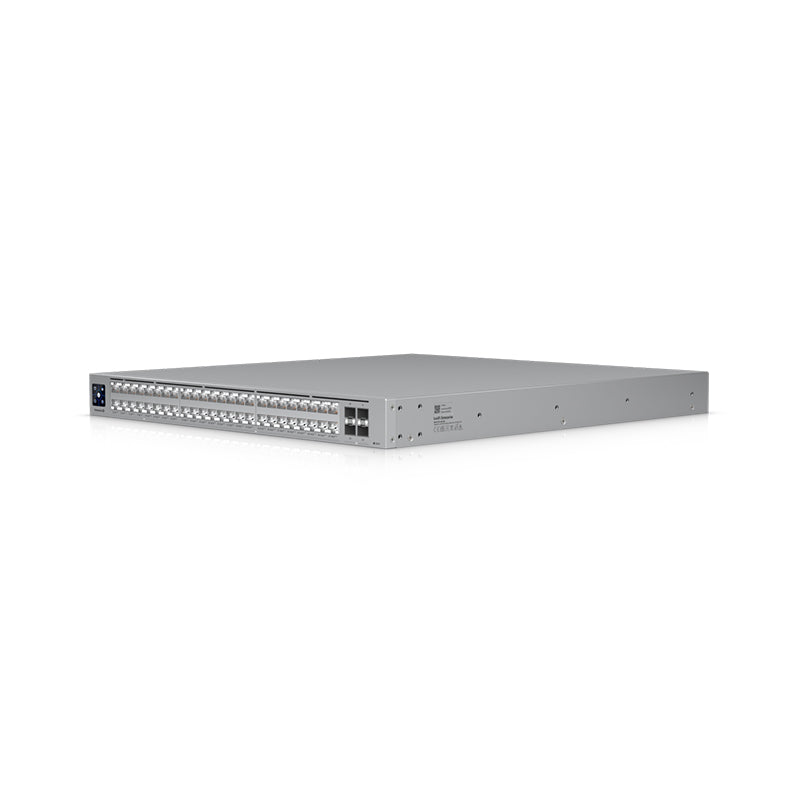

ECS-48-PoE (2150W) Ubiquiti Enterprise Campus 48 PoE Switch
Regular price
£3,798.99 GBP
Unit price
Description
Description

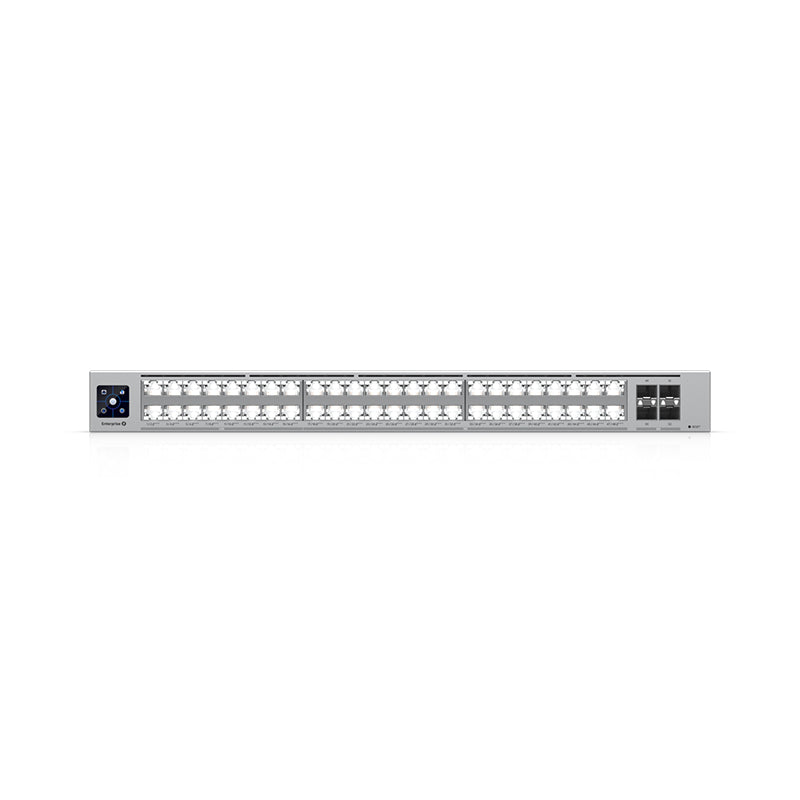

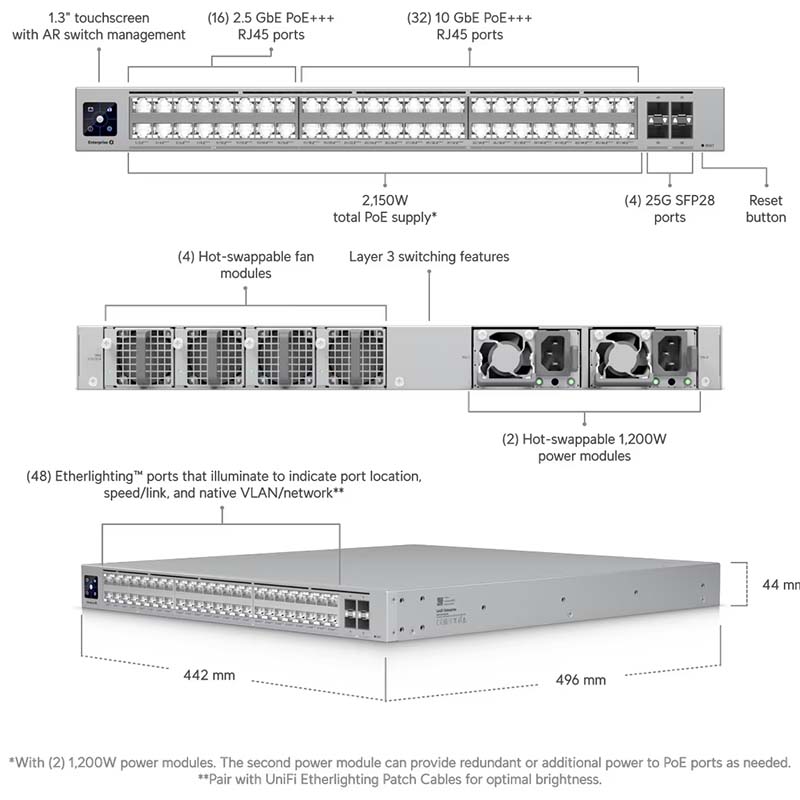

Enterprise-grade, Layer 3 Etherlighting™ PoE switch with (16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++, and (4) 25G SFP28 ports for high availability system design.
Features:
(16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++ ports
(4) 25G SFP28 ports

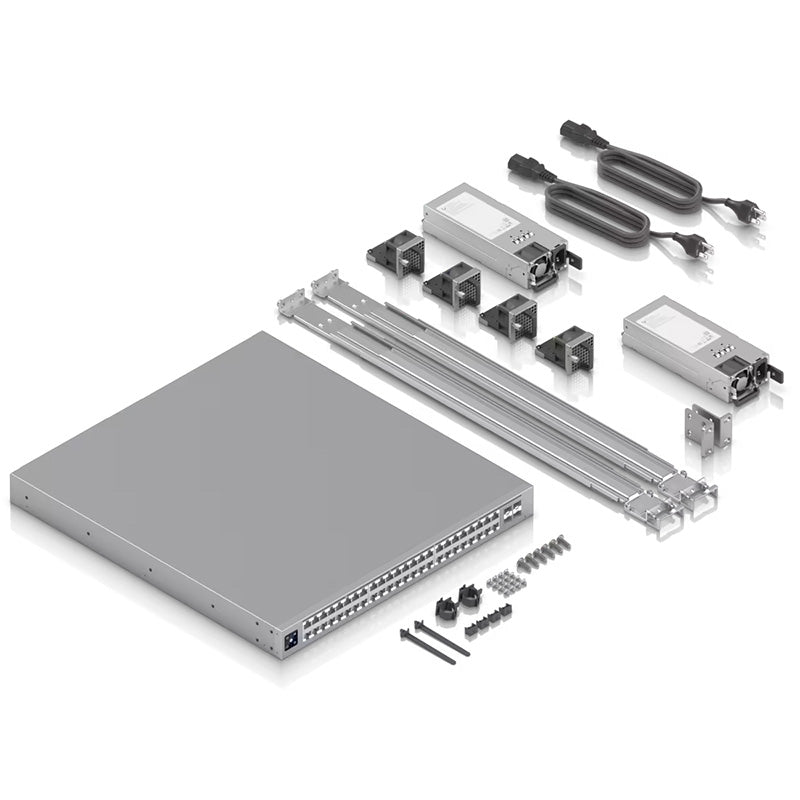

(2) included hot-swappable power modules, with power sharing to expand total PoE availability, or 1+1 redundancy
(4) included hot-swappable fan modules, with 3+1 redundancy

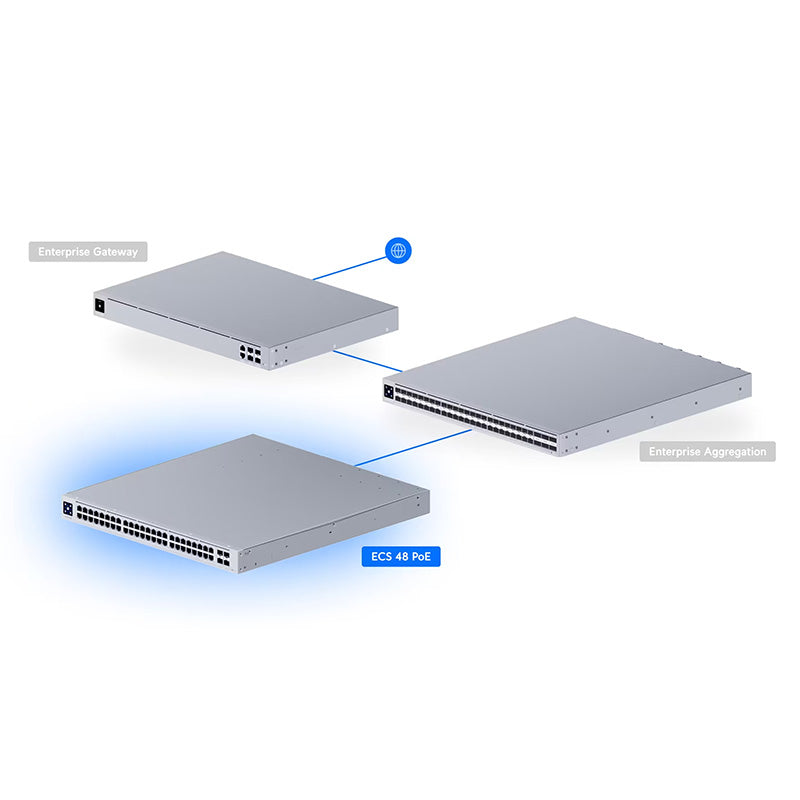

*Recommend being paired with Enterprise Campus Aggregation.
SKU:
ECS-48-PoE
Regular price
£3,798.99 GBP
Unit price
Specifications40 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm / (17.4 x 1.7 x 19.5") |
| Port Layout · 2.5 GbE RJ45 | 16 (All PoE+++) / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 32 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 4 / (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W / 100-120V AC Shared Mode: 1,750W / 200-240V AC Redundant Mode: 950W / 100-120V AC Redundant Mode: 750W |

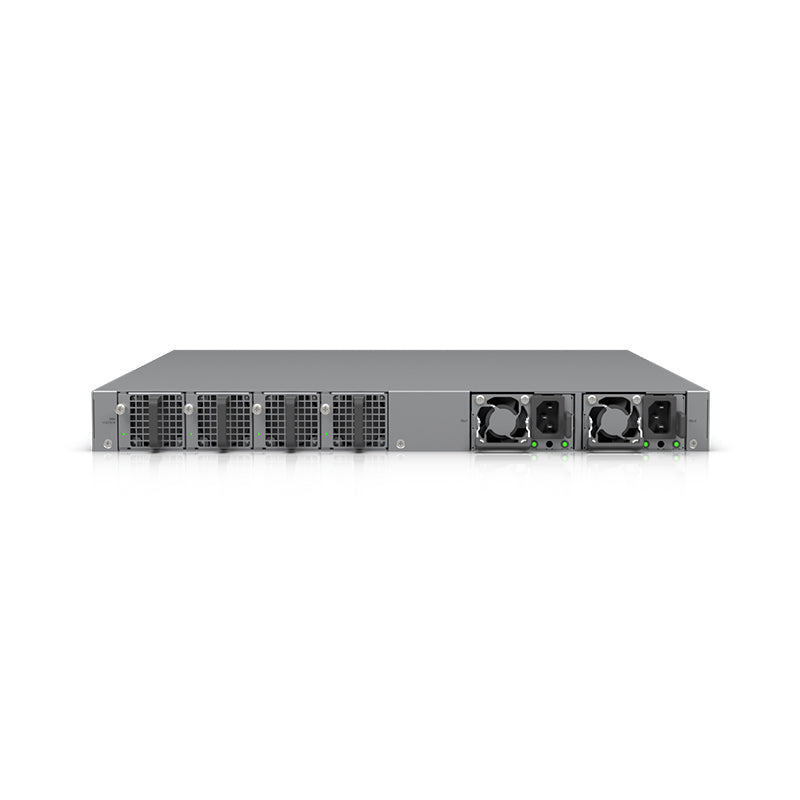

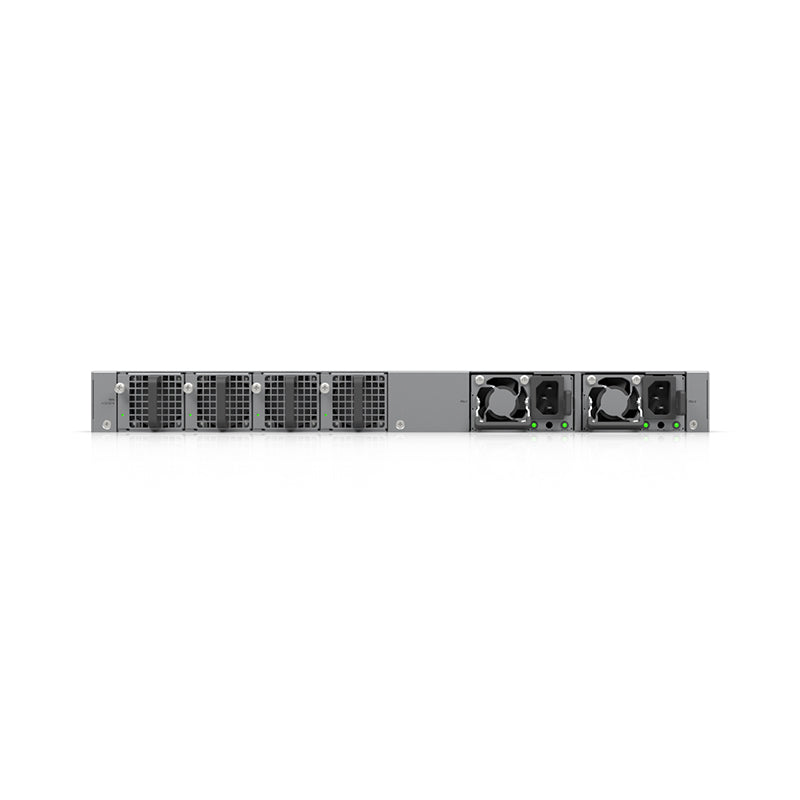

| Redundancy | (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| PoE Ports · PoE+++ | 48 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Max. Power Consumption | 250W (Excluding PoE Output) / 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 785 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) / With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

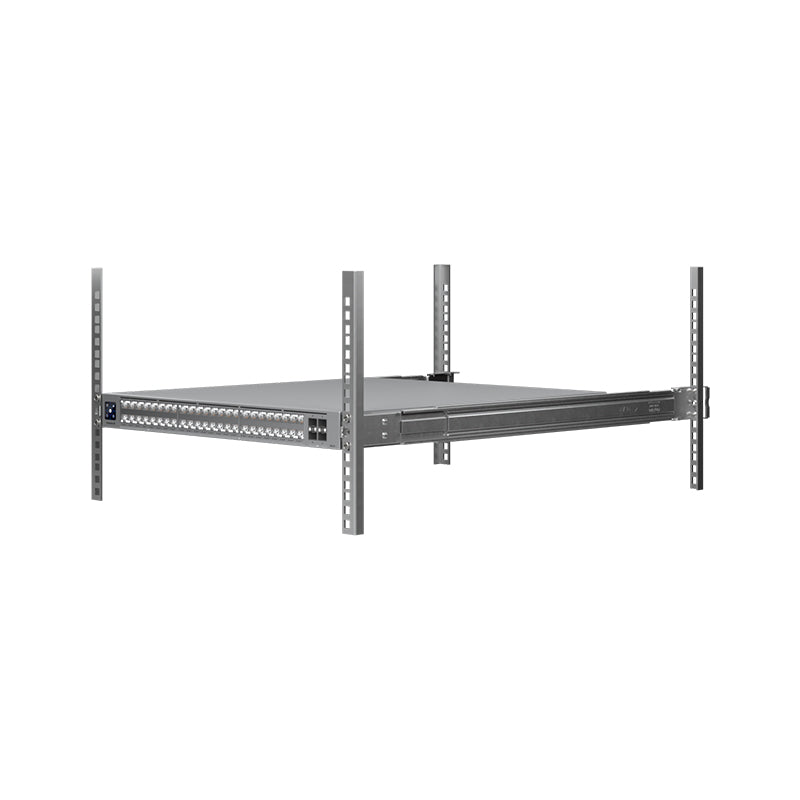

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules |
| ESD Protection | Air: ± 30kV, contact: ± 19kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06181-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model ECS-48-PoE · Ubiquiti's spec sheet
