UXG-Max Ubiquiti Gateway Max
Description
Description
Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
The UXG-Max offers unparalleled network security and management capabilities. With application-aware firewall rules, signature-based IPS/IDS threat detection, and content filtering, it ensures granular control over network traffic while proactively identifying and mitigating potential risks. VLAN/subnet-based traffic segmentation enhances network efficiency and security, while a full stateful firewall provides robust defence against unauthorised access and malicious activities.
With its advanced features, the UXG-Max empowers organisations to build secure, efficient networks tailored to their specific needs.

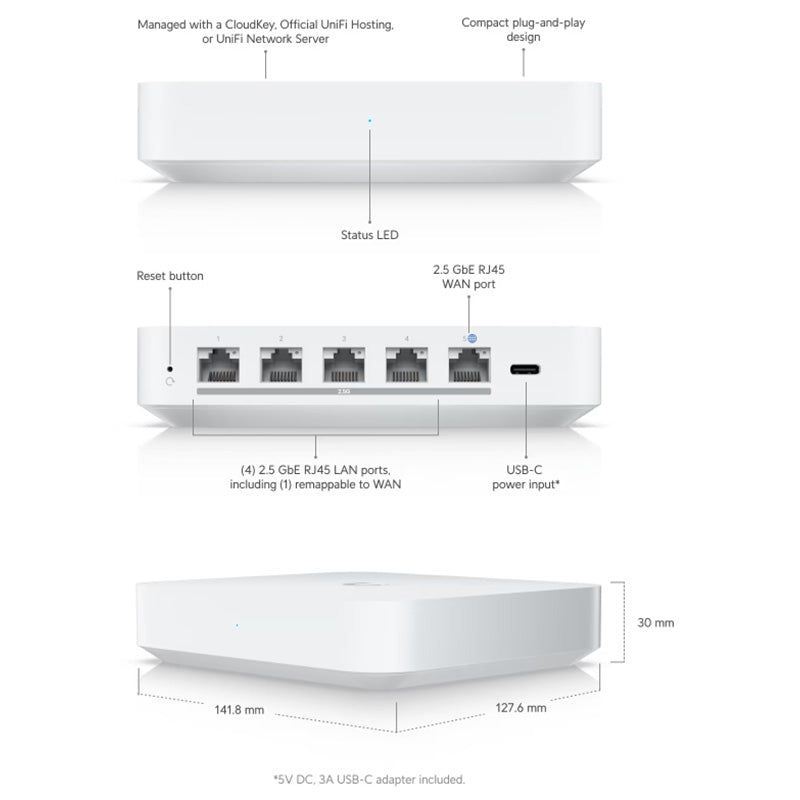

Features:
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 1.5 Gbps routing with IDS/IPS

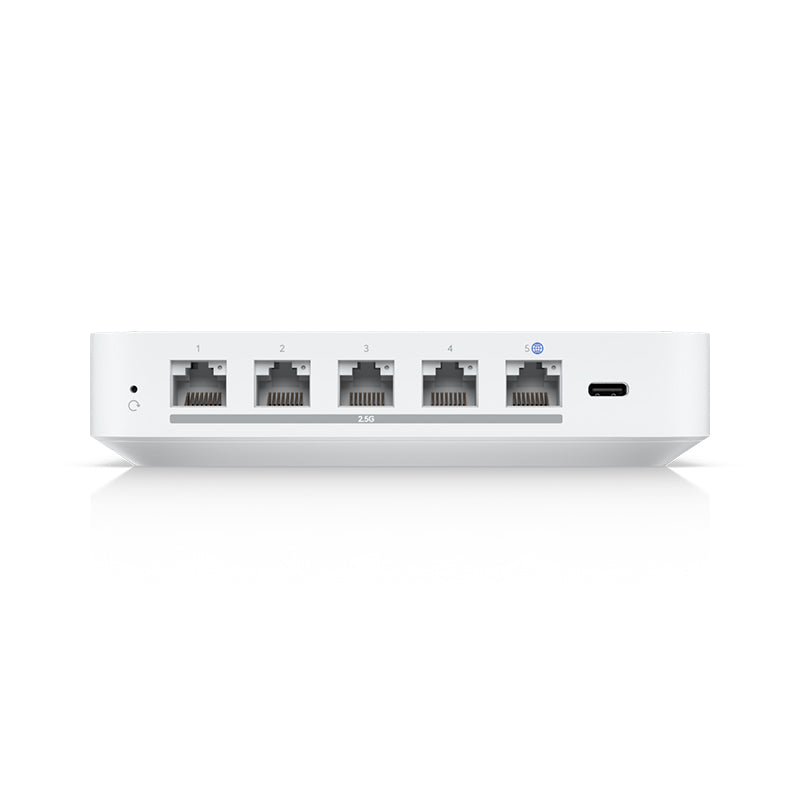

(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN

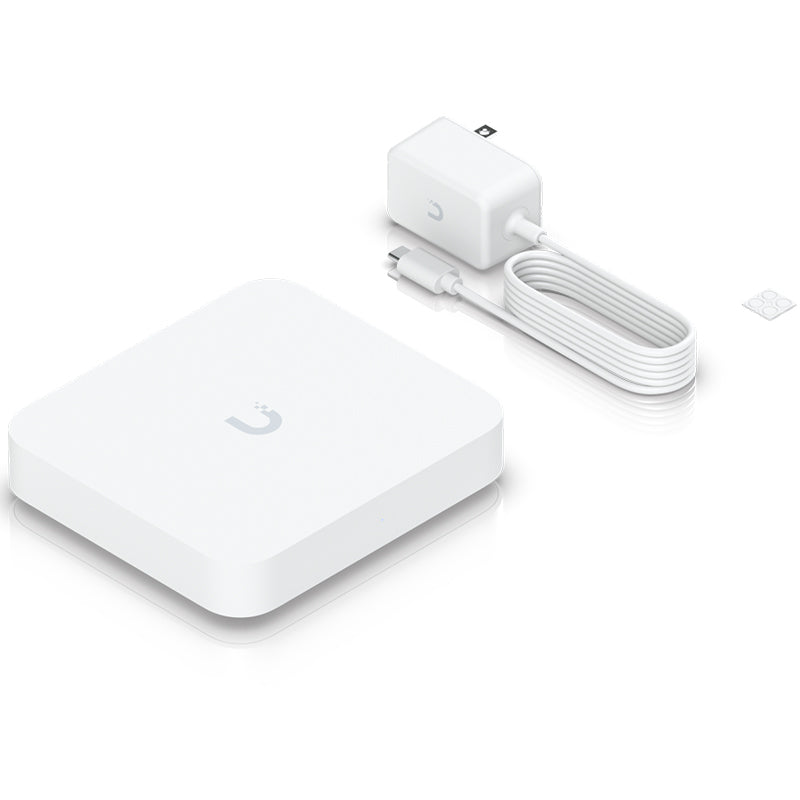

USB-C powered (adapter included)
Managed with UniFi Network 8.1.113 and later
Specifications24 specifications · 5 sections
| Overview | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm / (5.6 x 5 x 1.2") |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| Port Layout · 2.5 GbE RJ45 | 5 / (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| IDS/IPS Signatures | 55,000+ / With CyberSecure |
| Networking | |
| MAC Address Table Size | 2,000 |
| Hardware | |
| Max. Power Consumption | 9.6W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) / (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 33 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04873-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.1.113 and later |
