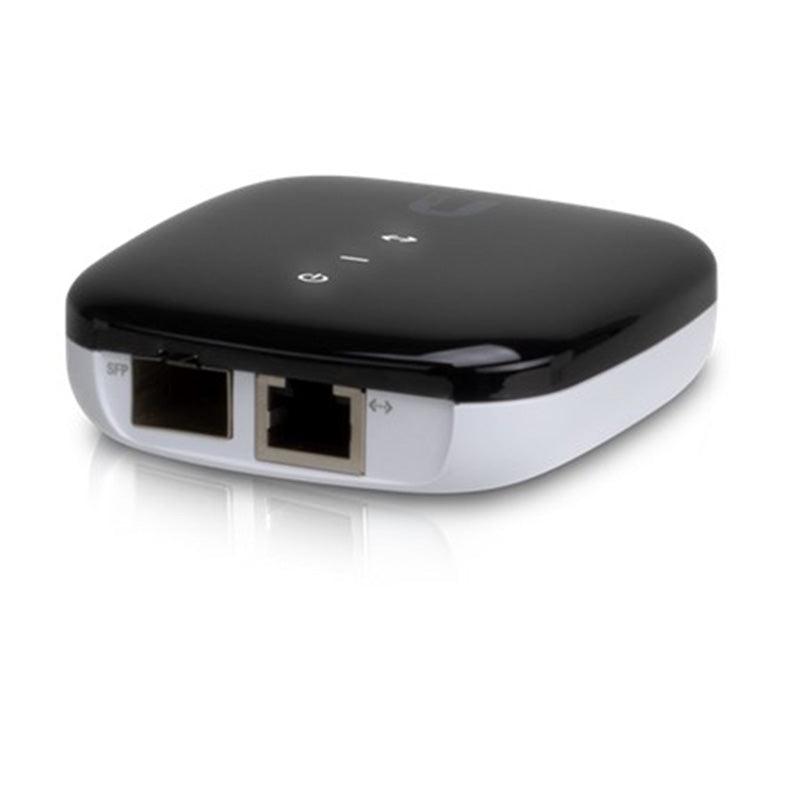

UF-AE Ubiquiti UFiber AE Converter
Description
Description
A fiber-to-copper media module that allows wireless equipment without SFP ports to support fiber uplinks up to 1 Gbps.
The UFiber ActiveEthernet is a 1Gbps fiber-to-copper media converter which allows ISPs to bring active fiber to customers' premises and connect it to affordable SOHO network equipment lacking SFP ports.
The versatile UFiber ActiveEthernet supports all UFiber SFP/SFP+ modules and connects any SFP or SFP+ module at the maximum speed of 1 Gbps. For convenience, it can be powered via 24VDC passive PoE or active PoE.
Features:

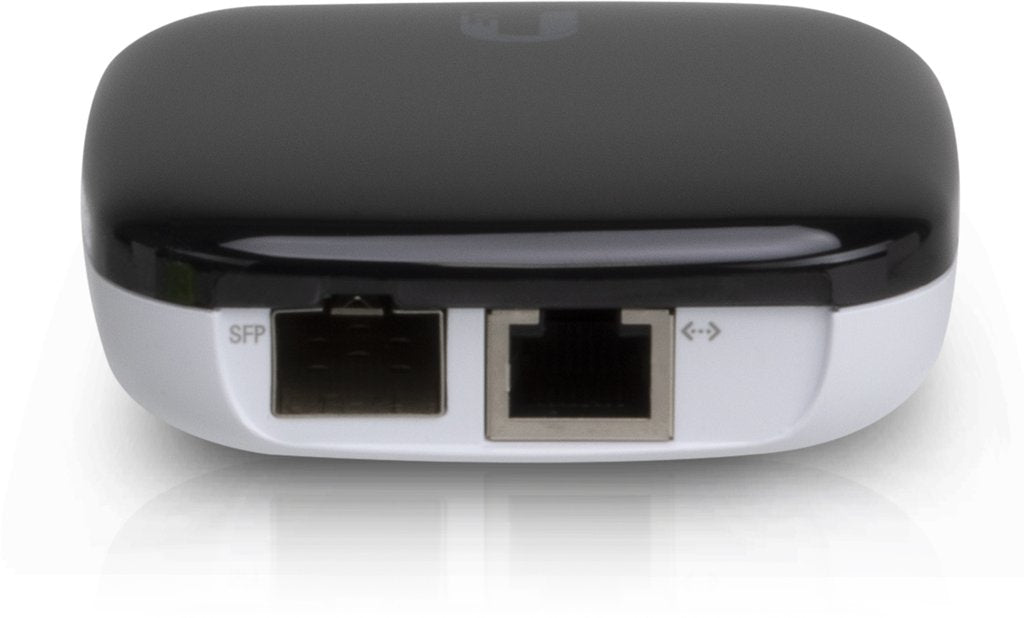

(1) SFP port
(1) RJ45 Gigabit LAN Port
Powered via passive PoE (+24VDC) or via active PoE
Fiber-to-Ethernet conversion
Fiber connectivity to any PoE device
Designed for indoor use

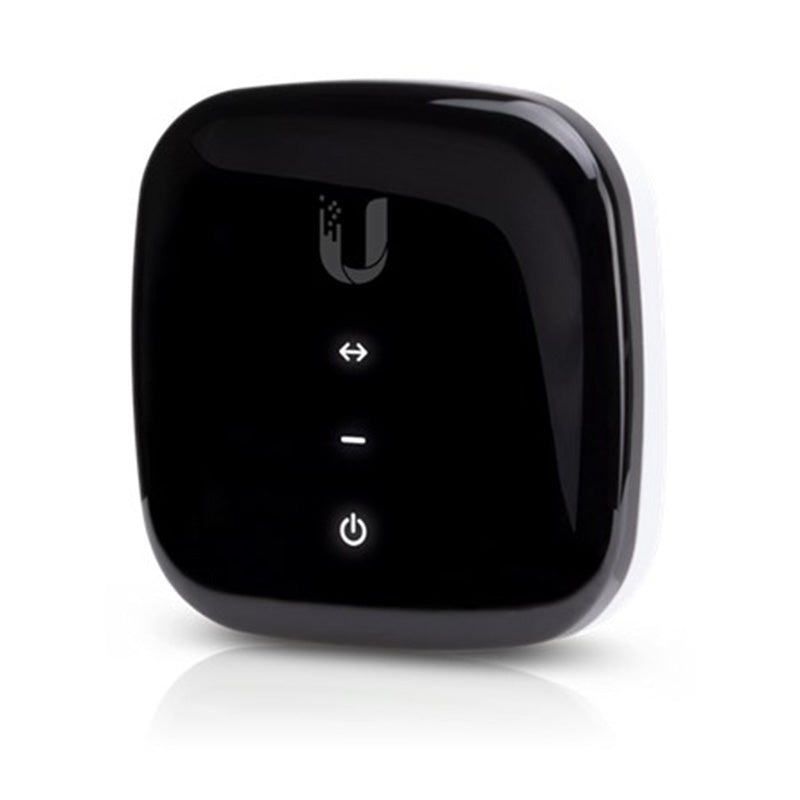

Intuitive link and speed status LEDs
Specifications12 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 76.5 x 76.5 x 26.8 mm / (3 x 3 x 1") |
| Weight | 70 g (2.4 oz) |
| Enclosure Material | UV-stabilized polycarbonate |
| Hardware | |
| Networking Interface | (1) 1G SFP Port / (1) GbE RJ45 port |
| Power Method | PoE / Passive PoE, 24V |
| Power Supply | UniFi PoE switch |
| Supported Voltage Range | 16–57V |
| Max. Power Consumption | 1.5W |
| LEDs | Status, Ethernet |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
