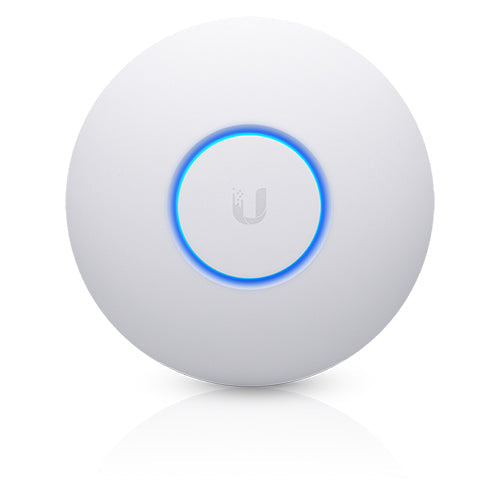

UAP-AC-PRO Ubiquiti UniFi AC Pro AP
Description
Description
The Access Point AC Pro (UAP AC Pro) is a high-performance, indoor/outdoor, 802.11ac WiFi access point that utilizes Wave 1 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (3x3 MIMO) and 2.4 GHz (3x3 MIMO) bands.
The UAP AC Pro broadcasts its signal up to 122 meters (400 feet) away, allowing for greater multi-user support from further away.

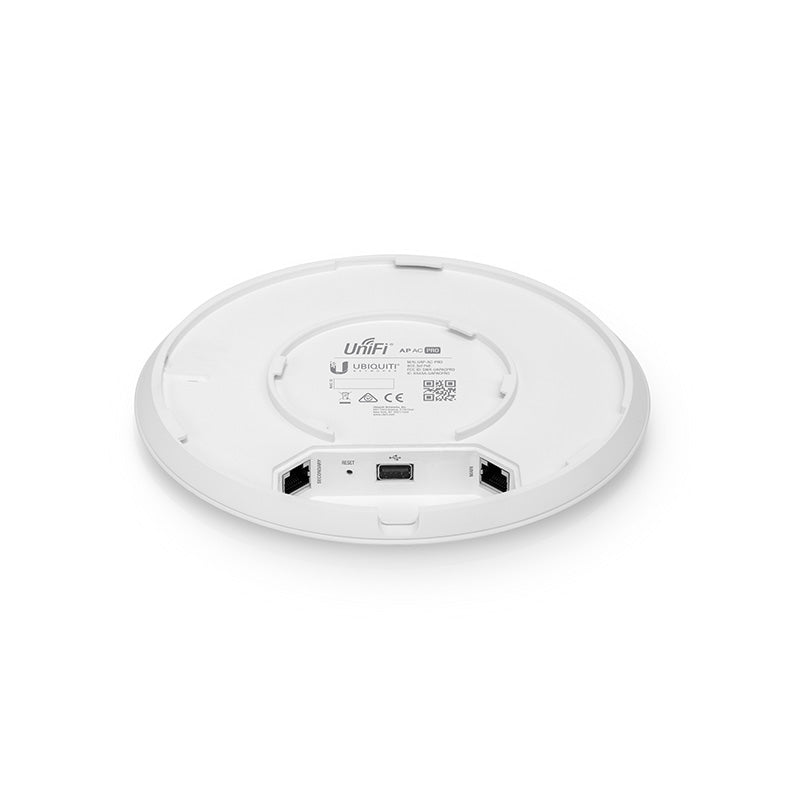

This access point can be powered with PoE or PoE+ *, and it is equipped with (2) GbE RJ45 ports and (1) USB port. The UAP AC Pro can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
802.11ac Wave 1 WiFi technology
5 GHz (3x3 MIMO) band with a 1.3 Gbps throughput rate
2.4 GHz (3x3 MIMO) band with a 450 Mbps throughput rate
Powered with PoE or PoE+*
(2) GbE RJ45 ports
Specifications31 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | ⌀196.7 x 35 mm / (⌀7.7 x 1.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 250+ |
| Uplink | GbE |
| Mounting | Ceiling, Wall / (Pro Mount Supported) |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 3 x 3 (DL MU-MIMO) |
| MIMO · 2.4 GHz | 3 x 3 (DL MU-MIMO) |
| Max. Data Rate · 5 GHz | 1.3 Gbps (BW80) |
| Max. Data Rate · 2.4 GHz | 450 Mbps (BW40) |
| Antenna Gain · 5 GHz | 3 dBi |
| Antenna Gain · 2.4 GHz | 3 dBi |
| Max. TX Power · 5 GHz | 22 dBm |
| Max. TX Power · 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.3 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Weight | Device: 350 g (12.4 oz) / With mount: 450 g (15.9 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate |
| LEDs · System | Status |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -10 to 70° C (14 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01943-16-08356 |
