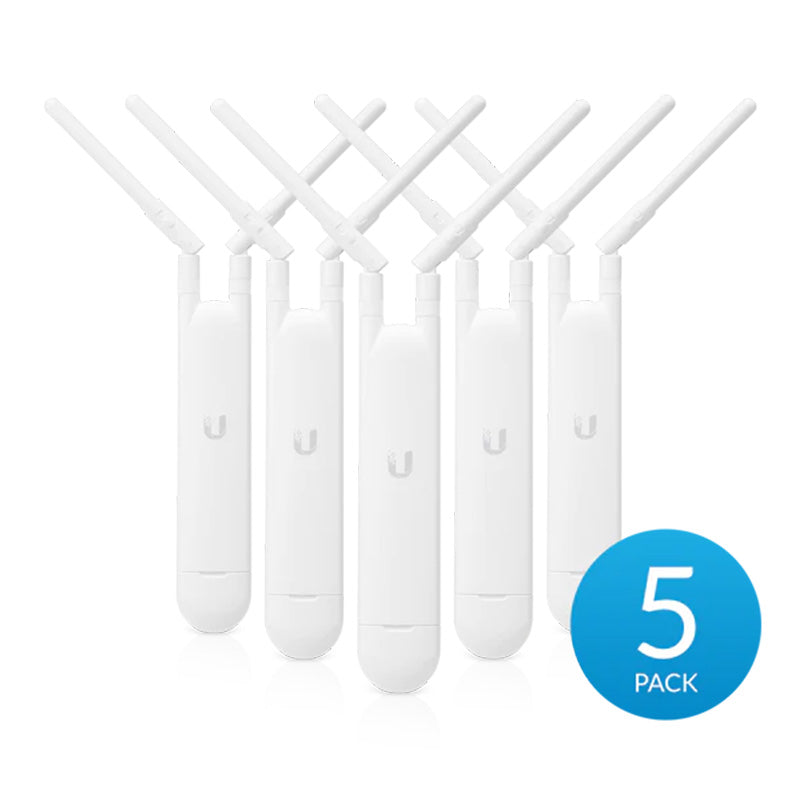

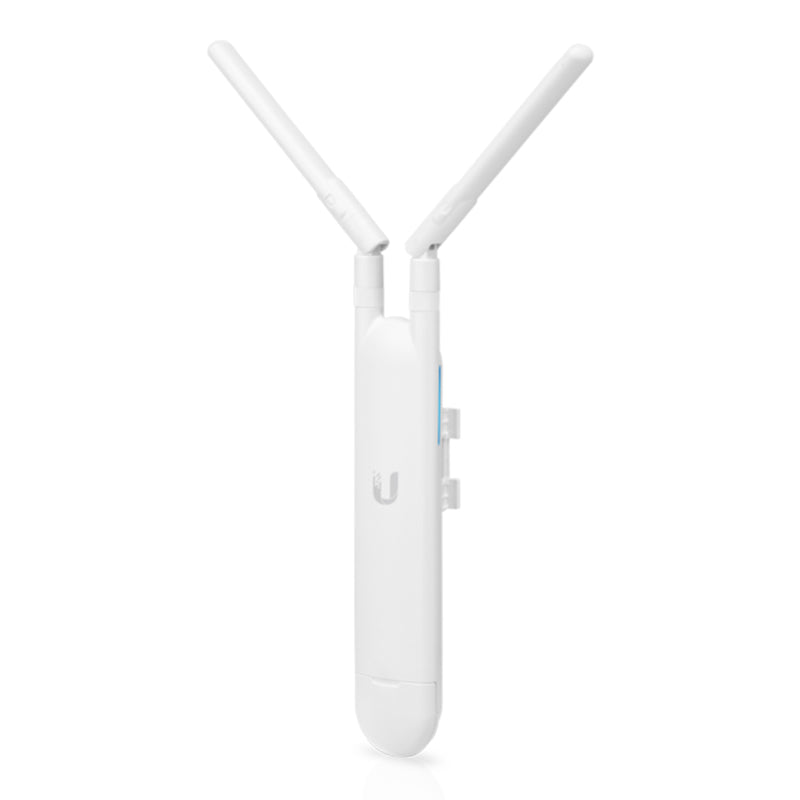

UAP-AC-M Ubiquiti UniFi AC Mesh AP
Description
Description
The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands.
The UAP AC Mesh features two, omnidirectional WIFi antennas (2x2 MIMO) to provide robust and extensive wireless coverage 360° coverage, as well as (2) RP-SMA connectors that can be used in tandem with the antennae for customized pattern shaping.
This access point is powered with either PoE or 24V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Mesh can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
802.11ac Wave 1 WiFi technology
Dual omnidirectional antennae with 2x2 MIMO functionality
5 GHz band with an 867 Mbps throughput rate
2.4 GHz band with a 300 Mbps throughput rate
(2) RP-SMA connectors for customized pattern shaping
Powered with PoE* or 24V passive PoE
(1) GbE RJ45 port
Specifications33 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 353 x 46 x 34.4 mm / (13.9 x 1.8 x 1.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole / (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate · 5 GHz | 867 Mbps (BW80) |
| Max. Data Rate · 2.4 GHz | 300 Mbps (BW40) |
| Antenna Gain · 5 GHz | 4 dBi |
| Antenna Gain · 2.4 GHz | 3 dBi |
| Max. TX Power · 5 GHz | 20 dBm |
| Max. TX Power · 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 22–26V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
| Management | Ethernet / Bluetooth |
| Enclosure Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UKCA, Anatel: 01769-18-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
