Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
UA-HUB-DOOR

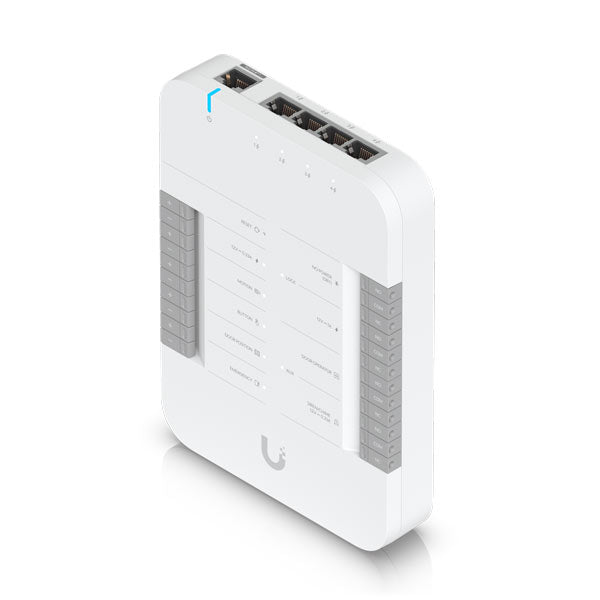

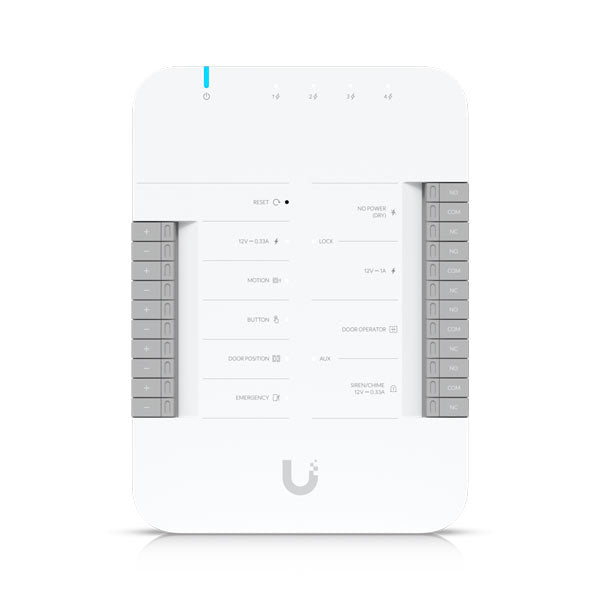

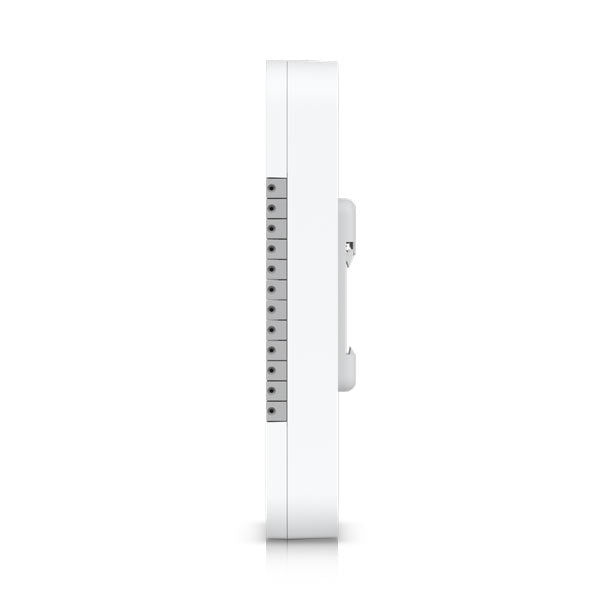

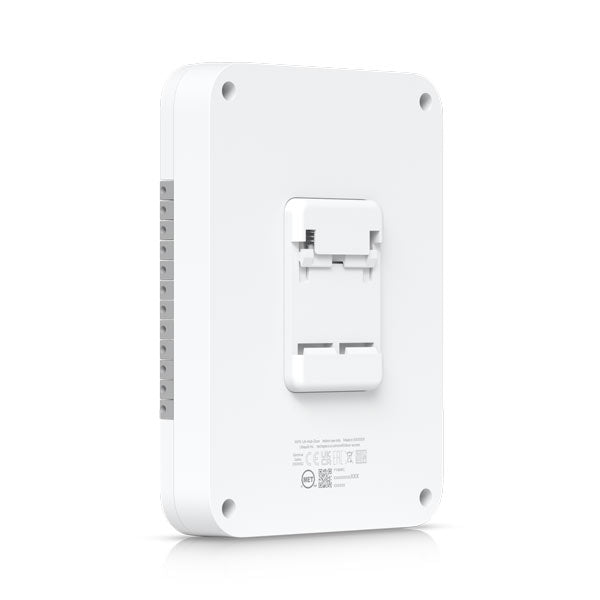

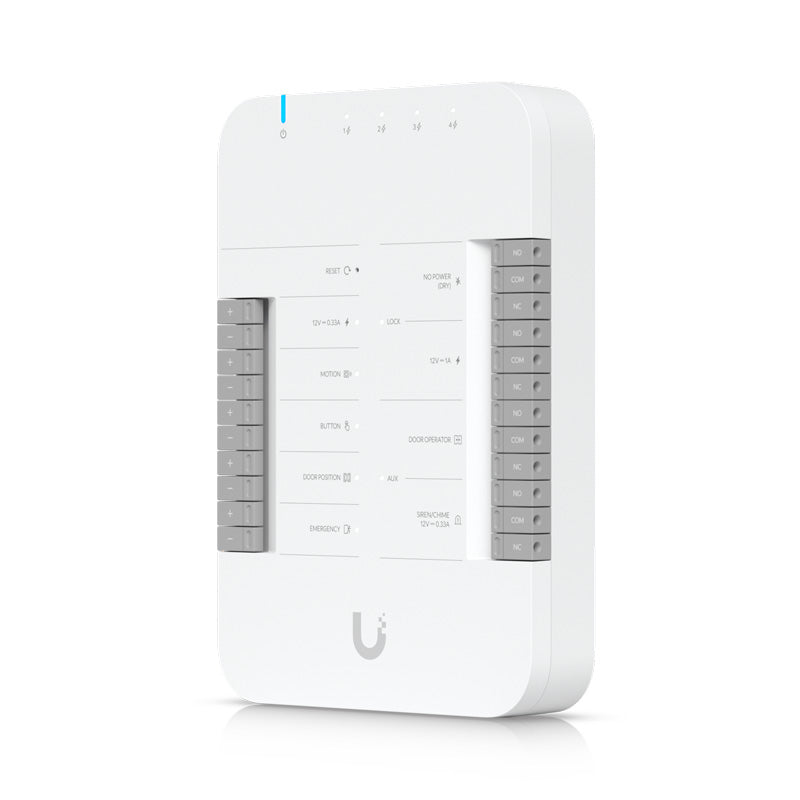

UA-Hub-Door Ubiquiti UniFi Access Hub Door
Regular price
£199.02 GBP
Unit price
Description
Description
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
SKU:
UA-HUB-DOOR
Regular price
£199.02 GBP
Unit price
Specifications32 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 174.9 x 126 x 32.9 mm / (6.9 x 5 x 1.3") |
| Supported Doors | 1 |
| Maximum User Count | 6,000 |
| Input Terminals | (2) Door exit request / (1) Door position / (1) Emergency |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

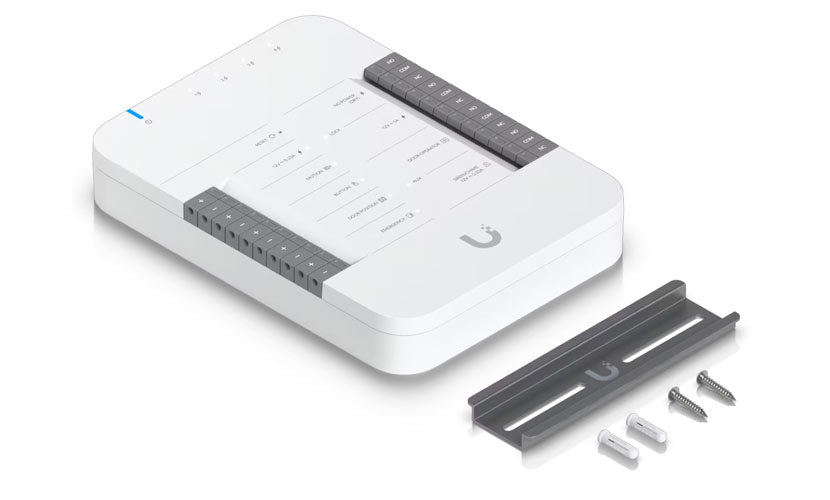

| Mounting | DIN-rail (Included) |
| Hardware | |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A / Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C / (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) / 50W (With PoE output) |
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset |
| Recommend Max. Cable Length · UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · Other locks (1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UA-HUB-DOOR · Ubiquiti's spec sheet
